CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice.
line-EDS-PSxxx REVISION LOG Table 1: Revision log� Date Revision Description 05/20 M259B01-03-19A First Version SYMBOLS Table 2: Symbols� Symbol Description In accordance with the relevant European directive. In accordance with the CMiM directive. Device covered by European Directive 2012/19/EC. At the end of its useful life, do not leave the device in a household refuse bin.

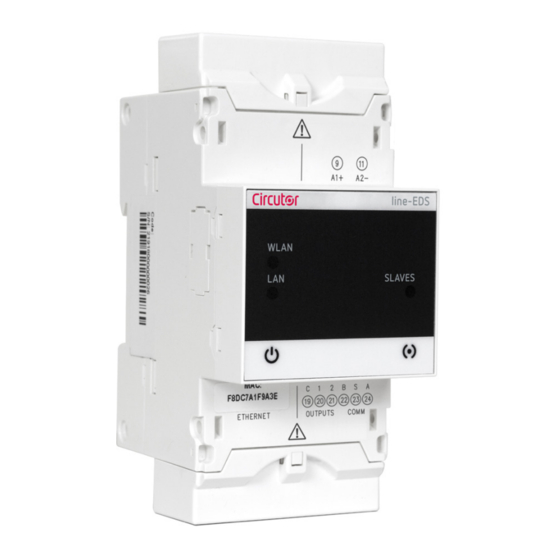

Modbus TCP communications and the PowerStudio energy management software. Circutor has 3 models: line-EDS-PS, with embedded PowerStudio. line-EDS-PSScada, with embedded PowerStudio SCADA. line-EDS-PSScada Pro, with embedded PowerStudio SCADA DELUXE. The device features: - 5 indication LEDs - 2 digital outputs.
line-EDS-PSxxx 3�- INSTALLATION OF THE DEVICE 3.1.- PRELIMINARY RECOMMENDATIONS In order to use the device safely, personnel operating it must follow the safety measures that comply with the standards of the country where it is to be installed; operators must wear the required personal protective equipment (rubber gloves, approved facial protection and flame-resistant clothing) to prevent injuries from electric shock or arcs caused by exposure to current-carrying conductors, and they must heed the various warnings indicated in this instruction manual.
3.3.-72 x 72 mm PANEL ADAPTER Note: The 72 x 72 mm panel adapter is a separately sold accessory. CIRCUTOR has a panel adapter for the line-EDS-PSxxx devices for their installation in 72 x 72 mm panels. illustrates how the panel adapter connects to a line-EDS-PSxxx.
line-EDS-PSxxx line-CVM line-M line-M line-CVM line-CVM line-EDS line-M line-M Figure 5: Typical installation of a line-EDS-PSxxx with 7 devices� Note: An installation may only be fitted with one line-EDS-PSxxx device. Note: In installations without line-EDS-PSxxx devices, only one line-CVM device may ne in- stalled.
line-EDS-PSxxx 3�5�2�- INSTALLATION Before installing a new device, it must be disconnected from all power supplies. The correct steps to connect the devices are: 1�- Using a flat head screwdriver, remove the expansion connector’s protective covers located on the side of the devices, ( Figure 8 Figure 8: Installation step 1�...
Page 12
line-EDS-PSxxx Figure 10: Installation step 3� For correct installation of all devices, please refer to the instruction manual for the different models: M237B01-01-xxx: Instruction Manual for line-CVM devices. M239B01-03-xxx: Instruction Manual for line-M expansion modules. Instruction Manual...
With a browser compatible with HTML5 Con navegador Web compatible con HTML5 With a browser compatible with HTML5 INTERNET SERVIDOR / SERVER ROUTER Ethernet Wi-Fi Wi-Fi line-EDS WLAN Ethernet SLAVES RS-485 Figure 11: line-EDS-PS, line-EDS-PSScada and line-EDS-PSScada Pro connection diagram� Instruction Manual...
line-EDS-PSxxx 4�- OPERATION 4.1.- OPERATING PRINCIPLE The line-EDS-PSxxx is a device that works as connector between field devices with Modbus RTU or Modbus TCP communications and the PowerStudio energy management software. The line-EDS-PSxxx models connect to field devices with Modbus via RS-485, Wi-Fi or via a Modbus TCP Ethernet connection, and they send data to the PowerStudio energy management software.
Page 15
line-EDS-PSxxx LAN, Ethernet connection Table 6: LAN LED� Description On (green color) Connection to a local network Flashing (green color) Activity in the network WLAN, Wi-Fi connection: Table 7: WLAN LED� Description On (blue color) Connection to a Wi-Fi network WLAN Flashing (blue color) Activity in the Wi-Fi network...
line-EDS-PSxxx 5�- COMMUNICATIONS 5.1- RS-485 COMMUNICATIONS line-EDS-PSxxx devices have an RS-485 communications port. 5�1�1�- CONNECTIONS The RS-485 cable must be wired using twisted pair cable with mesh shield (minimum 3 wires), with a maximum distance of 1200 meters between the line-EDS-PSxxx and the slave devices. In this bus we can connect a maximum of 32 slave devices.
line-EDS-PSxxx 5.2- Wi-Fi COMMUNICATIONS 5�2�1�- USAGE ENVIRONMENT AND HEALTH Wireless communications emit radio frequency electromagnetic energy, like other radio devic- Because wireless communications operate under the guidelines found in radio frequency stand- ards and recommendations, they are safe for users to use. In some settings and situations the use of wireless communications may be restricted by the building’s owner of representatives of the organisation.
line-EDS-PSxxx 6�- CONFIGURATION WEBSITE The internal configuration website of the line-EDS-PSxxx models can be found at: http://xxx�xxx�xxx/html/setup�html http://name_dhcp/html/setup�html http://100�0�0�1/html/setup�html Where: xxx�xxx�xxx is the IP address assigned by the user. name_dhcp is the name assigned and authenticated by the name server of the local area network (LAN).
line-EDS-PSxxx Figure 16: Configuration website: line-EDS-PSxxx� 6.1- NETWORK SETUP In this section, the Ethernet communications of the line-EDS-PSxxx are configured. Figure 17: Configuration website: Network setup. Host name: Identifying name within the local network. DHCP: If DHCP is enabled (DHCP On), the IP address is dynamically assigned by a central server and no further parameters need to be configured.
line-EDS-PSxxx Gateway: Gateway. Primary DNS server: Address of the primary DNS server. Secondary DNS server: Address of the secondary DNS server. 6.2- TIME SETUP In this section, the line-EDS-PSxxx time parameters are configured. Figure 18: Configuration website: Time setup. Primary NTP server: Watch synchronisation protocol address, Network Time Provider.
line-EDS-PSxxx 6.4- SECURITY SETUP In this section, the line-EDS-PSxxx password is configured. Figure 20: Configuration website: Security setup. Password: The login password for the device can be on or off. If on, the following parameters need to be configured: User name: username. ...
line-EDS-PSxxx 7�- TECHNICAL FEATURES AC Power supply Rated voltage 80 ... 264 V 50 ... 60 Hz Frequency 2.5 ... 7 VA Consumption CAT III 300 V Installation category DC Power supply Rated voltage 100 ... 300 V 1.5 ... 2.5 W Consumption CAT III 300 V Installation category...
Page 24
line-EDS-PSxxx (Continuation) Environmental features Protection degree IP30, Front: IP40 Mechanical features Dimensions (mm) 52.5 x 118 x 70 mm Weight 180 g Enclosure Self-extinguishing V0 plastic Attachment DIN rail Standards Safety requirements for electrical equipment for measurement, control EN 61010-1 and laboratory use -- Part 1: General requirements Electromagnetic compatibility (EMC) -- Part 6-2: Generic standards - EN 61000-6-2...
