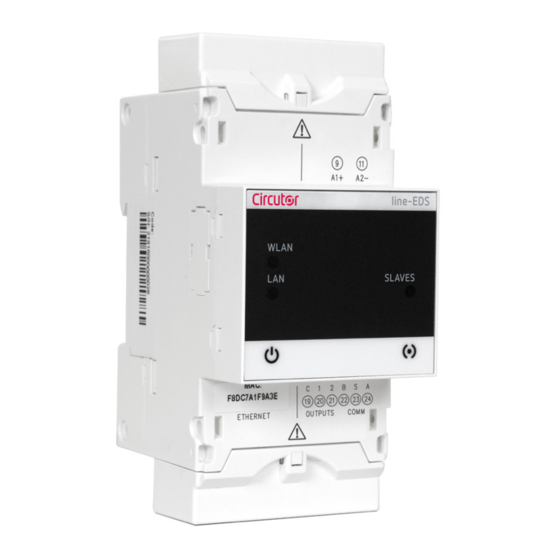

Circutor line-EDS-PS Instruction Manual

Circutor line-EDS-PS Instruction Manual

Energy manager
Hide thumbs Also See for line-EDS-PS:

Advertisement

Energy manager
line-EDS-PS
line-EDS-PSS
line-EDS-PSS-PRO
INSTRUCTION MANUAL
(M259B01-03-20B)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the line-EDS-PS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Circutor line-EDS-PS

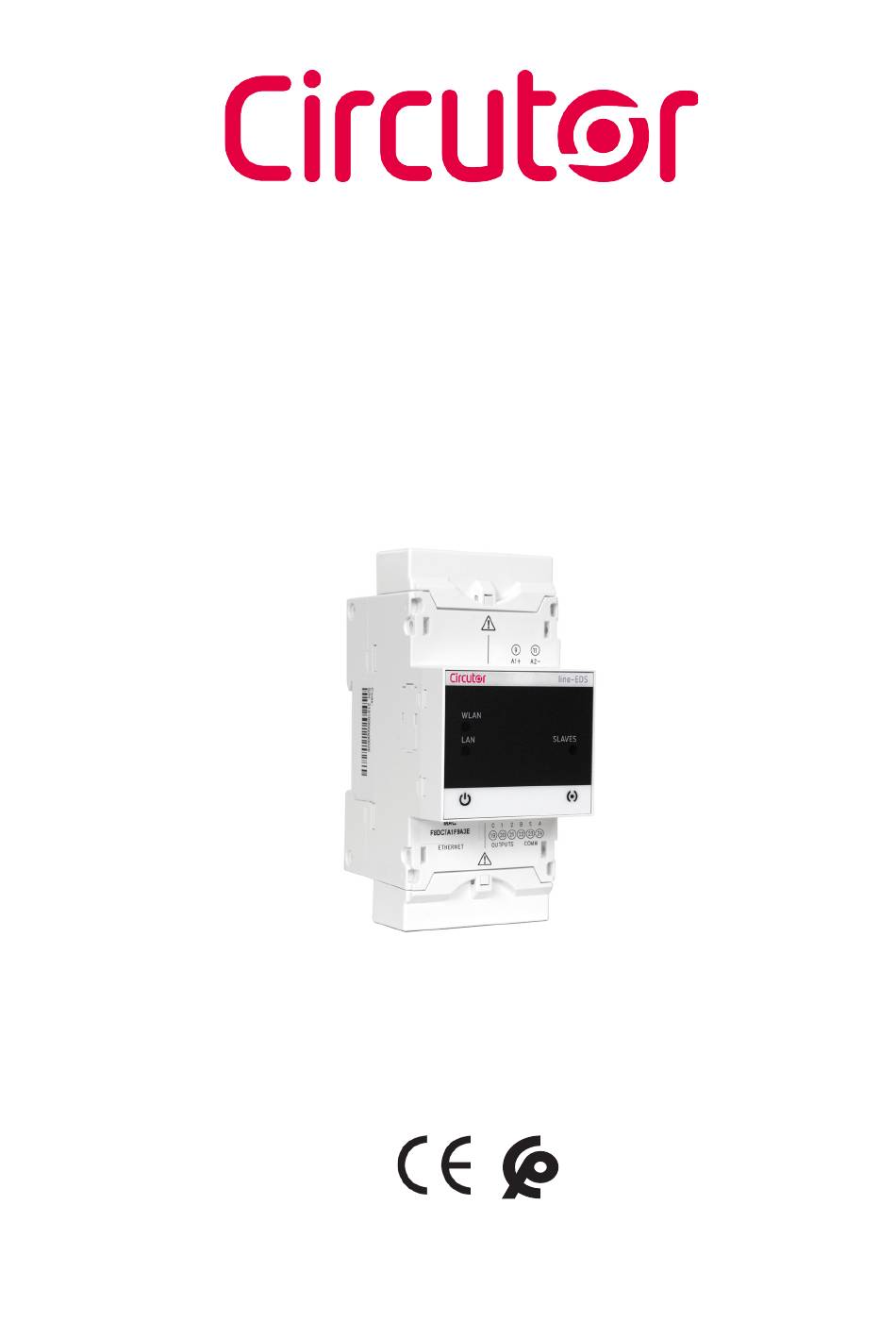

  • Page 1 Energy manager line-EDS-PS line-EDS-PSS line-EDS-PSS-PRO INSTRUCTION MANUAL (M259B01-03-20B)
  • Page 2 line-EDS-PSxxx Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals.
  • Page 4: Table Of Contents

    line-EDS-PSxxx CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �����������������������������������������������������������������������������������������������������������������������������������������������������������������������5 SYMBOLS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������5 1�- VERIFICATION UPON RECEPTION ������������������������������������������������������������������������������������������������������������������������������������6  2�- PRODUCT DESCRIPTION ������������������������������������������������������������������������������������������������������������������������������������������������6  3�- INSTALLATION OF THE DEVICE ��������������������������������������������������������������������������������������������������������������������������������������7 3�1�- PRELIMINARY RECOMMENDATIONS ������������������������������������������������������������������������������������������������������������������������7 3�2�- INSTALLATION ���������������������������������������������������������������������������������������������������������������������������������������������������������7 3�3�-72 x 72 mm PANEL ADAPTER ����������������������������������������������������������������������������������������������������������������������������������8 3�4�- DEVICE TERMINALS �������������������������������������������������������������������������������������������������������������������������������������������������9 3�5�- EXPANSION WITH OTHER DEVICES �������������������������������������������������������������������������������������������������������������������������9 3�5�1�- Line-M-EXT-PS POWER ADAPTER ���������������������������������������������������������������������������������������������������������������...
  • Page 5: Revision Log

    line-EDS-PSxxx REVISION LOG Table 1: Revision log� Date Revision Description 05/20 M259B01-03-19A First Version Changes in the following sections: 07/20 M259B01-03-20A 2. - 3.6. - 4.1. Changes in the following sections: 11/20 M259B01-03-20B SYMBOLS Table 2: Symbols� Symbol Description In accordance with the relevant European directive. In accordance with the CMiM directive.
  • Page 6: 1�- Verification Upon Reception

    Modbus RTU or Mod- PowerStudio bus TCP communications and the energy management software. Circutor has 3 models:  line-EDS-PS, with embedded PowerStudio.  line-EDS-PSS, with embedded PowerStudio SCADA.  line-EDS-PSS-PRO, with embedded PowerStudio SCADA DELUXE. The device features: - 5 indication LEDs - 2 digital outputs.
  • Page 7: 3�- Installation Of The Device

    line-EDS-PSxxx 3.- INSTALLATION OF THE DEVICE 3�1�- PRELIMINARY RECOMMENDATIONS In order to use the device safely, personnel operating it must follow the safety meas- ures that comply with the standards of the country where it is to be installed; operators must wear the required personal protective equipment (rubber gloves, approved facial protection and flame-resistant clothing) to prevent injuries from electric shock or arcs caused by exposure to current-carrying conductors, and they must heed the various...
  • Page 8: 3�3�-72 X 72 Mm Panel Adapter

    3�3�- PANEL ADAPTER 72 x 72 mm Note: The 72 x 72 mm panel adapter is a separately sold accessory. CIRCUTOR has a panel adapter for the line-EDS-PSxxx devices for their installation in 72 x 72 mm panels. illustrates how the panel adapter connects to a line-EDS-PSxxx.
  • Page 9: 3�4�- Device Terminals

    line-EDS-PSxxx 3�4�- DEVICE TERMINALS Ethernet Figure 3: Device terminals: Upper - Lower� Table 4: List of terminals� Device terminals A1: Power supply 21: 1, Digital output 1 A2: Power supply 20: 2, Digital output 2 24: A+, RS-485 19: C, Common of digital outputs 23: S, GND for RS-485 Ethernet, Ethernet connection 22: B-, RS-485...
  • Page 10: 3�5�1�- Line-M-Ext-Ps Power Adapter

    line-EDS-PSxxx line-CVM line-M line-M line-CVM line-CVM line-EDS line-M line-M Figure 5: Typical installation of a line-EDS-PSxxx with 7 devices� Note: An installation may only be fitted with one line-EDS-PSxxx device. Note: In installations without line-EDS-PSxxx devices, only one line-CVM device may ne installed. Note: All line-EDS-PSxxx and line-CVM devices must be connected to the auxiliary power supply.
  • Page 11: 3�5�2�- Installation

    line-EDS-PSxxx 3�5�2�- INSTALLATION Before installing a new device, it must be disconnected from all power supplies. The correct steps to connect the devices are: 1�- Using a flat head screwdriver, remove the expansion connector’s protective covers located on the side of the devices, ( Figure 8 Figure 8: Installation step 1�...
  • Page 12 line-EDS-PSxxx Figure 10: Installation step 3� For correct installation of all devices, please refer to the instruction manual for the different models: M237B01-01-xxx: Instruction Manual for line-CVM devices. M239B01-03-xxx: Instruction Manual for line-M expansion modules. Instruction Manual...
  • Page 13: 3�6�- Connection Diagram

    With a browser compatible with HTML5 Con navegador Web compatible con HTML5 With a browser compatible with HTML5 INTERNET SERVIDOR / SERVER ROUTER Ethernet Wi-Fi Wi-Fi line-EDS WLAN Ethernet SLAVES RS-485 Figure 11: line-EDS-PS, line-EDS-PSS and line-EDS-PSS-PRO connection diagram� Instruction Manual...
  • Page 14: 4�- Operation

    TCP Ethernet connection, and they send data to the PowerStudio energy management software. Three device models are available, depending on the management software:  line-EDS-PS, for the embedded PowerStudio software.  line-EDS-PSS, for the PowerStudio SCADA software.  line-EDS-PSS-PRO, pfor the PowerStudio SCADA DELUXE software.
  • Page 15 line-EDS-PSxxx  LAN, Ethernet connection Table 6: LAN LED� Description On (green color) Connection to a local network Flashing (green color) Activity in the network  WLAN, Wi-Fi connection: Table 7: WLAN LED� Description On (blue color) Connection to a Wi-Fi network WLAN Flashing (blue color) Activity in the Wi-Fi network...
  • Page 16: 4�3- Digital Outputs

    line-EDS-PSxxx 4�3- DIGITAL OUTPUTS The device has 2 digital outputs, optoisolator NPN transistors (terminals 19, 20 and 21 in Figure 3 line-EDS WLAN SLAVES Carga Load Fuente externa External load Salidas de transistor Transistor outputs Figure 13: Digital outputs� Instruction Manual...
  • Page 17: 5�- Communications

    line-EDS-PSxxx 5.- COMMUNICATIONS 5�1- RS-485 COMMUNICATIONS line-EDS-PSxxx devices have an RS-485 communications port. 5�1�1�- CONNECTIONS The RS-485 cable must be wired using twisted pair cable with mesh shield (minimum 3 wires), with a maximum distance of 1200 meters between the line-EDS-PSxxx and the slave devices. In this bus we can connect a maximum of 32 slave devices.
  • Page 18: 5�2- Wi-Fi Communications

    line-EDS-PSxxx 5�2- Wi-Fi COMMUNICATIONS 5�2�1�- USAGE ENVIRONMENT AND HEALTH Wireless communications emit radio frequency electromagnetic energy, like other radio devices. Because wireless communications operate under the guidelines found in radio frequency standards and recommendations, they are safe for users to use. In some settings and situations the use of wireless communications may be restricted by the building’s owner of representatives of the organisation.
  • Page 19: 6�- Configuration Website

    line-EDS-PSxxx 6.- CONFIGURATION WEBSITE The internal configuration website of the line-EDS-PSxxx models can be found at: http:/ /xxx�xxx�xxx/html/setup�html http:/ /name_dhcp/html/setup�html http:/ /100�0�0�1/html/setup�html Where: xxx�xxx�xxx is the IP address assigned by the user. name_dhcp is the name assigned and authenticated by the name server of the local area network (LAN).
  • Page 20: 6�1- Network Setup

    line-EDS-PSxxx Figure 16: Configuration website: line-EDS-PSxxx� 6�1- NETWORK SETUP In this section, the Ethernet communications of the line-EDS-PSxxx are configured. Figure 17: Configuration website: Network setup� Host name: Identifying name within the local network. DHCP: If DHCP is enabled (DHCP On), the IP address is dynamically assigned by a central server and no further parameters need to be configured.
  • Page 21: 6�2- Time Setup

    line-EDS-PSxxx  Primary DNS server: Address of the primary DNS server.  Secondary DNS server: Address of the secondary DNS server. 6�2- TIME SETUP In this section, the line-EDS-PSxxx time parameters are configured. Figure 18: Configuration website: Time setup� Primary NTP server: Watch synchronisation protocol address, Network Time Provider. Secondary NTP server: Network Time Provider’s secondary address, in case NTP 1 fails.
  • Page 22: 6�4- Security Setup

    line-EDS-PSxxx 6�4- SECURITY SETUP In this section, the line-EDS-PSxxx password is configured. Figure 20: Configuration website: Security setup� Password: The login password for the device can be on or off. If on, the following parameters need to be configured:  User name: username. ...
  • Page 23: 7�- Technical Features

    line-EDS-PSxxx 7.- TECHNICAL FEATURES AC Power supply Rated voltage 120 ... 264 V 50 ... 60 Hz Frequency 11 ... 28 VA Consumption CAT III 300 V Installation category DC Power supply Rated voltage 190 ... 300 V 2.5 ... 7 W Consumption CAT III 300 V Installation category...
  • Page 24 line-EDS-PSxxx (Continuation) Environmental features Maximum altitude 2000 m Protection degree IP30, Front: IP40 Mechanical features Dimensions (mm) 52.5 x 118 x 70 mm Weight 180 g Enclosure Self-extinguishing V0 plastic Attachment DIN rail Standards Safety requirements for electrical equipment for measurement, control and la- EN 61010-1 boratory use -- Part 1: General requirements Electromagnetic compatibility (EMC) -- Part 6-2: Generic standards - Immunity...
  • Page 25: 8�- Maintenance And Technical Service

    8.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 ( España) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 26: 10�- Ce Certificate

    line-EDS-PSxxx 10.- CE CERTIFICATE Instruction Manual...
  • Page 27 line-EDS-PSxxx Instruction Manual...
  • Page 28 line-EDS-PSxxx Instruction Manual...
  • Page 29 line-EDS-PSxxx Instruction Manual...
  • Page 30 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.es central@circutor.com...
