- Page 1 BIC 1I22-P2A02-M18MN2-EPX07-050 BIC 2I22-P2A02-M18MF2-EPX07-050 User's Guide...
-
Page 2: Table Of Contents
3.3 Installation in metal 3.4 Offset 3.5 Angular offset 3.6 Startup 3.7 InZone output Technical Data 4.1 Base Mechanical data Electrical data Pigtail Operating conditions Connection configuration 4.2 Remote Mechanical data Electrical data Pigtail Operating conditions Connection configuration Appendix 5.1 Ordering information www.balluff.com... -
Page 3: Safety
(Safety-related circuits). 1.3 Safety notes Caution! Metallic objects must not get in Zone A, B or between the sensing surfaces of the Base and Remote. Fire hazard! www.balluff.com... -
Page 4: Protection From Electromagnetic Fields
Note In the interest of continuous improvement of the product, Balluff GmbH reserves the right to change the technical data of the product and the content of these instructions at any time without notice. www.balluff.com... -
Page 5: System Overview

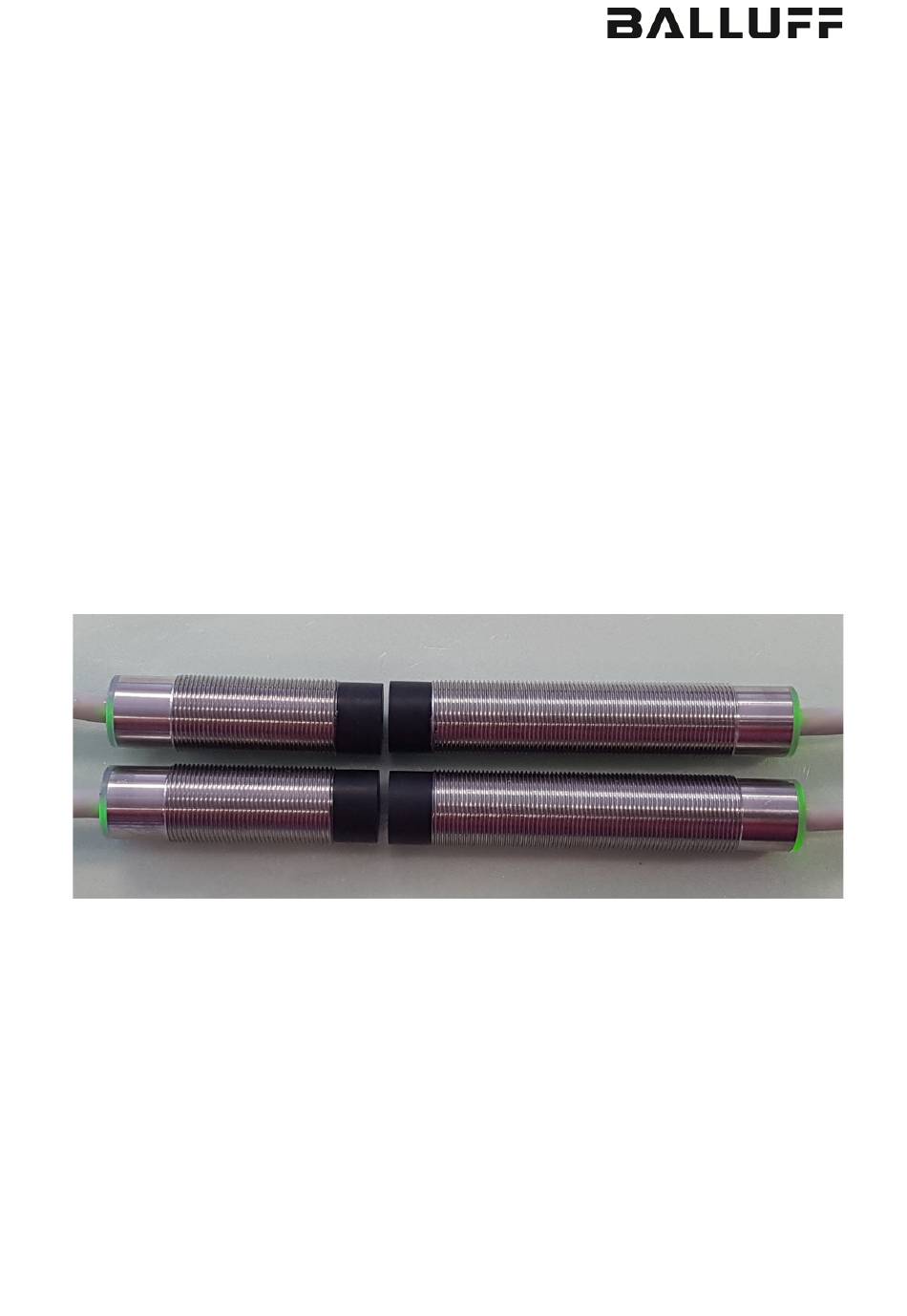

Balluff Inductive Coupler BIC 1I22-P2A02-M18MN2-EPX07-050 (Base) BIC 2I22-P2A02-M18MF2-EPX07-050 (Remote) System Overview 2.1 Topology The BIC system transmits 4 binary signals from the mobile unit (Remote) via the air gap to the stationary unit (Base). In addition to this signal transmission, the BIC system provides electric power to the sensors connected to the Remote. -
Page 6: Installation
The transmission distance may also be affected by the type of metal. Type A (mm) B (mm) C (mm) ≥ 4 ≥ 15 ≥ 20 BIC 1I22-P2A02-M18MN2-EPX07-050 ≥ 4 ≥ 15 ≥ 20 BIC 2I22-P2A02-M18MF2-EPX07-050 3.4 Offset Permitted distances / offset of the axes Type... -
Page 7: Angular Offset
Of a longer cable is used nonetheless, take all possible measures to protect the receiver from overvoltage peaks. Note Use Base Coupler (BIC 1I22-P2A02-M18MN2-EPX07-050) exclusively with Remote Coupler (BIC 2I22-P2A02-M18MF2-EPX07-050) Commissioning cannot occur until assembly of the entire actuation line, including the Base, Remote and sensors, is complete For safety considerations the components must always be installed with power off. -
Page 8: Technical Data
No-load current Number of digital outputs 4 x PNP Max. current load for outputs (mA) ≤. 50 mA In Zone signal/ data valid Operational readiness < 80 ms Transfer frequency 60 Hz Overload protection Polarity reversal protection Short-circuit protection www.balluff.com... -
Page 9: Pigtail
Balluff Inductive Coupler BIC 1I22-P2A02-M18MN2-EPX07-050 (Base) BIC 2I22-P2A02-M18MF2-EPX07-050 (Remote) Technical Data Pigtail Number of conductors Cable length in mm 5000 Conductor cross-section 0.34 mm Cable diameter D 4.5 mm Bending radius fixed cable 5 x D Bending radius repeated 10 x D... -
Page 10: Remote
12 V DC ±10% No. of digital inputs 4 x PNP ≤ 80ms Operational readiness Transfer frequency 60 Hz ≤ 100 mA Output current Permitted inductive load < 200 mH Permitted capacitive load < 20 µF Short-circuit protection In Zone Signal www.balluff.com... -
Page 11: Pigtail
Balluff Inductive Coupler BIC 1I22-P2A02-M18MN2-EPX07-050 (Base) BIC 2I22-P2A02-M18MF2-EPX07-050 (Remote) Technical Data Pigtail Number of conductors Cable length in mm 5000 Conductor cross-section 0.34mm Cable diameter D 4.5 mm Bending radius fixed cable Bending radius repeated 10xD Cable jacket material Operating Transmission distance 1…..3 mm... -
Page 12: Appendix
Appendix 5.1 Ordering Product name Order code information BIC 1I22-P2A02-M18MN2-EPX07-050 (Base) BIC007T BIC 2I22-P2A02-M18MF2-EPX07-050 (Remote) BIC007U www.balluff.com... - Page 13 Balluff Inductive Coupler BIC 1I22-P2A02-M18MN2-EPX07-050 (Base) BIC 2I22-P2A02-M18MF2-EPX07-050 (Remote) Notes www.balluff.com...
