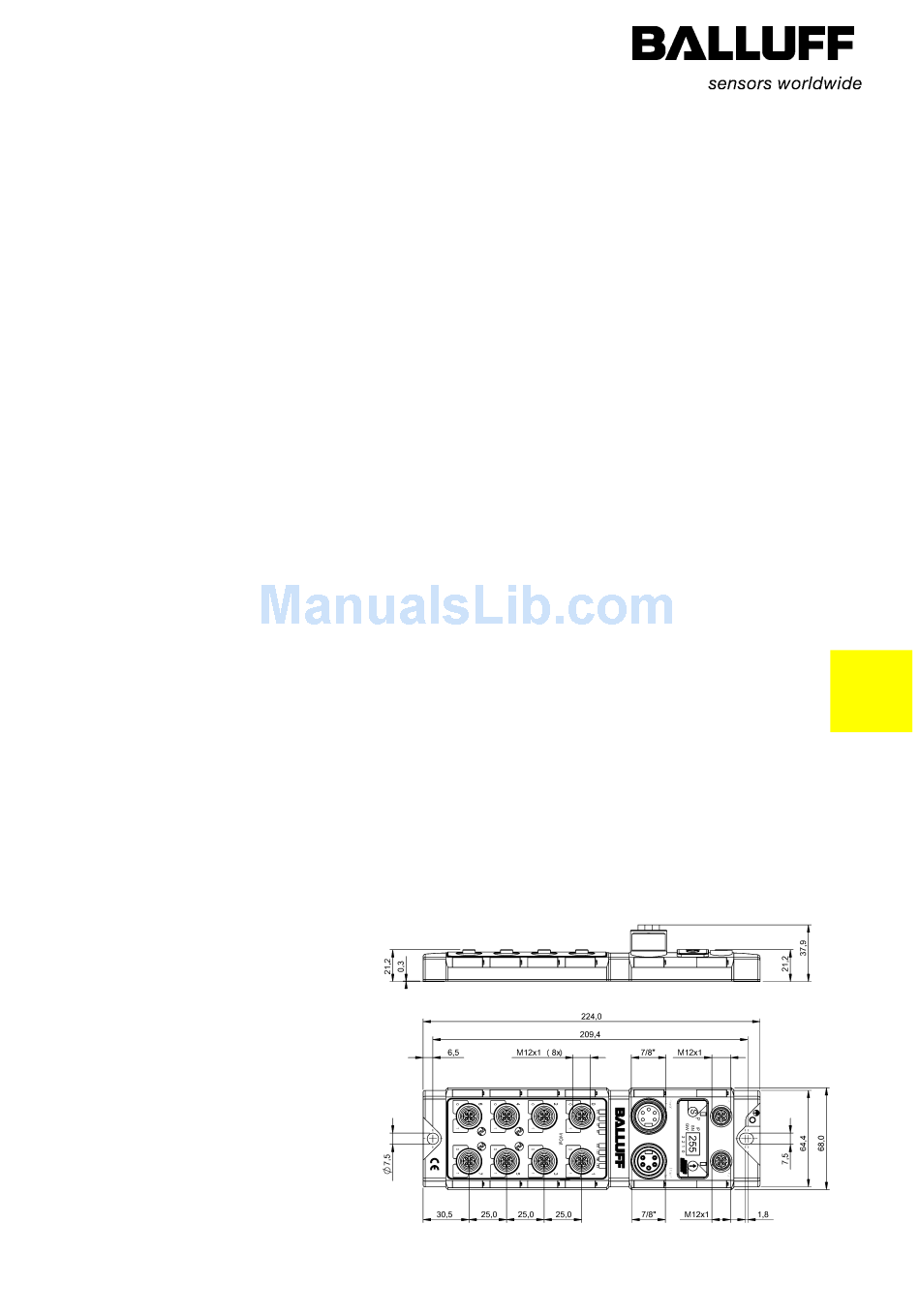

- Page 1 BNI PNT-502-105-Z015 IP67 Modules 4 IO-Link/In-/Outputs,12 In-/Outputs User’s Guide...
-
Page 2: Table Of Contents
Naming of the device Configuration of the Ethernet address Finish Hardware Configuration Integration to the ProfiNet network Scanning the system Succesfully integrated in the system Webserver 6.1. General 6.2. Home 6.3. Diagnostic Process 6.4. Device Properties 6.5. Diagnostic Module 6.6. Configurations www.balluff.com... - Page 3 Content Appendix 7.1. Included material 7.2. Ordercode 7.3. Order Information www.balluff.com...
-
Page 4: Notes
Balluff Network Interface Profinet, BNI PNT-502-105-Z015 Notes 1.1. About this guide The BNI PNT-… serves as a decentralized IO-Link, input and output module for connecting to an ProfiNet™ network. 1.2. Structure of the The guide is organized so that the chapters build on one another. -
Page 5: Safety
The pictogram used with word ”Caution“ warns of a possible hazardous situation affecting the health of persons or equipment damage. Ignoring these warnings can result in injury or equipment damage. Always observe the described measures for preventing this danger. www.balluff.com... -
Page 6: Getting Started
Balluff Network Interface Profinet, BNI PNT-502-105-Z015 Getting Started 3.1. Modul overview Figure 1 – Overview BNI PNT-502-105-Z015 Mounting hole Port 6 (IO-Link, Standard I/O) PROFINET ™ port 2 Port 4 (IO-Link, Standard I/O) Display Port 2 (Standard I/O) Power Supply In... -
Page 7: Mechanical Connection
The FE connection from the housing to the machine must be low-impedance and kept as short as possible. PROFINET M12, D-coded, female Interface Function Note! Unused I/O port socket must be fitted with cover caps to ensure IP67 protection rating. www.balluff.com... -
Page 8: I/O-Port
Balluff Network Interface Profinet, BNI PNT-502-105-Z015 Getting Started I/O-Port M12, A-coded, female Function +24V, 200mA Input / Output Input / Output Note! For the digital sensor inputs follow the input guideline per EN61131-2, type 2. Note! Each output serves a maximum current of 2,0 amperes. The IO-Link Ports only 1,6 A. -
Page 9: Technical Data
- Severity level 2B/3A/4B/2B/3A - EN 55011 - Gr.1, CL. B Shock/vibration EN 60068-2-6, EN 60068-2-27 EN 60068-2-29, EN 60068-2-64 4.4. Electrical data Supply voltage 18...30.2 V DC, per EN 61131-2 Ripple <1% Input current at 24 V 130 mA www.balluff.com... -
Page 10: Profinet
Balluff Network Interface Profinet, BNI PNT-502-105-Z015 Technical data 4.5. PROFINET port 1 x 10Base-/100Base-Tx PROFINET Connection for PROFINET port M12, D-coded Cable types per IEEE 802.3 Shielded twisted pair min. STP CAT 5/ STP CAT 5e Data transmission rate 10/100 Mbit/s Max. -
Page 11: Integration
The device data required for project planning are stored in GSDML files (Generic Station Description Markup Language). The GSDML files are available in 2 languages for downloading over the Internet (www.balluff.com). The data modules of an IO-Link module are represented in the project planning software by slot. -
Page 12: Including The Module To Configuration
Balluff Network Interface Profinet, BNI PNT-502-105-Z015 Integration Including the module to Configuration Object properties www.balluff.com... -
Page 13: Naming Of The Device
Integration Naming of the device Configuration of the Ethernet address www.balluff.com... -
Page 14: Finish Hardware Configuration
Balluff Network Interface Profinet, BNI PNT-502-105-Z015 Integration Finish Hardware Configuration Integration to the ProfiNet network www.balluff.com... -
Page 15: Scanning The System
Integration Scanning the system Selection of the Device names MAC ID of the Device Succesfully integrated in the system MAC ID of the Device Assigned Device name www.balluff.com... -
Page 16: Webserver
First make sure that a correct integration into your network has been done. To get a connection to the webserver enter the IP address of the module to your browser address bar. A welcome page with a list of all Balluff Ethernet Network-interfaces is shown. Please use Internet Explorer 7 or higher. -
Page 17: Appendix
4 blind plugs M12 • Ground strap • Screw M4x6 • 20 labels 7.2. Ordercode BNI PNT-502-105-Z015 Balluff Network Interface ProfiNet Functions 502 = IP 67 IO-Link Master-Modul Variants 105 = Display version, 2-port switch Mechanical version Z015 = Material Die-cast zinc. - Page 18 Balluff Network Interface Profinet, BNI PNT-502-105-Z015 Notes www.balluff.com...
