INSTALLING THE ROUTER

The carriage is set from the factory for the
Porter Cable7518 router motor. If you are
mounting the PC 7518, proceed to Step 17. If
you have another motor other than the Porter
Cable 7518 proceed to Step 12.
Step 12: Using the crank handle, crank the lift
carriage up so that it just contacts the O-rings at
the top of the carriage shafts. The carriage
should be all the way toward the table top.

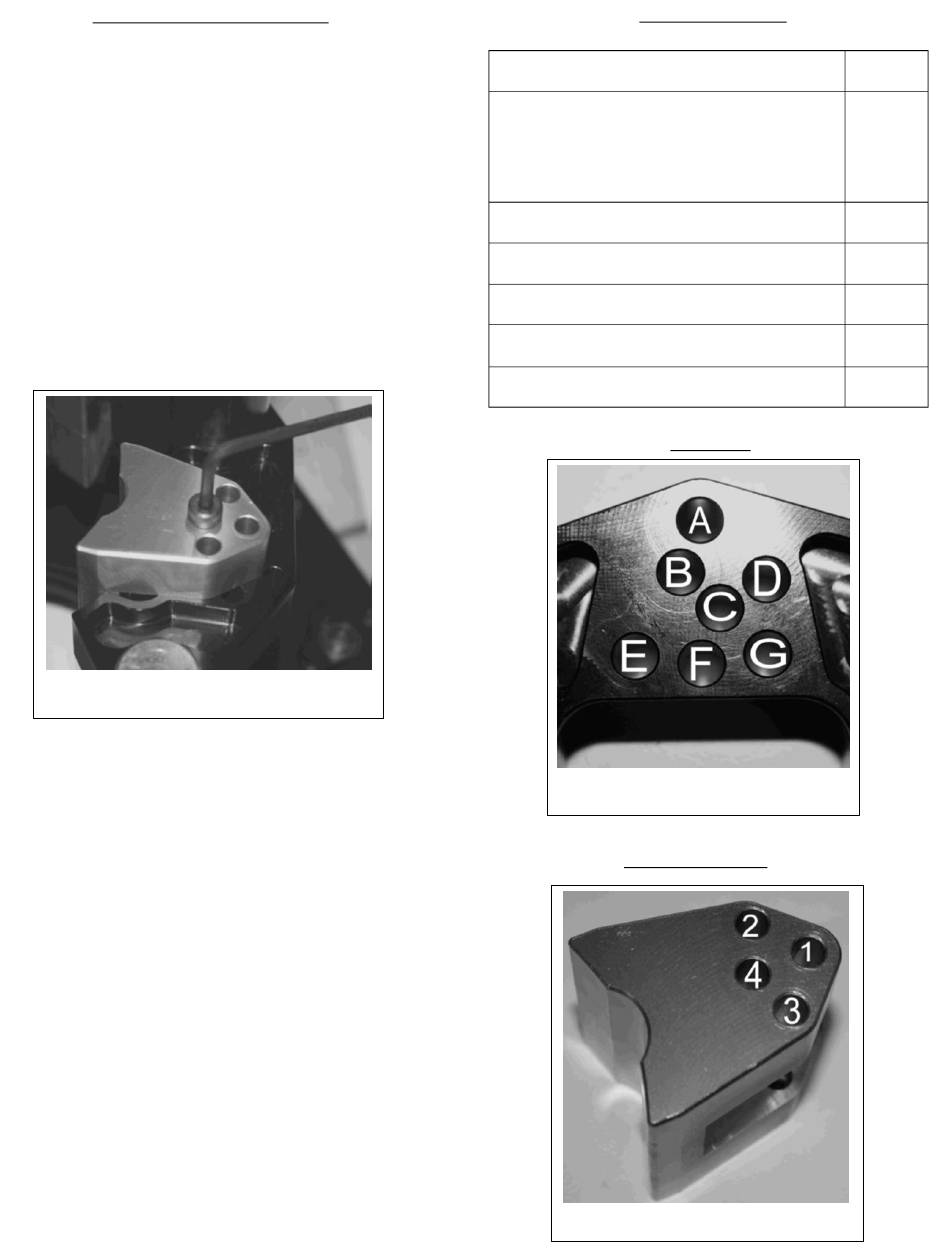

Step 13: With a
1/8" hex key, remove one of the
¼" shoulder bolts from one of the clamping
blocks and slide the clamping block on the
carriage. (See Figure #13)
Figure 13
Step 14: Locate your router on the chart below
Step 15: Align the letter and number associated
with your router (Figure #14 and Figure #15)
and reinsert and tighten the ¼- x 1-1/2" Shoulder
Bolt you removed in Step 13.
ROUTER CHART
Porter Cable 7518
Porter Cable 690/890
Bosch 1617/1618
DeWalt 610/616/618
Craftsman 17543/17540/28190
Makita 1101
Hitachi M12VC/KM12VC
Milwaukee 5626
Milwaukee 5615/5616/5619
Rigid R29302
CARRIAGE
Figure 14
CLAMPING BLOCK
Figure 15
A1
F4
C1
E2
D3
G3
B1
