Making VLAN Connections

This switch supports VLANs which can be used to organize any group of
network nodes into separate broadcast domains. VLANs confine
broadcast traffic to the originating group, and can eliminate broadcast
storms in large networks. This provides a more secure and cleaner network
environment.
VLANs can be based on untagged port groups, or traffic can be explicitly
tagged to identify the VLAN group to which it belongs. Untagged VLANs
can be used for small networks attached to a single switch. However,
tagged VLANs should be used for larger networks, and all the VLANs
assigned to the inter-switch links.
The switch also supports multiple spanning trees which allow VLANs
groups to maintain a more stable path between all VLAN members. This
can reduce the overall amount of protocol traffic crossing the network, and
provide a shorter reconfiguration time when any link in the spanning tree
fails.
R&D
VLAN 1
VLAN 2
Testing
Note: When connecting to a switch that does not support IEEE 802.1Q
VLAN tags, use untagged ports.
2-6
Console
Tagged
Ports
Untagged Ports
Finance
Marketing
VLAN 3
VLAN 4

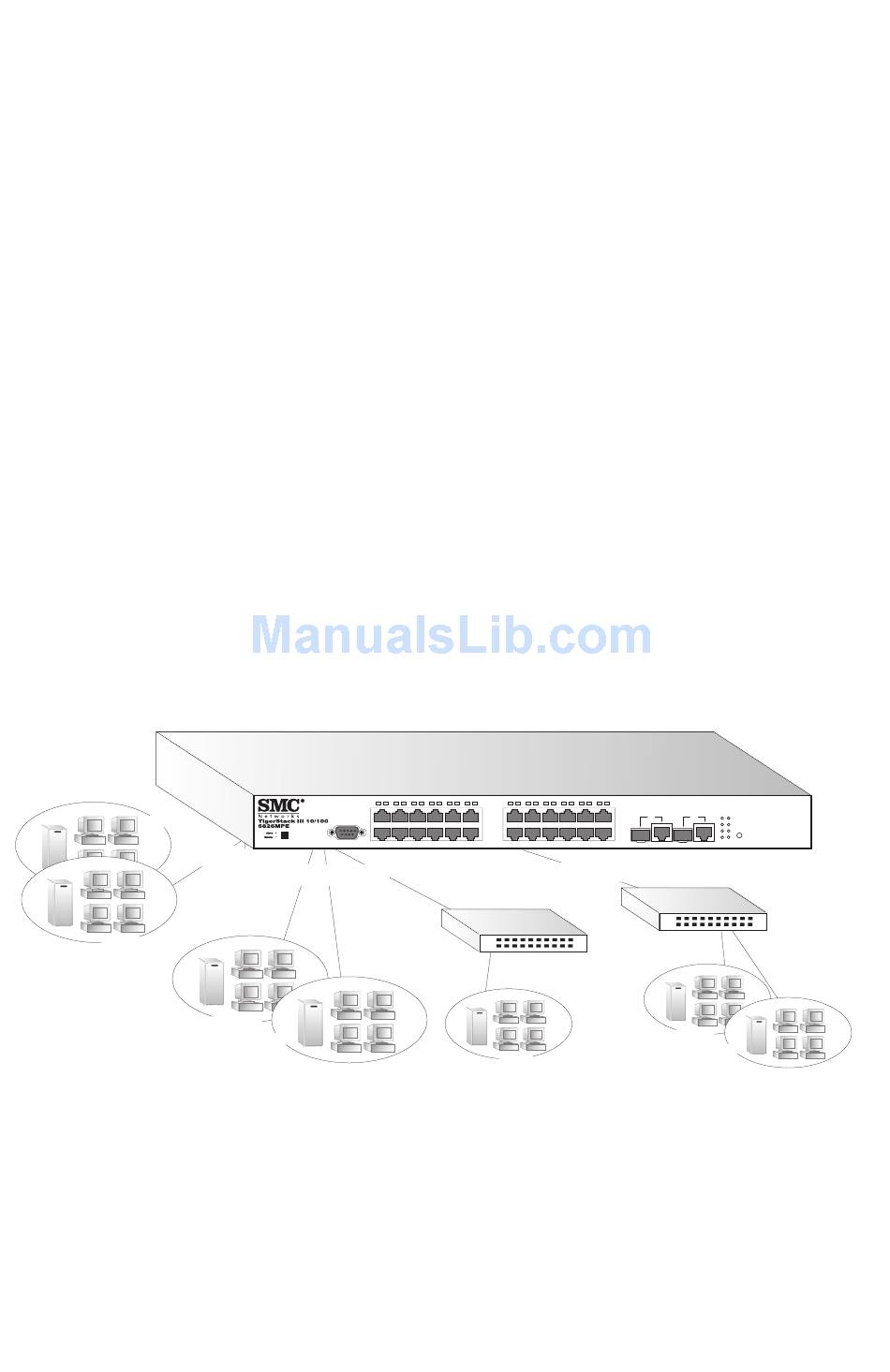

Figure 2-4 Making VLAN Connections
