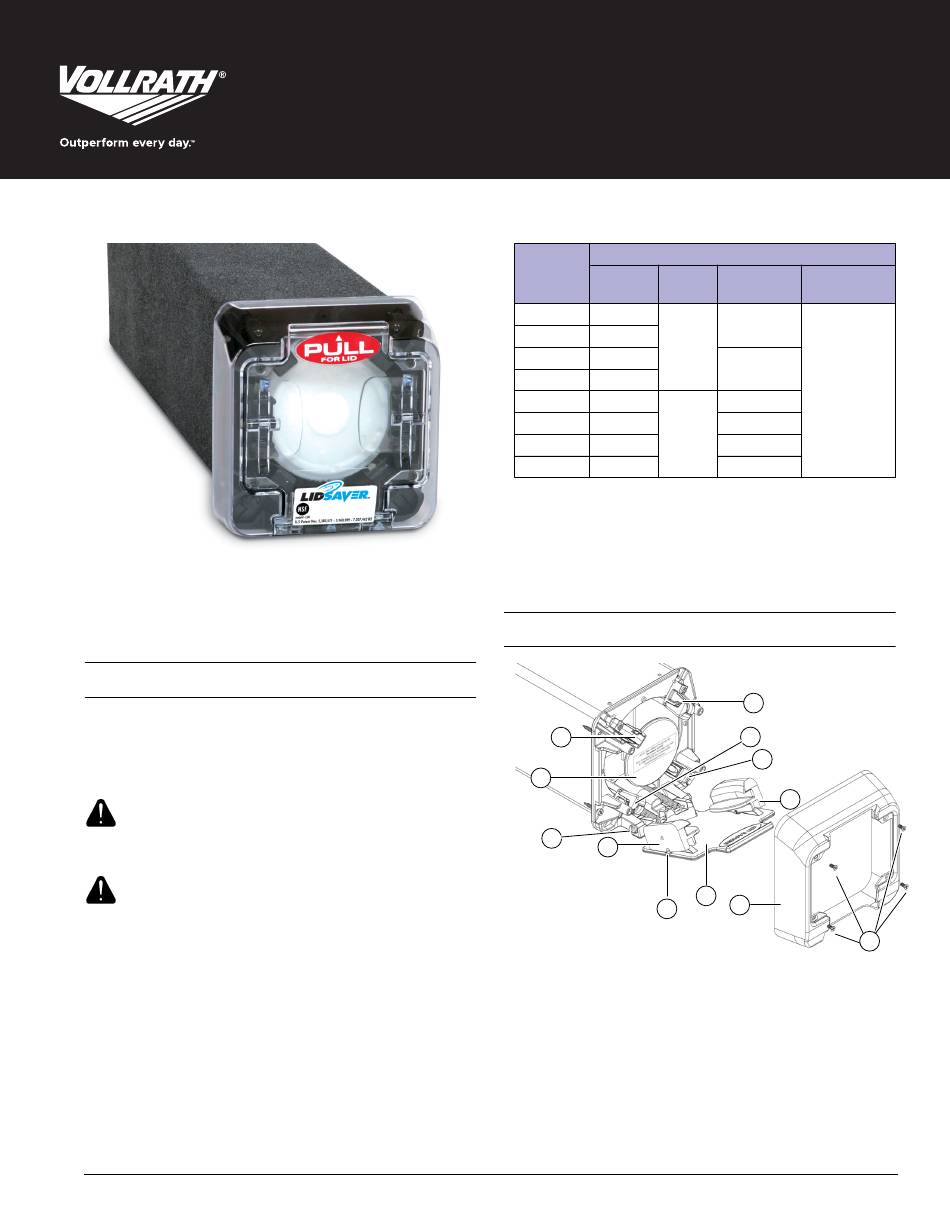

Vollrath LidSaver LS01 Operator's Manual

Thank you for purchasing this Vollrath equipment. Before operating the
equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. Save the original box and packaging. Use this packaging
to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
CAUTION
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
™
LidSaver
Please register your product at Vollrath.com/ProductRegistrer
©
2017 The Vollrath Company L.L.C.
Operator's Manual
In-Counter Lid Dispensers
Item No. Mounting Length
LS01 Horizontal
LS01V Vertical
(58.4 cm)
LS01B Horizontal
LS01VB Vertical
LS01S18 Horizontal
LS01S18B Horizontal
(45.7 cm)
LS01VS18 Vertical
LS01VS18B Vertical
NOTICE: Each LidSaver™ is factory set to dispense a particular lid
style. If you change lid manufacturers or sizes, your
LidSaver™ will need to modified. Vollrath offers lid
change out kits that are easy to install. Visit
www.Vollrath.com for more information
NOTICE: LidSaver dispensers require regular cleaning to assure
proper operation. See "cleaning" on page 3.
OVERVIEW
G
F
E
D
C
A Bezel/Housing
B Door
Lid Claw Pivot Screws. (6-32 x ³⁄₄ F.H.M.S.)
C
D "A" Claw. Marked with claw code.
Door Springs Door Screws. (10-24 x ³⁄₈ R.H.M.S.)
E
F Piston Lid Plate
G Pivoting Pager Flipper. For smooth lid loading.
H "B" Claw. Marked with claw code.
I Housing Screws
Description
Faceplate Accommodates
Color Lid Diameter
Clear
23"
Black
2¾" to 4¾"
Clear
Black
18"
Clear
Black
G
G
G
H
B
A
Part No. 8012600-1 ml 1/30/17
I
