Summary of Contents for Vollrath Stoelting CBD127-37

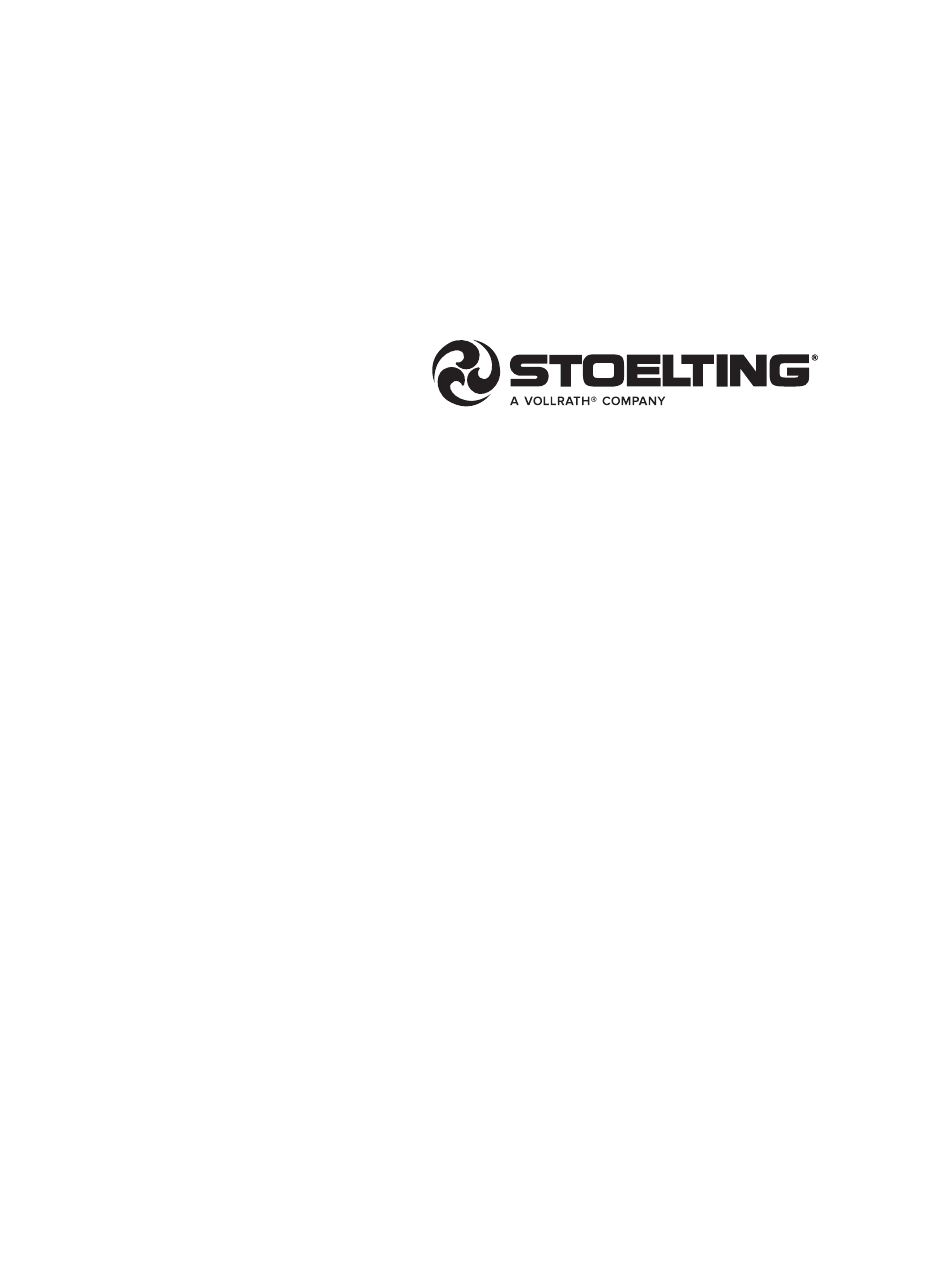

- Page 1 Model CBD OPERATORS MANUAL Manual No. 513852 Rev.3...
- Page 3 This manual provides basic information about the machine. Instructions and suggestions are given covering its operation and care. The illustrations and specifi cations are not binding in detail. We reserve the right to make changes to the machine without notice, and without incurring any obligation to modify or pro- vide new parts for machines built prior to date of change.
- Page 4 A Few Words About Safety Safety Information Safety Alert Symbol: Read and understand the entire manual before This symbol Indicates danger, warning or caution. operating or maintaining Stoelting equipment. Attention is required in order to avoid serious per- sonal injury. The message that follows the symbol This manual provides the operator with information contains important information about safety.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Section Description Page Description and Specifi cations Description ....................1 Specifi cations ..................... 2 Installation Instructions Safety Precautions ..................3 Shipment and Transit .................. 3 Machine Installation ..................3 Defrost Timer ....................3 Initial Set-Up and Operation Operator’s Safety Precautions .............. -
Page 7: Description And Specifications
SECTION 1 DESCRIPTION AND SPECIFICATIONS DESCRIPTION The CBD counter machines are equipped with fully auto- matic controls to provide a uniform product. They operate with almost any type of frozen beverage mix. This manual is designed to help qualifi ed service personnel and opera- tors with the installation, operation and maintenance of the CBD machines. -
Page 8: Specifications
SPECIFICATIONS Model CBD117 CBD127 Dimensions Machine Machine width 9-7/8’’ (25,1 cm) 17-3/8’’ (44,1 cm) height 21-7/8’’ (55,6 cm) 21-7/8’’ (55,6 cm) depth 18-3/4’’ (47,6 cm) 18-3/4’’ (47,6 cm) Weight 55 lbs (24,9 kg) 75 lbs (34,0 kg) Electrical 1 Phase, 115 VAC, 60Hz 1 Phase, 115 VAC, 60Hz running amps 5.5A... -
Page 9: Installation Instructions
SECTION 2 INSTALLATION INSTRUCTIONS 2.1 SAFETY PRECAUTIONS Remove the packing material and move the machine into place. Do not lift the machine by Do not attempt to operate the machine until the safety the augers or handles. Only lift by grasping the precautions and operating instructions in this manual are bottom of the machine. - Page 10 TIMER DISPLAY The display shows the day and time, program number, and defrost icon (asterisk symbol to the left of the pro- gram number). When the program number is even, the Auto defrost mode is active and the asterisk icon is lit. When Switch Switch the program number is odd, the machine is in normal...
- Page 11 Move the Run switch to Program (P). A “1” is shown on the display to the right of the minute value and signifi es the start of a defrost mode. Press the 1...7 button to select the day of the week.
- Page 12 Operators Manual #513852 CBD Model Machines...
-
Page 13: Initial Set-Up And Operation
SECTION 3 INITIAL SET-UP AND OPERATION 3.1 OPERATOR’S SAFETY PRECAUTIONS 3.2 OPERATING CONTROLS AND INDICATORS SAFE OPERATION IS NO ACCIDENT; observe these Before operating the machine, it is required that the op- rules: erator know the function of each operating control. Refer to Figure 3-1 for the location of the operating controls on Know the machine. -
Page 14: Assembly Of Machine
Spigot Lock Slush Density Refrigeration The Spigot Lock is a lever located behind the Indicator Indicator spigot handle that locks the spigot handle in the open or closed position. When the spigot is in the desired position, push the lever clockwise to lock it in place. -
Page 15: Sanitizing
Press the gear onto the back of the horizontal When sanitizing the machine, refer to local sanitary regu- auger and install the auger. lations for applicable codes and recommended sanitizing products and procedures. The frequency of sanitizing Place the gasket into the bottom groove on the must comply with local health regulations. -
Page 16: Removing Mix From Machine
Place the top cover onto the tank. After the mix has been removed from the machine, follow the steps below to disassemble the parts. Press the Auger Movement button and the Cold Selection button. Press the Cold Selector button multiple times to toggle between “motor on” mode, CAUTION slush, and cold drink. -
Page 17: Routine Cleaning
Prepare sanitizing solution according manufacturer’s instructions to provide a 100 ppm strength solution. Mix the sanitizer in quantities of no less than 2 gallons of 90° to 110°F (32° to 43°C) water. Check the strength of the sanitizing solution. Use a chlorine test strip and color chart to make sure the solution has 100 ppm. - Page 18 Operators Manual #513852 CBD Model Machines...
-
Page 19: Troubleshooting
SECTION 4 TROUBLESHOOTING 4.1 ALARMS If one of the Slush Density Indicator LEDs blinks, follow the instructions below to troubleshoot the alarm. Slush Density Refrigeration NOTE Indicator Indicator Turn the Main Power switch Off then On again after resolving an alarm. Auger WARNING Movement... - Page 20 Operators Manual #513852 CBD Model Machines...
-
Page 21: Replacement Parts
SECTION 5 REPLACEMENT PARTS 5.1 DECALS Part Description Quantity 324987 Decal - Pull Here 1 per tank 5.2 TANK AND COVER 493128 724058 396697 Part Description Quantity 493128 Cover - Tank 1 per tank 396697 Gasket - Tank 1 per tank 724058 Tank - 1.5 Gallon 1 per tank... -
Page 22: Handle Assembly And Auger Parts
5.3 HANDLE ASSEMBLY AND AUGER PARTS 538620 674222 674208 405580 538621 221457 405585 221458 624700 647215 674209 396696 314225 428096 724062 442129 142081 442128 175558 Part Description Quantity 142081 Base - Tank Clamp 2 per tank 175558 Locking Screw - Tank Clamp 2 per tank 221457 Bushing - Transmission Shaft... - Page 23 (Including Mexico) 1. Scope: Stoelting, A Vollrath Company (“Stoelting”) warrants to the first user (the “Buyer”) that the Stoelting-branded freezer equipment (the “Equipment”) will be free from defects in materials and workmanship under normal use and proper maintenance for the period listed below in the Warranty Period section. All warranty periods begin on the date of original install or one (1) year from the shipping date, whichever occurs first.
- Page 24 DOMESTIC WARRANTY (Including Mexico) Conditions: If the date of the original installation cannot be verified, these warranty periods begin one (1) year from the shipping date. It is the responsibility of the seller to disclose this information to the Buyer at the time of sale. Stoelting shall not be responsible to provide any remedy under this warranty with respect to any component that fails by reason of negligence, abnormal use, misuse or abuse, faulty repair made by others, use with parts or equipment not manufactured or supplied by Stoelting, any modification or alteration of any parts or equipment, or damage in transit.
