Summary of Contents for RKI Instruments CO-01

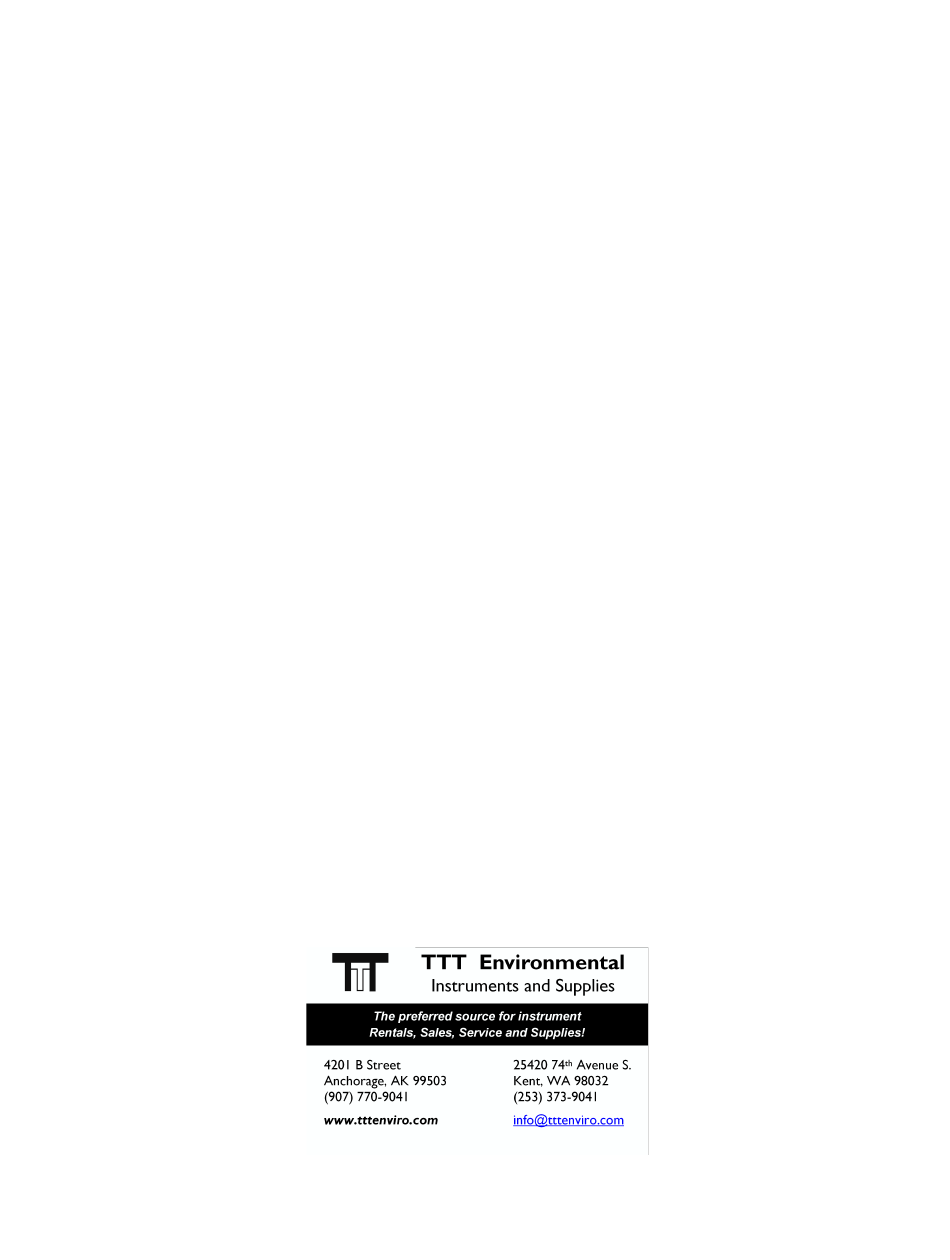

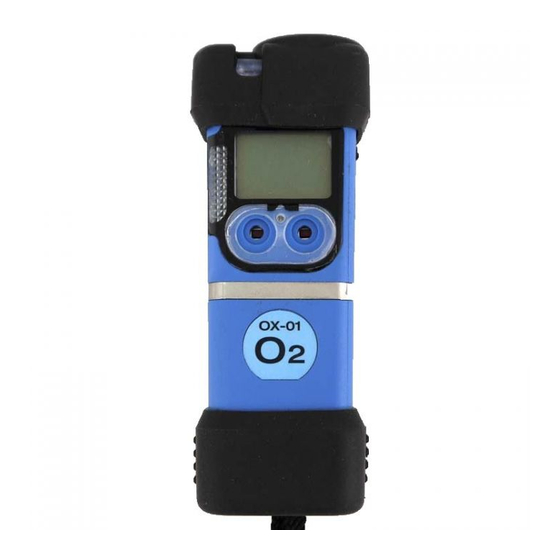

- Page 1 01 Series Operator’s Manual Part Number: 71-0093RK Revision: A Released: 2/2/11 www.rkiinstruments.com...
- Page 2 WARNING Read and understand this instruction manual before operating instrument. Improper use of the gas monitor could result in bodily harm or death. Periodic calibration and maintenance of the gas monitor is essential for proper operation and cor- rect readings. Please calibrate and maintain this instrument regularly! Frequency of calibration depends upon the type of use you have and the sensor types.
- Page 3 Warranty RKI Instruments, Inc. warrants the 01 Series Single Gas Monitor sold by us to be free from defects in materials, workmanship, and performance for a period of two (2) years from the date of shipment from RKI Instruments, Inc. This includes the instrument and the original sensor. Replacement parts are warranted for one (1) year from the date of their shipment from RKI Instruments, Inc.
-
Page 4: Table Of Contents
Charcoal Filter Disk in CO-01 ........ - Page 5 Maintenance ............22 Troubleshooting .
-
Page 6: Introduction
• Visual, audible, and vibration alarms • Microprocessor control for reliability, ease of use, and advanced capabilities • Peak, STEL, and TWA indication for CO-01& HS-01 • Minimum and maximum indication for OX-01 • Over range alarm • Gas, battery, sensor failure, and system failure alarms •... -
Page 7: Specifications
Specifications Table 1: 01 Series Specifications CO-01 HS-01/HS-01S OX-01 Target Gas Carbon Monoxide Hydrogen Sulfide Oxygen (CO) Detection Range 0 to 500 ppm 0 to 100.0 ppm 0 to 40.0% vol. Display Increment 1 ppm 0.5 ppm 0.1% vol. Detection... - Page 8 Table 1: 01 Series Specifications CO-01 HS-01/HS-01S OX-01 Optional • Calibration Adapter Accessories • Calibration Kit • Alligator Clip • Belt Clip Dimensions and 1.4” (35mm) W x 4.1” (104mm) H x 0.8” (20mm) D; 3.5 oz. Weight (100 g) Operating Temp.
-
Page 9: Description
Sensor End Boot Buzzer Opening Membrane Alarm Lights Retainer Sensor Retainer Threaded Inserts POWER MODE Control Buttons CO-01 Battery Charging Contacts Battery Cover Battery End Boot Figure 1: Components of the 01 Series 01Series Operator’s Manual Description • 4... -
Page 10: Protective Rubber Boots
The sensor is protected from dirt and moisture by the sensor cover. The sensor cover is secured by a membrane retainer and a single screw. In the case of the CO-01, a charcoal filter is provided under the sensor cover to protect the CO sensor from hydrogen sulfide and certain hydrocarbons. -
Page 11: Alligator & Belt Clips
Charcoal Filter Disk in CO-01 The CO-01 includes a charcoal filter disk which is located in a recessed area beneath the sensor cover. The charcoal filter disk removes gases from the sampled air that will cause a response on the CO sensor such as S and certain hydrocarbons. -
Page 12: Sensor Retainer
The sensor retainer has a single diffusion port through which ambient air reaches the sensor. Recessed areas in the sensor retainer accept the charcoal filter disks (CO-01 only) and the sensor cover. The membrane retainer is installed to the top of the sensor retainer with a single Phillips screw. -
Page 13: Control Buttons
When either of the two control buttons are pressed, the LCD backlight comes on for 20 seconds. Control Buttons Below the LCD are two control buttons: POWER/MODE and AIR. The POWER/MODE button turns the 01 Series on and off. The functions performed by the control buttons are summarized in the following table: Table 2: 01 Series Control Buttons Button... -
Page 14: Alarm Lights
WARNING: To prevent ignition of a hazardous atmosphere, batteries must only be changed in an area known to be nonhazardous. A Ni-cad battery pack and charger are available. Contact RKI Instruments, Inc. for information about this option. 9 • Description... -
Page 15: Start Up
Start Up This section explains how to start up the 01 Series and to get it ready for operation. Start-up Procedure 1. Press and hold the POWER/MODE button for three seconds to turn on the 01 Series. For several seconds, all elements of the LCD display and the LCD backlight turn on. -
Page 16: Operation
The target gas concentration is displayed below the battery icon. On the CO-01, CO is displayed in parts per million (ppm). On the HS-01, H S is displayed in ppm. On the OX-01, oxygen is displayed as volume percent Battery level 0 . -
Page 17: Displaying The Min And Max (Ox-01)
1. The unit must be in Measuring Mode. The current gas concentration should be displayed on the LCD. 2. Press and release the POWER/MODE button to enter Peak Gas Display Mode. The LCD backlight will activate and the LCD will display the peak gas reading. -
Page 18: Alarms
• Alarm light flashes twice per second. TWA or STEL • Back light turns on. • Pulsing tone once per second. (CO-01 & HS-01 Only) • Gas reading flashes. • Unit vibrates once Concentration of CO per second. • TWA or STEL... - Page 19 Table 3: Alarm Types and Indications Alarm Type LCD Indications Other Indications Over Range • Gas reading • Pulsing tone occurs replaced by blinking once per second. Concentration of gas brackets. rises above the • Unit vibrates once measuring limit of the per second.
- Page 20 4. If the over range condition continues, you may need to replace the sensor. 5. If the over range condition continues after you have replaced the sensor, contact RKI Instruments, Inc. for further instructions. Responding to Battery Alarms WARNING: The 01 Series is not operational as a gas monitoring device during a dead battery alarm.
-
Page 21: Alarm Points
The Low Alarm is triggered at the Low Alarm concentration listed in the table. For the CO-01 that would be 25 ppm CO, and for the HS-01 that would be 10.0 ppm. The High Alarm is triggered when the High Alarm concentration is reached. - Page 22 Mode. The LCD should display the low alarm setting and the battery level. Rising Battery Alarm level 10.0 Alarm point Alarm Name Figure 4: LCD in Alarm Adjustment Mode, CO-01 & HS-01 Falling Battery Alarm level 19.5 Alarm point Alarm Name Figure 5: LCD in Alarm Adjustment Mode, OX-01 NOTE: If the LCD should show “CAL”...
- Page 23 NOTE: If you press and hold the POWER/MODE button for too long (about five seconds), you will turn off the unit. 6. Use the AIR button to change the high alarm point setting. Pressing and releasing the AIR button in quick succession increases the high alarm point one number at a time.
-
Page 24: Calibration
0 ppm and on the OX-01 it will set the reading to 20.9% oxygen Setting the Span (Zero for OX-01) Reading This section tells you how to set the span reading on the CO-01 and HS-01 and the zero reading on the OX-01 using Calibration Mode. Preparation Set the fresh air reading as described in “Setting the Fresh Air Reading.”... - Page 25 NOTE: On the OX-01, instead of 100% nitrogen (0% oxygen), it is allowable to use higher than 0% oxygen to set the zero level. RKI Instruments, Inc. recommends 18% oxygen or lower. • To carry out the calibration, you will need a fixed-flow regulator with a flow rate of 0.5 LPM (liters per minute), non-absorbent tubing, and the calibration adapter that will fit over the 01 Series’...
- Page 26 7. Let the gas flow for two minutes. After two minutes, press the POWER/ MODE button. The unit will adjust the span (CO-01 and HS-01) or zero (OX-01) based on the calibration value that was saved in step 5 above.
-
Page 27: Maintenance
01 Series’s batteries as well as how to replace the sensor and sensor cover. WARNING: RKI Instruments, Inc. recommends that service, calibration, and repair of RKI instruments be performed by personnel properly trained for this work. Replacing sensors and other parts with original equipment does not affect the intrinsic safety of the instrument. -
Page 28: Replacing The Batteries
• The calibration sensor. cylinder may 5. If the difficulties continue, be out of gas contact RKI Instruments, or is outdated. Inc. for further instruction. • The sensor may need replacement. • “FAIL SYS” is • A microproces- 1. -
Page 29: Replacing The Sensor
3. Rotate the captive battery cover screw counterclockwise to remove battery compartment door. Figure 6: Removing the Battery Compartment Door 4. Carefully remove the old alkaline batteries. 5. Carefully install the new AAA alkaline batteries. Follow the battery diagram inside the battery compartment. 6. -
Page 30: Replacing The Sensor Cover And Charcoal Filter
When replacing the sensor filters, it is recommended that you replace all filters at the same time.The HS-01 and OX-01 only have the sensor cover. The CO-01 has the sensor cover and the charcoal filter. 1. Verify that the 01 Series is off. - Page 31 4. Carefully remove the sensor cover from the recess in the senor retainer. If you have a CO-01, also remove the charcoal filter. 5. If you have a CO-01, install a charcoal filter into the smaller recess and make sure they are properly seated in the recess. Then insert one sensor cover in the larger recess (all models).
-
Page 32: Parts List
Parts List Table 6lists replacement parts and accessories for the 01 Series. Table 6: Parts List Part Number Description 06-1248RK Calibration kit tubing (specify length in feet) 07-6009RK Gasket for battery cover 10-1099RK Screw, M2X 4mm pan head Phillips, stainless steel, for membrane retainer 10-1105RK Screw, M2X 8mm pan head Phillips, stainless... - Page 33 103 liter steel cylinder 81-1104RK Calibration adapter for 01 Series & GasWatch 2 81-CO01-LV Calibration kit for CO-01, one 34 liter steel gas cylinder (50 ppm CO in air), regulator, calibration cup, case, tubing 81-HS01-LV Calibration kit for HS-01, one 34 liter aluminum...
