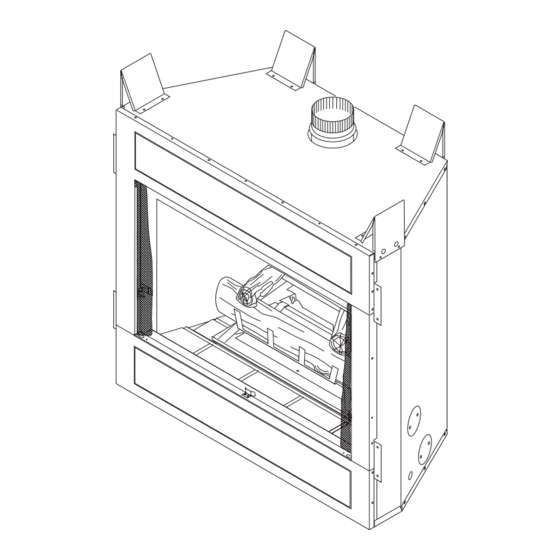

B-VENT DECORATIVE GAS FIREPLACE
OWNER'S OPERATION AND INSTALLATION MANUAL
PFS
®
US
MODELS P324E, VP324E, P325E(B) AND VP325E(B)
NATURAL GAS
FOR YOUR SAFETY
vapors or liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS :
-
For more information, visit www.fmiproducts.com
