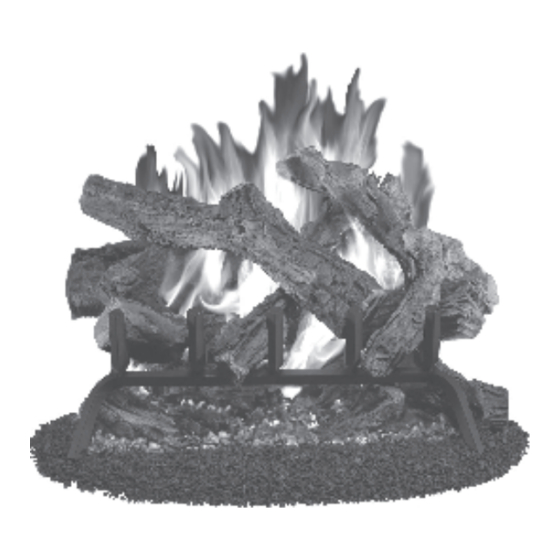

VENTED DECORATIVE NATURAL GAS LOG APPLIANCE
OWNER'S OPERATION AND INSTALLATION MANUAL
TESTED AND
LISTED BY
RGA 2-72 Approved
These logs are approved by the manufacturer for instal-
lation in listed indoor and outdoor solid fuel burning
fireplaces. See warranty for additional information.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
MODELS Phk18, Phk24, Phk30,
bCS18, bCS24 AND bCS30
For more information, visit www.desatech.com
Advertisement
Table of Contents
Related Manuals for FMI PHK18
Summary of Contents for FMI PHK18
- Page 1 OWNER’S OPERATION AND INSTALLATION MANUAL TESTED AND LISTED BY RGA 2-72 Approved MODELS Phk18, Phk24, Phk30, bCS18, bCS24 AND bCS30 These logs are approved by the manufacturer for instal- lation in listed indoor and outdoor solid fuel burning fireplaces. See warranty for additional information.
-
Page 2: Table Of Contents
TAbLE OF CONTENTS Safety..............2 Troubleshooting...........11 Product Identification..........4 Technical.Service..........12 Local.Codes............5 Service.Hints............12 Unpacking............5 Replacement.Parts..........13 Installation............5 Accessories............13 Operation............10 Parts..............14 Cleaning.and.Maintenance......... 10 Warranty..........Back.Cover SAFETy This appliance may be installed WARNING: Improper instal- in an aftermarket,* permanently lation, adjustment, alteration,... - Page 3 SAFETy Continued Due to high temperatures, the DANGER: Carbon monoxide appliance should be located out poisoning may lead to death! of traffic and away from furniture and draperies. Carbon Monoxide Poisoning:. Early. signs. of.carbon.monoxide.poisoning.resemble.the. flu, with headaches, dizziness or nausea. If Do not place clothing or other you have these signs, the log set may not flammable material on or near...
-
Page 4: Product Identification
SAFETy Continued 3.. Never.install.log.set 7.. Do.not.run.log.set •.in.a.recreational.vehicle • where flammable liquids or vapors are used.or.stored • where curtains, furniture, clothing, or other flammable objects are less than •.under.dusty.conditions 42" from the front, top, or sides of the 8. Do not burn solid fuel in fireplace after log.set installing. -
Page 5: Local.codes
LOCAL CODES UNPACkING Install and use log set with care. Follow all CAUTION: Do not remove local codes. In the absence of local codes, the data plates from the burner use.the.latest.edition.of.the National Fuel Gas Code ANSI Z223.1/NFPA 54*. pan. The data plates contain *Available.from: important warranty and safety American National Standards Institute, Inc. - Page 6 BTU Input Minimum Burner obstruction.until.proper.venting.is.achieved. Model (Natural Flue Description Gas) Opening Chimney flue must remain open a minimum of PHK18 3".at.all.times.during.operation.of.log.set. 18".Ramp 57,000 8" BCS18 INSTALLING DAMPER CLAMP PHK24 24".Ramp 80,000 8" Secure. damper. stop. clamp. provided. to.
- Page 7 INSTALLATION Continued We. recommend. that. you. install. a. sediment. CAUTION: Use only new, black trap in supply line as shown in Figure 4. Locate sediment trap where it is within reach iron or steel pipe. Internally-tinned for cleaning. Install in piping system between copper tubing may be used in cer- fuel.supply.and.heater..Locate.sediment.trap.
- Page 8 INSTALLATION Continued Test Pressures Equal To or Less Than Installation and Gas Connection 1/2 PSIG (3.5 kPa) 1.. Place. ramp. burner. assembly. in. center. 1.. Close.equipment.shutoff.valve.(see.Fig- of fireplace floor. Make sure front of pan ure.5). faces forward. 2. Pressurize supply piping system by either 2.
- Page 9 INSTALLATION Continued ADDING PAN MATERIAL 1. Open bag of glowing embers and spread it.evenly.over.burner.ramp. 2.. Open.small.bag.of.platinum.embers.and. place randomly throughout ember bed; more.heavily.near.front.of.ramp. INSTALLING THE GRATE AND LOGS 1. Place grate over burner pan where two outer horizontal supports on grate fit into two pan positioning tabs on outer edges of.pan.
-
Page 10: Operation
OPERATION FOR YOUR SAFETY 3. Wait five (5) minutes to clear out any gas. If you then smell gas STOP! Follow the READ BEFORE LIGHTING safety information, column 1. If you don't smell gas, go on to the next step. WARNING: Keep flue open 4.. -
Page 11: Troubleshooting
TROUbLEShOOTING WARNING: Turn off log set and let cool before servicing. Only a qualified service person should service and repair log set. Note: All troubleshooting items are listed in order of operation. OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Log set is smoking/sooting 1..Poor.fuel.quality 1..Contact. -
Page 12: Technical.service
TROUbLEShOOTING Continued WARNING: If you smell gas • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions. -
Page 13: Replacement.parts
REPLACEMENT PARTS Note: Use only original replacement parts. Usually, we will ask you to return the part to This will protect your warranty coverage for the.factory. parts replaced under warranty. PARTS NOT UNDER WARRANTY PARTS UNDER WARRANTY Contact authorized dealers of this product. If Contact authorized dealers of this product. -
Page 14: Parts
PARTS MODELS PHK18, PHK24, PHK30, BCS18, BCS24 AND BCS30 (Number and style of logs vary by model) www.desatech.com 115425-01E... - Page 15 PARTS This list contains replaceable parts used in your log set. When ordering parts, follow the instructions.listed.under.Replacement Parts.on.page.13.of.this.manual. NO. PART NO. DESCRIPTION QTY. 901059-01 3/8 FLR x 1/2 FPT Elbow • • • 901056-01 3/8 FLR x 3/8 FPT Adaptor •...
-
Page 16: Warranty
WARRANTy kEEP ThIS WARRANTy Model.(located on product or identification tag)._____________________________ Serial.No..(located on product or identification tag).__________________________ Date.Purchased..__________________________ Keep receipt for warranty verification. DESA hEATING, LLC LIMITED WARRANTIES New Products Standard Warranty: DESA Heating, LLC warrants this new product and any parts thereof to be free from defects in material and workmanship for a period of four (4) years from the date of first purchase from an authorized dealer provided the product has been installed, maintained and operated in accordance with DESA Heating, LLC’s warnings and instructions.
