11 OTHER FUNCTIONS

11.1 Description of console "SAVE" function

The SAVE function allows the operator to transmit the Parameter values and
Configuration data of the controller into the Console memory. It is possible to
load 64 different programmes. The information saved in the Console memory
can then be reloaded into another controller using the RESTORE function.
The data that is available via the SAVE function are listed here below:
- All Parameter Values (PARAMETER CHANGE).
- Options (SET. OPTIONS).
- The Level of the Battery (ADJUST BATTERY).

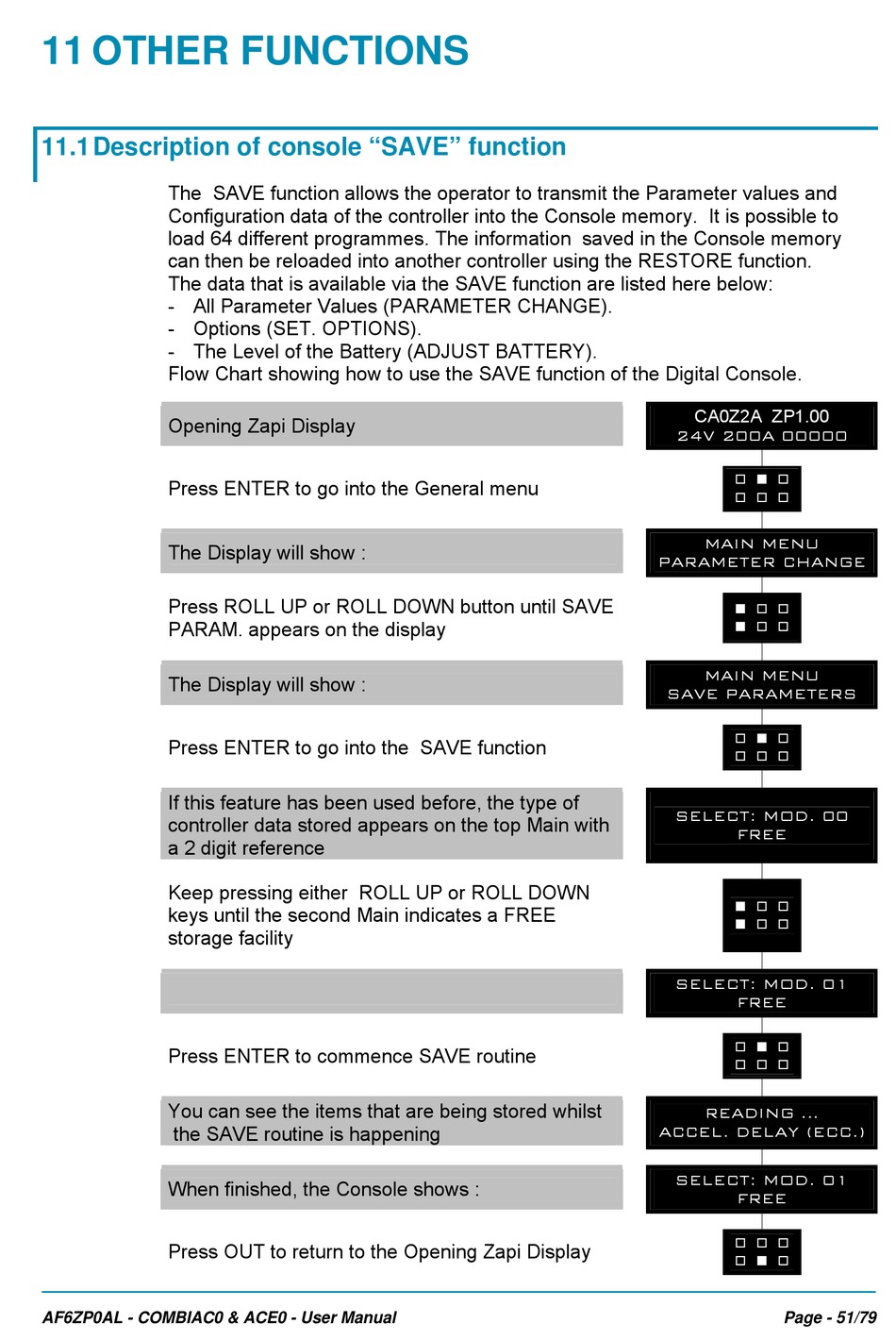

Flow Chart showing how to use the SAVE function of the Digital Console.
Opening Zapi Display
Press ENTER to go into the General menu
The Display will show :
Press ROLL UP or ROLL DOWN button until SAVE
PARAM. appears on the display
The Display will show :
Press ENTER to go into the SAVE function
If this feature has been used before, the type of
controller data stored appears on the top Main with
a 2 digit reference
Keep pressing either ROLL UP or ROLL DOWN
keys until the second Main indicates a FREE
storage facility
Press ENTER to commence SAVE routine
You can see the items that are being stored whilst
the SAVE routine is happening
When finished, the Console shows :
Press OUT to return to the Opening Zapi Display
