Basler AVC63-2.5 Instruction Manual

CONFIDENTIAL INFORMATION
OF BASLER ELECTRIC COMPANY, HIGHLAND, IL.
IT IS LOANED FOR CONFIDENTIAL USE, SUBJECT
TO RETURN ON REQUEST, AND WITH THE
MUTUAL UNDERSTANDING THAT IT WILL NOT BE
USED IN ANY MANNER DETRIMENTAL TO THE
INTEREST OF BASLER ELECTRIC COMPANY.
BASLER ELECTRIC, BOX 269,
INTRODUCTION

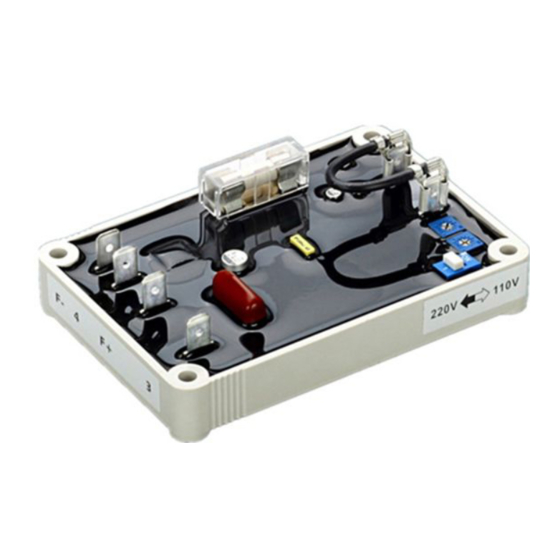

The AVC63-2.5 Voltage Regulators
designed for use on 50/60 Hz brushless
generators. The regulator includes frequency
compensation, a solid-state build-up circuit,
EMI filtering, and remote adjust capability.
Warning
To prevent personal injury or equipment
damage, only qualified technicians or
operators should install, operate, or
service this device.
ELECTRICAL SPECIFICATIONS
Dc Output Power:
2.5 Adc at 63 Vdc (157.5W) maximum
continuous,
3.97 Adc at 100 Vdc (397W) forcing one
minute
(at 240 Vac input).
Exciter Field Dc Resistance:
25.2 ohms minimum.
Ac Power Input:
Operating range: 171 to 264 Vac, +10%,
Single phase, 50/60 Hz, Burden: 350 VA.
Sensing Input:
171-264 Vac, +10%, Single phase, 50/60 Hz,
Burden: 350 VA.
Regulation Accuracy:
Better than ±1.0% no load to full load.
EMI Suppression:
Internal electromagnetic interference filter
(EMI filter).
Voltage Build-up:
Internal provisions for automatic voltage build-
up from generator residual voltages as low as
10 Vac.
Terminations:
1/4 inch "Fast-On" terminals.
PHYSICAL SPECIFICATIONS
Operating Temperature:
-40° C (-40° F) to +60° C (+140° F).
Storage Temperature:
-40° C (-40° F) to +85° C (+185° F).
Vibration:
Withstands 1.5 Gs at 5 to 29 Hz; 0.036"
double amplitude at 29 to 52 Hz; and 5 Gs at
52 to 500 Hz.
Shock:
Withstands up to 15 Gs in each of three
mutually perpendicular axes.
Weight:
3.8 oz. (0.107 kg) Net.
FUSES
It is recommended that fuses with high
interruption capability be installed per the
interconnection diagram to protect wiring from
INSTRUCTION MANUAL
FOR
VOLTAGE REGULATOR
Model: AVC63-2.5
Part Number: 9 3183 00 101
HIGHLAND, IL 62249
faults before the regulator.
Interconnection Drawings.
are
NOTE
Fuse must be
interconnection diagrams to avoid inter-
rupting the field current.

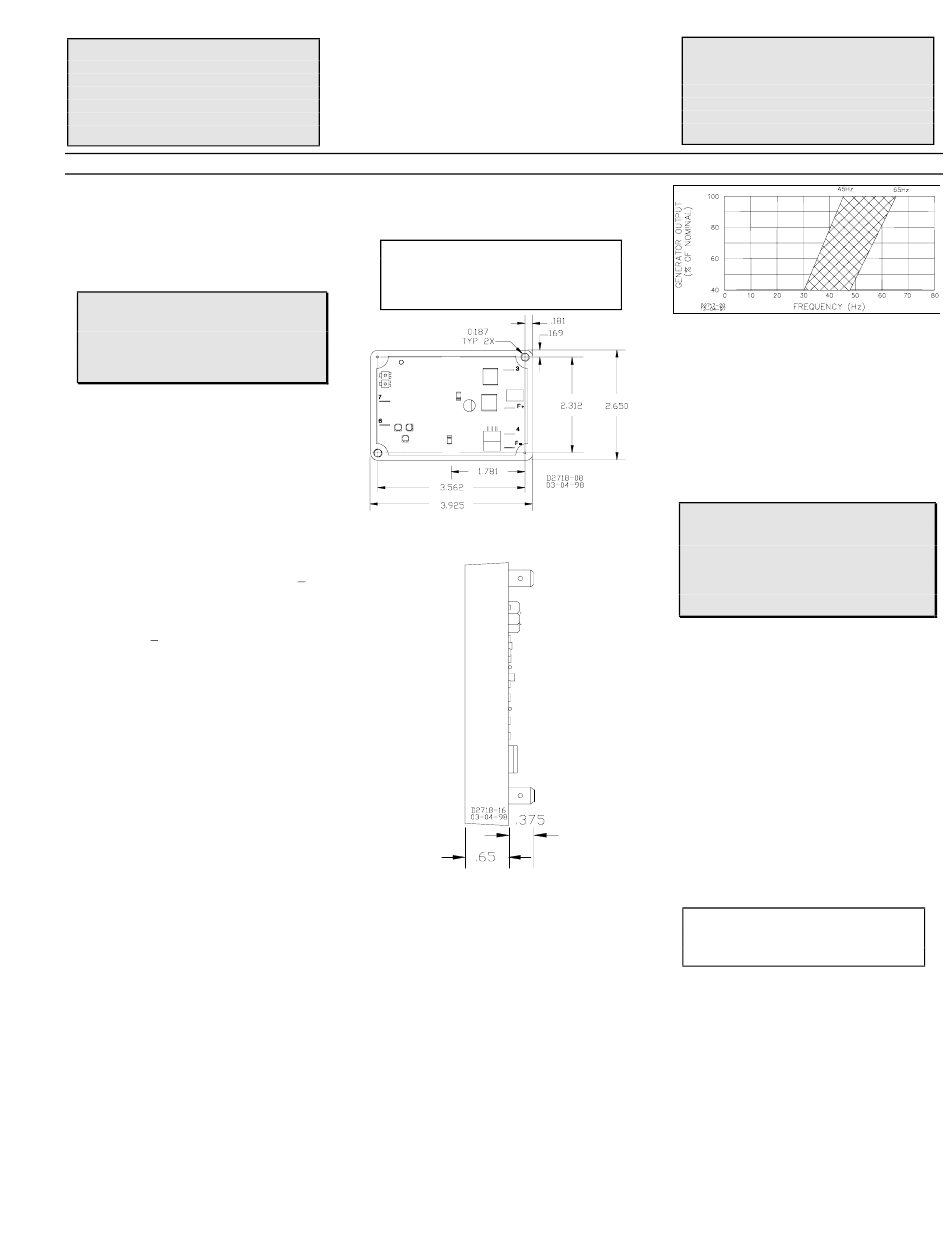

AVC63-2.5 Outline Diagram (Top View)
AVC63-2.5 Outline Diagram (Side View)
V/HZ "CORNER FREQUENCY" SELECTION
AND ADJUSTMENT
The corner frequency can be adjusted by the
UF ADJ rheostat on the AVR. Clockwise
rotation results in raising the corner frequency
(shifting the curve to the right). To set the UF
rheostat:
1. Adjust the UF Rheostat fully CCW.
2. Start the generator and set at rated voltage.
3. Adjust the generator frequency to the
desired kneepoint frequency.
4. Slowly adjust the
clockwise (CW) until the generator voltage
just begins to decrease.
PHONE 618/654-2341
Refer to the
installed per the
OPERATION
The following system operation procedures
provide instructions for adjusting the AVC63-
2.5 voltage regulator.
from a faulty regulator and certain generator
system problems are included, together with
suggested remedies.
Complete
proceeding with the system start-up.
PRELIMINARY SET-UP
1. Verify
2. Ensure the voltage regulator is correctly
3. Install the fuses as described in Fuses.
4. Set the regulator VOLT ADJ and
Regulator VOLT ADJ
Remote VOLT ADJ
SYSTEM START-UP
1. Perform preliminary set-up as described
2. Start prime mover and bring up to rated
RESULT: Voltage should build up.
perform Field Flashing.
3. Slowly adjust the regulator VOLT ADJ CW
UF ADJ rheostat
RESULT: Voltage should build up to rated
value. If voltage does not build up to rated
value, check generator for short or excessive
load.
Publication:
9 3183 00 991
© 1998, Basler Electric Co., Highland, IL 62249
First Printing January 1998
Revision: A
FAX 618/654-2351
Typical Frequency Compensation Curves
Symptoms resulting
the following steps
CAUTION
Meggers and high potential
equipment must not be used. Incorrect
use of such equipment could damage the
semiconductors contained
regulator.
that the voltage
specifications conform with the generator
system requirements.
connected to the generator system.
external VOLT ADJ (if used) as follows:
:
Fully CCW
:
Centered
in the above paragraphs.
NOTE
All voltage readings are to be taken with
an average reading voltmeter.
speed.
until the generator output voltage reaches
the nominal value. If used, adjust the
remote VOLT ADJ to set the generator
voltage to the exact value desired.
March 1998
before
test
in the
regulator
If not,
