Welch Allyn, Inc.
4341 State Street Road
Skaneateles Falls, NY 13153 USA
Readout panel and scale installation instructions
The Welch Allyn In-Floor Scale models 6102 and 6154 are installed into the floor and display the
patient measurements on a readout either surface-mounted or flush-mounted on a wall.
If your scale has a flush-mounted readout, see
page 2.
Surface-mounted readout panel installation
Use the following instructions to surface mount the readout panel:
1.
Locate a stud in the wall nearest to the scale platform location. This location should be 6 to 8 in.
from the center of the side of the platform nearest the wall to allow the readout panel to be
centered.
2.
Remove the two screws from the rear of the mounting bracket connected to the scale readout.
Save these screws for use later.
3.
Mount one side of the bracket to a stud. If a stud is not used, make sure to use anchoring bolts
or other suitable hardware for added strength. Make sure the bracket is installed close to an AC
outlet to provide power to the readout panel.
4.
Measure 48 inches up from the floor or to the desired height for the bottom of the readout
panel.
The buttons and LED display are approximately 7 inches above the bottom of the readout
Note
enclosure.
5.
Hold the mounting bracket against the wall with the two tabs facing up and mark the locations
of the four mounting holes. Use a level to ensure that the readout is installed at the proper
angle.
6.
Use four bolts (not included) to fasten the bracket to the wall. The readout panel cabinet has
four 3/4-inch holes to allow for clearance of the mounting bolt heads.
For information about any Welch Allyn product, visit: http://www.welchallyn.com/en/other/contact-us.html.

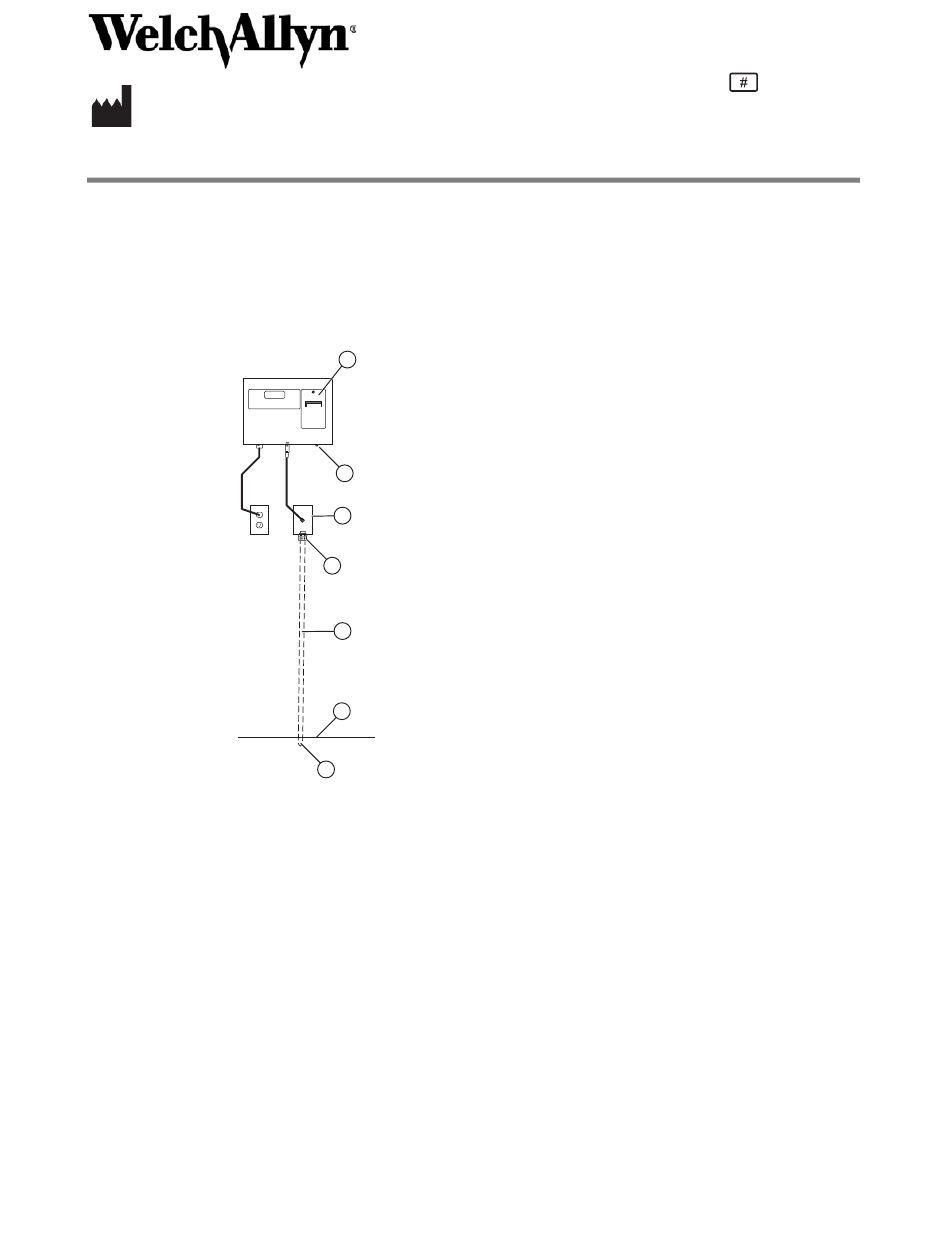

1. Printer (optional)
1
2. #10-32 screws for the mounting bracket
3. Cover plate for platform cable
4. Liquid-tight connector
5. Conduit for platform cable
6. Floor
7. Conduit end to scale
2
3
4
5
6
7
726081
DIR 80021908 Ver. A
Revised 2016-12
on
