Related Manuals for CalDigit Thunderbolt 3 MiniDock
Summary of Contents for CalDigit Thunderbolt 3 MiniDock

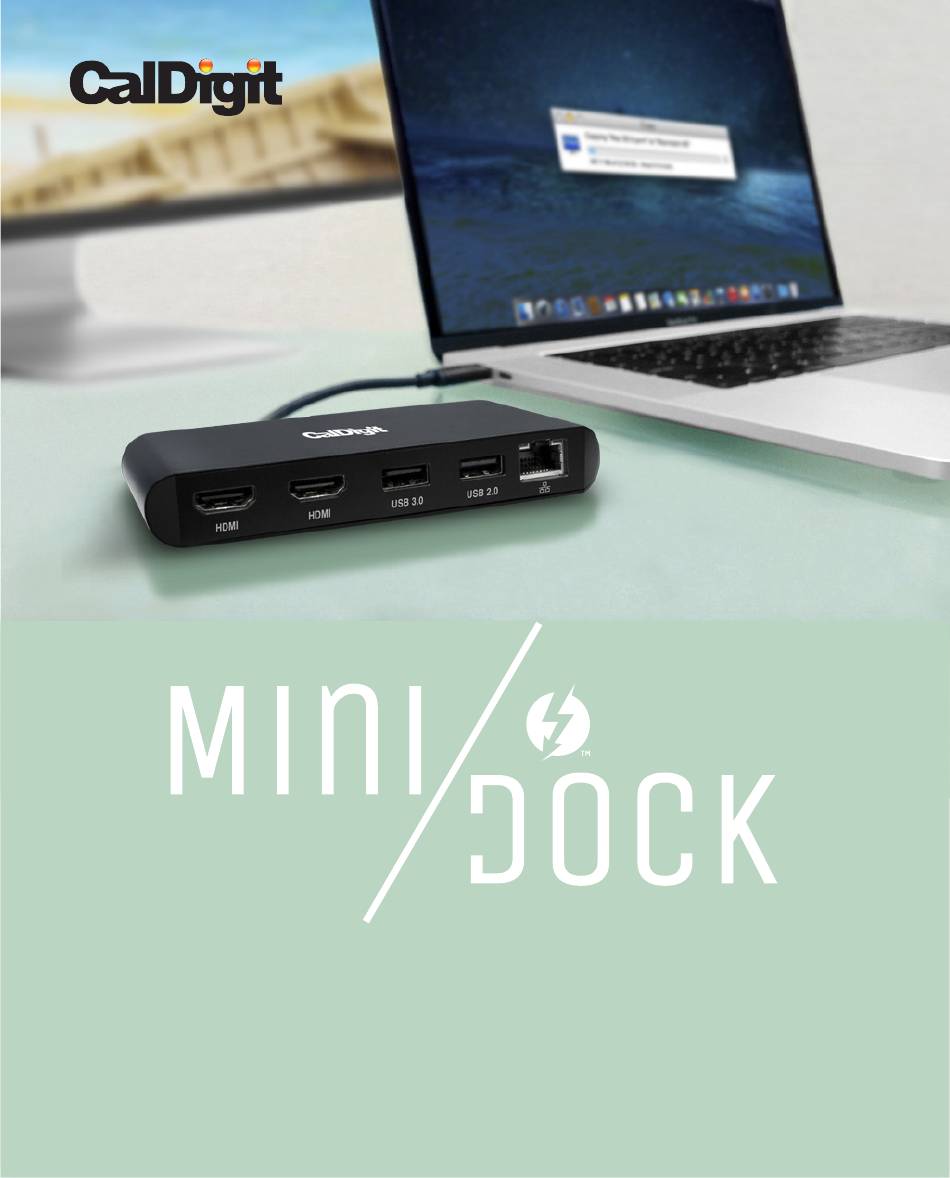

- Page 1 Thunderbolt D u a l H D M I USER GUIDE For more information visit www.CalDigit.com...
-
Page 2: Table Of Contents
Table of Contents Section 1 : General Information General Use Warnings Safety Warnings System Requirements In the Box Thunderbolt™ 3 Mini Dock Diagram Section 2 : Using the Thunderbolt 3 Mini Dock Compatibility Using the Thunderbolt 3 Mini Dock Configuring Dual Monitors Supported Resolutions for Dual Monitors Ethernet FAQs... -
Page 3: Section 1 : General Information
Thunderbolt 3 or USB-C port. In the case of any issue with the device do not attempt to repair or open the device yourself. Doing so can result in personal injury damage the device and will void the warranty. If you have any issues please contact CalDigit Technical Support. -
Page 4: System Requirements
System Requirements Thunderbolt 3 computers macOS 10.12 Sierra or later Windows 10 or later In the Box 1 x CalDigit Thunderbolt 3 Mini Dock -Dual HDMI... -
Page 5: Thunderbolt™ 3 Mini Dock Diagram
Thunderbolt 3 Mini Dock Diagram Mini Dock - Dual HDMI... -
Page 6: Section 2 : Using The Thunderbolt
2. Using the Thunderbolt 3 Mini Dock Compatibility The Thunderbolt 3 Mini Dock is compatible with the following computers. Thunderbolt™ 3 Mini Dock Dual HDMI ✓ Thunderbolt™ 3 Mac ✓ Thunderbolt™ 3 PC USB-C Mac USB-C PC Using the Thunderbolt 3 Mini Dock Dual HDMI Plug the tethered Thunderbolt 3 cable from the Thunderbolt... -
Page 7: Supported Resolutions For Dual Monitors
Supported Resolutions for Dual Monitors Resolution Video Display Frequency Dual Monitor 2K (2560 x 1600) 60 Hz Full HD (1920 x 1080p) 60 Hz 60 Hz 2K (2560 x 1600) 30 Hz Full HD (1920 x 1080p) 30 Hz Ethernet The Thunderbolt 3 Mini Docks have a single Gigabit Ethernet port to connect to a Gigabit Ethernet network. -
Page 8: Faqs
Frequently asked questions (FAQ) #1. Can the Mini Dock support the Apple USB SuperDrive? Answer : NO #2. Will my external drive bus-power through the Mini Dock? Answer : Yes, if your external hard drive is designed to be bus-powered it will do so through the Mini Dock. - Page 9 CalDigit Thunderbolt™ 3 Mini Dock Specifications Product Dimension and Weight • Height : 0.74 inches (18.8 mm) • Width : 4.88 inches (124 mm) • Depth : 2.55 inches (65 mm) • Cable : 7.87 inches (200 mm) • Weight: 5.1 oz (145g) Interface •...
-
Page 10: Section 3 : Technical Support And Warranty Information
Technical Support. • Email: support@caldigit.com • Phone: (714) 572-6668 • Website: https://www.CalDigit.com/Support When contacting CalDigit Technical Support, make sure to be at your computer and have the following information available: 1. Your Thunderbolt 3 Mini Dock serial number 2. Operating system and version 3.
