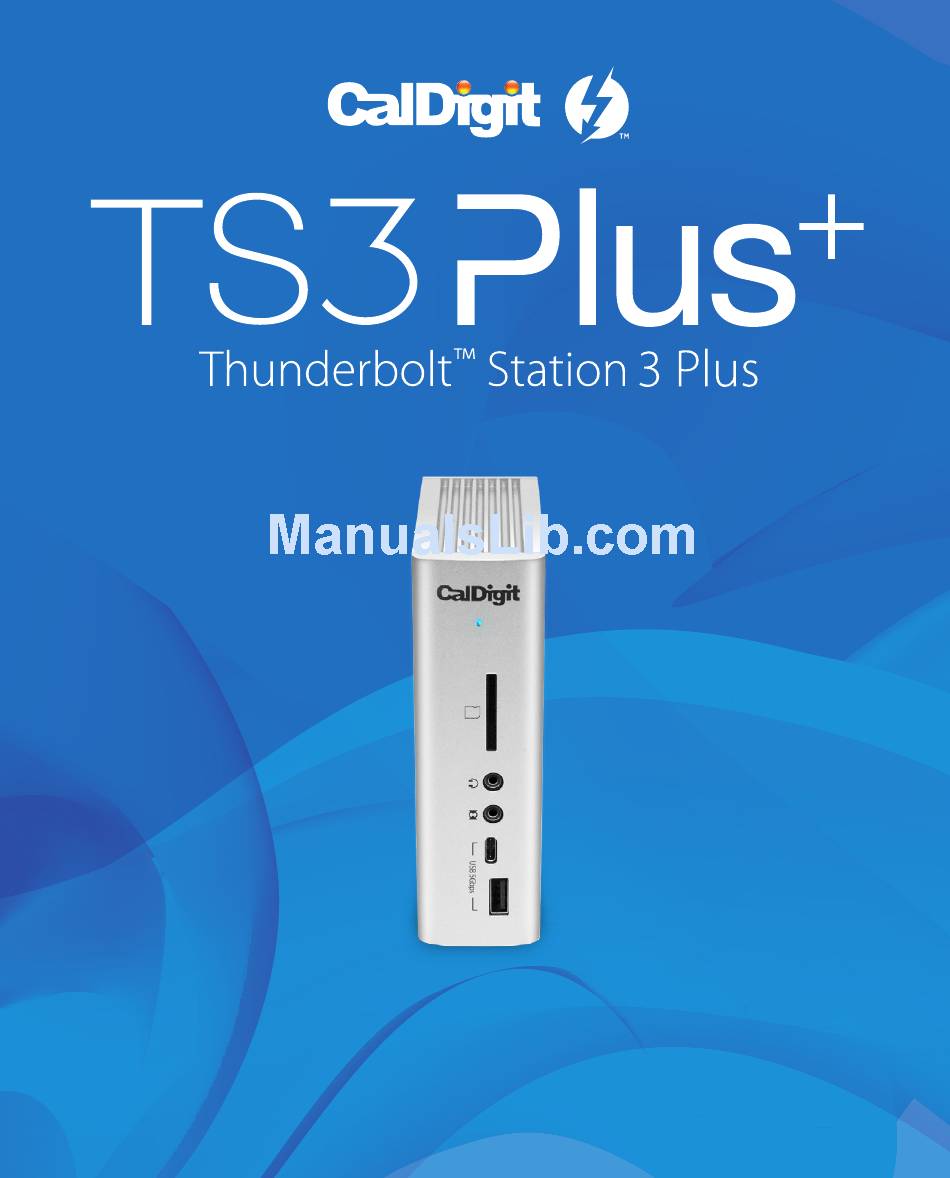

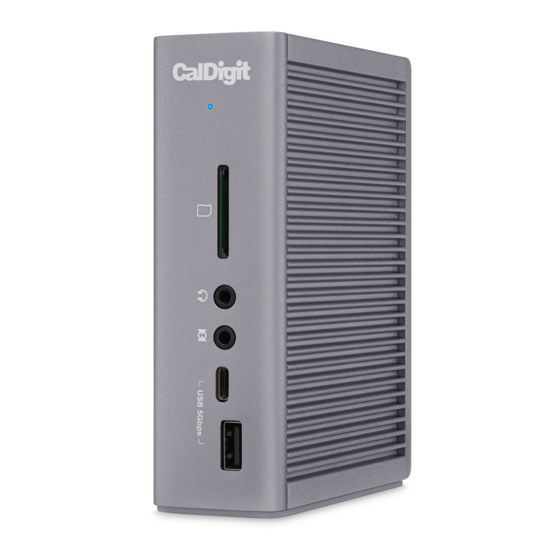

- Page 1 USER GUIDE For more information visit www.caldigit.com...
-
Page 2: Table Of Contents
Introduction General Use Warnings Safety Warnings System Requirements In the Box TS3 Plus Diagram Section 2 : Using the TS3 Plus Powering the TS3 Plus Connecting the TS3 Plus LED Indicator Using the TS3 Plus Utility Interfaces Summary Thunderbolt™ 3 eSATA USB 3.1 Type-A... -
Page 3: Section 1 : General Information
• If your TS3 Plus gets wet while it is still off, do not turn it on. In the case of any issue with the device, do not attempt to repair or open the device yourself. Doing so can result in personal injury, damage the device, and will void the warranty. -
Page 4: System Requirements
Mac OSX 10.12 or later Windows 7, 8, 10 or later In the Box • 1 x CalDigit TS3 Plus • 1 x Power Supply • 1 x Power Cord (plug style may vary based on regional regulations and requirements.) •... -
Page 5: Ts3 Plus Diagram
TS3 Plus Diagram USB 3.1 Type-A SD Card Reader USB 3.1 Type-C Audio In/Out Digital Optical USB 3.1 Type-C Gigabit Ethernet USB 3.1 Type-A... -
Page 7: Section 2 : Using The Ts3 Plus
The CalDigit TS3 Plus requires power from the AC adapter to operate. Connect the AC adapter connector to the DC jack on the back of the TS3 Plus and the other side to an AC outlet. To power off the TS3 Plus, disconnect the power cable from the AC outlet. -
Page 8: Connecting The Ts3 Plus
This single connection will now provide 85W charging for your laptop in addition to expanding your connectivity options. LED Indicator The TS3 Plus is equipped with an LED indicator, which will display a BLUE light if the unit is powered on and connected to your computer. -
Page 9: Using The Ts3 Plus Utility
The CalDigit Docking Station Utility makes it incredibly easy to disconnect all your USB storage devices from the TS3 Plus without the need to manually disconnect them one by one. The CalDigit Docking Station Utility Installer file needs to be downloaded and NOTE installed on your Mac from the CalDigit website. -
Page 10: Interfaces Summary
900mW of power for charging. Video capabilities are not supported. Front (x1) Rear(x1) USB 3.1 Type-A The TS3 Plus features a total of five USB 3.1 Type-A ports (4 x 5Gb/s, 1 x 10Gb/s) Front (x1) Rear(x4) UHS-II SD Card Slot Optical Audio (S/PDIF) The front-facing UHS-II SD (4.0) Card slot is... -
Page 11: Displayport
DisplayPort The TS3 Plus features a full-size DisplayPort that supports a maximum resolution up to 4K. DisplayPort can be easily converted to HDMI, miniDisplayPort, VGA, and DVI with the use of adapter cables or adapters. Note: The DisplayPort on the TS3+ is only compatible with active DisplayPort adapters. If you attempt to use a passive adapter, your display will not function correctly. - Page 12 Connecting Dual Monitors You can add two external monitors to the TS3 Plus up to 4K@60Hz, or one 5K@60Hz. In order to do so, you first need to connect one monitor to the DisplayPort Connector on the TS3 Plus. This monitor can be any type of monitor you wish to use.
-
Page 13: Ethernet
Ethernet The TS3 Plus has a single Gigabit Ethernet port to connect to a Gigabit Ethernet network. Your computer will connect to whichever network is connected to the TS3 Plus by default. These settings can be changed in the “Network” section under “System Preferences”. The Ethernet port also supports wake-on-LAN which allows your computer to wake from standby remotely via the network. -
Page 14: Technical Specifications
CalDigit TS3 Plus Specifications Package Dimension and Weight • Height : 5.15 inches (131.0 mm) • Width : 1.57 inches (40.0 mm) • Depth : 3.87 inches (98.44 mm) • Weight: 1.04 lbs (0.47 kgs) Interface • 2 x Thunderbolt™ 3 •... -
Page 15: Ts3 Plus Accessories
Power Supply • TS3 Plus PSU 170W USB-C Video Adapters • CalDigit USB-C to DisplayPort adapter • CalDigit USB-C to HDMI adapter • CalDigit USB-C to VGA adapter Please contact CalDigit or an authorized CalDigit reseller for availability and pricing. -
Page 16: Section 3 : Technical Support And Warranty Information
3. Technical Support and Warranty Information Technical Support If you run into any issues while using your TS3 Plus, please contact CalDigit Technical Support. • Email: support@caldigit.com • Phone: (714) 572-6668 • Website: www.caldigit.com/support.asp To be eligible for customer support and warranty services, please register your CalDigit product on our website.
