- Page 1 USER GUIDE For more information visit www.caldigit.com...
-
Page 2: Table Of Contents
Table of Contents Section 1 : General Information Introduction General Use Warnings Safety Warnings System Requirements In the Box Thunderbolt™ Station 2 Diagram Section 2 : Using the Thunderbolt™ Station 2 Powering the Thunderbolt™ Station 2 Installing the Rubber Feet Strips Connecting the Thunderbolt™... -
Page 3: Section 1 : General Information

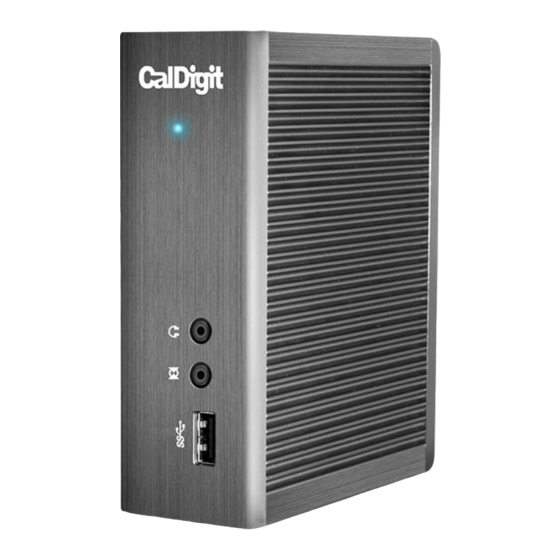

1. General Information Introduction The CalDigit Thunderbolt™ Station 2 is the successor to the original Thunderbolt™ Station that brought a new level of connectivity to modern streamlined computers via a single Thunderbolt™ cable. The Thunderbolt™ Station 2’s design combines the original Thunderbolt™ Station’s outstanding functionality with a host of new features to create the ultimate Thunderbolt™... -
Page 4: System Requirements
Thunderbolt™ enabled computer Windows 7 & Windows 8 Mac OS X 10.8.4 or later In the Box • 1 x CalDigit Thunderbolt™ Station 2 • 1 x Power Supply • 1 x Power Cord • 2 x Rubber Feet Strips... -
Page 5: Thunderbolt™ Station 2 Diagram
Thunderbolt™ Station 2 Diagram... -
Page 6: Powering The Thunderbolt™ Station 2
2. Using the Thunderbolt™ Station 2 Powering the Thunderbolt™ Station 2 The CalDigit Thunderbolt™ Station 2 requires power from the AC adapter to operate. Connect the AC adapter connector to the DC jack on the back of the Thunderbolt™ Station 2 and the other side to an AC outlet. -
Page 7: Installing The Rubber Feet Strips
Installing the rubber feet strips Clip the rubber strips into the side ridges of the Thunderbolt™ Station 2 until they are secure. Rubber strips... -
Page 8: Led Indicator
It is highly recommended that 2nd generation Thunderbolt™ cables are NOTE used for stability and performance. Certified Thunderbolt™ cables can be purchased from CalDigit. LED Indicator The Thunderbolt™ Station 2 is equipped with a LED indicator, which will display a blue light if the unit is powered on and connected to a computer, signaling that it is ready for use. -
Page 9: Using The Thunderbolt™ Station Utility
Thunderbolt™ Station 2 without the need to manually disconnect each device. The Thunderbolt™ Station Utility Installer file needs to be downloaded and NOTE installed on your Mac from the CalDigit website. Please go to www.caldigit. com/support.asp to download the Installer package. Disconnecting all the USB & eSATA devices 1. -
Page 10: Interfaces Summary
Interfaces Summary THUNDERBOLT™ 2 Dual Thunderbolt™ 2 ports allow users to daisy- chain the Thunderbolt™ Station 2 as part of six Thunderbolt™ devices. Thunderbolt™ 2 takes the dual 10Gb/s bi-directional channels of the original Thunderbolt™ interface and combines them into one 20Gb/s bi-directional channel. USB 3.0 The Thunderbolt™... -
Page 11: Hdmi
HDMI Not only can you connect any HDMI monitor to the Thunderbolt™ Station 2, but you have the option of using a 4K HDMI monitor that is 4 times the resolution of HD video. Any display connected to the HDMI port will be regarded as a secondary display by default. -
Page 12: Technical Specifications
CalDigit Thunderbolt™ Station 2 Specifications Dimensions and Weight • Height : 4.92 inches (125.0 mm) • Width : 1.71 inches (43.5 mm) • Depth : 3.88 inches (98.5 mm) • Weight : 1.34 lbs (0.61 kgs) Interface • 2 x Thunderbolt™ 2 Ports •... -
Page 13: Thunderbolt™ Station 2 Accessories
• Thunderbolt Cable (1.0 meter, 3.28ft) • Thunderbolt Cable (2.0 meter, 6.56ft) eSATA Cable • eSATA Cable (1.0 meter, 3.28ft) Power Supply • Thunderbolt™ Station 2 PSU 60W Please contact CalDigit or an authorized CalDigit reseller for availability and pricing. -
Page 14: Section 3 : Technical Support And Warranty Information
3. Technical Support and Warranty Information Technical Support If you run into any issues while using your Thunderbolt™ Station 2, please contact CalDigit Technical Support. • Email: support@caldigit.com • Phone: (714) 572-6668 • Website: www.caldigit.com/support.asp To be eligible for customer support and warranty services, please register your CalDigit product on our website.
