Summary of Contents for CalDigit USB-C-Dock-US05

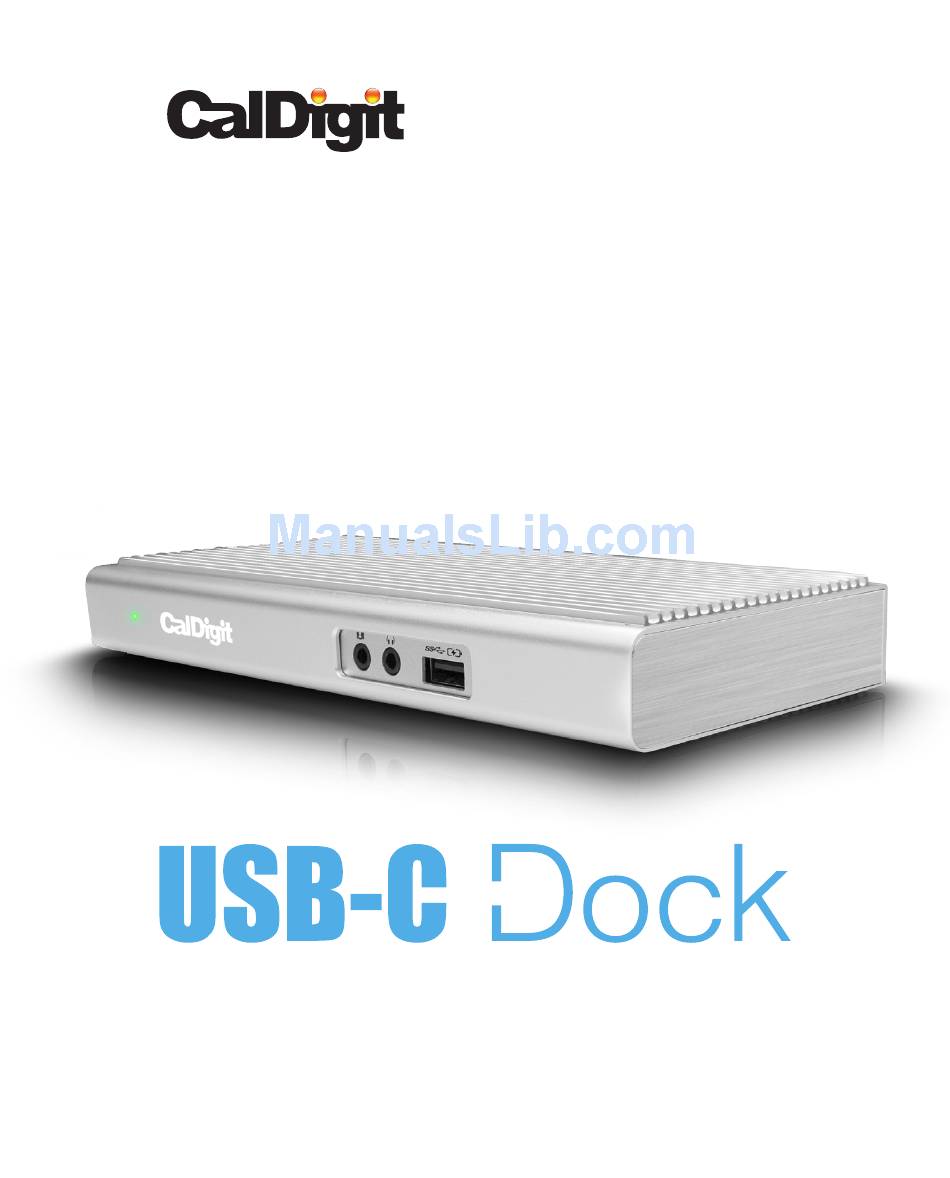

- Page 1 USER GUIDE For more information visit www.caldigit.com...
-
Page 2: Table Of Contents
Table of Contents Section 1 : General Information Introduction General Use Warnings Safety Warnings System Requirements In the Box USB-C Dock Diagram Section 2 : Using the USB-C Dock Powering the USB-C Dock Connecting the USB-C Dock LED Indicator Using the USB-C Dock Utility Interfaces Summary USB 3.1 Type-C USB 3.1 Type-A... -
Page 3: Section 1 : General Information
1. General Information Introduction The CalDigit USB-C Dock was designed with MacBook and Thunderbolt 3 users in mind. MacBook users enjoy the convenience of extreme mobility but sacrifice connectivity by having only one USB-C port. Due to the lack of interface ports, it makes user difficult to conveniently connect different devices. -
Page 4: System Requirements
USB-C or Thunderbolt™ 3 enabled computer Windows 10 Mac OS X 10.9 or later In the Box • 1 x CalDigit USB-C Dock • 1 x Power Supply • 1 x Power Cord (plug style may vary based on regional regulations and requirements.) -
Page 5: Usb-C Dock Diagram
USB-C Dock Diagram... -
Page 6: Section 2 : Using The Usb-C Dock
2. Using the USB-C Dock Powering the USB-C Dock The CalDigit USB-C Dock requires power from the AC adapter to operate. Connect the AC adapter connector to the DC jack on the back of the USB-C Dock and the other side to an AC outlet. -
Page 7: Connecting The Usb-C Dock
Connecting the USB-C Dock to your computer Once the USB-C Dock has been powered, connect the device using a USB-C cable from the USB-C port labeled ‘Computer’ port on the USB-C Dock to a USB-C or Thunderbolt 3 port on your computer. -
Page 8: Using The Usb-C Dock Utility
USB-C Dock without the need to manually disconnect them one by one. The USB-C Docking Station Utility Installer file needs to be downloaded and NOTE installed on your Mac from the CalDigit website. Please go to www.caldigit. com/support.asp to download the Installer package. Disconnecting all USB storage devices 1. -
Page 9: Interfaces Summary
Interfaces Summary USB 3.1 Type-C The USB-C Dock features two USB 3.1 Type-C ports that can transfer at speeds up to 5Gb/s. One port is labeled ‘Computer’ , which is reserved for the connection to your host computer. USB 3.1 Type-C supports video as well as power delivery, which allows you to charge USB-C or Thunderbolt 3 computers that support this feature. -
Page 10: Hdmi 2.0
HDMI 2.0 The USB-C dock features a single HDMI port that is 4K compatible. This extremely versatile video output can support a variety of displays including monitors, televisions, and projectors. The HDMI port can support a maximum resolution of 4K at 60Hz. Any display connected to the HDMI port will be regarded as a secondary display by default. -
Page 11: Ethernet
“Network” section under “System Preferences”. The Ethernet port also supports wake-on-LAN which allows your computer to wake from standby remotely via the network. Ethernet port requires driver installation. Please go to www.caldigit.com/ NOTE support.asp to download Ethernet driver. -
Page 12: Technical Specifications
CalDigit USB-C Dock Specifications Dimensions and Weight • Height : 1.10 inches (2.8 cm) • Width : 7.89 inches (20 cm) • Depth : 3.68 inches (2.8 cm) • Weight : 1.32 lb. (0.6 kg) Interface • 2 x USB 3.1 Type-C Ports •... -
Page 13: Usb-C Dock Accessories
CalDigit USB-C Dock Accessories USB 3.1 Cables • USB 3.1 Type-C Cable 3 feet. 10Gbps, 3 Amps. Power Supply • USB-C Dock PSU 90W Please contact CalDigit or an authorized CalDigit reseller for availability and pricing. -
Page 14: Section 3 : Technical Support And Warranty Information
3. Technical Support and Warranty Information Technical Support If you run into any issues while using your USB-C Dock, please contact CalDigit Technical Support. • Email: support@caldigit.com • Phone: (714) 572-6668 • Website: www.caldigit.com/support.asp To be eligible for customer support and warranty services, please register your CalDigit product on our website.
