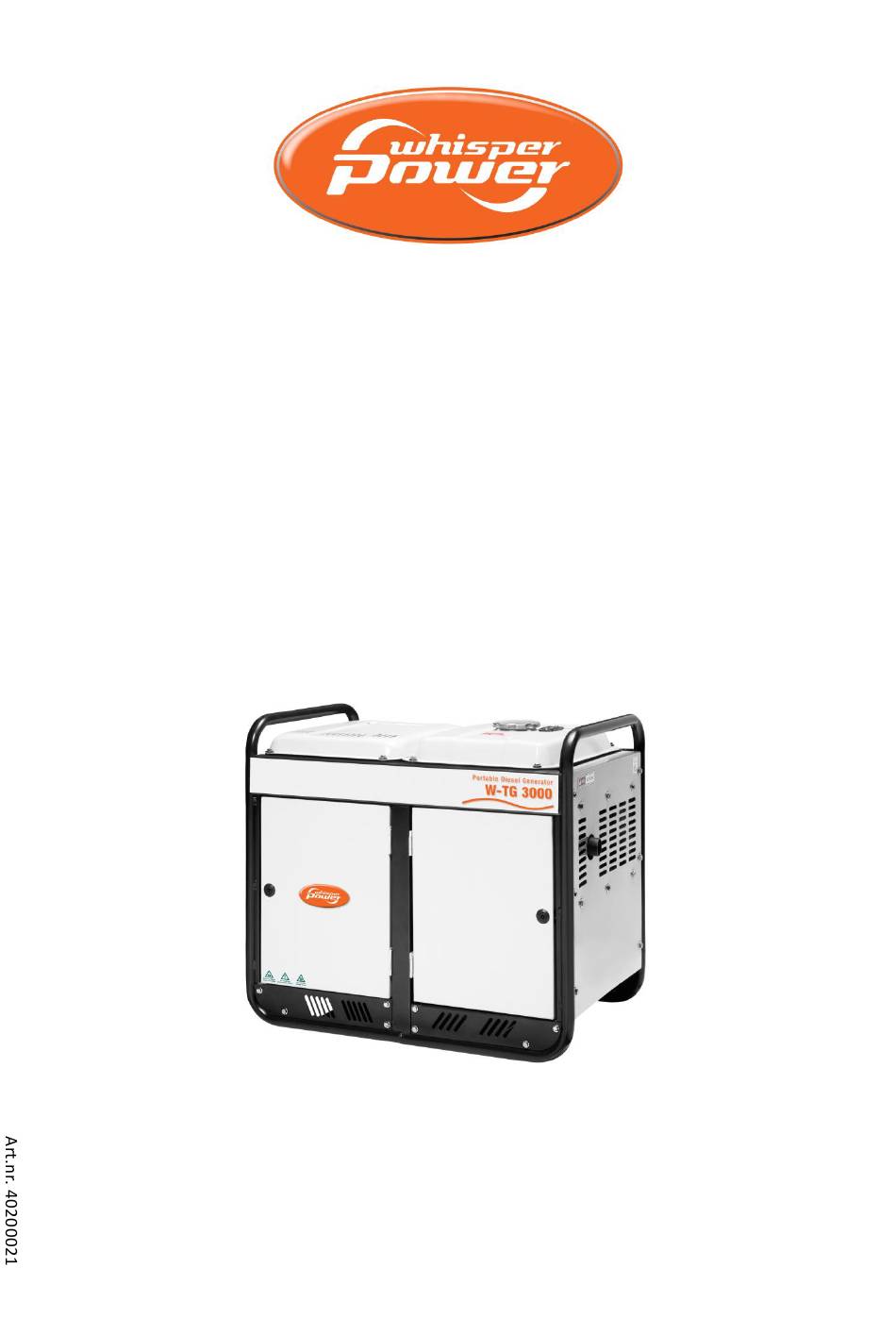

- Page 1 USERS MANUAL W-TG 3000 - 3000 RPM - Portable Diesel Generating set 230V / 50Hz WHISPER POWER BV Kelvinlaan 82 9207 JB Drachten Netherlands Tel.: +31-512-571550 Fax.: +31-512-571599 www.whisperpower.eu V1 June 2012...
-
Page 2: Table Of Contents
Replacing fuel filter ........................14 4.2.5 Replacing oil filter ......................... 14 Regular maintenance..........................15 4.3.1 Maintenance schedule........................15 4.3.2 Putting out of service ........................16 TROUBLE SHOOTING .............................. 17 SPARE PARTS LIST ..............................18 EN / W-TG 3000 / June 2012... -
Page 3: Introduction
The correct functioning of this generating set is subject to guarantee. The period and conditions of this guarantee are The W-TG 3000 Portable Diesel Generating set is laid down in the general conditions of delivery as manufactured and marketed by WhisperPower. -
Page 4: Liability
Identification plate All required identification data are on the identification plate. For location of the identification plate see figure 1. Fig. 1: Location identification plate. EN / W-TG 3000 / June 2012... - Page 5 The identity of the generating set is given by the settings. Check the settings (voltage, frequency, rpm) SERIAL NUMBER. When this number is available the when there is any doubt. EN / W-TG 3000 / June 2012...
-
Page 6: Information
Only allow changes in your electrical system to be carried out by qualified electricians. Connection and protection must be done in accordance with local standards. Warning signs indicate parts which could be live. EN / W-TG 3000 / June 2012... -
Page 7: Operation
Operation External moving parts are covered by the soundshield and therefore the W-TG 3000 is very safe when the Poor electrical connections or using wiring which soundshield is closed. is not suited for the rated currents can cause overheating and possibly fire. -
Page 8: Other Safety Precautions
However in this manual there is a list of important parts for To avoid an electric shock, ground the generator maintenance and spare parts as well as a chapter on from the ground terminal. maintenance and problem solving. EN / W-TG 3000 / June 2012... -
Page 9: Components
16. Engine speed lever 17. Oil filter 18. Oil drain plug 19. Oil filler cap/dipstick 20. Engine stop lever 21. Recoil starter 22. Fuel pump 23. Oil sensor 24. Fuel injection limiting bolt Overview W-TG 3000 EN / W-TG 3000 / June 2012... -
Page 10: Technical Information
TECHNICAL INFORMATION Engine The W-TG 3000 generating set is based on 178 FA 1 cylinder 4 stroke diesel engine. The engine is directly injected. The engine is air cooled. Alarms and shut down In the event of malfunctioning this will be indicated by the failure light, details will be shown on the display and the engine will be shut down. -
Page 11: Technical Data
20 degrees Standard supplies Automatic air bleeding mechanism, AC Voltmeter, AC circuit breakers, additional DC output, DC over current protection, extra large fuel tank with fuel gauge, large capacity exhaust silencer, starter battery EN / W-TG 3000 / June 2012... -
Page 12: Operation
Therefore we recommend daily oil-checks. Check oil level prior to starting the engine or at least 5 minutes after the engine has stopped. Check for leaks. Switch on the battery switch. EN / W-TG 3000 / June 2012... - Page 13 Never remove the battery while the engine is running or any electrical cable while the battery is connected in the circuit. Only disconnect the battery with the engine stopped and all switches in "OFF" position. EN / W-TG 3000 / June 2012...
-
Page 14: Maintenance
For the same reason it is of the greatest tissues under the filter. importance to use the right oil specification The first time starting up or after running out of fuel it could be necessary to prime the fuel system. EN / W-TG 3000 / June 2012... -
Page 15: Regular Maintenance
When the generator set runs less than 100 add oil when the level is still hours a year the oil should be changed yearly. above the mark Maximum oil level Minimum oil level Fig. 13 Maintenance schedule EN / W-TG 3000 / June 2012... -
Page 16: Putting Out Of Service
Repeat steps 1,3,4 and 9, every 6 months. Change oil Push the decompression lever to non compression before using the engine again. position and turn around the engine for about 2-3 seconds with the key switched to start. EN / W-TG 3000 / June 2012... -
Page 17: Troubleshooting
TROUBLESHOOTING If there occurs any trouble starting the generator make sure that you check all of the following points in the schedule below. EN / W-TG 3000 / June 2012... -
Page 18: Spare Parts List
SPARE PARTS LIST Art no. Description Qty. 40290020 Starter battery W-TG3000 40401329 Air filter element 40401398 Oil filter included O-ring 40402074 Fuel oil filter gasket 40402075 Filter element assy. 40222204 WPL- 10W40 GENERAL EN / W-TG 3000 / June 2012... - Page 19 EN / W-TG 3000 / June 2012...
