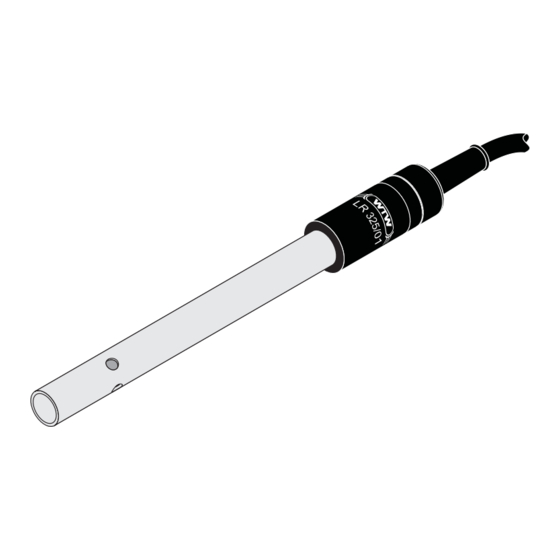

- Page 1 OPERATING MANUAL OPERATING MANUAL ba55303e06 05/2017 LR 325/01 ULTRAPURE WATER CONDUCTIVITY CELL...
- Page 2 LR 325/01 © Copyright 2017 Xylem Analytics Germany GmbH Printed in Germany. ba55303e06 05/2017...
-
Page 3: Table Of Contents
Contents LR 325/01 - Contents Overview ......... . 4 Structure and function . -
Page 4: Overview
Overview LR 325/01 Overview Structure and function Structure Shaft Connection head Recommended fields of application Measurments in ultapure water. Cleaning Caution Before cleaning, disconnect the sensor from the instrument. Cleaning A thorough cleaning is particularly recommended for measurements of low conductivities. -
Page 5: What To Do If
LR 325/01 What to do if... Disposal We recommend to dispose of the conductivity cell as electronic waste. What to do if... Error symptom Cause Remedy No temperature or con- – No connection between – Check connection between ductivity display... -
Page 6: Technical Data
Sensor with closed plug IP 68 (2 x 10 Pa or 2 bar) resistance connection Cable plug IP 67 (when plugged in) The LR 325/01 meets the requirements according to article 3(3) of the 97/ 23/EC directive ("Pressure equipment directive"). ba55303e06 05/2017... - Page 7 LR 325/01 Technical data Measurement Conductivity measuring 0.001 µS/cm ... 200 µS/cm conditions range The measuring range may be limited by the meter that is used (see measuring range of your meter). Temperature range -5 ... 80 °C (100 °C) Max.
- Page 8 For more information on how Xylem can help you, go to xyleminc.com. ® Service address: Xylem Analytics Germany Sales GmbH & Co. KG Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany Tel.: +49 881 183-325 Fax: +49 881 183-414 E-Mail wtw.rma@xyleminc.com Internet: www.WTW.com Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany...
