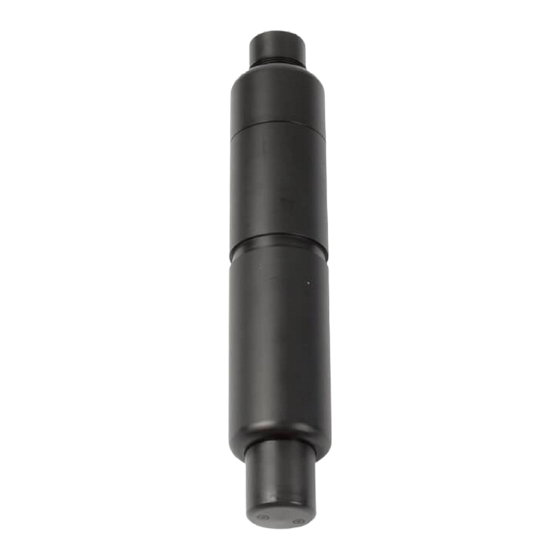

® TetraCon 700 IQ (SW) Contents ® TetraCon 700 IQ (SW) - Contents ® TetraCon 700 IQ (SW) - Inhaltsver- Overview ........5 How to use this component operating manual .
Page 4
® Contents TetraCon 700 IQ (SW) Application characteristics ..... . . 21 General data ........22 Electrical data .
® TetraCon 700 IQ (SW) Overview Overview How to use this component operating manual Structure of the IQ Sensor Net Operating Manual IQ S ENSOR operating manual System Operating Manual (Ring Binder) IQ Sensor MIQ Module MIQ Terminal Operating Operating Operating Manual Manual...
A modern epoxy sealing technique reduces the chances of breakage of the sensor in the rough industrial environment. Recommended fields of application ® TetraCon 700 IQ (SW) Stationary measurements in water/wastewater applications. TetraCon 700 IQ SW Stationary measurements in seawater and brackish water, aquacul- ture. ba55322d06 02/2015...
® TetraCon 700 IQ (SW) Safety Safety Safety information 2.1.1 Safety information in the operating manual This operating manual provides important information on the safe oper- ation of the product. Read this operating manual thoroughly and make yourself familiar with the product before putting it into operation or working with it.
® Safety TetraCon 700 IQ (SW) Safe operation 2.2.1 Authorized use ® The authorized use of the TetraCon 700 IQ (SW) consists of its use as a sensor in the IQ S .Only the operation and running of ENSOR the sensor according to the instructions and technical specifications given in this operating manual is authorized (see chapter 7 T ECHNICAL ).
700 IQ SW. Information on this and other IQ S ENSOR accessories is given in the WTW catalog and on the Internet. How to connect the sensor connection cable to the terminal strip of an MIQ module is described in chapter 3 Installation of the IQ S system operating manual.
® Commissioning TetraCon 700 IQ (SW) SACIQ Fig. 3-1 Connecting the sensor Commissioning / Getting the sensor ready for measur- Pull the protective cap off the sensor. If required, assign a user-defined name to the sensor (see rel- evant IQ S system operating manual).
® TetraCon 700 IQ (SW) Commissioning ® Setting table for the TetraCon 700 IQ (SW) Carrying out settings Using <S>, switch from the measured value display to the main menu of the settings. Then navigate to the setting menu (setting table) of the sensor.The exact procedure is given in the relevant IQ S ENSOR system operating manual.
Page 12
® Commissioning TetraCon 700 IQ (SW) Menu item Selection/values Explanations none Temp. compensa- tion with Measuring nonlinear For natural waters (groundwater, sur- mode Conductivity face water, drinking water), salinity (seawater) according to IOT linear with setting ...
® TetraCon 700 IQ (SW) Measurement / operation Measurement / operation Measuring CAUTION Contact with the sample can lead to danger to the user! Depend- ing on the type of sample, suitable protective measures must be taken (protective clothing, protective goggles, etc.). Please make sure that, during measurement, the elec- trodes of the sensor are surrounded by a gap of at least 5 cm at the base and sides (boundary fields).
Cell constants with For some products of the WTW accessory program that require a cor- rection of the cell constant, you will find the correct values to set in the WTW installation...
Page 15
® TetraCon 700 IQ (SW) Measurement / operation Take a representative sample simultaneously with the conduc- tivity measurement and from the immediate vicinity of the sen- sor if possible. Determine the conductivity of the sample without the influ- χ ence of boundary fields (-> ).
® Maintenance, cleaning, disposal TetraCon 700 IQ (SW) Maintenance, cleaning, disposal General maintenance instructions CAUTION Contact with the sample can lead to danger to the user! Depend- ing on the type of sample, suitable protective measures must be taken (protective clothing, protective goggles, etc.). Maintenance condition We recommend to switch on the maintenance condition each time before removing the sensor from its measuring position.
® TetraCon 700 IQ (SW) Maintenance, cleaning, disposal Cleaning Contamination Cleaning agents Reaction time at room temperature Water-soluble sub- Tap water stances Fats and oils Warm water and household detergent; In the case of heavy Maximum of 5 min- contamination: Meth- utes ylated spirits Lime and hydroxide...
® What to do if ... TetraCon 700 IQ (SW) What to do if ... No temperature display Cause Remedy and/or no conductivity System setting incorrect Correct the system setting display Temperature sensor or conduc- Return the conductivity sensor tivity sensor defective Measurement does not Cause Remedy...
Page 19
® TetraCon 700 IQ (SW) What to do if ... Measured value flashing Cause Remedy Maintenance condition is active – If the maintenance condition was activated manually (e.g. by pressing the <C> key): Switch off the maintenance condition manually in the menu Display/Options (see IQ S system oper-...
0 °C ... + 60 °C (32 ... 140 °F) compensation Nonlinear + 5 °C ... + 35 °C (41 ... 95 °F) according to DIN 38404 + 35 °C ... + 60 °C (95 ... 140 °F) according to WTW procedure None ba55322d06 02/2015...
10 cm; max. 100 m depth Operating position Approach flow No minimum approach flow required ® Fields of application TetraCon 700 IQ (SW) Stationary measurements in wa- ter/wastewater applications TetraCon 700 IQ SW Stationary measurements in seawater and brackish water, aquaculture ba55322d06 02/2015...
Connection technique Connection via the SACIQ or SACIQ SW sensor connection cable Material Shaft: – TetraCon 700 IQ V4A stainless steel 1.4571 – TetraCon 700 IQ SW Sensor head PVC, epoxy (filler) Electrodes, housing of the tem- Graphite perature sensor Plug head connector housing ®...
® TetraCon 700 IQ (SW) Technical data Instrument safety Applicable norms – EN 61010-1 – UL 3111-1 – CAN/CSA C22.2 No. 1010.1 Electrical data Nominal voltage max. 24 VDC, via the IQ S (Details ENSOR see IQ S system oper- ENSOR ating manual, chapter T ECHNICAL...
® Indexes TetraCon 700 IQ (SW) Indexes Explanation of the messages This chapter contains a list of all the message codes and related mes- ® sage texts for the TetraCon 700 IQ (SW) sensor. Information on the contents and structure of the log book and ...
® TetraCon 700 IQ (SW) Indexes Status info The status info is a coded piece of information on the current status of a sensor. Each sensor sends this status info to the controller of the IQ S . The status info of sensors consists of 32 bits, each of ENSOR which can have the value 0 or 1.
Page 26
® Indexes TetraCon 700 IQ (SW) ba55322d06 02/2015...
Page 28
For more information on how Xylem can help you, go to xyleminc.com. ® Service address: Xylem Analytics Germany Sales GmbH & Co. KG Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany Tel.: +49 881 183-325 Fax: +49 881 183-414 E-Mail wtw.rma@xyleminc.com Internet: www.WTW.com Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany...
