Sonic Radio Model - Quick Installation Guide
Radio Model Name: mini RITE Fusion 2
The mini RITE Fusion 2 radio model is a low
power, inductive radio transceiver working at 3.84
MHz consisting of:
a Digital-Signal-Processor (DSP)
a radio Front-End (FE)
memory (EEPROM)
antenna coil
and smaller components
All components are mounted on a flexible Printed-
Circuit-Board (PCB), which is intended to be
installed as a module into Sonic wireless hearing
aid devices.
The module also has all voltage regulators
included inside the DSP and FE and
programming inputs on the board
The module requires a battery, one or two
microphones and an audio receiver to be attached
and must be mounted in an external plastic shell.

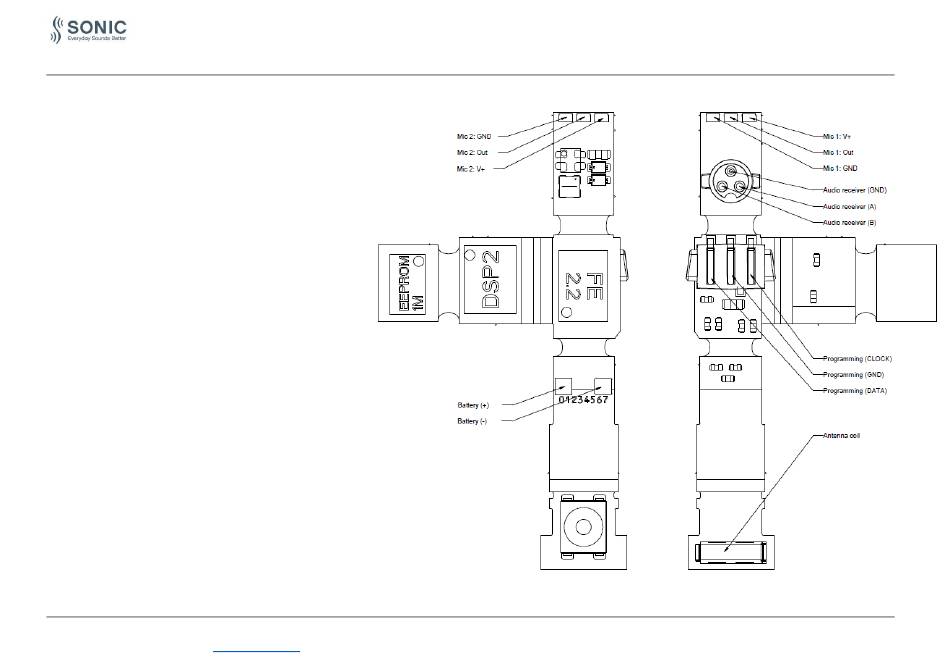

The module is depicted to the right with its main
components and connections:
