FCC Documentation (MM-5100U)
MM-5100U CDMA 1X Voice/Data Modem
Maxon Proprietary : Restricted Distribution
This document is the sole and exclusive
property of Maxon. Not to be distributed or
divulged without prior written agreement.
FCC Documentation
Version : 0.1
Date
1/21
confidential and proprietary information
This document is the sole and exclusive property of Maxon Australia.
Not to be distributed or divulged without prior written agreement.
: NOV. 05, 2003
36a Gibson Avenue, Padstow
New South Wales, 2211. Australia
Phone:+61 2 9707 2000
URL: http//www.maxon.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM-5100U and is the answer not in the manual?

Questions and answers

Related Manuals for Maxon MM-5100U

Summary of Contents for Maxon MM-5100U

  • Page 1 Maxon. Not to be distributed or URL: http//www.maxon.com.au divulged without prior written agreement. 1/21 confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.
  • Page 2 In order to comply with FCC RF exposure requirements, this product must be operated with the MM-5100U CDMA card. The use of this card in any other type of host configuration may not comply with FCC RF exposure requirements and should be avoided.

  • Page 3: Table Of Contents

    FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem Table of contents Contact Information······························································································· 4 Product Overview ·································································································· 5 Overview......................5 What is the MM-5100U CDMA 1X Voice/Data Modem ........ 5 Supplied accessories................... 5 Specifications ········································································································ 6 Mechanical Specifications................6 Environment Specifications ................ 6 Electrical Specifications ................

  • Page 4: Contact Information

    Fax: +61 2 9707 3328 Mr. Ray Sanders-Managing Director Mr. Ashween Prasad- Technical Manager Email: engineering@maxon.com.au 4/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.

  • Page 5: Product Overview

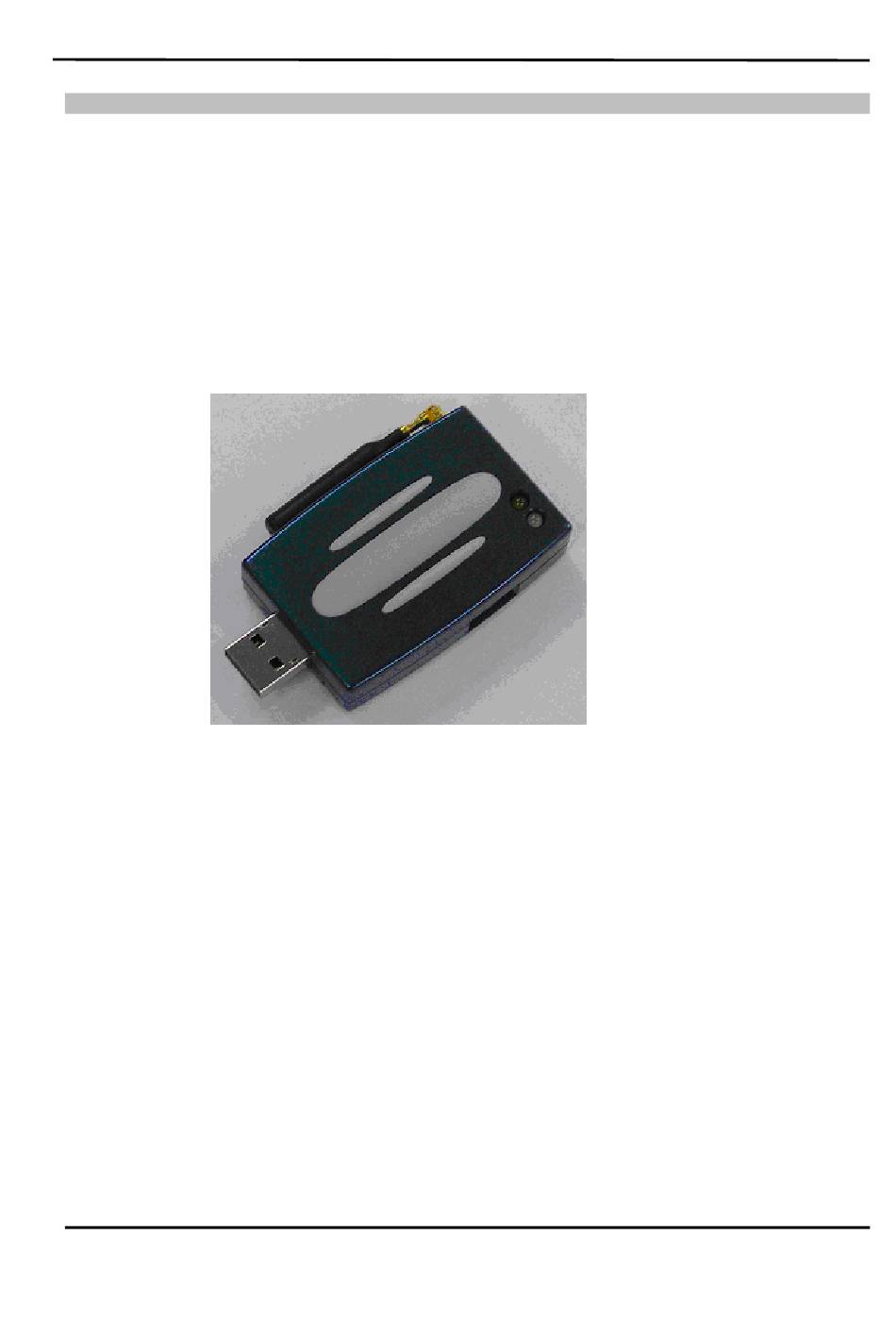

    2. Product Overview 2.1 Overview The MM-5100U CDMA 1X Voice/Data Modem provides the most convenient environment for wireless voice communication, wireless internet and wireless e-mail at up to 153kbps of data rate anywhere. This modem functions as a wireless Voice/Data Modem, a modem, a mobile phone and allows you to connect to the Internet, send and receive e-mail, connect to a corporate network, and make phone calls, without the need of a network cable or phone line.

  • Page 6: Specifications

    (Note) The current consumption might vary of 5% over the whole operating temperature range. 6/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.

  • Page 7: Cdma Rf Specifications

    Common RF Impedance 50ohm Supplied voltage +3.8V DC @ Power Amp. +2.85V DC @ TX block 7/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.
  • Page 8 Under -90dBm @FER=1% -21dBm Under -79dBm @FER=1% Common RF Impedance 50ohm Supplied voltage +3.0V DC 8/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.

  • Page 9: Instruction

    Install Phone UI program and MM-5100U Modem Don’t connect MM-5100U Modem to your PC before the denotation of connection. If you already connect the MM-5100U Modem to your PC, remove the MM-5100U and then double click the icon of “Setu.exe”.
  • Page 10 FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem 10/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.
  • Page 11 FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem 11/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.
  • Page 12 Press for more than a second during buzzer ringing for receiving voice call Press for more than a second when redial, this time you heard dialing sound When adjusting the volume on the unit, please refer to the “MM-5100U Software manual” for detail information.

  • Page 13: Circuit Description

    5. Circuit description 5.1 MM-5100U CMDA 1X Modem circuit description The MM-5100U CDMA modem consists of the CDMA Engine, power generation part, digital part, RF part and connectors. The Fig 1-1 is block diagram of MM-5100U CDMA 1X modem. Figure 4.1 MM-5100U CDMA 1X modem block diagram...

  • Page 14: Power Interface Part

    SRAM: performs to read and write data - U703: USB transceiver is fully compliant with the USB specification Rev1.1. 14/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.

  • Page 15: Rf Part

    RF part consists of synthesizing part, transmission and reception part. Fig 4.2 RF part block diagram 15/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.
  • Page 16 CDMA mode and can generate the proper output power. The DC voltage into the power amp module is typical 3.8V. 16/21 Confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.

  • Page 17: Range Of Operating Power Levels And Description Of Means For Variation Of

    The 84 dB dynamic range is 39 dB when the voltage 2.8V and -45 dB in 0.1V. The 81 dB dynamic range (0.3V ~ 2.4V) gain is used in this CDMA card. 17/21 confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.

  • Page 18: Description Of Frequency Determining And Stabilizing Circuitry

    PLL frequency stability is determined by the stability of oscillator of VC-TCXO. This prevents maximum frequency variation from exceeding ±2.0PPM. 18/21 confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.

  • Page 19: Description Of Circuit Employed For Suppression Of Spurious Radiation

    : 824 MHz ~ 869 MHz Attenuation : 869 MHz ~ 894 MHz : 40 dB min. 19/21 confidential and proprietary information This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement.

  • Page 20: Description Of Modulation System Used

    Feb. 12, 2003 9. Description of modulation system used The MM-5100U CDMA card consists of MSM, baseband analog interface (RFT31000, IFR3300) as modulation system. The MSM integrates functions of a CDMA processing, a digital FM(DFM) processing, CDMA subsystem in the MSM performs CDMA signal processing about CDMA modulation / demodulation, viterbi coding/decoding, interleaving/de-interleaving, and etc.
  • Page 21 FCC Documentation Feb. 12, 2003 The transmitter IF VCO is set to 267.2 MHz by an external varactor-tuned resonant tank circuit. An internal phase-lock loop and external loop filter network provides the feedback to the varactor that tune the VCO precisely to 267.2 MHz. A master-slave divide-by-two circuit generates I and Q signals in precise quadrature for the mixers.
