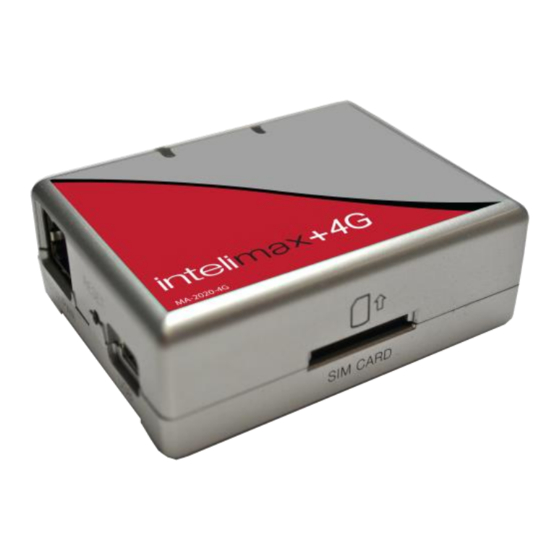

Maxon Intelimax+4G User Manual

M2m 4g cat1 seriesl modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Intelimax+4G | M2M 4G CAT1 Serial Modem | MA-2020-4G

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intelimax+4G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxon Intelimax+4G

Summary of Contents for Maxon Intelimax+4G

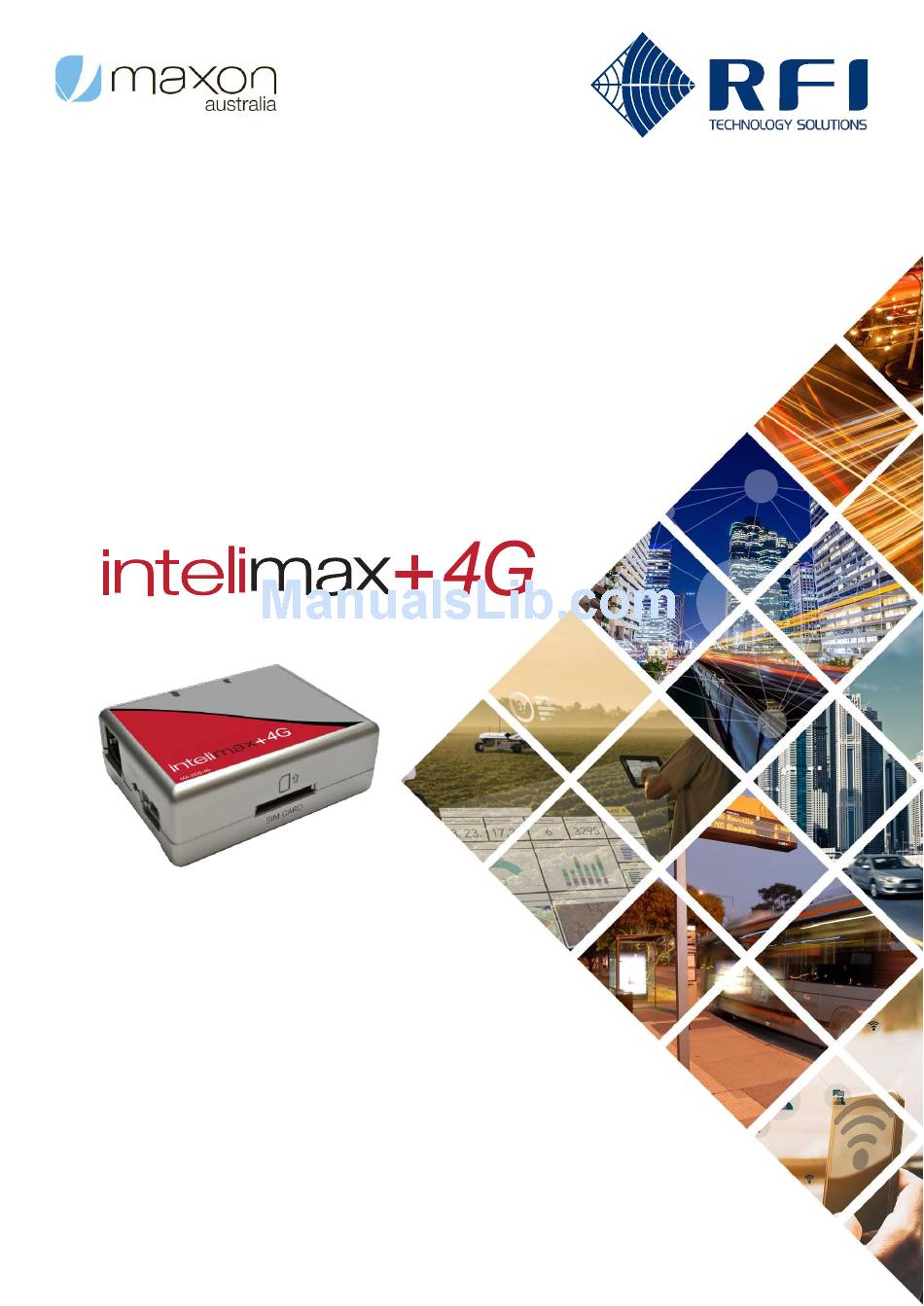

  • Page 1: User Manual

    Intelimax+4G | M2M 4G CAT1 Serial Modem | MA-2020-4G User Manual...

  • Page 2: Table Of Contents

    I N T R O D U C T I O N ......................10 Intelimax+ 4G Features ....................10 M O D E M S E T U P ......................13 Connecting to the Intelimax+4G ................14 Modem Status Tab ....................... 17 WAN Configuration TAB ....................19 Scheduler TAB .......................

  • Page 3: D I S C L A I M E R S

    Intelimax+4G User Manual D I S C L A I M E R S All data and information contained in or disclosed by this document are confidential and proprietary information of RF Industries, and all rights therein are expressly reserved. By accepting this material, the recipient agrees that this material and the...

  • Page 4: R F E X P O S U R E A N D E L E C T R I C A L S A F E T Y

    ▪ Increase the separation between the modem and the receiver ▪ Contact RF Industries Maxon Technical Support for assistance. ▪ Changes or modifications to the modem that are implemented without the express consent of RF Industries Pty. Ltd. void the product warranty and terminate the user’s authority to use the modem.

  • Page 5: General Safety

    Intelimax+4G User Manual General Safety RF Interference Issues: Avoid possible radio frequency (RF) interference by carefully following safety guidelines below: Switch OFF the modem when in an aircraft. The use of cellular devices in an ▪ aircraft is illegal. It may endanger the operation of the aircraft and/or disrupt the cellular network.

  • Page 6: Vehicle Safety

    Intelimax+4G User Manual NOTE: * The product needs to be supplied by a limited power source or the power supply provided. Otherwise, safety will not be ensured. * Do not affix the modem in an open area where it is liable to lightning- strike hazard.
  • Page 7 Intelimax+4G User Manual Areas when the air contains chemicals or particles such as grain, dust or metal ▪ powders Any other area where you would normally be advised to turn off machinery of ▪ any kind Concentrated Electromagnetic Activity: Avoid using the modem within areas of high electromagnetic wave activity or within enclosed metallic structures e.g.

  • Page 8: C O N T A C T I N F O R M A T I O N

    Intelimax+4G User Manual C O N T A C T I N F O R M A T I O N In keeping with RF Industries’ dedicated customer support policy, we encourage you to contact us. TECHNICAL: Hours of Operation: Monday to Friday 8.30am to 5.00pm*...

  • Page 9: R E V I S I O N H I S T O R Y

    Intelimax+4G User Manual R E V I S I O N H I S T O R Y Product Intelimax+4G M2M LTE CAT1 Serial Modem Model MA-2020-4G Document Type Current Version Number 1.11 Status of the Document Release Revision Date...

  • Page 10: I N T R O D U C T I O N

    Intelimax+4G User Manual I N T R O D U C T I O N Breaking the industry benchmark, the top-of-the range Intelimax+4G is a unique and intelligent fusion of 4G capabilities with advanced functionality of a modem/router. Intelimax+ 4G Features...

  • Page 11: Power Source

    Intelimax+4G User Manual SSLv3 Encrypted Serial Socket ▪ Secure Syslog Client RFC5425, RFC5425 and RFC6587 ▪ Login brute force detection and rejection ▪ Login activity log ▪ Frequency Bands FDD-LTE B1/B3/B5/B7/B28 ▪ WCDMA/HSPA+ B1/B5 ▪ Data Speeds LTE-FDD: UL 5Mbps / DL 10Mbps ▪...

  • Page 12: Operating Systems

    Intelimax+4G User Manual Idle Current @ 12V: 80mA ▪ Maximum Current @ 12V: 150mA ▪ Operating Systems Windows XP/ Vista / 7 / 8 / 10 ▪ - 12 -...

  • Page 13: M O D E M S E T U P

    Intelimax+ serial modem supports a Windows GUI software, where by you can configure the modem via serial/USB connection or remotely via the WAN IP. Maxon recommends using the GUI connected via a TCP/IP connection in order to utilise all the configuration settings. When connecting to the Intelimax+ using the GUI when the modem is in serial modem mode, there will be very limited functionality.

  • Page 14: Connecting To The Intelimax+4G

    Intelimax+4G User Manual Connecting to the Intelimax+4G TCP/IP Connection - Recommended Using the TCP/IP connection option allows users to connect to the modem via an IP connection. Firmware upgrades can ONLY be done when connected via TCP/IP. Local Connection To use this feature locally you must follow the following steps: 1.
  • Page 15 Intelimax+4G User Manual Serial Port Connection Use this section to connect to the modem using the provided RJ45 power/serial cable, the default connection settings are: Baud Rate: 115200 Data Bits: Parity: None Stop bit: 1 bit Flow control: None Make sure to select the correct COM port and click the open button, the Intelimax+ GUI will connect to the modem via the selected COM port.
  • Page 16 1 minute, the PC will prompt for drivers to be installed. The Intelimax+ requires the USB/LAN interface drivers installed to be able to talk via a TCP IP connection to the modem, which can be downloaded from the Maxon website.

  • Page 17: Modem Status Tab

    Intelimax+4G User Manual Modem Status Tab The modem status page displays modem information such as network registration and WAN connectivity status. Information displayed on the Status page is: Up time: Length of time since modem last rebooted (soft or hard)
  • Page 18 Intelimax+4G User Manual PIN Status: Status of the SIM pin setting Area information: LAI, LAC, Cell ID Server status: Will display whether modem is in listening or connected states Call status: In serial modem mode will display whether modem is in connected call.

  • Page 19: Wan Configuration Tab

    Intelimax+4G User Manual WAN Configuration TAB WAN configuration page is used to configure how the modem will connect to the 3G/4G network. Please select the correct operation mode as this will decide if the modem will automatically connect to the network on power up or work in pass through mode.
  • Page 20 Intelimax+4G User Manual IP Stack Auto Mode When using IP STACK Auto the modem will behave as an IP Serial modem. When using this mode the modem will transfer all incoming packets via the serial port to the host and vice versa.
  • Page 21 Intelimax+4G User Manual Answer the Data Call ATS0=n Set auto answer where n=number of rings Escape command to enter AT command mode (1 second gap both before and after command required to distinguish from data) Drops the data call Can return to call if still active To use this feature please ensure the following has been setup on the SIM: 1.
  • Page 22 Intelimax+4G User Manual 2. PPP WAN Conditional mode: Modem acts as PPP server with the WAN IP connection conditional on the serial PPP connection. 3. PPP WAN Manual mode: Modem acts as PPP server and the WAN IP connection can be controlled via AT over IP commands.
  • Page 23 Intelimax+4G User Manual • Watchdog (Ping Function) • Back off timer • Periodic reset Can be enabled or disabled Configurable by number of hours between 1 and 28 • Reset state setting. Reset will happen in any state unless configured otherwise by: If the modem is in serial mode and in a connected state then the modem will wait for the connection to drop before resetting.

  • Page 24: Scheduler Tab

    Intelimax+4G User Manual Scheduler TAB The scheduler tab allows configuring modem WAN connection schedule. The scheduler supports two methods of selection. Days of the Week (setup to come on certain days of the week) or Setting up a certain power up duration (setup to come certain during the hour).
  • Page 25 Intelimax+4G User Manual Scheduler by Duration Using this method, the modem will be powered up for a certain duration, then power itself down for another period of time, and the cycle repeats itself. To setup scheduler by duration enter for how long you wish the modem to stay powered up and enter power cycle duration.

  • Page 26: Serial Configuration Tab

    Intelimax+4G User Manual Serial Configuration TAB The Serial configuration page is used to setup modem serial settings such as baud rate, serial messages, and SMS on boot. Serial Port Settings Serial port setup includes the following: Baud rate (supports 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200)
  • Page 27 Intelimax+4G User Manual depends on the equipment requirements and settings. Other modem related settings include: &D, S0, &C, Echo, and Q Serial Password – Password protected AT commands The Intelimax+ has the ability to password protect serial interface AT commands. The serial password can be set on the serial tab.

  • Page 28: Ip Stack Configuration Tab

    Intelimax+4G User Manual IP Stack Configuration TAB IP stack configuration page is used to setup modem IP STACK settings such as port number and IP address and connection timeouts. Protocols IP Stack supports TCP and UDP, depending on your application requirement you can...
  • Page 29 Intelimax+4G User Manual the following process: 1. Create the certification file for upload to the Intelimax+. The certificate files should be placed into a folder along with a path.txt file. 2. The path .txt file should only contain the text “extra”.

  • Page 30: Port Number

    Intelimax+4G User Manual • Server mode: In Server mode the modem will connect to a PPP session and will listen on a predefined port for incoming client requests • Client mode: the modem will initiate a PPP connection and try to connect to the Primary server.
  • Page 31 Intelimax+4G User Manual data for the defined Idle Time period. Bear in mind that data could be continuously sent from the modem to the connected device, but if nothing is received back, the modem will disconnect. If the modem is connected as an auto-connect client then it will try to reconnect to the server once it has disconnected.
  • Page 32 Intelimax+4G User Manual data. A new line in the file is created each second and a timestamp can either be enabled or disabled. In order to use FTP on the Intelimax+, please enable ‘append’ on your FTP server. Also restrict the welcome message to less than 10 characters. Please save and apply settings before using.
  • Page 33 Intelimax+4G User Manual The log file will have a standard prefix used here with a suffix in the format of DDMMYYYHHMMSS, where D is day, M is month, Y is year, H is hour in 24-hour format, M is minutes, and S is seconds. E.g. DHMAX10102017181146.csv.
  • Page 34 Intelimax+4G User Manual 09/11/2012 15:44:07 AT+CSQ 09/11/2012 15:44:08 AT+CSQ 09/11/2012 15:44:09 AT+CSQ 09/11/2012 15:44:10 AT+CSQ 09/11/2012 15:44:11 AT+CSQ 09/11/2012 15:44:12 AT+CSQ 09/11/2012 15:44:13 AT+CSQ 09/11/2012 15:44:14 AT+CSQ 09/11/2012 15:44:15 AT+CSQ FTP uploads can also be initiated manually by AT commands. In this way, the AT commands themselves will also be included in the .csv file.

  • Page 35: Modem Emulation Tab

    Intelimax+4G User Manual Modem Emulation TAB Function Description Modem emulation assists in the transition from Circuit Switched Data (CSD) to Packet Switched Data(PSD)/IP. If the control centre management system supports IP but the field devices only support dialling back to the control centre using CSD, then you can use the Intelimax+ to emulate the CSD modem interface.
  • Page 36 Intelimax+4G User Manual will be established according to the S0 setting. If a CSD call is dial out of the modem, the IP stack server will stop listening and allow the TCP client connection assigned to the dialled number to be connecting to the remote server.

  • Page 37: Dynamic Dns

    Intelimax+4G User Manual Dynamic DNS Allows the user to configure; Username, Password and Domain name to be used by Intelimax+ when authenticating on a DDNS server. • Enable DDNS - Select to enable DDNS. • Service Provider - Link of the DDNS service web page (Server site is http://dyn.com) by default)

  • Page 38: Ppp Server

    Intelimax+4G User Manual PPP Server Function Description PPP, or Point-to-Point Protocol, is a protocol commonly used to establish a direct connection between two devices over a serial cable, phone line, trunk line, cellular telephone, specialized radio links, or fibre optic links.
  • Page 39 Intelimax+4G User Manual PPP WAN modes PPP WAN Auto In this mode, the WAN IP connection is always connected. PPP WAN Conditional In this mode, the WAN IP connection is based on the LAN PPP connection, once the LAN PPP connection is up, the WAN IP connection will be established and vice versa.
  • Page 40 All standard AT commands and Maxon customized AT$$ commands are supported. The command ATDT*99***1# is to notify the Intelimax+ to go into the PPP mode, after this command no more AT commands are supported through direct accessing of the serial port.
  • Page 41 Intelimax+4G User Manual No Dial mode means the client PPP will initiate PPP connection without any dialling string being sent prior to PPP session. THIS IS NOT CURRENTLY SUPPORTED. Other PPP Options Authentication PPP server intends to support 3 authentication modes: None, CHAP and PAP. Whenever CHAP or PAP authentication mode is selected, the username and password should be provided as well, otherwise, these two fields can be left blank.
  • Page 42 Intelimax+4G User Manual Incoming port WAN : Outgoing port LAN e.g. 8080:80 port 8080 on the WAN interface is forwarded to port 80 on the LAN interface. Extra port forwards are separated with a comma. Currently only individual ports can be forwarded, but port ranges will be added in future firmware release.

  • Page 43: Administration Tab

    Intelimax+4G User Manual Administration TAB Telnet and SSH login • User Name setting using for Telnet and TCP connection. • Password setting using for Telnet and TCP connection. • Enable or disable Telnet. • Set Telnet port number to use.
  • Page 44 Intelimax+4G User Manual • The Intelimax+ also send syslog data to a syslog server according to RFC5424, RFC5425 and RFC6587. The event types are: auth, authpriv, cron, daemon, kern, mark, security. The default payload size is 480 octets. • By default, the remote system logs are without encryption. Encryption can be enabled by installing TLS certificates using the process described below.
  • Page 45 Administrators phone numbers in international format +61412 345 678 maXconnect maXconnect is Maxon’s cloud based M2M management portal which allows you to access, monitor and control 3G/4G Maxon devices securely. With maXconnect you can access real-time data from your devices, monitor their status and location. Utilise complete functionality by controlling your devices anywhere, anytime.
  • Page 46 Intelimax+4G User Manual maXconnect port: 1883 maXconnect update interval: 120 seconds maXconnect FTP server URL: ftp.maxconnect.com.au • For connections to MaxConnect within MaxWAN please use the following: maXconnect URL: 10.0.0.1 maXconnect port: 1883 maXconnect update interval: 120 seconds maXconnect FTP server URL: 10.0.0.32...

  • Page 47: System Tab

    To use AT commands, user device should open a TCP socket on particular ports which are configurable through GUI, and then send AT commands to the socket. Only pre- defined AT commands are supported. Please refer to the Maxon Intelimax+ user manual for the custom AT command format and which commands are currently supported.

  • Page 48: Snmp Configuration

    Intelimax+4G User Manual Debug The debug settings allow for additional debug levels to be set in the modem to allow for additional debugging capabilities. When these debugging settings are enabled, the Syslogs (system logs) contain additional information for either the engine or IP stack.
  • Page 49 LAST-UPDATED "201104150000Z" ORGANIZATION "DHPLAB" CONTACT-INFO "support@maxon.com.au" DESCRIPTION "Maxon MIB" REVISION "201104150000Z" DESCRIPTION "This file defines the maxon mib by dhplab." ::= { enterprises 0910 } signalStrength OBJECT-TYPE SYNTAX Integer32 (0..105) MAX-ACCESS read-only STATUS current DESCRIPTION "Signal strength of the modem"...
  • Page 50 Intelimax+4G User Manual STATUS current DESCRIPTION "RSCP of the modem" ::= { MaxMIB 4} imei OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current DESCRIPTION "IMEI of the modem" ::= { MaxMIB 5} boardreset OBJECT-TYPE SYNTAX Integer32 (0..1) MAX-ACCESS read-write STATUS current DESCRIPTION "Board reset"...
  • Page 51 Intelimax+4G User Manual Maximum session timeout expired Note: SNMP events are reported in SNMPv2, however SNMP access can be either SNMPv2 or SNMPv3. SNTP SNTP can be used to update the time of the Intelimax+. The modem will by default take its time from the network.

  • Page 52: Other Gui Functions

    Intelimax+4G User Manual Other GUI functions Output Info • Output Information for receiving Intelimax+’s data in serial or remote access. • When syslog is requested, this is where they are printed before being saved to a file. Clear Output Clear all information in the ‘Output Info’ window.
  • Page 53 Intelimax+4G User Manual System Functions Save Config to file Save modem configuration as an encrypted .dat file. Load Config from file Load modem .dat configuration file. Save syslog If remote syslog is not enabled, this will print out the internal system logs to the ‘Output Info’...
  • Page 54 Intelimax+4G User Manual modem, including the configured saved profile settings. This can also be achieved by holding down the modem reset button for between 20 and 60 seconds. Partial upload Allows for partial/incremental firmware updates to the modem, rather than updating the entire firmware file.

  • Page 55: Firmware Upgrade

    Intelimax+4G User Manual Firmware Upgrade The Intelimax+ modem firmware can be upgraded via TCP/IP connection, either locally or remotely (FOTA). To upgrade the Intelimax+’s firmware, make sure the GUI software is connecting to the modem via TCP/IP connection. Click the ‘Firmware Upgrade’ button and select firmware file.

  • Page 56: Sms Commands

    Change APN (e.g. telstra.extranet) ▪ SMS Syntax: INTELIMAX.PARK.APN telstra.extranet Change Username, Password and Authentication (e.g. Username: ▪ maxon@maxon.com.au, Password: maxon, Authentication: chap) SMS Syntax: INTELIMAX.PARK.AUTH maxon@maxon.com.au:maxon:chap Note: Please see above regarding special characters such as ‘@’. Check Settings and IP address ▪...
  • Page 57 Intelimax+4G User Manual INTELIMAX.PARK.DDNS2 <domain name>,<user id>,<user password/key> e.g. INTELIMAX.PARK.DDNS2 inte.dyndns.biz,maxon,max@123 Change mode via SMS ▪ SMS Syntax: INTELIMAX.PARK.CHGMODE <1(IPStack Auto)/2(IPStack Manual)/3(Serial Modem)> e.g. INTELIMAX.PARK.CHGMODE 1 Reply message syntax: Mode Change To <mode> e.g. Mode Change To IPStack Auto The modem will automatically reboot after sending the response.
  • Page 58 Intelimax+4G User Manual The modem will automatically reboot after sending the response. IMPORTANT: Modem firmware requires +CNMI=2,1 settings for getting notified when new SMS is available. Due to cellular module’s behaviour on +CNMI command, any +CNMI write command via the modem serial port would break the modem SMS command function and the change cannot be saved if modem reboots.

  • Page 59: Remote Mode Change Via Csd Call

    Intelimax+4G User Manual Remote Mode Change via CSD Call The Intelimax+ has the unique in-built feature of being able to change between modes and configure settings remotely over a CSD call. This is especially useful if you have a modem in the field that you need to remotely configure using remote AT commands or the Intelimax+ GUI but are currently using CSD to talk to this modem.
  • Page 60 Intelimax+4G User Manual Apply all the settings and reboot: program.maxon.lock Once the commands have been received by the modem it will display ‘Modem will reboot now and the call will be dropped as the modem reboots: Once the modem reboots (approximately 2 minutes), and if an IP address has been used it can be found using the following SMS to the phone number (not data number) of the SIM in the modem: INTELIMAX.PARK.WANIP...

  • Page 61: Led Functionality

    Intelimax+4G User Manual LED Functionality Power and Data Connection The below is the default LED flashing sequences for power and data LEDs. On the Administrator tab of the GUI the excellent RSSI Level setting can be modified (-84dBm is the default value) to suit application needs. All other levels are set based on the excellent level setting and evenly divided into 5 levels.

  • Page 62: Device Operation Checking / Troubleshooting

    Intelimax+4G User Manual Device Operation Checking / Troubleshooting In order to check that the Intelimax+ is operating correctly both locally and remotely please follow the below procedures. Local Checking: In order to verify that the modem is operating correctly locally follow the below steps: 1.
  • Page 63 Intelimax+4G User Manual 2. In IP Stack modes: a. Open the GUI with an IP connection to the modem and log in. i. Check that the settings are correct for the equipment that you are wanting to connect to, including the serial baud rate etc.

  • Page 64: T E L N E T / S S H C O M M A N D S

    Intelimax+4G User Manual T E L N E T / S S H C O M M A N D S Using Intelimax+ Telnet / SSH commands allows you to configure the modem remotely, also you can send diagnostic commands here is summary off of tasks that you can perform 1.
  • Page 65 Intelimax+4G User Manual configuration, configure via AT command, use ping function, show uptime reboot and reset the modem remotely to factory default using option provided i.e stat, setup, at, ping, uptime, reboot and defconfig respectively. STAT • Status of INTELIMAX+...
  • Page 66 Intelimax+4G User Manual SETUP 1. SYSTEM Users can change Admin password, telnet port, Enable/Disable Remote Syslog and can enter up to three phone number for SMS 2. DDNS Users can configure Dynamic DNS using this command. Currently only support settings for Dyn DNS Service.
  • Page 67 Intelimax+4G User Manual DDNS MODE 1.WAN This command will allow users to select operating mode, configure users name password, enter APN, Enable/Disable Auto PIN function, enter PIN code and configure WAN scheduler. - 67 -...
  • Page 68 Intelimax+4G User Manual 2 - 3. WAN Scheduler This command will allow users to control WAN connection in a specified time. Day of week[0~6], Start hour[0~23], Start Minutes[0~59] , Start hour[0~23], Start Minutes[0~59] , Engine power [0, 1] E.g.: Scheduler 1: 0,0,0,23,59,1  Sunday from 0:)0 to 23:59 scheduler with engine power off 4.
  • Page 69 Intelimax+4G User Manual WAN Scheduler UART/Serial Port - 69 -...
  • Page 70 Intelimax+4G User Manual IPSTACK SNMP - 70 -...
  • Page 71 Intelimax+4G User Manual General Trap - 71 -...
  • Page 72 Intelimax+4G User Manual SNTP AT command direct to Module - 72 -...

  • Page 73: Ping Command

    Intelimax+4G User Manual Signal Strength Check To check signal strength use “at at+csq?” command. Refer to the screen shot below: PING command - 73 -...
  • Page 74 Intelimax+4G User Manual System uptime check. The command uptime shows you the connection time as shown in the screen shot below. Set to Factory Default Use defconfig to clear all the setting which will configure the modem to factory default state.
  • Page 75 Intelimax+4G User Manual Reset the INTELIMAX+ Intelimax+ can be power rebooted using the reboot command after logging into the Intelimax+ remotely - 75 -...

  • Page 76: M O D E S )

    Intelimax+4G User Manual E X T E N D E D /I N T E L I M AX + S P E C I F I C AT C O M M A N D SET (IP STACK M O D E S )
  • Page 77 Intelimax+4G User Manual AT$$WANSE? $$WANSE: PINGCHECK:Enable,0,0,0.0.0.0, BACKOFF:Disable,0,0,0,0 Parameters $$WANSE: X,X,X,X,X,X 0,1 PINGCHECK,BACKOFF 0,1 Disable/Enable both expansion PINGCHECK and BACKOFF 1~60 PINGCHECK Interval (seconds) / 40~59 Seconds of 1st retrial interval of BACKOFF 1~60 PINGCHECK Fail count / 2~10 Minutes of 1st retrial duration of BACKOFF...
  • Page 78 Intelimax+4G User Manual Battery Level for Module Deregistration (12.3 volts ON, 11.9 volts OFF) 0,1~20 LCP Echo Interval (seconds) 0,1~10 LCP Echo Failure (counts) Note: The Dialup Number cannot be left blank. Periodic reset AT$$RESET=24 (setting between 1 and 28 hours)
  • Page 79 Intelimax+4G User Manual $$WANSI: 1,1,1,0,0.0.0.0,0.0.0.0,30000,1,300,20,0,0 Parameters $$WANSI: X,X,X,X,X,X,X,X,X,X,X,X 0, 1,2 None/Server/Client 0,1 Disable/Enable Notify Boot Message 0,1 Disable/Enable Notify IPStack Message 0,1 TCP/UDP xxx.xxx.xxx.xxx Primary IPAddress xxx.xxx.xxx.xxx Secondary IPAddress 0 ~ 65535 Port Number 0,1 Disable/Enable Keep Alive 1 ~ 3600 Seconds Keep Alive Interval...
  • Page 80 Intelimax+4G User Manual DDNS AT$$DDNSS? $$DDNSS: Disable,,, Parameters $$DDNSS: X,X,X,X 0,1, 2, 3 Disable/DynDNS/MsDNS/Custom DNS DomainName UserName Password Service Provider System Settings AT$$SYSTS? $$SYSTS: admin,admin,Enable,23,Enable,Disable,192.168.0.50,Disable,+61427933242,+6142793324 2,+61427933242 Parameters $$SYSTS: X,X,X,X,X,X,X,X,X,X,X UserName Password 0,1 Telnet Disable/Enable Telnet Port Number 0,1 Syslog Disable/Enable...
  • Page 81 Intelimax+4G User Manual maXconnect To enable maXconnect on the Intelimax+ either use the GUI or enter the following commands when the modem is in IP Stack Auto mode. $$MAXCNT: 0,120,portal.maxconnect.com.au,1883,updates.maxconnect.com.au AT$$MAXCNT=? $$MAXCNT: X,X,X,X,X 0,1 Disable/Enable Refresh Interval Broker URL Broker Port...
  • Page 82 Intelimax+4G User Manual AT$$BAND? $$BAND: 40000000 Parameters $$BAND: 40: UMTS I 2100 400: UMTS V 850 1000: UMTS VIII 900 10000: LTE I 2100 10000: LTE III 1800 20000: LTE VII 2600 40000: LTE VIII 900 100000: LTE V 850...
  • Page 83 Intelimax+4G User Manual message to less than 10 characters. Please save and apply settings before using. AT$$FTPCS? AT$$FTPCS: 1,192.168.10.1:21,maxon,maxon,0,INTELIMAX+,1000,1 Parameters $$FTPCS: X,X,X,X,X,X,X,X 0 - Disable 1 - Manual 2 - Hourly (0 - 24) 3 - Time of day (0 - 24) 4 - Day of month (1 - 31 days) 5 –...
  • Page 84 Intelimax+4G User Manual in the text file. 1 will stamp all data logged with date and time. The "size of file" parameter is used for limiting the file size of the csv file. All the input from serial port will be saved in the .csv file, and once the file size of that csv file exceed the size limit, another file will be created to hold the input.
  • Page 85 Intelimax+4G User Manual AT$$FTPSC Will start the FTP connection and upload the files. Can be used to force an upload When in periodic mode. If no WAN connection is currently established (such as in IP Stack Manual mode) the Intelimax+ will establish the PPP and socket connections, upload the FTP files then drop the socket and PPP connections.

  • Page 86: Save And Reboot

    Intelimax+4G User Manual $$IPSCFG: 30,100,300 AT$$IPSCFG=? $$IPSCFG: X,X,X IPSTACK SEND DELAY: 1 ~ 2000 msec IPSTACK BUFFER SIZE: 32 ~ 1450 bytes IPSTACK SOCKET TIMEOUT: <0,10~3600> sec PPP DISCONNECT TIMEOUT: <0,30~3600> sec OK AT$$IPSCFG=30,100,200,301 OK AT$$IPSCFG? $$IPSCFG: 30,100,200,301 Retry Settings AT$$RETRYTO=<item>,<num>...

  • Page 87: Factory Reset

    Intelimax+4G User Manual Factory Reset AT$$FACTORY Profile Save AT$$PFSET Save the modem’s profile default settings Profile Set AT$$PFRST Reset to the modem to use the profile default AT over IP on IPStack Only 12521 can be used for AT over IP.
  • Page 88 Intelimax+4G User Manual Modem Emulation The Intelimax+ modem emulation can be configured using the following AT commands: To enable modem emulation and add a data number to IP address and port number emulation to the list at$$emul=1,phone_number,IP_address,port_number e.g. at$$emul=1,01044204414,10.0.0.1,5000 To check current emulation list (must have already enabled emulation)
  • Page 89 Intelimax+4G User Manual SMS on Boot The Intelimax+ can be configured to send an SMS at boot time using the following AT commands: at$$pwronsms at$$pwronsms=? $$PWRONSMS=1,0/1 enable/disable $$PWRONSMS=2,1/2/3,Phone Number up to 3 phone numbers $$PWRONSMS=3,Message Prepare modem for hard shutdown This function is highly recommended when using the modem with an external, controlled power supply.
  • Page 90 Intelimax+4G User Manual AT$$SPC=<passcode> $$SPC: <mode> <passcode>: 857653: mode 0 356758: mode 1 AT$$TCPDEL Some older systems working with the Modmax cannot handle the speed between messages, this delay allows for these legacy systems to handle this delay. AT$$TCPDEL=? $$TCPDEL: X Delay between try and connect range from 200 to 1000 mili-seconds.

  • Page 91: M O D E S )

    Intelimax+4G User Manual E X T E N D E D /MODEM S P E C I F I C AT C O M M A N D SET (IP and SERIAL MODES) Save settings and reset/restart modem AT&W (Serial and IP Stack modes)
  • Page 92 Intelimax+4G User Manual AT commands for SMS support is slightly different between operational modes. In Serial Modem Mode, most standard SMS AT commands (Cellular Module dependant) are supported. Under IP stack modes, only those commonly used commands are currently supported: AT+CMGF, AT+CMGS, AT+CMGL, AT+CMGR, and AT+CMGD.
  • Page 93 Intelimax+4G User Manual CPU, in which case AT$$TPSW=1 should be configured. After each configuration save and reboot using AT&W and AT$$RESET. AT$$TPSW=0 – Triple-plus switching handled by internal module AT$$TPSW=1 – Triple-plus switching handled by the modem Serial Port Settings...
  • Page 94 Intelimax+4G User Manual Periodic Reset (Serial mode only) at$$preset=2 at$$preset? $$PRESET: 2 To configure periodic reset in IP Stack modes, use the AT$$RESET command Auto Recovery from CSD/PPP Call (Serial mode only) The command will set up a time delay for the modem to perform a reboot if there is no CSD/PPP call is made after the previous call or modem boot up.
