Maxon MA-2020 User Manual

M2m 3g serial modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Intelimax+ User Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-2020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxon MA-2020

Summary of Contents for Maxon MA-2020

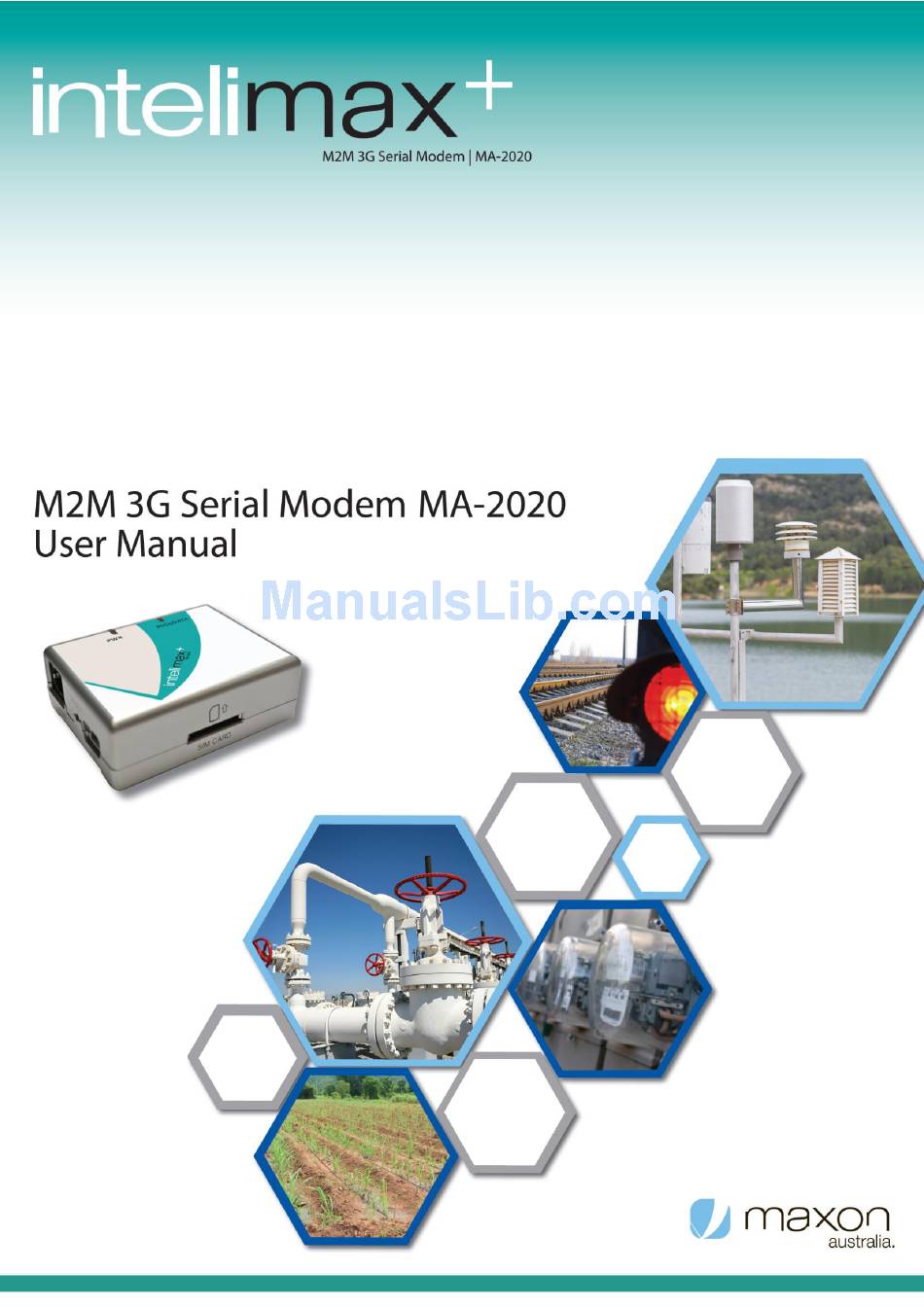

  • Page 1 Intelimax+ User Manual - 1 -...

  • Page 2: Table Of Contents

    Intelimax+ User Manual TABLE OF CONTENTS CONTACT INFORMATION ................ - 5 - RF EXPOSURE AND ELECTRICAL SAFETY COMPLIANCE ......- 6 - Caution ..................- 6 - General Safety ................- 7 - Vehicle Safety ................- 8 - Potentially Unsafe Areas ..............- 8 - REVISION HISTORY ................
  • Page 3 Intelimax+ User Manual Modem Emulation TAB ..............- 36 - Dynamic DNS .................. - 39 - PPP Server ..................- 40 - Administration TAB ................. - 46 - Telnet and SSH login ..............- 46 - Syslog ..................- 46 - RSSI logging ................
  • Page 4 Intelimax+ User Manual SNMP ..................- 84 - DDNS ..................- 85 - System ..................- 85 - maXconnect ................. - 86 - Serial (UART) port ................ - 86 - Engine Band ................- 87 - Check IP address of the WAN side ..........- 88 - ..................

  • Page 5: Contact Information

    Intelimax+ User Manual C O N T A C T I N F O R M A T I O N In keeping with Maxon Australia’s dedicated Customer support policy, we encourage you to contact us. TECHNICAL: Hours of Operation: Monday to Friday 8.30am to 5.30pm*...

  • Page 6: Caution

    AS/NZS 60950.1 approved SELV power supply. Caution Change or modification without the express consent of Maxon Australia Pty. Ltd. voids the user’s authority to use the equipment. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. The modem is a transmitting device with similar output power to a mobile phone.

  • Page 7: General Safety

    Intelimax+ User Manual General Safety RF Interference Issues: Avoid possible radio frequency (RF) interference by carefully following safety guidelines below: Switch OFF the Modem when in an aircraft. The use of cellular telephones in  aircraft is illegal. It may endanger the operation of the aircraft and/or disrupt the cellular network.

  • Page 8: Vehicle Safety

     installation. Note: The user is cautioned that changes or modifications not expressly approved by Maxon Australia could void the warranty. Potentially Unsafe Areas Posted Facilities: Turn off the device in any facility or area when posted notices require you to do so.

  • Page 9: Revision History

    Intelimax+ User Manual R E V I S I O N H I S T O R Y Product Intelimax+ M2M 3G Serial Modem Model MA-2020 Document Type Current Version Number 1.04 Status of the Document Initial Release Revision Date...

  • Page 10: Intelimax+ User Manual

    Maxon Australia customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Maxon Australia for any damages resulting from such application. Right to make change - Maxon Australia reserves the right to make changes, without notice, in the products, including circuits and software, described or contained herein in order to improve design and/or performance.

  • Page 11: Introduction

    Intelimax+ User Manual I N T R O D U C T I O N Overview Breaking the industry benchmark, the top-of-the range Intelimax+ is a unique and intelligent fusion of 3G capabilities with advanced functionality of a modem/router. Intelimax+ Features General Features HSPA Wireless Module EHS6 (7.2Mbps downlink, 5.6Mbps uplink) ...

  • Page 12: Security Features

    Intelimax+ User Manual Security Features Encrypted access and configuration control  Password Protected AT Commands  SNMPv3 supports SHA and AES  SSLv3 Encrypted Serial Socket  Secure Syslog Client RFC5425, RFC5425 and RFC6587  Login brute force detection and rejection ...

  • Page 13: Power Source

    Intelimax+ User Manual PTCRB (module only)  CE (module only)  Carrier Approvals* - (Please contact Maxon Australia for more information)  RoHS Compliant (both modem and module)  Power Source DC Input Voltage Range: 6 to 48 VDC (±10%) ...

  • Page 14: Intelimax+ Setup

    Intelimax+ User Manual I n t e l i m a x + S e t u p Maxon Intelimax+ serial modem supports a Windows GUI, where by you can configure the modem via serial connection or remotely via the WAN IP.

  • Page 15: Connecting To The Intelimax

    1. Plug in modem RJ45 power/serial cable then mini USB cable in this order 2. Install USB/LAN drivers which can be downloaded from: http://www.maxon.com.au/product-supports/drivers-and-manuals.html 3. Set a static IP address to the modem: Once the drivers are installed you will have to set a static IP on the Intelimax+ network connection (as the Intelimax+ does not support DHCP) 4.

  • Page 16: Serial Port Connection

    Intelimax+ User Manual Remote Connection Users can also access the Intelimax+ remotely via a static IP address (e.g. maXwan) or via a url (e.g. DynDNS) Serial Port Connection Use this section to connect to the modem using the provided RJ45 power/serial cable, the default connection settings are: Baud Rate: 115200...

  • Page 17: Gui Connection Debugging

    1 minute, the PC will prompt for drivers to be installed. The Intelimax requires the USB/LAN interface drivers installed to be able to talk via a TCP IP connection to the modem, which can be downloaded from the Maxon website. There are times where the RNDIS network interface is present under network connections but not when checked via a command line (ipconfig).

  • Page 18: Modem Status Tab

    Intelimax+ User Manual Modem Status Tab The modem status page displays modem information such as network registration and WAN connectivity status. Information displayed on the Status page is: Up time: Length of time since modem last rebooted (soft or hard) System time: Recovered from the internal cellular module (or NTP server if SNTP time client is enabled)
  • Page 19 Intelimax+ User Manual Module Version: Cellular engine’s firmware version Network registration: Shows registration status and carrier Mode: Will show if modem is in packet switched or serial modem PIN Status: Status of the SIM pin setting Area information: LAI, LAC, Cell ID Server status: Will display whether modem is in listening or connected states Call status:...

  • Page 20: Wan Configuration Tab

    Intelimax+ User Manual WAN Configuration TAB WAN configuration page is used to configure how the modem will connect to the 3G network. Please select the correct operation mode as this will decide if the modem will automatically connect to the network on power up or work in pass through mode. The Intelimax supports 6 operation modes: 1.
  • Page 21 Intelimax+ User Manual IP Stack Auto Mode When using IP STACK Auto the modem will behave as an IP Serial modem. When using this mode the modem will transfer all incoming packets via the serial port to the host and vice versa. The modem connects to the 3G networks and acquires an IP address and then runs the IP STACK server or client mode.
  • Page 22 Intelimax+ User Manual Circuit Switch Data Call Circuit switch is a legacy style of communication where the user dials in to the modem data terminating number. Standard set of AT commands used with Circuit Switch Call: Dial the Data number Answer the Data Call ATS0=n Set auto answer where n=number of rings...
  • Page 23 Intelimax+ User Manual 1. PPP WAN Auto mode: Modem is a PPP server over serial with the WAN IP connection automatically connected. 2. PPP WAN Conditional mode: Modem acts as PPP server with the WAN IP connection conditional on the serial PPP connection. 3.
  • Page 24 Intelimax+ User Manual WAN page allows configuring the following features: APN and dialup string   Username and password for IP WAN  Auto pin settings (Intelimax+ will enter the PIN code if SIM pin is Enabled)  Network authentication information ...

  • Page 25: Scheduler Tab

    Intelimax+ User Manual Scheduler TAB The scheduler tab allows configuring modem WAN connection schedule. The scheduler supports two methods of selection. Days of the Week (setup to come on certain days of the week) or Setting up a certain power up duration (setup to come certain during the hour).
  • Page 26 Intelimax+ User Manual To setup Scheduler by Day of the week, select the Day with connect and disconnect times. You can also set the modem to power off itself when it disconnects, by checking the power off check box. To delete an entry click on the entry and press the Remove selected Item button, or if you want to remove all entered entries click the “Remove ALL”...

  • Page 27: Serial Configuration Tab

    Intelimax+ User Manual Serial Configuration TAB The Serial configuration page is used to setup modem serial settings such as baud rate, serial messages, and SMS on boot. Serial Port Setup: Serial port setup includes the following Baud rate (the modem supports 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200) Data Bit (7Bit or 8bit) Stop bit (1bit or 2bit)
  • Page 28 Intelimax+ User Manual Serial port speed setup should be set to match host (connected via serial port) configuration. With certain applications there may be a need to fabricate a custom serial cable to work between the host and the Intelimax+. The custom serial cable depends on the equipment requirements and settings.

  • Page 29: Ip Stack Configuration Tab

    Intelimax+ User Manual IP Stack Configuration TAB IP stack configuration page is used to setup modem IP STACK settings such as port number and IP address and connection timeouts. Protocol: IP Stack supports TCP and UDP, depending on your application requirement you can choose between TCP and UDP communication SSLv3: If the SSLv3 check box is ticked, the Intelimax TCP/IP to serial converter applies...
  • Page 30 Intelimax+ User Manual serial data transferred is encrypted in both client and server modes. The SSLv3 certificates can be installed using the partial upload function in the GUI using the following process: 1. Create the certification file for upload to the Intelimax. The certificate files should be placed into a folder along with a path.txt file.
  • Page 31 Intelimax+ User Manual Win32\bin>openssl req -new -x509 -days 365 -nodes -config openssl.cfg -out cert.pem - keyout key.pem. The resultant 2 certificate files contained in the /bin folder and are named: cert.pem and key.pem. Mode: Intelimax+ supports operation of the IP Stack in either client or server modes: ...
  • Page 32 Intelimax+ User Manual modem to the connected device, but if nothing is received back, the modem will disconnect. If the modem is connected as an auto-connect client then it will try to reconnect to the server once it has disconnected. TCP Connect Message The TCP connect message function allows for sending either a custom string or the IMEI number over the socket connection when it is established.
  • Page 33 Intelimax+ User Manual The FTP functionality on the Intelimax allows for logging and uploading serial streams of data. A new line in the file is created each second and a timestamp can either be enabled or disabled. In order to use FTP on the Intelimax+, please enable ‘append’ on your FTP server. Also restrict the welcome message to less than 10 characters.
  • Page 34 Intelimax+ User Manual The FTP server, FTP port number, FTP server username and password can all be configured here.  FTP Sever Host IP/Domain address with Port  User name  Password  Time interval  Header of file name (limit 10 bytes/characters) ...
  • Page 35 Intelimax+ User Manual With these settings, the modem will send a .csv file to the FTP server every 30 minutes. If the input has not exceeded limit 10K bytes (in this case), modem will send this file only, then generate another file for holding future input. If the input is more than 10K bytes, there should be more than one file generated, each file should not exceed 10K bytes, all these files will be sent to FTP server when time comes.

  • Page 36: Modem Emulation Tab

    Intelimax+ User Manual In manual mode AT commands can be used to prompt the modem to upload the files, the AT commands themselves will also be included in the .csv file. AT$$FTPFL Displays the files waiting to be uploaded AT$$FTPSC Will start the FTP connection and upload the files.
  • Page 37 Intelimax+ User Manual Intelimax+ Configuration The Intelimax+ must be configured in IP stack auto server or IP stack manual server mode. This configuration can be made using the Intelimax+ GUI or via AT commands. If the Intelimax+ is in IP stack manual mode then it will only connect to the network when it receives the ATDT command via serial and will drop the connection when the call is hung up (+++, ATH).
  • Page 38 Intelimax+ User Manual Up to 40 phone numbers can be added to match to destination IP addresses and port numbers. It is recommended that 5-10 numbers are added at a time through the GUI before saving and rebooting the modem to reduce the risk of GUI connection timeout and lost entries.

  • Page 39: Dynamic Dns

    Intelimax+ User Manual Dynamic DNS Allows the user to configure; Username, Password and Domain name to be used by Intelimax+ when authenticating on a DDNS server.  Enable DDNS  Select to enable DDNS.  Service Provider  Link of the DDNS service web page (Server site is http://dyn.com) by default) ...

  • Page 40: Ppp Server

    Intelimax+ User Manual PPP Server Usually the Intelimax acts as an IP connected cellular serial server, relaying data between its serial inputs to TCP/UDP sockets. Devices connect to serial port of Intelimax, directly send data or use dial commands to set up a data transmission session. Some devices may need to use their own TCP/IP stack, in which case either serial modem mode (transparent) or PPP server can be used.
  • Page 41 TCP socket on port 12522, which is configurable through GUI, and then send AT commands to this socket. Only pre-defined AT commands are supported. Please refer to the Maxon Intelimax user manual for the custom AT command format and which commands are currently supported.
  • Page 42 Intelimax+ User Manual mode such as: ATD or ATDT AT$$IPCTOS AT$$IPCTCS AT$$TCPDEL All socket related commands are not supported because when the Intelimax works in PPP server mode, the TCP/UDP socket on the WAN side is no longer needed, the modem now is a gateway.
  • Page 43 Intelimax+ User Manual The MS Chat Dial mode is to support Microsoft Windows PPP client. Before initiating the PPP connection, it requires the exchange of the text strings “CLIENT” (from the client) and “CLIENTSERVER” (from the serer). So in MS Chat mode, the Intelimax PPP server will expect a “CLIENT”...
  • Page 44 All standard AT commands and Maxon customized AT$$ commands are supported. The command ATDT*99***1# is to notify the Intelimax to go into the PPP mode, after this command no more AT commands are supported through direct accessing of the serial port.
  • Page 45 8080:80 port 8080 on the WAN interface is forwarded to port 80 on the LAN interface. Extra port forwards are separated with a comma. Currently only individual ports can be forwarded, but port ranges will be added. An additional white paper on PPP server functionality is available from Maxon. - 45 -...

  • Page 46: Administration Tab

    Intelimax+ User Manual Administration TAB Telnet and SSH login  User Name setting using for Telnet and TCP connection.  Password setting using for Telnet and TCP connection.  Enable or disable Telnet.  Set Telnet port number to use. ...
  • Page 47 Intelimax+ User Manual circular memory buffer, when the last file is full it will delete the first.  If local system logs are used then these can be recovered using either the GUI or via Telnet or SSH to the modem. If the system log if file is large it may take some time to extract.
  • Page 48 Intelimax+ User Manual How to generate SSL certificates: A SSL certificate can be generated using an application such as OpenSSL (http://slproweb.com/products/Win32OpenSSL.html, the lite version is fine). This application can be run from the command line for example: To generate root certificate (ca.pem): ...

  • Page 49: Rssi Logging

    Administrators phone numbers in international format +61412 345 678 maXconnect maXconnect is Maxon’s cloud based M2M management portal which allows you to access, monitor and control 3G/4G Maxon devices securely. With maXconnect you can access real-time data from your devices, monitor their status and location. Utilise complete functionality by controlling your devices anywhere, anytime.

  • Page 50: System Tab

    Intelimax+ User Manual System TAB AT over IP AT over IP can be used to access the AT command interface of the Intelimax+ internal cellular module or the Intelimax specific modem AT commands. The AT over IP function can be used either over the local USB/LAN interface to the modem or via a remote IP connection.

  • Page 51: Debug

    With the Intelimax+ SNMP customers can read the modem Signal Strength, registration value, ecio, rscp, IMEI, firmware and module firmware values, as well as reset the modem via SNMP MIB as shown below. MAXON-MIB DEFINITIONS ::= BEGIN - 51 -...
  • Page 52 LAST-UPDATED "201104150000Z" ORGANIZATION "DHPLAB" CONTACT-INFO "support@maxon.com.au" DESCRIPTION "Maxon MIB" REVISION "201104150000Z" DESCRIPTION "This file defines the maxon mib by dhplab." ::= { enterprises 0910 } signalStrength OBJECT-TYPE SYNTAX Integer32 (0..105) MAX-ACCESS read-only STATUS current DESCRIPTION "Signal strength of the modem"...
  • Page 53 Intelimax+ User Manual rscp OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current DESCRIPTION "RSCP of the modem" ::= { MaxMIB 4} imei OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current DESCRIPTION "IMEI of the modem" ::= { MaxMIB 5} boardreset OBJECT-TYPE SYNTAX Integer32 (0..1) MAX-ACCESS read-write STATUS current DESCRIPTION...

  • Page 54: Sntp

    Intelimax+ User Manual The following SNMP trap events are also supported: Authentication incorrect password Authentication incorrect username Maximum session timeout expired Note: SNMP events are reported in SNMPv2, however SNMP access can be either SNMPv2 or SNMPv3. SNTP SNTP can be used to update the time of the Intelimax+. The modem will by default take its time from the network.

  • Page 55: Other Gui Functions

    Intelimax+ User Manual Other GUI functions Output Info  Output Information for receiving Intelimax+’s data in serial or remote access.  When syslog are requested, this is where they are printed before being saved to a file. Clear Output Clear all information in the ‘Output Info’ window. Save Output Save Output Info information to a .txt file.

  • Page 56: System Functions

    Intelimax+ User Manual System Functions Save Config to file Save modem configuration as an encrypted .dat file. Load Config from file Load modem .dat configuration file. Save syslog If remote syslog is not enabled, this will print out the internal system logs to the ‘Output Info’...
  • Page 57 Updates the internal cellular module firmware using module .usf file format. B/L upload Allows for modem bootloader update. F/W upload – FOTA Update the modem full firmware file. Note: Any update should only be attempted with the assistance of Maxon. - 57 -...

  • Page 58: Firmware Upgrade

    Intelimax+ User Manual Firmware Upgrade Upgrade the Intelimax+’s firmware Click ‘Firmware Upgrade’ button and select firmware file. And open the file, the uploading process will begin after a short delay. Do not remove Intelimax+’s cable or turn off the power until upgrade finishing. The modem will reboot and come back online once the firmware upgrade process has completed.

  • Page 59: Sms Commands (Ip Modes)

    Change APN (e.g. telstra.extranet)  SMS Syntax: INTELIMAX.PARK.APN telstra.extranet Change Username, Password and Authentication (e.g. Username:  maxon@maxon.com.au, Password: maxon, Authentication: chap) SMS Syntax: INTELIMAX.PARK.AUTH maxon@maxon.com.au:maxon:chap Note: Please see above regarding special characters such as ‘@’. Check Settings and IP address ...

  • Page 60: Sms Commands (Serial Modem Modes)

    INTELIMAX.PARK.DDNS1 <mode 1-enable 0-disable>(,<host address>) e.g. INTELIMAX.PARK.DDNS1 1,dyn.com INTELIMAX.PARK.DDNS2 <domain name>,<user id>,<user password/key> e.g. INTELIMAX.PARK.DDNS2 inte.dyndns.biz,maxon,max@123 SMS Commands (Serial modem modes) The Reboot Intelimax+ SMS command can be used to act on Intelimax+ specific SMS messages when in serial modem mode. For this to happen the modem must be told to intercept the SMS messages using the AT$$STEALTHSMS command.

  • Page 61: Remote Change From Csd Mode To Ip Mode

    Update the cellular APN: program.maxon.apn=telstra.extranet Update the CPN username, password and authentication: program.maxon.auth=userid:password:chap/pap/none Change the mode of the modem: program.maxon.mode=1 Where: IP Stack Auto mode – auto connect IP IP Stack Manual mode – manual connect IP Serial modem mode –...
  • Page 62 Intelimax+ User Manual Apply all the settings and reboot: program.maxon.lock Once the commands have been received by the modem it will display ‘Modem will reboot now’ and the call will be dropped as the modem reboots: Once the modem reboots (approximately 2 minutes) if a public dynamic IP address has been used it can be found using the following SMS to the phone number (not data number) of the SIM in the modem: INTELIMAX.PARK.WANIP...

  • Page 63: Led Functionality

    Intelimax+ User Manual LED Functionality The below is the default LED flashing sequences. On the Administrator tab of the GUI the high setting can be modified, all other settings remain valid until passed. Data Transfer Indication In addition to the below LED flashing sequence the Intelimax+ will also display TX and RX activity on the LEDs.
  • Page 64 Intelimax+ User Manual Serial Modem mode Description Signal Strength Power LED Data LED SERIAL MODE IDLE SIGNAL > -84dBm (or excellent RSSI setting) SERIAL MODE IDLE -89dBm < SIGNAL ≤ - 200ms OFF 84dBm 800ms ON SERIAL MODE IDLE -96dBm < SIGNAL ≤ - 400ms OFF 89dBm 600ms ON...

  • Page 65: Device Operation Checking / Debugging

    Intelimax+ User Manual Device Operation Checking / Debugging In order to check that the Intelimax is operating correctly both locally and remotely please follow the below procedures. Local Checking: The LEDs indicate whether the modem has the correct signal strength and whether it has established a data connection.

  • Page 66: Telnet / Ssh Commands

    Intelimax+ User Manual Telnet / S S H C o m m a n d s Using Intelimax+ Telnet / SSH commands allows you to configure the modem remotely, also you can send diagnostic commands here is summary off of tasks that you can perform 1.
  • Page 67 Intelimax+ User Manual Once you login to telnet. You can choose whether to start telnet service, set up configuration, Configure via AT command, use ping function, show uptime reboot and reset the modem remotely to factory default using option provided i.e stat, setup, at, ping, uptime, reboot and defconfig respectively.
  • Page 68 Intelimax+ User Manual Stat  Status of INTELIMAX+ Shows the syslog information if it is not set as remote syslog Sysinfo Shows F/W version and system Time and IP Address of Intelimax+ Display Primary DNS and secondary DNS address of Intelimax+ - 68 -...
  • Page 69 Intelimax+ User Manual SETUP 1. SYSTEM Users can change Admin password, telnet port, Enable/Disable Remote Syslog and can enter up to three phone number for SMS 2.DDNS Users can configure Dynamic DNS using this command 3.MODE Intelimax+ support IP stack and Serial mode only, using this option(Mode) users can configure WAN scheduler, UART/Serial port setting and IP stack setting 4.SNMP...
  • Page 70 Intelimax+ User Manual SYSTEM DDNS - 70 -...
  • Page 71 Intelimax+ User Manual - 71 -...
  • Page 72 Intelimax+ User Manual MODE 1.WAN This command will allow users to select operating mode, configure users name password, enter APN, Enable/Disable Auto PIN function, enter PIN code and configure WAN scheduler. 2.WAN Scheduler This command will allow users to control WAN connection in a specified time.
  • Page 73 Intelimax+ User Manual WAN Scheduler - 73 -...
  • Page 74 Intelimax+ User Manual UART/Serial Port IPSTACK - 74 -...
  • Page 75 Intelimax+ User Manual SNMP General - 75 -...
  • Page 76 Intelimax+ User Manual Trap SNTP - 76 -...
  • Page 77 Intelimax+ User Manual AT command direct to Module Signal Strength Check To check signal strength use “at at+csq?” command. Refer to the screen shot below: - 77 -...
  • Page 78 Intelimax+ User Manual PING command System uptime check. - 78 -...
  • Page 79 Intelimax+ User Manual The command uptime shows you the connection time as shown in the screen shot below. Set to Factory Use defconfig to clear all the setting which will configure the modem to factory default state. - 79 -...
  • Page 80 Intelimax+ User Manual Reset the INTELIMAX+ Intelimax+ can be power rebooted using the reboot command after logging into the Intelimax+ remotely - 80 -...

  • Page 81: Extended / Intelimax+ Specific At Command Set (Ip Stack Modes)

    E x t e n d e d / I n t e l i m a x + S p e c i f i c A T C o m m a n d S e t ( I P S t a c k M o d e s ) Device Information Manufacturer: Maxon Australia Pty Ltd Model Number: MA-2020 Product Name: Intelimax+ F/W Revision: 0.0.0 [201201130929]...

  • Page 82: Wan Extension Functions

    Intelimax+ User Manual To disable the password protection for a session enter the following, this will persist until the modem reboots: AT$$PWD=<PWD> WAN Extension Functions AT$$WANSE? $$WANSE: PINGCHECK:Enable,0,0,0.0.0.0, BACKOFF:Disable,0,0,0,0 Parameters $$WANSE: X,X,X,X,X,X 0,1 PINGCHECK,BACKOFF 0,1 Disable/Enable both expansion PINGCHECK and BACKOFF 1~60 Interval of PINGCHECK/40~59 Seconds of 1st retrial interval of BACKOFF 1~60 Fail count of PINGCHECK/2~10 Minutes of 1st retrial duration of BACKOFF IP address of 1st server of PINGCHECK/10~59 Minutes of 2nd retrial interval of BACKOFF...

  • Page 83: Periodic Reset

    Intelimax+ User Manual Dialup number 0,1 Auto PIN Disable/Enable PIN code 0 ~ 28 Hours of Periodic reset 0,1 Disable/Enable Reset (TCP Server Listening) – Server – If enabled will wait until client drops connection 0,1 Disable/Enable Reset (TCP Connected State) – Client – If enabled will wait until Intelimax+ client drops connection to a server or server drops connection 0,1 Disable/Enable Reset (At scheduled Time) HH:MM for Reset (At scheduled Time, 24 hour format)

  • Page 84: Ip Stack Setting

    0 ~ 65535 Port Number 0,1 Disable/Enable Keep Alive 1 ~ 3600 Seconds Keep Alive Interval 5 ~ 60 Seconds Network Dormant Period UDP 0,1 Disable/Enable UDP Keep Alive 0,1,2 ~ 60 Disable/Handshake/Seconds UDP Wake Up SNMP AT$$SNMPS? $$SNMPS: Disable,public,private,DHAGENT,support@maxon.com.au,AUS,192.168.0.200,192.168.0.2 - 84 -...

  • Page 85: Ddns

    Intelimax+ User Manual 01,192.168.0.202 Parameters $$SNMPS: X,X,X,X,X,X,X,X,X 0,1 Disable/Enable Read community Write community Name Contact Location Trap 1 IP address Trap 2 IP address Trap 3 IP address DDNS AT$$DDNSS? $$DDNSS: Disable,,, Parameters $$DDNSS: X,X,X,X 0,1 Disable/Enable DomainName UserName Password Service Provider System AT$$SYSTS?

  • Page 86: Maxconnect

    Intelimax+ User Manual Parameters $$SYSTS: X,X,X,X,X,X,X,X,X,X,X UserName Password 0,1 Telnet Disable/Enable Telnet Port Number 0,1 Syslog Disable/Enable 0,1 Remote syslog Disable/Enable Remote syslog server address 0,1 SSH Disable/Enable Phone number of Administrator Phone number of Administrator Phone number of Administrator maXconnect To enable maXconnect on the Intelimax+ either use the GUI or enter the following commands when the modem is in IP Stack Auto mode.

  • Page 87: Engine Band

    Intelimax+ User Manual this command, but other commands can also be set using standard AT commands such as AT+IPR, AT+IFC etc. AT$$SPORT? $$SPORT: 115200,8,N,1,None Parameters $$SPORT: X,X,X,X,X 2400,4800,9600,19200,38400,57600,115200 Baud rate 7,8 Data bits N,E,O None/Even/Odd 1,2 Stop bits None, Software, Hardware Flow control Engine Band AT$$BAND? $$BAND: 40000000...

  • Page 88: Check Ip Address Of The Wan Side

    Intelimax+ User Manual Examples: / GSM 850/900/1800/1900 AT$$BAND=3f $$BAND: 0000003f The AT commands on the module can be set and checked directly using AT$$DIRAT. AT$$DIRAT="at^syscfg=2,2,380380,1,2" – make sure module band is set AT&W AT$$RESET // WCDMA 850 AT$$BAND=400 AT$$DIRAT="AT^SYSCFG=2,2,4000000,1,2" AT&W AT$$RESET Check IP address of the WAN side AT$$WAN...

  • Page 89: Ftp

    To use FTP on the Intelimax+ allow for append on the FTP server. Also restrict the welcome message to less than 10 characters. Please save and apply settings before using. AT$$FTPCS? AT$$FTPCS: 1,192.168.10.1:21,maxon,maxon,0,INTELIMAX+,1000,1 Parameters $$FTPCS: X,X,X,X,X,X,X,X 0 - Disable 1 - Manual...
  • Page 90 Based on the configuration, the file could be uploaded to server periodically. For example, AT$$FTPCS=5,192.168.10.50:21, maxon, maxon, 30,FILEHEADER,10000,0 with this setting, the modem will send out .csv file to FTP server every 30 minutes. If the input has not exceeded limit 10K bytes (in this case), modem will send this file only, then generate another file for holding future input.

  • Page 91: Signal Strength

    Intelimax+ User Manual AT+CSQ AT+CSQ AT+CSQ File uploaded with date time stamp enabled. AT$$FTPCS=2,20.19.62.23:21,maxon,maxon,1,FILEHEADER,10000,1 09/11/2012 15:44:05 AT+CSQ 09/11/2012 15:44:06 AT+CSQ 09/11/2012 15:44:07 AT+CSQ 09/11/2012 15:44:08 AT+CSQ 09/11/2012 15:44:09 AT+CSQ 09/11/2012 15:44:10 AT+CSQ 09/11/2012 15:44:11 AT+CSQ 09/11/2012 15:44:12 AT+CSQ 09/11/2012 15:44:13 AT+CSQ...

  • Page 92: Open Ppp Connection

    Intelimax+ User Manual Open PPP connection AT$$IPCTOP Close PPP connection AT$$IPCTCP Open TCP/UDP Socket AT$$IPCTOS Close TCP/UDP Socket AT$$IPCTCS Change Remote Server IP address AT$$IPCTRIP=0,ip,ad,dr,ess,<port> Eg. AT$$IPCTRIP=0,123,456,789,01,30000 Change client/server mode AT$$IPCFL=4,<0,1> where 0 for server, 1 for client Eg. AT$$IPCFL=4,0 sets modem to server mode IPStack Connection Settings AT$$IPSCFG? $$IPSCFG: 30,100,300...

  • Page 93: Change Modem Mode

    Intelimax+ User Manual AT$$IPSCFG? $$IPSCFG: 30,100,200,301 Change modem mode AT$$CHGMODE= 1 – IP Stack Auto 2 – IP Stack Manual 3 – Serial Modem at$$chgmode=1 Save and Reboot AT$$RESET At$$reset Factory Reset AT$$FACTORY Profile Save AT$$PFSET Save the modem’s profile default settings Profile Set AT$$PFRST Reset to the modem to use the profile default...

  • Page 94: Modem Emulation

    Intelimax+ User Manual 0,1 Disable/Enable Listen Port Number at$$overip? $$OVERIP: 1,12521 at$$overip=0 Require Save and System Reboot at$$overip? $$OVERIP: 0,12521 at$$overip=1,12521 Require Save and System Reboot at$$overip? $$OVERIP: 1,12521 Modem Emulation The Intelimax+ modem emulation can be configured using the following AT commands: To enable modem emulation and add a data number to IP address and port number emulation to the list at$$emul=1,phone_number,IP_address,port_number...

  • Page 95: Modmax Compatibility Mode

    Intelimax+ User Manual To Enable/Disable Modem Emulation – this must be enabled on the server Intelimax+ for CONNECT message at$$emul=0,0 – disable at$$emul=0,1 - enable To delete a rule from the list at$$emul=2,list_number e.g. at$$emul=2,1 at$$emul? $$EMUL: 1,2 0,01044204412,192.168.101.2,3000 1,01044204414,211.232.22.1,500001 It is recommended to add a TCP delay to the client connect message to account for the incoming RING messages on the server side.
  • Page 96 Intelimax+ User Manual Some older systems working with the Modmax cannot handle the speed between messages, this delay allows for these legacy systems to handle this delay. AT$$TCPDEL=? $$TCPDEL: X Delay between try and connect range from 200 to 1000 mili seconds. AT$$TCPDEL=200 AT$$TCPDEL? $$TCPDEL: 200...

  • Page 97: Prepare Modem For Hard Shutdown

    Intelimax+ User Manual Prepare modem for hard shutdown This function is highly recommended when using the modem with an external, controlled power supply. If the modem is going to have its power dropped regularly this AT command allows for the processor to perform housekeeping duties to ensure that the shutdown process does not damage the modem or internal cellular module.

  • Page 98: Extended / Module Specific At Command Set (Ip And Serial Modes)

    Intelimax+ User Manual E x t e n d e d / M o d u l e S p e c i f i c A T C o m m a n d S e t ( I P a n d S e r i a l M o d e s ) Save settings and reset/restart modem AT&W –...

  • Page 99: Single At Command Sms At+Mmc Smsmo

    Intelimax+ User Manual Single AT command SMS AT+MMC SMSMO AT+MMC SMSMO <Phone number> <message><CR> Eg. AT+MMC SMSMO 0400123456 Boiler Temperature Too High!<CR> Maximum length of message is 160 characters. Some characters are not supported: \, [, ], ^, ~, ` Prepare modem for hard shutdown This function is highly recommended when using the modem with an external, controlled power supply.

  • Page 100: Periodic Reset (Serial Mode Only)

    Intelimax+ User Manual CSD and PSD/PPP dial out commands (Serial mode only) Command  Command  ATD<phone_number> CONNECT (Data call connected) Notify Connect <Speed> if connect_baud is set.  NO CARRIER (Data call failure) phone_number: for Packet Switched Data: *99# (Australia – requires authentication) Value for Circuit Switched Data: You will need a data number ( Code 2620 activated on the SIM account)
