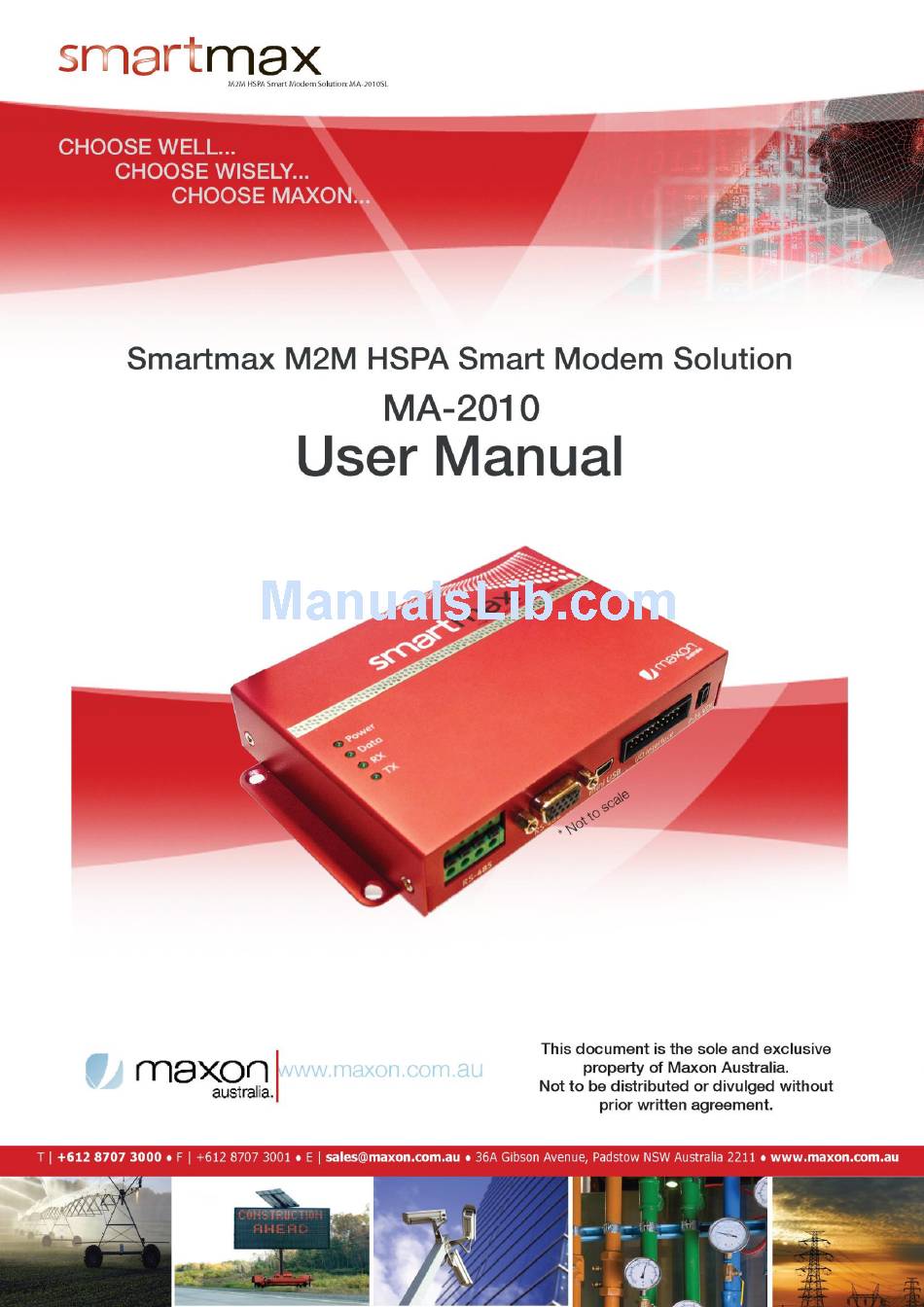

  • Page 1 Smartmax Manual 8.0 1-- 1 -...

  • Page 2: Table Of Contents

    Smartmax Manual 8.0 TABLE OF CONTENTS CONTACT INFORMATION ..................... 1-- 6 - RF EXPOSURE AND ELECTRICAL SAFETY COMPLIANCE ..........2-- 7 - Caution ......................2-- 7 - General Safety ....................2-- 8 - Vehicle Safety ....................2-- 9 - Potentially Unsafe Areas ................2-- 9 - REVISION HISTORY ......................3-- 10 - SMARTMAX USER MANUAL ..................4-- 11 - Disclaimers ....................4-- 11 -...
  • Page 3 Smartmax Manual 8.0 PROTOCOLS & ENCRYPTIONS ..................8-- 29 - PPP (Point-to-Point Protocol) ..............8-- 29 - PPPoE (Point-to-Point Protocol over Ethernet) ..........8-- 29 - DHCP (Dynamic Host Configuration Protocol) .........8-- 30 - NAT (Network Address Translation or Translator) ........8-- 30 - SNMP (Simple Network Management Protocol) ........8-- 31 - SNTP (Simple Network Time Protocol) ............8-- 32 - ICMP (Internet Control Message Protocol) ..........8-- 33 -...
  • Page 4 Smartmax Manual 8.0 9.2.9 Setting SNMP Agent ..................9-- 64 - 9.2.10 SNMP Custom MIB .................. 9-- 66 - 9.2.11 IP Stack ..................... 9-- 68 - Configuration Page – Administrator ............9-- 70 - 9.3.1 AT ........................9-- 70 - 9.3.2 Backup (Save/Reload) ................
  • Page 5 Smartmax Manual 8.0 Smartmax DNP3 Configurations - TCP/IP Configurations......9-- 116 - 9.8.1 Network Type ..................... 9-- 116 - 9.8.2 IP Address of DNP3 Master ..............9-- 117 - 9.8.3 Validate UDP Source Address ..............9-- 117 - 9.8.4 TCP Listen Port Number ................9-- 117 - 9.8.5 Local UDP Port Number ................

  • Page 6: Contact Information

    WEBSITE: www.maxon.com.au Maxon has also added for the benefit of developers and integrators, a forum on our website that can be accessed to discuss this product and/or technical matters in relation to your applications. All questions raised within this portal will be answered.

  • Page 7: Rf Exposure And Electrical Safety Compliance

    SELV power supply. 2.1 Caution Change or modification without the express consent of Maxon Australia Pty. Ltd. voids the user’s authority to use the equipment. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. The modem is a transmitting device with similar output power to a mobile phone.

  • Page 8: General Safety

    Smartmax Manual 8.0 2.2 General Safety RF Interference Issues: Avoid possible radio frequency (RF) interference by carefully following safety guidelines below: Switch OFF the Modem when in an aircraft. The use of cellular telephones in  aircraft is illegal. It may endanger the operation of the aircraft and/or disrupt the cellular network.

  • Page 9: Vehicle Safety

     installation. Note: The user is cautioned that changes or modifications not expressly approved by Maxon Australia could void the warrantee. 2.4 Potentially Unsafe Areas Posted Facilities: Turn off this device in any facility or area when posted notices require you to do so.

  • Page 10: Revision History

    Smartmax Manual 8.0 3 REVISION HISTORY Product Smartmax M2M HSPA Smart Modem Solution Model MA-2010 Document Type Current Version Number Status of the Document Public Release Revision Date July 2013 Total Number of Pages Revision History Level Date History Sep 2010...

  • Page 11: Smartmax User Manual

    Maxon Australia customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Maxon Australia for any damages resulting from such application. Right to make change - Maxon Australia reserves the right to make changes, without notice, in the products, including circuits and software, described or contained herein in order to improve design and/or performance.

  • Page 12: Introduction

    Smartmax Manual 8.0 5 INTRODUCTION 5.1 Overview Breaking the industry benchmark, the top-of-the range Smartmax is a unique and intelligent fusion of 3G capabilities with advanced functionality of a modem/router, complete with built-in DNP3; all encased in a durable & robust metal casing. The Smartmax has an array of industrial connectivity options, including RS232, RS485 &...

  • Page 13: Smartmax Features

    Smartmax Manual 8.0 Smartmax Features General Features HSPA Wireless Module Em-770w PCI (7.2Mbps downlink, 2Mbps uplink)  Supports Packet and Circuit Switched Data  Built in Web Interface  USB, RS232 and RS485 connection  2 Way SMS  Remote SMS diagnostics & reset ...
  • Page 14 Smartmax Manual 8.0 Environmental Specifications Normal Operation Temperature -20 to 60° C  Extreme Operation Temperature -25 to 75° C  Dimensions 93mm x 150mm x 25mm (without side brackets and antenna)  Connections RS232 Connection  RS485 Connection  USB Connection ...
  • Page 15 Smartmax Manual 8.0 Carrier Approvals* - (Please contact Maxon Australia for more information)  Compliance RoHS Compliant  Power Source DC Input Voltage Range: 7 to 34 VDC  Idle Current @ 12V: 30mA  Maximum Current @ 12V: 200mA ...

  • Page 16: Hardware

    Smartmax Manual 8.0 6 HARDWARE 6.1 Front Panel LEDs DISPLAY DESCRIPTION Indicates main power is ON Power Indicates main power is OFF Solid ON Indicates signal is good (RSSI ≥ -90 dBm) Indicates signal is marginal (-91dBm ≥ RSSI ≥ 1200ms ON and 1200ms OFF -105 dBm) Data...

  • Page 17: Side Panel (Left)

    Smartmax Manual 8.0 6.2 Side Panel (Left) 6.2.1 RS-485 ITEM DESCRIPTION Inverting RS-485/422 Driver Output Non-inverting RS-485/422 Driver Output Inverting RS-485/422 Receiver Input Non-inverting RS-485/422 Receiver Input Input voltage range -7V~+12V Input resistance 96KΩ Minimum driver output range +-1.5V Maximum driver output range +-5V Output short-circuit current +-250mA...

  • Page 18: Rs-232 6

    Smartmax Manual 8.0 6.2.2 RS-232 ITEM DESCRIPTION The On condition on this signal line, as sent by the MT2, informs TE2 that it is receiving a carrier signal from the remote TE2 that meets its criteria. Receiving serial data signal to TE2 Sending serial data signal from TE2 Ground Power supply for the modem (7 ~ 34) VDC power output...

  • Page 19: Mini Usb (For Debugging)

    Smartmax Manual 8.0 6.2.3 mini USB (for debugging) 6.2.4 I/O Interface – PIN Description Name Direction Electrical spec VDD33 Output 3.3VDC / Max. 100mA VDD33 Output 3.3VDC / Max. 100mA ANALOG2 Input 0~12V Ground ANALOG1 Input 0~20mA/0~5V/0~10V Ground ANALOG0 Input 0~20mA/0~5V/0~10V Ground INPUT5...

  • Page 20: Power - Molex Connector (7 To 34 Vdc)

    Smartmax Manual 8.0 INPUT3 Input High:2.5~4V Low: 0~0.9V OUTPUT1 Output High:3.3V Low: 0V INPUT2 Input High:2.5~4V Low: 0~0.9V OUTPUT2 Output High:3.3V Low: 0V INPUT1 Input High:2.5~4V Low: 0~0.9V OUTPUT3 Output High:3.3V Low: 0V INPUT0 Input High:2.5~4V Low: 0~0.9V OUTPUT4 Output High:3.3V Low: 0V [Table: I/O Interface] 6.2.5...

  • Page 21: Side Panel (Right)

    Smartmax Manual 8.0 6.3 Side Panel (Right) 6.3.1 Reset Press the factory reset switch and hold in for 20 seconds. 6-- 21 -...

  • Page 22: Lan

    Smartmax Manual 8.0 6.3.2 6.3.3 SIM Card 6.3.4 3G FME Male Antenna Connector 6-- 22 -...

  • Page 23: Specifications

    Smartmax Manual 8.0 7 SPECIFICATIONS 7.1 Hardware ITEM DESCRIPTION Product SMARTMAX Industrial HSUPA Ethernet Router User MCU 32-bit RISC Processor System Clock 200 MHz Program Memory 32 MB (SDRAM) Data Memory 64 MB (Nand - Flash) Wireless Interface HSPA WCDMA Module HSPA Mini PCI Express Module EM-770W PCI Communication 1 RS 232 Port...

  • Page 24: Mechanical

    Smartmax Manual 8.0 7.2 Mechanical Dimension 98 x 151 x 25.5 [mm](with side bracket) Weight 236g Approx Housing Material Aluminum [Table: Mechanical Specifications] 7.3 Environmental Operating Temp - 10 ~ + 70 [°C] Extreme Operating - 25 ~ + 75 [°C] Temp Storage Temp - 30 ~ + 80 [°C]...

  • Page 25: Electrical

    Smartmax Manual 8.0 7.4 Electrical DC Input Voltage + 7 ~ +34 [VDC] Internal Voltage +1.8, +2.5, +3.3, +5 [VDC] Maximum Current 450 [mA] @ 12[VDC] Operating Current Standby 45 [mA] @ 12 [VDC] PKT Data Connection 150 [mA] @ 12 [VDC] [Table: Electrical Specifications] The current draw for the Unimax with the I/O Board is as follows: 45 [mA] @ 12 [VDC]...

  • Page 26: Block Diagram

    Smartmax Manual 8.0 7.5 Block Diagram 7-- 26 -...

  • Page 27: Mechanical Diagrams

    Smartmax Manual 8.0 7.6 Mechanical Diagrams 7-- 27 -...
  • Page 28 Smartmax Manual 8.0 7-- 28 -...

  • Page 29: Protocols & Encryptions

    Smartmax Manual 8.0 8 PROTOCOLS & ENCRYPTIONS 8.1 PPP (Point-to-Point Protocol) PPP (Point-to-Point Protocol) is a protocol for communication between two computers using a serial interface, typically a personal computer connected by phone line to a server. For example, your Internet service provider may provide you with a PPP connection so that the provider's server can respond to your requests, pass them on to the Internet, and forward the requested Internet responses back to you.

  • Page 30: Dhcp (Dynamic Host Configuration Protocol)

    Smartmax Manual 8.0 to keep track of which user traffic should go to and which user should be billed. PPPoE provides for each user-remote site session to learn each other's network addresses (during an initial exchange called "discovery"). Once a session is established between an individual user and the remote site (for example, an Internet service provider), the session can be monitored for billing purposes.

  • Page 31: Snmp (Simple Network Management Protocol)

    Smartmax Manual 8.0 incoming packets back into local IP addresses. This helps ensure security since each outgoing or incoming request must go through a translation process that also offers the opportunity to qualify or authenticate the request or match it to a previous request. NAT also conserves on the number of global IP addresses that a company needs and it lets the company use a single IP address in its communication with the world.

  • Page 32: Sntp (Simple Network Time Protocol)

    Smartmax Manual 8.0 8.6 SNTP (Simple Network Time Protocol) Simple Network Time Protocol (SNTP) is a protocol that is used to synchronize computer clock times in a network of computers. In common with similar protocols, SNTP uses Coordinated Universal Time (UTC) to synchronize computer clock times to a millisecond, and sometimes to a fraction of a millisecond.

  • Page 33: Icmp (Internet Control Message Protocol)

    Smartmax Manual 8.0 network paths are used to ensure reliability and accuracy. In addition to client/server synchronization, SNTP also supports broadcast synchronization of peer computer clocks. SNTP is designed to be highly fault-tolerant and scalable. 8.7 ICMP (Internet Control Message Protocol) ICMP (Internet Control Message Protocol) is a message control and error-reporting protocol between a host server and a gateway to the Internet.

  • Page 34: 3Des

    Smartmax Manual 8.0 8.10 3DES The earliest standard that defines the algorithm describes it as the "Triple Data Encryption Algorithm (TDEA)" — i.e. three operations of the Data Encryption Algorithm specified in ANSI X3.92 — and do not use the terms "Triple DES" or "DES". 8.11 AES The Advanced Encryption Standard (AES) is an encryption standard adopted by the U.S.

  • Page 35: Esm

    Smartmax Manual 8.0 exchange, although other methods can be implemented. 8.15 ESM Encapsulating Security Payload (ESP) is a member of the IPSec protocol suite. In IPSec, it provides origin authenticity, integrity, and confidentiality protection of packets. ESP also supports encryption-only and authentication-only configurations, but using encryption without authentication is strongly discouraged because it is insecure.

  • Page 36: Dnp3 (Distributed Network Protocol)

    Smartmax Manual 8.0 8.17 DNP3 (Distributed Network Protocol) Distributed Network Protocol - DNP3 - is a set of communications protocols used between components in process automation systems. Specifically, it was developed to facilitate communications between various types of data acquisition and control equipment.

  • Page 37: Web Interface

    Smartmax Manual 8.0 9 WEB INTERFACE Smartmax can be configured through its web interface. Smartmax Web-based Configuration Page (192.168.0.1) [Figure: Web-based configuration of Smartmax] Power ON the Smartmax Router and connect to a computer using a mini USB cable via the LAN port o the Smartmax.

  • Page 38: Configuration Page

    Smartmax Manual 8.0 [Figure: Log-in window] The Status page of Smartmax web interface will come up with device and connection information. 9.1 Configuration Page 9.1.1 Status Status page displays the current status of LAN, WAN and Network Information. [Figure: Status Page] 9-- 38 -...

  • Page 39: Lan

    Smartmax Manual 8.0 ITEM DESCRIPTION Up Time Operation time after power up System Time System time acquired from HSPA modem IMEI IMEI number of the Smartmax HSPA Version Current firmware version of Smartmax Router Current Firmware version of the 3G module inside HSPA Module Version Smartmax Router...
  • Page 40 Smartmax Manual 8.0 9.1.2 LAN page allows configuring the IP address of Smartmax, DHCP range and viewing information of the clients connected on the Smartmax LAN port. [Figure: LAN Page] ITEM DESCRIPTION Smartmax can be configured with a Static IP Smartmax or can be set to obtain an IP address from an Gateway IP...
  • Page 41 Smartmax Manual 8.0 DHCP Enable or Disable DHCP server of Smartmax DHCP Client Assign IP address range for DHCP Server of Range Smartmax [Table: LAN Page Information] 9.1.3 WAN page allows configuring network authentication information, connection retrial and Scheduler timers. [Figure: WAN Page] 9-- 41 -...
  • Page 42 Smartmax Manual 8.0 ITEM DESCRIPTION Select the mode for Smartmax to connect in i.e. Mode Modem Router, IP Stack Auto or Manual Select a predefined profile or create one using Profile the custom option APN Name Select APN Name provided by the ISP Dialup Telephone number to dial Smartmax will automatically enter the PIN code...

  • Page 43: Password

    Smartmax Manual 8.0 code will lock the SIM card. Power Reset Smartmax daily Set from 1 to 24 hours Periodic Reset Enable/Disable – Reset TCP Server Listening Enable/Disable – Reset TCP Connected State Enable/Disable – Reset DNP3 Idle State PIN Enable Enable USIM PIN PIN Disable Tick the box provided, enter your pin and apply...
  • Page 44 Smartmax Manual 8.0 Smartmax will disconnect WAN connection and performs a power reset if the ping fail count expires for both servers Smartmax will start a back off algorithm on power up as set by these times instead of constantly retrying PPP connection. Smartmax will reset if PPP connection is not successful after retrial timer has expired and start again.
  • Page 45 Smartmax Manual 8.0 IPStack Auto In this mode Smartmax will behave same as the Modmax IPStack Auto mode. It will initiate the PPP connection and start the socket connection as a Server or Client as per the IPStack page setup. This applies for both RS485 and RS232 ports and the ports can be specified on the IPStack page under Administrator via the web interface.
  • Page 46 Smartmax Manual 8.0 The reset timer inside web page will reset modem  I/O board and SMS diagnostic notifications will not work in CSD  AT commands can not be set via web page  Modem will not prompt for pin code on the web interface if pin code is ...
  • Page 47 Smartmax Manual 8.0 Disable USIM PIN In order to Disable SIM PIN, Untick the box, enter your PIN, click Set button and apply the setting. Search Available Network Click Search button to view the available network and set the network using the Number shown in the drop down box.
  • Page 48 Smartmax Manual 8.0 9-- 48 -...
  • Page 49 Smartmax Manual 8.0 WAN Connection – Signal Level Smartmax will drop WAN connection if the signal (CSQ) level drops below 4 or the response is 99. This is not dBm but can be related back to dBm roughly by dBm = -113 + CSQ x 2.

  • Page 50: Password 9

    Smartmax Manual 8.0 9.1.4 Password Password page allows changing authentication information required to access Smartmax Web page. If new authentication details are applied, you will be prompted to re-enter those details as a confirmation. [Figure: Password Page] ITEM DESCRIPTION Current Name Input current login username Current Input current login password...

  • Page 51: Log Out

    Smartmax Manual 8.0 9.1.5 Log Out Log Out page provides a user with an option to close the web interface window. [Figure: Log out Page] 9.1.6 Save & Reboot Save & Reboot page allows saving the current settings and restarting the Smartmax. [Figure: Save and Reboot Page] 9-- 51 -...

  • Page 52: Configuration Page - Advanced

    Smartmax Manual 8.0 9.2 Configuration Page – Advanced 9.2.1 Dynamic DNS Dynamic DNS page allows users to configure Username, Password and Domain name to be used by Smartmax when authenticating on the DDNS server. [Figure: Dynamic DNS Page] ITEM DESCRIPTION Enable DDNS Check box to enable DDNS Link of the DDNS service web page...

  • Page 53: Dmz

    Smartmax Manual 8.0 The Smartmax supports DynDNS, in which case the Service Provider / Server field doesn’t need to be set, Custom DynDNS and MsDNS, which both allow for a custom service provider to be set. 9.2.2 DMZ page allows one IP address in Demilitarized Zone which is exposed to internet without sacrificing unauthorized access to the local private network.

  • Page 54: Ip Filtering

    Smartmax Manual 8.0 9.2.3 IP Filtering IP filtering page provides simply a mechanism that decides which types of IP datagram’s should be processed or discarded. [Figure: IP Filtering Page] ITEM DESCRIPTION Enable Check box to enable IP Filtering Filtering 9-- 54 -...
  • Page 55 Smartmax Manual 8.0 IP Address IP address of the target device Filtering Protocol: Select protocol TCP, UDP or both [Table: IP Filtering Page Information] Now with IP Filtering user can specify up to 10 access rules on the Smartmax External (WAN) Interface.

  • Page 56: Mac Filtering

    Smartmax Manual 8.0 9.2.4 MAC Filtering MAC Filtering page provides a security access control methodology whereby the 48-bit address assigned to each network card is used to determine deny or access to internet. Please note that Smartmax will block all traffic if no MAC address is entered in the filter table above with MAC filtering option enabled.
  • Page 57 Smartmax Manual 8.0 page but denies internet access. Deny – Denies access to Smartmax web page and internet. Input MAC address to determine deny or MAC Address access to the internet. [Table: MAC Filtering Page Information] 9-- 57 -...

  • Page 58: Port Forwarding

    Smartmax Manual 8.0 9.2.5 Port forwarding Port forwarding page allows setting up a firewall that will allow remote access for specific ports and protocols to designated hosts. When remote users send requests for accessing the local server Smartmax can forward those requests to the appropriate server(s).
  • Page 59 Smartmax Manual 8.0 9.2.6 VPN page allows configuring VPN Server/Client mode in the Smartmax. The Smartmax supports the following modes: L2TP/IPSec Gateway, L2TP/IPSec Client, IPSec Client, and PPTP Client. [Figure: VPN Page] 9-- 59 -...

  • Page 60: Vpn

    Smartmax Manual 8.0 ITEM DESCRIPTION Gateway: Smartmax acts as a VPN Server Mode Client: Smartmax connects to a remote VPN Server Enter Pre Shared Key (PSK) used by remote VPN Server (client mode) or to be used by Pre Shared key clients connecting to Smartmax in gateway mode Select PAP/CHAP/None method that will be...

  • Page 61: Ping Tool

    Smartmax Manual 8.0 9.2.7 Ping Tool Ping Tool page is used to run ping command to a particular IP Address/Host Name. [Figure: Ping Tool Page] ITEM DESCRIPTION Address Input destination IP address or host name to /Host Name be pinged. [Table: Ping Tool Page Information] 9-- 61 -...

  • Page 62: Snmp

    Smartmax Manual 8.0 9.2.8 SNMP SNMP page is used to configure SNMP agent. If this option is selected then remote SNMP manager can connect to SNMP agent and acquires network information. The Smartmax supports up to SNMPv3. [Figure: SNMP Page] ITEM DESCRIPTION Activate...
  • Page 63 Smartmax Manual 8.0 Name Private: Read Community string disabled Trap Server IP address of the 1 trap server. Smartmax will report the trap message to this IP address. Trap Server IP address of the 2 trap server. Smartmax will report the trap message to this IP address. Trap Server IP address of the 3 trap server.

  • Page 64: Setting Snmp Agent

    Smartmax Configuration Please apply the following configuration on the SNMP Page of  Smartmax: ITEM DESCRIPTION Active Enable System Name SmartmaxSNMP System Contact support@maxon.com.au Write Community Private Name Read Community Public Name Trap Server IP 192.168.0.100 Trap Server IP 192.168.0.101 Trap Server IP 192.168.0.102...
  • Page 65 Smartmax Manual 8.0 PowerSNMP Free Manager Configuration  Run the PowerSNMP Agent  Click Yes on the prompt message to search for the SNMP Agent [Figure: SNMP Agent Message]  Once the PowerSNMP finds Smartmax as an SNMP Agent then add Smartmax as an agent by enabling the check box.

  • Page 66: Snmp Custom Mib

    LAST-UPDATED "201104150000Z" ORGANIZATION "DHPLAB" CONTACT-INFO "support@maxon.com.au" DESCRIPTION "Maxon MIB" REVISION "201104150000Z" DESCRIPTION "This file defines the maxon mib by dhplab." ::= { enterprises 0910 } signalStrength OBJECT-TYPE SYNTAX Integer32 (45..105) MAX-ACCESS read-only STATUS current DESCRIPTION "Signal strength of the modem"...
  • Page 67 Smartmax Manual 8.0 registrationValue OBJECT-TYPE SYNTAX Integer32 (0..5) MAX-ACCESS read-only STATUS current DESCRIPTION "Registration of the modem" ::= { MaxMIB 2} ecioValue OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current DESCRIPTION "EC/IO of the modem" ::= { MaxMIB 3} rscp OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current...

  • Page 68: Ip Stack

    Smartmax Manual 8.0 9.2.11 IP Stack This page allows setting protocol, IP address and Port Number used by the internal IP Stack of the Smartmax. [Figure: IP Stack] ITEM DESCRIPTION Select Smartmax as a Sever or Client for the Socket Mode socket connection Notify Enable/Disable Boot and IPStack Messages...
  • Page 69 Smartmax Manual 8.0 Define the primary IP address for the client to Primary IP connect Define the secondary IP address for the client Secondary IP to connect Define the TCP or UDP Port number for the Port Number Server to listen on or the clients to connect to Idle Enabling this feature checks data activity Timeout...

  • Page 70: Configuration Page - Administrator

    Smartmax Manual 8.0 9.3 Configuration Page – Administrator 9.3.1 AT page allows sending commands to Smartmax module. Note that for the settings to be written the check boxes must be ticked. [Figure: AT Commands Page] ITEM DESCRIPTION AT Command Input AT command and click Send 9-- 70 -...
  • Page 71 Smartmax Manual 8.0 Baud Rate Define the Baud Rate for Smartmax Disable or Enable flow control Flow Control Smartmax Apply the required value for DTR - Data DTR (&D) Terminal Ready Define the number of rings for Smartmax Auto Answer before connecting Career Detect Apply the required value for Career Detect...

  • Page 72: Backup (Save/Reload)

    Smartmax Manual 8.0 9.3.2 Backup (Save/Reload) Backup page allows user to save current settings to a file or reload the settings from a saved file. Also you can reset the current configurations to factory default. [Figure: Backup Page] ITEM DESCRIPTION Save Settings to Allows user...
  • Page 73 Smartmax Manual 8.0 Factory Default Function Following are the two methods to set Smartmax back to factory default: Hard Reboot  Press the factory reset switch, located on the left end plate next to the power switch, and hold in for 20 seconds. ...

  • Page 74: System Logs

    Smartmax Manual 8.0 9.3.3 System Logs System page allows viewing system logs plus enabling remote syslogs function and server IP address. [Figure: System Logs Page] ITEM DESCRIPTION Enable Logs Check the box to enable Syslogs Enable Remote Check the box to enable Remote Syslog 9-- 74 -...
  • Page 75 Smartmax Manual 8.0 Syslogs function Log Server IP Enter the IP address of remote server address Refresh the system logs or Clear the system Refresh / Clear logs data [Table: System Logs Page Information] 9.3.4 Time Zone Time Zone page allows you to maintain system time by synchronizing with a public time server over the internet.

  • Page 76: Time Zone

    Smartmax Manual 8.0 [Figure: Time Zone Page] ITEM DESCRIPTION Enable NTP client Check the box to enable NTP Client update update NTP Server IP address of SNTP server Select the appropriate GMT(Green Mean Time) Time Zone time zone [Table: Time Zone Page Information] 9-- 76 -...

  • Page 77: System

    Smartmax Manual 8.0 9.3.5 System System page allows Administration and Remote Management options. [Figure: System Page] ITEM DESCRIPTION 9-- 77 -...
  • Page 78 Smartmax Manual 8.0 Web Access Enable or Disable Web page access Telnet Access Enable or Disable Telnet Server Drop HTTP Access Enabling this option will deny Web page access on WAN from the WAN side Enabling this option will reset Smartmax to Smartmax Admin factory default settings after 3 consecutive Login...

  • Page 79: Upgrade Firmware

    Smartmax Manual 8.0 9.3.6 Upgrade Firmware Upgrade Firmware page is used to upgrade the firmware of Smartmax. Please note that this option doesn’t upgrade the HSPA module firmware. This process can take several minutes (when upgrading locally connected via LAN to Smartmax) and the device should not be switched off during the upgrade process.
  • Page 80 Smartmax Manual 8.0 [Figure: Firmware Upgrade Process] Once upgrade is completed, Smartmax will perform an automatic Save and Reboot. [Figure: Firmware Upgrade Completed] 9-- 80 -...

  • Page 81: Configuration Page - Expansion I/O Board

    Smartmax Manual 8.0 9.4 Configuration Page – Expansion I/O Board The Status, SMS Input, SMS Output, Analogue and Pulse pages of this section are used to monitor and control the configured Expansion Board. An expansion board can be plugged into Daughter Board Connector of the Smartmax. 9.4.1 Status [Figure: Status Page]...

  • Page 82: I/O Automation

    Smartmax Manual 8.0 9.4.2 I/O Automation This page allows configuring digital inputs to control digital outputs locally or within another Smartmax unit at a different site via IP communication. The options menus below are used to specify how the inputs affect the local outputs locally or at a remote site.
  • Page 83 Smartmax Manual 8.0 [Figure: I/O Automation Page part 2] 9-- 83 -...

  • Page 84: Digital I/O Scheduler

    Smartmax Manual 8.0 9.4.3 Digital I/O Scheduler With the Digital I/O Scheduler, user can control when to switch the digital outputs on within the Smartmax modem based up on day of week and time of day This feature automates the Smartmax I/O functionality and can be used in many applications such as irrigation control and gates control.
  • Page 85 Smartmax Manual 8.0 I/O and Modem logs saved in CSV format Smartmax has the option of saving all digital I/O status in CSV file with date and time stamp. Also it saves the modem signal level, battery and temperature values. Data is kept for 3 days with updates set every 1 min or as events occur.

  • Page 86: Output Pulse

    Smartmax Manual 8.0 9.4.5 Output Pulse Digital Output Pulse feature will allow the users to have more control over the Smartmax Digital output operation, allowing users to use the digital outputs for wider range of applications. Using this feature, the user can initiate an operation cycle as per the IO Automation schedule.
  • Page 87 Smartmax Manual 8.0 Scenario 1. Output 1 In this case, the first value is always low and is unchecked. 1sec 2sec 4sec 5sec Referring to the diagram above, the output stays low for 1 sec, high for 2 sec followed by low for 4 sec and eventually high for 5 sec and then low.

  • Page 88: Sms Output

    Smartmax Manual 8.0 9.4.6 SMS Output [Figure: SMS Output Page] 9-- 88 -...

  • Page 89: Sms Input

    Smartmax Manual 8.0 9.4.7 SMS Input [Figure: SMS Input Page] A debounce time must be set for the input SMS functionality to function. 9-- 89 -...

  • Page 90: Sms Analog

    Smartmax Manual 8.0 9.4.8 SMS Analog [Figure: SMS Analog Page] 9-- 90 -...
  • Page 91 Smartmax Manual 8.0 Setup Procedure and Calibration Every modem must be configured before the analog channels are used accurately. The default raw value is just an indication that should be improved through the following process: 1. Change the jumper settings in the modem according to the directions in the Expansion IO HW Manual 2.
  • Page 92 Raw Value is used for calibration and represents the full scale (20mA, 10VDC, or 5VDC) 12-bit ADC reading. The values given are not exact and for a more precise reading Maxon recommends individual calibration of each modem. Reference Lower Limit Reference Lower Limit can be used to scale the output to a more readable range.
  • Page 93 Smartmax Manual 8.0 Low Level Alarm This is the reference level which, when passed, will trigger an SMS alarm. This reference level is in the same units as the Reference Lower and Upper Limits. High Level Alarm The high level alarm reference. This reference level is in the same units as the Reference Lower and Upper Limits.

  • Page 94: Sms Pulse

    Smartmax Manual 8.0 9.4.9 SMS Pulse Figure: SMS Pulse Page] Start Count This is the count value at which the counter will start counting from. High Level Alarm Alarm count increment. Each time this incremental value is passed an SMS is sent to the specified phone numbers.

  • Page 95: Smartmax Dnp3 Configurations - Point Configurations

    Smartmax Manual 8.0 9.5 Smartmax DNP3 Configurations – Point Configurations 9.5.1 Analogue Input Points The Smartmax has two 12-bit Analogue inputs, each individually configurable as shown below: [Figure: DNP3 Analog Page] 9-- 95 -...
  • Page 96 Smartmax Manual 8.0 ITEM DESCRIPTION The Point Number field specifies the DNP3 identifier for each Analogue Input. The valid Point Number range is 0-65535. The Point Number must be unique for each Analogue Input Channel. The Point Data Class attribute affects the way the data is reported externally from the Smartmax.
  • Page 97 Smartmax Manual 8.0 maximum Integer value for the point. The Eng. Zero Scale parameter specifies the minimum engineering value for the point. The Eng. Full Scale parameter specifies the maximum engineering value for the point. The default values provide for an Integer range of 0 to 10,000 and an Engineering range of 0 to 100.0.

  • Page 98: Binary Input Points

    Smartmax Manual 8.0 9.5.2 Binary Input Points The Smartmax has six Digital Input Channels, each individually configurable as shown below: [Figure: DNP3 Input Page] 9-- 98 -...
  • Page 99 Smartmax Manual 8.0 ITEM DESCRIPTION The Point Number field specifies the DNP3 identifier for each Binary Input channel. valid range is 0-65535. The Point Number must Point Number be unique for each Binary Input Channel. Note that the same Point Number can also be used by a Binary Output Channel.
  • Page 100 Smartmax Manual 8.0 Static Object Type Group Variation Description g1v1 Binary Input Binary Input g1v2 Binary In Flags Binary Input with Status information 9-- 100 -...

  • Page 101: Binary Output Points

    Smartmax Manual 8.0 9.5.3 Binary Output Points The Smartmax has four Digital Output Channels, each individually configurable as shown below: [Figure: DNP3 Output Page] 9-- 101 -...
  • Page 102 Smartmax Manual 8.0 ITEM DESCRIPTION The Point Number field specifies the DNP3 identifier for each Binary Output channel. The valid range is 0-65535. The Point Number must Point Number be unique for each Binary Output Channel. Note that the same Point Number can also be used by a Binary Input Channel.

  • Page 103: Counter Points

    Smartmax Manual 8.0 9.5.4 Counter Points The Smartmax has two high-speed Counters, each connected to Binary Inputs 1 & 2 respectively. The Counter inputs are individually configurable as shown below: [Figure: DNP3 Pulse Page] ITEM DESCRIPTION The Point Number field specifies the DNP3 identifier for each Counter input.
  • Page 104 Smartmax Manual 8.0 If a point configuration has a Point data class of Local it is not available to the SCADA Master through the Class 0,1,2,3 mechanisms. Points configured as Local are accessible via a DNP3 "Level 3" read request. Valid Point Data Class values are Local, Class 0, Class 1, Class 2 and Class 3.
  • Page 105 Smartmax Manual 8.0 Frozen Counter Static Variation Each of the Smartmax Counter points have a matching DNP3 Frozen Counter point. This field defines the Frozen Counter data object returned in response to a DNP3 static data poll request (i.e. Class 0 request). This attribute must be defined for each counter point.

  • Page 106: Internal Points

    Smartmax Manual 8.0 9.5.5 Internal Points The Smartmax features 4 Internal Analogue Input Channels and 1 Internal Binary Input Channel. Each Channel is individually configurable as per the Analogue and Binary I/O Channels described previously. [Figure: DNP3 Internal Page] ITEM DESCRIPTION Supply Volts Indicates the DC input voltage to the Smartmax...
  • Page 107 Smartmax Manual 8.0 Network Represents the current state of the Smartmax Registration registration state on the wireless network. Valid 0-6. The Binary input is On if the Smartmax case has Case Open been opened. 9-- 107 -...
  • Page 108 Smartmax Manual 8.0 9.6 Smartmax DNP3 Configurations – DNP3 Configurations [Figure: DNP3 Page] ITEM DESCRIPTION This field sets the Local or "Slave" DNP3 Address Device Address of the Smartmax device. The DNP3 Device Address should be unique on the user's network. The address must be in the range 0 to 65519.
  • Page 109 Smartmax Manual 8.0 Master Address Configures the DNP3 address of the Master station. The address must be in the range 0 to 65519. Specifies how long the local clock will remain valid after receiving time synchronization from the DNP3 master station. When this time period Time Update Rate expires, the Smartmax will request a time update via the IIN1.4 "Need Time"...
  • Page 110 Smartmax Manual 8.0 Address Smartmax will respond to DNP3 frames with destination address 65532 (0xFFFC) as if the message used device’s unique individual address. Responses always include device’s individual address in the source address field. This feature can simplify the commissioning, troubleshooting and maintenance of devices because it is not necessary to know the receiving device’s address ahead of time.

  • Page 111: Smartmax Dnp3 Configurations - Dnp3 Events

    Smartmax Manual 8.0 9.7 Smartmax DNP3 Configurations – DNP3 Events [Figure: DNP3 Event Page] 9-- 111 -...
  • Page 112 Smartmax Manual 8.0 ITEM DESCRIPTION Unsolicited This field configures whether the Smartmax is Allowed allowed to send Unsolicited responses. default is 'On'. Specify the initial/new state of the unsolicited Default Enabled event mask. This mask is used to determine Event classes which DNP3 event...

  • Page 113: Binary Event Variation

    Smartmax Manual 8.0 9.7.1 Binary Event Variation This field configures the default Variation used to report Binary Input Events to the master station. The following table lists the valid types for Binary Input point types: Static Object Type Group Variation Description g2v1 Binary Input Event No Time Binary Input Change Event - without time...

  • Page 114: Float Event Variation

    Smartmax Manual 8.0 9.7.3 Float Event Variation This field configures the default Variation used to report Analogue Input Events to the master station. This configuration is used for events when a point is configured with a Floating point-type Static Variation (i.e., g30v5). The following table lists the valid types for Analogue Input float point types: Static Object Type Group Variation...

  • Page 115: Frozen Counter Event Variation

    Smartmax Manual 8.0 9.7.5 Frozen Counter Event Variation This field configures the default Variation used to report Frozen Counter Events to the master station. The following table lists the valid types for Frozen Counter point types: Static Object Type Group Variation Description g23v1 32bit Frozen Counter Frozen Counter Change Event - 32-bit with...

  • Page 116: Smartmax Dnp3 Configurations - Tcp/Ip Configurations

    Smartmax Manual 8.0 9.8 Smartmax DNP3 Configurations TCP/IP Configurations [Figure: DNP3 TCP/IP Page] 9.8.1 Network Type This field provides the ability to select the type of Internet protocol connection to establish with a master station. The selections are: TCP Only ...

  • Page 117: Ip Address Of Dnp3 Master

    Smartmax Manual 8.0 TCP is the recommended transport protocol to use for most DNP3 network connections. It has facilities that substantially improve the reliability of the data transfer and is the best choice for wide area networks. Since TCP is a connection-oriented protocol, both devices must participate in the defined synchronization scheme in order to establish the connection.

  • Page 118: Initial Udp Unsolicited Port Number

    Smartmax Manual 8.0 receive UDP datagram’s on. Default port number is 20000. Note, this number will often have to be changed when using loopback testing as the master software will often also try to open UDP port no. 20000. 9.8.6 Initial UDP Unsolicited Port Number For UDP ONLY configurations, this field specifies the destination UDP/IP port to send the initial Unsolicited Null response to.

  • Page 119: Additional Information

    SMS. Please note that the change will not take in to effect until Smartmax has performed a power reset. In order to apply the change immediately, please send a Reboot SMS to the Smartmax after changing the APN.  Change Username, Password and Authentication (e.g. Username: maxon@maxon.com.au, Password: maxon, Authentication: chap) 10-- 119 -...
  • Page 120 Smartmax Manual 8.0 SMS Syntax: SMARTMAX.PARK.AUTH maxon@maxon.com.au:maxon:chap Smartmax Response: Smartmax will update the Username, Password & Authentication and will report back a confirmation via SMS. Please note that the change will not take in to effect until Smartmax has performed a power reset. In order to apply the changes immediately, please send a Reboot SMS to the Smartmax after changing the Username, Password &...

  • Page 121: Backing Up Configurations On To A Ftp Server

    Smartmax Manual 8.0 SMS Syntax: SMARTMAX.PARK.MOUTPUT=1:0,2:1,3:0,4:1”Output 1 off, output 2 on, output 3 off, output 4 on 10.2 Backing up configurations on to a FTP Server Smartmax provides a feature to dump all its configurations on to a FTP Server using the following command set: Smartmax will automatically backup on to a FTP Server unit curnv >...

  • Page 122: Udp Keep Alive And Wake Up Settings

    Smartmax Manual 8.0 10.3 UDP Keep Alive and Wake up Settings In order to enhance UDP stack communication within the Smartmax, we have introduced a new configuration option, which provides Smartmax users with more control over the UDP activity and data communication. The user can now enable or disable keep alive and can specify Wake up time in seconds.

Table of Contents
