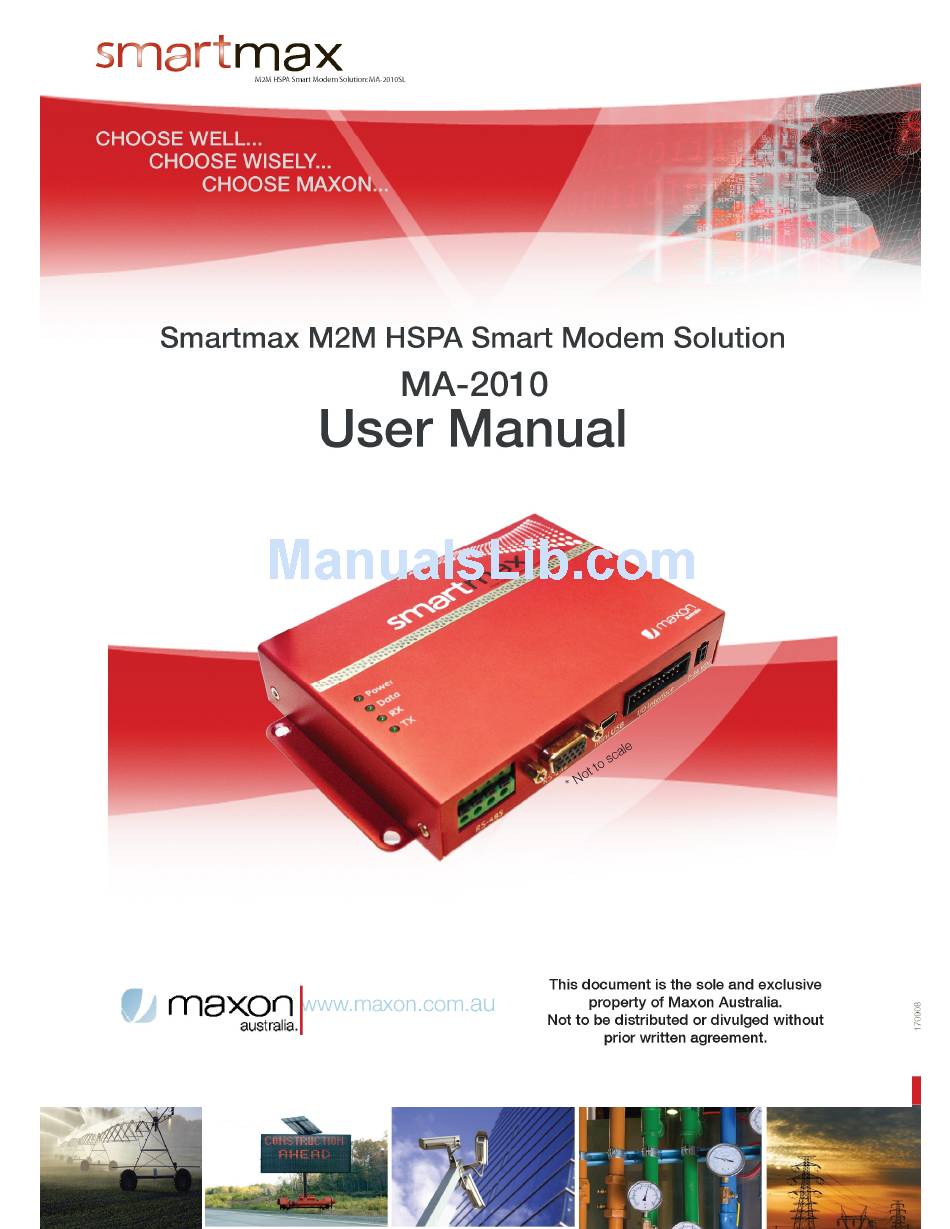

  • Page 1 Smartmax Manual 8.5 - 1 -...

  • Page 2: Table Of Contents

    Smartmax Manual 8.5 TABLE OF CONTENTS CONTACT INFORMATION ................ - 5 - RF EXPOSURE AND ELECTRICAL SAFETY COMPLIANCE ......- 6 - Caution ..................... - 6 - General Safety .................. - 7 - Vehicle Safety ................... - 8 - Potentially Unsafe Areas ..............- 8 - REVISION HISTORY ................
  • Page 3 Smartmax Manual 8.5 NAT-T (Network Address Translation Traversal) ......- 31 - IKE (Internet Key Exchange) ............- 32 - 3DES (Triple Data Encryption Algorithm) ........- 32 - AES (Advanced Encryption Standard) ..........- 32 - MD5 (Message-Digest algorithm 5) ..........- 32 - SHA (Secure Hash Algorithm) ............
  • Page 4 Smartmax Manual 8.5 System ..................- 81 - Upgrade Firmware ..............- 83 - 5.4. Configuration Page – I/O & Analog ........- 85 - Status ..................- 85 - I/O Automation ................- 86 - Output Pulse ................- 94 - 5.5.

  • Page 5: Contact Information

    Smartmax Manual 8.5 CONTACT INFORMATION In keeping with Maxon's dedicated customer support policy, we encourage you to contact us. TECHNICAL: Hours of Operation: Monday to Friday 8.30am to 5.00pm* Telephone: +61 2 8707 3000 Facsimile: +61 2 8707 3001 Email: support@maxon.com.au...

  • Page 6: Rf Exposure And Electrical Safety Compliance

    SELV power supply. Caution Change or modification without the express consent of Maxon Australia Pty. Ltd. voids the user’s authority to use the equipment. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. The modem is a transmitting device with similar output power to a mobile phone.

  • Page 7: General Safety

    Smartmax Manual 8.5 General Safety Avoid possible radio frequency (RF) interference by carefully RF Interference Issues: following safety guidelines below: Switch OFF the Modem when in an aircraft. The use of cellular telephones in aircraft is illegal. It may endanger the operation of the aircraft and/or disrupt the cellular network.

  • Page 8: Vehicle Safety

    Verification of the protection of vehicle electronics should be part of the installation. Note: The user is cautioned that changes or modifications not expressly approved by Maxon Australia could void the warrantee. Potentially Unsafe Areas Posted Facilities: Turn off this device in any facility or area when posted notices require you to do so.

  • Page 9: Revision History

    Smartmax Manual 8.5 REVISION HISTORY Product Smartmax M2M HSPA Smart Modem Solution Model MA-2010 Document Type Current Version Number Status of the Document Public Release Revision Date April 2017 Total Number of Pages Revision History Level Date History Sep 2010 Internal/Public Release Version Feb 2011 Public Release Version...

  • Page 10: Smartmax User Manual

    Maxon Australia customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Maxon Australia for any damages resulting from such application. Right to make change - Maxon Australia reserves the right to make changes, without notice, in the products, including circuits and software, described or contained herein in order to improve design and/or performance.

  • Page 11: Introduction

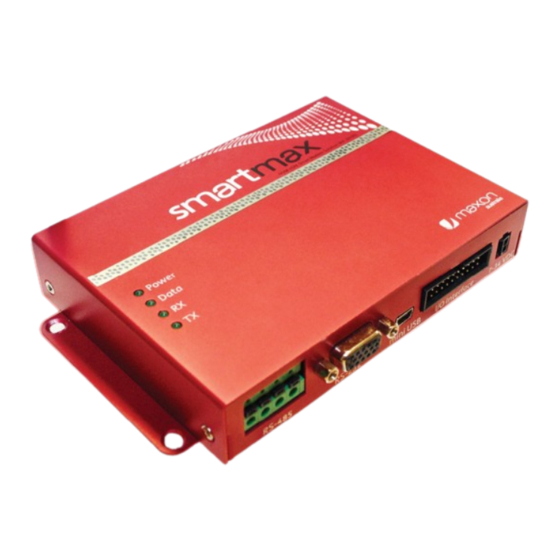

    Smartmax Manual 8.5 1. INTRODUCTION 1.1. Overview Breaking the industry benchmark, the top-of-the range Smartmax is a unique and intelligent fusion of 3G capabilities with advanced functionality of a modem/router, complete with built-in DNP3; all encased in a durable & robust metal casing. The Smartmax has an array of industrial connectivity options, including RS232, RS485 &...

  • Page 12: Smartmax Features

    Smartmax Manual 8.5 1.2. Smartmax Features General Features HSPA Wireless Module Em-770w PCI (7.2Mbps downlink, 2Mbps uplink) Supports Packet and Circuit Switched Data Built in Web Interface USB, RS232 and RS485 (4-wires full duplex only) connection 2 Way SMS Remote SMS diagnostics & reset Embedded TCP/IP, UDP/IP STACK In-built periodic reset External DC Powered...
  • Page 13 Smartmax Manual 8.5 GSM CS: UL 9.6 Kbps / DL 9.6 Kbps Environmental Specifications Normal Operation Temperature -20 to 60° C Extreme Operation Temperature -25 to 75° C Dimensions 93mm x 150mm x 25mm (without side brackets and antenna) Connections RS232 Connection RS485 Connection USB Connection...
  • Page 14 Smartmax Manual 8.5 Carrier Approvals* - (Please contact Maxon Australia for more information) Compliance RoHS Compliant Power Source DC Input Voltage Range: 7 to 34 VDC Idle Current @ 12V: 30mA Maximum Current @ 12V: 200mA Operating Systems Microsoft Windows, Mac OS, Linux, Win CE...

  • Page 15: Hardware

    Smartmax Manual 8.5 2. HARDWARE 2.1. Front Panel LEDs DISPLAY DESCRIPTION Indicates main power is ON Power Indicates main power is OFF Indicates signal is good (RSSI ≥ -90 Solid ON dBm) Indicates signal is marginal 1200ms ON and 1200ms OFF (-91dBm ≥...

  • Page 16: Side Panel (Left)

    Smartmax Manual 8.5 2.2. Side Panel (Left) RS-485 – PIN Description PINOUTS DESCRIPTION Inverting RS-485/422 Driver Output Non-inverting RS-485/422 Driver Output Inverting RS-485/422 Receiver Input Non-inverting RS-485/422 Receiver Input [Table: RS-485 Pinouts] Note: Smartmax RS485 interface supports 4-wires full duplex only. Input voltage range -7V~+12V Input resistance...
  • Page 17 Smartmax Manual 8.5 RS-232 – PIN Description ITEM DESCRIPTION The On condition on this signal line, as sent by the MT2, informs TE2 that it is receiving a carrier signal from the remote TE2 that meets its criteria. Receiving serial data signal to TE2 Sending serial data signal from TE2 Ground Power supply for the modem (7 ~ 34) VDC power...
  • Page 18 Smartmax Manual 8.5 mini USB (for debugging only) I/O Interface – PIN Description Name Direction Electrical spec VDD33 Output 3.3VDC / Max. 100mA VDD33 Output 3.3VDC / Max. 100mA ANALOG2 Input 0~12V Ground ANALOG1 Input 0~20mA/0~5V/0~10V Ground ANALOG0 Input 0~20mA/0~5V/0~10V Ground INPUT5 Input...
  • Page 19 Smartmax Manual 8.5 INPUT3 Input High:2.5~4V Low: 0~0.9V OUTPUT1 Output High:3.3V Low: 0V INPUT2 Input High:2.5~4V Low: 0~0.9V OUTPUT2 Output High:3.3V Low: 0V INPUT1 Input High:2.5~4V Low: 0~0.9V OUTPUT3 Output High:3.3V Low: 0V INPUT0 Input High:2.5~4V Low: 0~0.9V OUTPUT4 Output High:3.3V Low: 0V [Table: I/O Interface] Power –...

  • Page 20: Side Panel (Right)

    Smartmax Manual 8.5 2.3. Side Panel (Right) Reset Press the factory reset switch and hold in for 20 seconds. - 20 -...
  • Page 21 Smartmax Manual 8.5 SIM Card 3G FME Male Antenna Connector - 21 -...

  • Page 22: Specifications

    Smartmax Manual 8.5 3. SPECIFICATIONS 3.1. Hardware ITEM DESCRIPTION Product SMARTMAX Industrial HSUPA Ethernet Router User MCU 32-bit RISC Processor System Clock 200 MHz Program Memory 32 MB (SDRAM) Data Memory 64 MB (NAND - Flash) Wireless Interface HSPA WCDMA Module HSPA Mini PCI Express Module MC8795 Communication 1 RS 232 Port...

  • Page 23: Mechanical

    Smartmax Manual 8.5 3.2. Mechanical Dimension 98 x 151 x 25.5 [mm](with side bracket) Weight 236g Approx. Housing Material Aluminum [Table: Mechanical Specifications] 3.3. Environmental Operating Temp - 10 ~ + 70 [°C] Extreme Operating - 25 ~ + 75 [°C] Temp Storage Temp - 30 ~ + 80 [°C]...
  • Page 24 Smartmax Manual 8.5 The current draw from the Smartmax with the I/O Board is as follows: 45 [mA] @ 12 [VDC] Idle 50 [mA] @ 12 [VDC] with outputs ON 60 [mA] @ 12 [VDC] Active 90 [mA] @ 12 [VDC] with outputs ON [Table: Cunrrent Consumptions] - 24 -...

  • Page 25: Block Diagram & Typical Connections

    Smartmax Manual 8.5 3.5. Block Diagram & Typical Connections - 25 -...

  • Page 26: Mechanical Diagrams

    Smartmax Manual 8.5 3.6. Mechanical Diagrams - 26 -...

  • Page 27: Suppported Protocols & Encryptions

    Smartmax Manual 8.5 4. SUPPPORTED PROTOCOLS & ENCRYPTIONS PPP (Point-to-Point Protocol) PPP (Point-to-Point Protocol) is a protocol for communication between two computers using a serial interface, typically a personal computer connected by phone line to a server. For example, your Internet service provider may provide you with a PPP connection so that the provider's server can respond to your requests, pass them on to the Internet, and forward the requested Internet responses back to you.

  • Page 28: Dhcp (Dynamic Host Configuration Protocol)

    Smartmax Manual 8.5 to keep track of which user traffic should go to and which user should be billed. PPPoE provides for each user-remote site session to learn each other's network addresses (during an initial exchange called "discovery"). Once a session is established between an individual user and the remote site (for example, an Internet service provider), the session can be monitored for billing purposes.

  • Page 29: Snmp (Simple Network Management Protocol)

    Smartmax Manual 8.5 incoming packets back into local IP addresses. This helps ensure security since each outgoing or incoming request must go through a translation process that also offers the opportunity to qualify or authenticate the request or match it to a previous request. NAT also conserves on the number of global IP addresses that a company needs and it lets the company use a single IP address in its communication with the world.

  • Page 30: Sntp (Simple Network Time Protocol)

    Smartmax Manual 8.5 SNTP (Simple Network Time Protocol) Simple Network Time Protocol (SNTP) is a protocol that is used to synchronize computer clock times in a network of computers. In common with similar protocols, SNTP uses Coordinated Universal Time (UTC) to synchronize computer clock times to a millisecond, and sometimes to a fraction of a millisecond.

  • Page 31: Icmp (Internet Control Message Protocol)

    Smartmax Manual 8.5 network paths are used to ensure reliability and accuracy. In addition to client/server synchronization, SNTP also supports broadcast synchronization of peer computer clocks. SNTP is designed to be highly fault-tolerant and scalable. ICMP (Internet Control Message Protocol) ICMP (Internet Control Message Protocol) is a message control and error-reporting protocol between a host server and a gateway to the Internet.

  • Page 32: Ike (Internet Key Exchange)

    Smartmax Manual 8.5 IKE (Internet Key Exchange) Internet Key Exchange (IKE or IKEv2) is the protocol used to set up a security association (SA) in the IPSec protocol suite. IKE uses a Diffie-Hellman key exchange to set up a shared session secret, from which cryptographic keys are derived. Public key techniques or, alternatively, a pre-shared key, are used to mutually authenticate the communicating parties.

  • Page 33: Sha (Secure Hash Algorithm)

    Smartmax Manual 8.5 SHA (Secure Hash Algorithm) SHA stands for Secure Hash Algorithm. The three SHA algorithms are structured differently and are distinguished as SHA-0, SHA-1, and SHA-2. The SHA-2 family uses an identical algorithm with a variable digest size which is distinguished as SHA-224, SHA-256, SHA-384, and SHA-512.

  • Page 34: Rip (Routing Information Protocol)

    Smartmax Manual 8.5 RIP (Routing Information Protocol) RIP is a distance-vector routing protocol, which employs the hop count as a routing metric. The hold down time is 180 seconds. RIP prevents routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for RIP is 15.

  • Page 35: Web Interface

    Smartmax Manual 8.5 5. WEB INTERFACE Smartmax can be configured through its web interface. Smartmax Web-based Configuration Page (192.168.0.1) [Figure: Web-based configuration of Smartmax] Power ON the Smartmax Router and connect to a computer using a mini USB cable via the LAN port o the Smartmax.
  • Page 36 Smartmax Manual 8.5 Enter username and password in the pop-up window that prompts for login details. Username and password is “admin’ by default. This default username and password can be changed through the Password Setup Page. The Status page of Smartmax web interface will come up with device and connection information.

  • Page 37: Status

    Smartmax Manual 8.5 5.1. Configuration Pages Status Status page displays the current status of LAN, WAN and Network Information. [Figure: Status Page] ITEM DESCRIPTION Up Time Operation time after power up System Time System time acquired from HSPA modem IMEI IMEI number of the Smartmax - 37 -...

  • Page 38: Lan

    Smartmax Manual 8.5 Smartmax Hardware and Current firmware version of Smartmax Versions Module Hardware and Firmware version of the 3G module inside Versions Current operation mode i.e. Modem Router Network Status of the 3G module including registration Registration PIN Status Status of PIN request (enable/disable) Area Local Cell information...
  • Page 39 Smartmax Manual 8.5 LAN page allows configuring the IP address of Smartmax, DHCP range and viewing information of the clients connected on the Smartmax LAN port. [Figure: LAN Page] ITEM DESCRIPTION Smartmax can be configured with a Static IP Smartmax or can be set to obtain an IP address from an Gateway IP external DHCP Server (Client Mode)
  • Page 40 Smartmax Manual 8.5 Default Configure the Default Gateway IP address Gateway DHCP Enable or Disable DHCP server of Smartmax DHCP Client Assign IP address range for DHCP Server of Range Smartmax [Table: LAN Page Information] - 40 -...
  • Page 41 Smartmax Manual 8.5 WAN page allows configuring network authentication information, connection retrial and Scheduler timers. - 41 -...
  • Page 42 Smartmax Manual 8.5 [Figure: WAN Page] ITEM DESCRIPTION Select the mode for Smartmax to connect in i.e. Mode Modem Router, IP Stack Auto or Manual Select a predefined profile or create one using Profile the custom option APN Name Select APN Name provided by the ISP Dialup Telephone number to dial Smartmax will automatically enter the PIN code...
  • Page 43 Smartmax Manual 8.5 Power Reset Smartmax daily Set from 1 to 24 hours Periodic Reset Enable/Disable – Reset TCP Server Listening Enable/Disable – Reset TCP Connected State Enable/Disable – Reset DNP3 Idle State PIN Enable PIN Disable Enable USIM PIN Tick the box provided, enter your pin and apply the setting, to disable SIM PIN untick the box, enter your pin and apply the settings.
  • Page 44 Smartmax Manual 8.5 retrial timer has expired and start again. Retrial when wireless network gets disconnected. Interval: Retrial interval time (Second) During time: Continuing time (Minute) Retrial after 1 retrial is unsuccessful Interval: Retrial interval time (Minute) During time: Continuing time (Hour) Smartmax establishes WAN connection (Router Mode) between the times specified above.
  • Page 45 Smartmax Manual 8.5 Operating Modes Smartmax operates in the following three modes: Modem Router In this mode the Smartmax will automatically establish WAN connection. Serial Port doesn’t work in this mode. Internal DNP3 will work with I/O board. Please note that Bridge mode is not supported on the SMARMAX. IPStack Auto In this mode Smartmax will behave same as the Modmax IPStack Auto mode.
  • Page 46 Smartmax Manual 8.5 To reset modem in serial mode the AT command is AT!RESET After reset the modem will only respond to AT commands once the notification SMARTMAX READY is sent out to the serial port If modem is connected to a data logger, after reset it is advisable to wait for about 2 minutes before dialing into Smartmax The reset timer inside web page will reset modem I/O board and SMS diagnostic notifications will not work in CSD...
  • Page 47 Smartmax Manual 8.5 Disable USIM PIN In order to Disable SIM PIN, Untick the box, enter your PIN, click Set button and apply the setting. Band Selection Cellular Frequency band can be selected by check box or use Auto to let Cellular module to find the best suitable band.
  • Page 48 Smartmax Manual 8.5 WAN Scheduler The WAN Scheduler can be configured with the following two options: Duration Day of the week - 48 -...
  • Page 49 Smartmax Manual 8.5 WAN Connection – Signal Level Smartmax will drop WAN connection if the signal (CSQ) level drops below 4 or the response is 99. This is not dBm but can be related back to dBm roughly by dBm = -113 + CSQ x 2.

  • Page 50: Serial

    Smartmax Manual 8.5 SERIAL SERIAL page allows to set up modem serial port configuration. It also contains a tool of sending AT commands to internal cellular module. [Figure: AT Commands Page] ITEM DESCRIPTION Baud Rate Define the Baud Rate for Smartmax Data Define the number of data bits Parity...
  • Page 51 Smartmax Manual 8.5 Apply the required value for DTR - Data DTR (&D) Terminal Ready Define the number of rings for Smartmax Auto Answer before connecting Career Detect (&C) Apply the required value for Career Detect Apply the required value for DSR – Data Set DSR (&S) Ready ECHO...

  • Page 52: Ip Stack

    Smartmax Manual 8.5 IP Stack General Settings This page allows to set up TCP protocols used by the internal IP Stack of the Smartmax. Modem emulation configuration is also in this page. IP Stack [Figure: IP Stack Page] ITEM DESCRIPTION Select Smartmax as a Sever or Client for the Socket Mode socket connection...
  • Page 53 Smartmax Manual 8.5 communication Define the primary IP address for the client to Primary IP connect Define the secondary IP address for the client Secondary IP to connect Define the TCP or UDP Port number for the Port Number Server to listen on or the clients to connect to Idle Enabling this feature checks data activity Timeout...
  • Page 54 Smartmax Manual 8.5 [Figure: Modem Emulation] FTP Client This page allows to set up the Samrtmax to periodically record the selected information to a log file and upload the file to an remote FTP server periodically or manually. The log file is a CSV file.
  • Page 55 Smartmax Manual 8.5 ITEM DESCRIPTION Disable FTP client or Select FTP uploading interval units. If Manual is selected, the Disable/Interval dedicated AT command will be used for initiate FTP upload. Select the uploading interval: Hourly: 1 – 24 Time Interval Time of Day: 0 –...

  • Page 56: Maxconnect

    Maxon’s modem management portal. maXconnect is a cloud based M2M management portal which allows you to access, monitor and control 3G/4G Maxon devices securely. With maXconnect you can access real-time data from your devices, monitor their status and location. Utilise complete functionality by controlling your devices anywhere, anytime.

  • Page 57: Save & Reboot

    Smartmax Manual 8.5 Save & Reboot Save & Reboot page allows saving the current settings and restarting the Smartmax. [Figure: Save and Reboot Page] Log Out Log Out page provides a user with an option to close the web interface window. [Figure: Log out Page] - 57 -...

  • Page 58: Configuration Pages - Advanced

    Smartmax Manual 8.5 5.2. Configuration Pages – Advanced Dynamic DNS Dynamic DNS page allows users to configure Username, Password and Domain name to be used by Smartmax when authenticating on the DDNS server. [Figure: Dynamic DNS Page] ITEM DESCRIPTION Enable DDNS Check box to enable DDNS Link of the DDNS service web page Service Provider...
  • Page 59 Smartmax Manual 8.5 The Smartmax supports DynDNS, in which case the Service Provider / Server field doesn’t need to be set, Custom DynDNS and MsDNS, which both allow for a custom service provider to be set. - 59 -...

  • Page 60: Dos Filters

    Smartmax Manual 8.5 DoS Filters The Smartmax supports DoS filters based upon, TCP SYN packets, TCP new connections, UDP new connections and ICMP requests. [Figure: DoS Filters Page] - 60 -...

  • Page 61: Dmz

    Smartmax Manual 8.5 DMZ page allows one IP address in Demilitarized Zone which is exposed to internet without sacrificing unauthorized access to the local private network. [Figure: DMZ Page] ITEM DESCRIPTION Enable DMZ Check box to enable DMZ IP Address of the target device. If DMZ is set, all traffic addressed to Smartmax WAN IP is passed Host to the host with this IP address only.

  • Page 62: Ip Filtering

    Smartmax Manual 8.5 IP Filtering IP filtering page provides simply a mechanism that decides which types of IP datagram’s should be processed or discarded. [Figure: IP Filtering Page] - 62 -...
  • Page 63 Smartmax Manual 8.5 ITEM DESCRIPTION Enable Check box to enable IP Filtering Filtering IP Address IP address of the target device Filtering Protocol: Select protocol TCP, UDP or both [Table: IP Filtering Page Information] Now with IP Filtering user can specify up to 10 access rules on the Smartmax External (WAN) Interface.

  • Page 64: Mac Filtering

    Smartmax Manual 8.5 MAC Filtering MAC Filtering page provides a security access control methodology whereby the 48-bit address assigned to each network card is used to determine deny or access to internet. Please note that Smartmax will block all traffic if no MAC address is entered in the filter table above with MAC filtering option enabled.
  • Page 65 Smartmax Manual 8.5 page but denies internet access. Deny – Denies access to Smartmax web page and internet. Input MAC address to determine deny or MAC Address access to the internet. [Table: MAC Filtering Page Information] - 65 -...

  • Page 66: Port Forwarding

    Smartmax Manual 8.5 Port forwarding Port forwarding page allows setting up a firewall that will allow remote access for specific ports and protocols to designated hosts. When remote users send requests for accessing the local server Smartmax can forward those requests to the appropriate server(s).

  • Page 67: Vpn

    Smartmax Manual 8.5 VPN page allows configuring VPN Server/Client mode in the Smartmax. The Smartmax supports the following modes: L2TP/IPSec Gateway, L2TP/IPSec Client, IPSec Client, and PPTP Client. [Figure: VPN Page] - 67 -...
  • Page 68 Smartmax Manual 8.5 ITEM DESCRIPTION Gateway: Smartmax acts as a VPN Server Mode Client: Smartmax connects to a remote VPN Server Enter Pre Shared Key (PSK) used by remote VPN Server (client mode) or to be used by Pre Shared key clients connecting to Smartmax in gateway mode Select PAP/CHAP/None method that will be...

  • Page 69: Ping Tool

    Smartmax Manual 8.5 Ping Tool Ping Tool page is used to run ping command to a particular IP Address/Host Name. [Figure: Ping Tool Page] ITEM DESCRIPTION Address Input destination IP address or host name to /Host Name be pinged. [Table: Ping Tool Page Information] - 69 -...

  • Page 70: Snmp

    Smartmax Manual 8.5 SNMP The Simple Network Management Protocol is a protocol designed to give a user the capability to remotely manage a computer network by polling and setting terminal values and monitoring network events. SNMP page is used to configure SNMP agent. If this option is selected then remote SNMP manager can connect to SNMP agent and acquires network information.
  • Page 71 A Smartmax directly connected to a laptop or a desktop through RJ45 connection Smartmax Configuration Please apply the following configuration on the SNMP Page of Smartmax: ITEM DESCRIPTION Active Enable System Name SmartmaxSNMP System Contact support@maxon.com.au Write Community Private Name - 71 -...
  • Page 72 Smartmax Manual 8.5 Read Community Public Name Trap Server IP 192.168.0.100 Trap Server IP 192.168.0.101 Trap Server IP 192.168.0.102 [Table: SNMP Setup] PowerSNMP Free Manager Configuration Run the PowerSNMP Agent Click Yes on the prompt message to search for the SNMP Agent [Figure: SNMP Agent Message] Once the PowerSNMP finds Smartmax as an SNMP Agent then add Smartmax as an agent by enabling the check box.
  • Page 73 Smartmax Manual 8.5 [Figure: PowerSNMP Free Manager] SNMP Custom MIB Customers can read the modem Signal Strength, registration value, echo, and rscp values via SNMP MIB as shown below. MAXON-MIB DEFINITIONS ::= BEGIN IMPORTS OBJECT-TYPE, MODULE-IDENTITY, Integer32, enterprises FROM SNMPv2-SMI DisplayString FROM SNMPv2-TC;...
  • Page 74 Smartmax Manual 8.5 DESCRIPTION "This file defines the maxon mib by dhplab." ::= { enterprises 0910 } signalStrength OBJECT-TYPE SYNTAX Integer32 (45..105) MAX-ACCESS read-only STATUS current DESCRIPTION "Signal strength of the modem" ::= { MaxMIB 1} registrationValue OBJECT-TYPE SYNTAX Integer32 (0..5)

  • Page 75: Configuration Pages - Administrator

    Smartmax Manual 8.5 5.3. Configuration Pages – Administrator Password Password page allows changing authentication information required to access Smartmax Web page. If new authentication details are applied, you will be prompted to re-enter those details as a confirmation. [Figure: Password Page] ITEM DESCRIPTION Current Name...

  • Page 76: Backup (Save/Reload)

    Smartmax Manual 8.5 Backup (Save/Reload) Backup page allows user to save current settings to a file or reload the settings from a saved file. Also you can reset the current configurations to factory default. [Figure: Backup Page] ITEM DESCRIPTION Save Settings to Allows user save...
  • Page 77 Smartmax Manual 8.5 Factory Default Function Following are the two methods to set Smartmax back to factory default: Hard Reboot Press the factory reset switch, located on the left end plate next to the power • switch, and hold in for 20 seconds. Release the reset button and Smartmax is now set to factory default.

  • Page 78: System Logs

    Smartmax Manual 8.5 System Logs System page allows viewing system logs plus enabling remote syslogs function and server IP address. [Figure: System Logs Page] ITEM DESCRIPTION Enable Logs Check the box to enable Syslogs Enable Remote Check the box to enable Remote Syslog Syslogs function - 78 -...
  • Page 79 Smartmax Manual 8.5 Log Server IP Enter the IP address of remote server address Refresh the system logs or Clear the system Refresh / Clear logs data [Table: System Logs Page Information] - 79 -...

  • Page 80: Time Zone

    Smartmax Manual 8.5 Time Zone Time Zone page allows you to maintain system time by synchronizing with a public time server over the internet. If the NTP client isn’t enabled then the modem will gain its time from the network which is daylight savings adjusted. Please do not enable NTP server when using the scheduler function on WAN page.

  • Page 81: System

    Smartmax Manual 8.5 System System page allows Administration and Remote Management options. [Figure: System Page] ITEM DESCRIPTION Web Access Enable or Disable Web page access - 81 -...
  • Page 82 Smartmax Manual 8.5 Telnet Access Enable or Disable Telnet Server Drop HTTP Access Enabling this option will deny Web page access on WAN from the WAN side Enabling this option will reset Smartmax to Smartmax Admin factory default settings after 3 consecutive Login incorrect web page logins Enable/Disable Network Address Translation...

  • Page 83: Upgrade Firmware

    Smartmax Manual 8.5 Upgrade Firmware Upgrade Firmware page is used to upgrade the firmware of Smartmax. Please note that this option doesn’t upgrade the HSPA module firmware. This process can take several minutes (when upgrading locally connected via LAN to Smartmax) and the device should not be switched off during the upgrade process.
  • Page 84 Smartmax Manual 8.5 [Figure: Firmware Upgrade Process] Once upgrade is completed, Smartmax will perform an automatic Save and Reboot. [Figure: Firmware Upgrade Completed] - 84 -...

  • Page 85: Configuration Page - I/O & Analog

    Smartmax Manual 8.5 5.4. Configuration Page – I/O & Analog The Status, I/O Automation, and Output Pulse pages of this section are used to monitor and control the digital I/Os and Analog inputs with the use of I/O Expansion Board. An expansion board can be plugged into I/O Interface of the Smartmax.

  • Page 86: I/O Automation

    Smartmax Manual 8.5 I/O Automation This section allows for intelligent control of the digital inputs and outputs. There are three different control methods that can be used, only one of these can be used at a time. These are: 1. Digital I/O WEB Automation: Allows for the control of digital outputs are up to two different remote locations via a proprietary TCP/IP communication protocol from the inputs of the Smartmax.
  • Page 87 Smartmax Manual 8.5 Digital I/O WEB Automation I/O web automation control has improved usability to allow for timeouts to revert outputs to a predetermined state and to let users control a Smartmax addressed using a URL (i.e. DynDNS). IO automation is especially useful in situations such as water flow control and pumping between geographically distant locations where radio is impractical.
  • Page 88 Smartmax Manual 8.5 [Figure: I/O Automation Page] Unlink Timeout allows for the remote site output to revert back to an OFF state after not receiving a control message from the server for the configured period of time. The maximum recommended configurable time is up to 60 seconds. The Site fields can accept either IP addresses or URLs.
  • Page 89 Smartmax Manual 8.5 Day Of Week The day of week automation page allows for the configuration of specific days of the week and times of day for the outputs to be controlled. Up to 20 different periods can be configured at which time the digital output will change from an OFF state to an ON state.
  • Page 90 Smartmax Manual 8.5 [Figure: I/O Operation Table] The “Switch On Output using SMS” option allows for the output to be turned on via SMS during the defined time. If an SMS is not received during the scheduled time then the output will not turn on.
  • Page 91 Smartmax Manual 8.5 values. Data will be kept for 3 days and will updates at an interval configured by an option in ‘Administrator’ -> ‘System’ page if no event happens: Saved data example : No,Date,Time,Output 1,Output 2,Output 3,Output 4,Input 1,Input 2,Input 3,Input 4,Input 5,Input 6,Analog 1,Analog 2,Pulse 1,Pulse 2,Temperature,Battery,Signal,Note 0,2011/05/04,17:07:00,ON,ON,ON,ON,OFF,OFF,OFF,OFF,OFF,OFF,0.00,2.14,0,0,31.65,0.00,-...
  • Page 92 Smartmax Manual 8.5 [Figure: Day Of Year I/O Control] The day of year scheduler has a higher level of priority to the Digital I/O Operation, the I/O Status page output control and the Output Pulse control. The output schedule format is as follows: Month number,[Period1],[Period2],..,[Periodn],Day of Month or Range [Period number] - 92 -...
  • Page 93 Smartmax Manual 8.5 For example: 8,[0000-2359],[1100-1130],[1200-1230],[1300-1430],1-2[1],5-9[2:3:4],15[3] 8 - Month (August) [0000-2359] - Time Period 1 [1100-1130] - Time Period 2 [1200-1230] - Time Period 3 [1300-1430] - Time Period 4 1-2[1] - Day 1 and 2 output on as per Time Period 1 5-9[2:3:4] - Day 5 to 9 output on as per Time Period 2, 3 and 4 15[3] - Day 15 output on as per Time Period 3 Limits...

  • Page 94: Output Pulse

    Smartmax Manual 8.5 Output Pulse Digital Output Pulse feature will allow the users to have more control over the Smartmax Digital output operation, allowing users to use the digital outputs for wider range of applications. Using this feature, the user can initiate an operation cycle as per the IO Automation schedule.
  • Page 95 Smartmax Manual 8.5 The output pulse can be set to run once at start up or during a configured automation period or to loop by using the ‘Loop’ check box. Scenario 1. Output 1 In this case, the first value is always low and is unchecked. 1sec 2sec 4sec...

  • Page 96: Configuration Page - Sms Functions

    Smartmax Manual 8.5 5.5. Configuration Page – SMS Functions The SMS function pages are used to set up control and report of the digital I/Os, Analog Inputs, and Serial Messages on the Smartmax. Site Name The section allows to set up a Site Name to be added to the SMS report. [Figure: Sie Name Page] - 96 -...

  • Page 97: Sms Output

    Smartmax Manual 8.5 SMS Output This section is used to set up SMS control commands and reporting for digital outputs. Only the configured phone numbers can control the outputs and receive the report if enabled. [Figure: SMS Output Page] - 97 -...

  • Page 98: Sms Input

    Smartmax Manual 8.5 SMS Input This section is used to set up SMS reporting for digital inputs. Only the configured phone numbers can receive the report. [Figure: SMS Input Page] It is strongly recommanded that a debounce time is set for proper function. - 98 -...

  • Page 99: Sms Analog

    Before ordering a Smartmax with analog inputs, we recommend that you get in touch with Maxon first to let us know what will be the input option and we can calibrate the - 99 -...
  • Page 100 Smartmax Manual 8.5 analog inputs prior to shipment. Raw Value Raw Value is used for calibration and represents the full scale (20mA, 10VDC, or 5VDC) 12-bit ADC reading. The value should not be changed after calibration. Reference Lower Limit Reference Lower Limit can be used to scale the minimum input to a user preferred reading value.

  • Page 101: Sms Pulse

    Smartmax Manual 8.5 SMS Pulse The Smartmax has two high-speed Pulse Counters, each connected to Binary Inputs 1 & 2 respectively. This section is used to set up Pulse counting and SMS alarm thresholds. Only the configured phone numbers can receive the report. Figure: SMS Pulse Page] Start Count This is the count value at which the counter will start counting from.

  • Page 102: Sms Internal

    Smartmax Manual 8.5 SMS Internal This section is used to set up SMS alarm reporting for a digital inputs dedicated to tamper detection. An Expansion I/O Board is recommended for this function. Only the configured phone numbers can receive the report. [Figure: SMS Internal Page] It is strongly recommanded that a debounce time is set for proper function.

  • Page 103: Sms Serial

    Smartmax Manual 8.5 SMS Serial This section is used to set up Serial Port (RS232 or RS485) read messages reporting via SMS query command “SMARTMAX.PARK.SERIAL”. [Figure: SMS Serial Page] Delimiter is to used to separate serial messages. “None” is not recommended to use for most applications as the message will be truncated based on the conent in internal Serial Port Buffer.

  • Page 104: Configuration Page - Dnp3 Configurations

    Smartmax Manual 8.5 5.6. Configuration Page – DNP3 Configurations The DNP3 configuration pages are used to set up DNP3 function suported by Smartmax modem. General Settings This section is used to set up general configurations required for DNP3 protocol. [Figure: DNP3 Page] ITEM DESCRIPTION This field sets the Local or "Slave"...
  • Page 105 Smartmax Manual 8.5 65519. Specifies how long the local clock will remain valid after receiving time synchronization from Time Update Rate the DNP3 master station. When this time period expires, the Smartmax will request a time update via the IIN1.4 "Need Time" bit in all DNP3 responses.
  • Page 106 Smartmax Manual 8.5 message used device’s unique individual address. Responses always include device’s individual address in the source address field. This feature can simplify the commissioning, troubleshooting and maintenance of devices because it is not necessary to know the receiving device’s address ahead of time. Once the destination device’s true address is discovered, testing can resume with the proper individual address.

  • Page 107: Dnp3 Events

    Smartmax Manual 8.5 DNP3 Events This section is used to set up DNP3 Events. [Figure: DNP3 Event Page] - 107 -...
  • Page 108 Smartmax Manual 8.5 ITEM DESCRIPTION Unsolicited This field configures whether the Smartmax is Allowed allowed to send Unsolicited responses. default is 'On'. Specify the initial/new state of the unsolicited event mask. This mask is used to determine Default Enabled which DNP3 event class...
  • Page 109 Smartmax Manual 8.5 Integer Event Variation This field configures the default Variation used to report Analogue Input Events to the master station. This configuration is used for events when a point is configured with an Integer-type Static Variation (i.e., g30v1 through g30v4). The following table lists the valid types for Analogue Input Integer point types: Static Object Type Group Variation...
  • Page 110 Smartmax Manual 8.5 Static Object Type Group Variation Description g22v1 32bit Counter Event No Counter Change Event - 32-bit Time with flag g22v2 16bit Counter Event No Counter Change Event - 16-bit Time with flag g22v5 32bit Counter Event Counter Change Event - 32-bit with Time with flag and time g22v6 16bit Counter Event...
  • Page 111 Smartmax Manual 8.5 maximum amount of time in milliseconds after an event in the corresponding class is received before an unsolicited response will be generated. The default value is 5 seconds. - 111 -...

  • Page 112: Dnp3 Tcp/Ip

    Smartmax Manual 8.5 DNP3 TCP/IP This section is used to set up TCP/UDP configurations used for DNP3 protocol. [Figure: DNP3 TCP/IP Page] Network Type This field provides the ability to select the type of Internet protocol connection to establish with a master station. The selections are: TCP Only TCP and UDP (default &...

  • Page 113: Dnp3 Analog

    Smartmax Manual 8.5 than TCP. This characteristic is important for pay-per-byte wireless networks. The Smartmax implements a "TCP Listening End Point" as per the DNP3 Specification, Volume 7, IP Networking. Dual End Point functionality is not supported at this time. IP Address of DNP3 Master For TCP, this field configures the TCP/IP address to accept connections requests from.
  • Page 114 Smartmax Manual 8.5 This section is used to set up DNP3 points for Analog Inputs. The Smartmax has two 12-bit Analogue inputs, each individually configurable as shown below: [Figure: DNP3 Analog Page] ITEM DESCRIPTION The Point Number field specifies the DNP3 identifier for each Analogue Input.
  • Page 115 Smartmax Manual 8.5 poll request. If a point configuration has a Point data class of Local it is not available to the SCADA Master through the Class 0,1,2,3 mechanisms. Points configured as Local are accessible via a DNP3 "Level 3" read request. Valid Point Data Class values are Local, Class 0, Class 1, Class 2 and Class 3.
  • Page 116 Smartmax Manual 8.5 Static Variation The Static Variation attribute defines the data object returned in response to a DNP3 static data poll request (i.e. Class 0 request). This attribute must be defined for each analogue input point. The following table lists the valid types for Analogue point types. Static Object Type Group Variation Description...

  • Page 117: Dnp3 Pulse

    Smartmax Manual 8.5 DNP3 Pulse The Smartmax has two high-speed Pulse Counters, each connected to Binary Inputs 1 & 2 respectively. The Pulse Counter inputs are individually configurable as shown below: [Figure: DNP3 Pulse Page] ITEM DESCRIPTION The Point Number field specifies the DNP3 identifier for each Counter input.
  • Page 118 Smartmax Manual 8.5 Local it is not available to the SCADA Master through the Class 0,1,2,3 mechanisms. Points configured as Local are accessible via a DNP3 "Level 3" read request. Valid Point Data Class values are Local, Class 0, Class 1, Class 2 and Class 3. The Significant Change attribute is used to detect changes in an Counter point’s current value.
  • Page 119 Smartmax Manual 8.5 Frozen Counter Static Variation Each of the Smartmax Counter points have a matching DNP3 Frozen Counter point. This field defines the Frozen Counter data object returned in response to a DNP3 static data poll request (i.e. Class 0 request). This attribute must be defined for each counter point.

  • Page 120: Dnp3 Output

    Smartmax Manual 8.5 DNP3 Output This section is used to set up DNP3 points for Outputs. The Smartmax has four Digital Output Channels, each individually configurable as shown below: [Figure: DNP3 Output Page] ITEM DESCRIPTION The Point Number field specifies the DNP3 Point Number identifier for each Binary Output channel.
  • Page 121 Smartmax Manual 8.5 Note that the same Point Number can also be used by a Binary Input Channel. The Point Data Class attribute affects the way the data is reported externally from the Smartmax. If a point configuration has a Point data class other than Local, changes will be reported to the SCADA Master in the indicated DNP3 data class.

  • Page 122: Dnp3 Input

    Smartmax Manual 8.5 DNP3 Input This section is used to set up DNP3 points for Inputs. The Smartmax has six Digital Input Channels, each individually configurable as shown below: [Figure: DNP3 Input Page] ITEM DESCRIPTION The Point Number field specifies the DNP3 identifier for each Binary Input channel.
  • Page 123 Smartmax Manual 8.5 by a Binary Output Channel. The Point Data Class attribute affects the way the data is reported externally from the Smartmax. If a point configuration has a Point data class other than Local, changes will be reported to the SCADA Master in the indicated DNP3 data class.

  • Page 124: Dnp3 Internal

    Smartmax Manual 8.5 DNP3 Internal This section is used to set up DNP3 points for Battery Voltage, Internal Temperature and Tamper Detection Input. Each one is individually configurable as per the Analog and Binary I/O Channels described previously. [Figure: DNP3 Internal Page] - 124 -...
  • Page 125 Smartmax Manual 8.5 ITEM DESCRIPTION Supply Volts Indicates the DC input voltage to the Smartmax in Volts. The valid range is XX volts to YY volts. Internal Indicates the Smartmax internal temperature in Temperature degrees Celsius. The valid range is 111 deg. to 999deg.

  • Page 126: Additional Information

    Smartmax Manual 8.5 6. Additional Information 6.1. System SMS Commands SMS commands can be used to obtain the current status of the Smartmax or to change the APN, ID, Password, Authentication details or to remotely reboot the Smartmax. You can also send an SMS to start or stop the IPStack Manual Mode. The following SMS format can either be all capital or all small letters: Check Connection Status and IP address •...
  • Page 127 Smartmax has performed a power reset. In order to apply the change immediately, please send a Reboot SMS to the Smartmax after changing the APN. Change Username, Password and Authentication • e.g. Username: maxon@maxon.com.au, Password: maxon, Authentication: chap SMS Syntax: SMARTMAX.PARK.AUTH maxon@maxon.com.au:maxon:chap Smartmax Response: Smartmax will update the Username, Password &...
  • Page 128 Smartmax Manual 8.5 Please note that Smartmax will not report back any confirmation via SMS before or after starting the IPSTACK Manual Connection. Stop IP Stack Mode (Supported only in IPSTACK Manual Mode) • SMS Syntax: SMARTMAX.IPSTACK.STOP Smartmax Response: Smartmax will stop the IPSTACK Manual connection depending on the settings applied on the IPSTACK Page via the web interface.

  • Page 129: Udp Keep Alive And Wake Up Settings

    Smartmax Manual 8.5 6.2. UDP Keep Alive and Wake up Settings In order to enhance UDP stack communication within the Smartmax, we have introduced a new configuration option, which provides Smartmax users with more control over the UDP activity and data communication. The user can now enable or disable keep alive and can specify Wake up time in seconds.

Table of Contents
