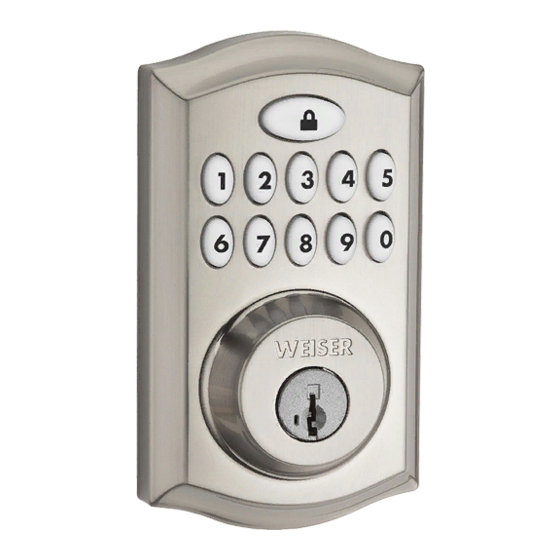

Weiser Smartcode 10 Installation And User Manual

61997 / 01
GED2150
ZigBee
Installation and User Guide
Required tools
Ruler Phillips head screwdriver
Additional Tools (depending on application)
Hammer Wood block
1 Prepare the door and check dimensions
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.weiserlock.com/doorprep.
Measure to confirm that the hole in
A
the door is either 2-1/8" (54 mm) or
1-1/2" (38 mm).
2-1/8"
54 mm
or
1-1/2"
38 mm
Note: Additional door preparation may be
required for doors with 1-1/2" (38 mm) holes.
Consult the deadbolt drilling instructions at
www.weiserlock.com/doorprep.
2 Install the latch and strike
A
Is the door edge chiseled?
YES
or
chiseled
Use latch "A". If the Use latch "B". If the
latch bolt is not already latch bolt is not already
extended, extend the extended, extend the
latch bolt as shown. latch bolt as shown.
A
All manuals and user guides at all-guides.com
Weiser
1-866-863-6584
www.weiserlock.com
Measure to confirm that the backset is
B
either 2-3/8" or 2-3/4" (60 or 70 mm).
b a
2-3/8" or 2-3/4" c k
s e
t
60 or 70 mm
B
Hold the latch in front of the door hole, with the latch
face flush against the door edge.
NO
not
chiseled
A
B
C
Are the latch holes centered in the door hole?
YES
No adjustment is required.
Proceed to next step.
Parts in the box
Latches Exterior
Touchscreen
A B
Mounting
Strike
Plate
C
SmartKey
Adapter
D Tool
Ring
Keys Allen
Wrench
E
C
Measure to confirm that the hole in
the door edge is 1" (25 mm).
1"
25 mm
D
Which latch are you installing?
B
NO
or
Rotate latch face as
shown to extend latch.
E
Install strike on the door frame.
A
Make sure the hole in the door frame is drilled a
minimum of 1" (25 mm) deep.
B
1 / 4
L M
Interior
W
Assembly
F K
Fasteners
G
R
N
Q
P
S
H
T U V
J
Measure to confirm that the door is
D
between 1-3/8" and 2" (35 mm and
51 mm) thick.
1-3/8" – 2"
35 – 51 mm
Latch "A" Latch "B"
or
B
A
N (2x)
wood
block
Longer screws
install closest to
the door jamb.
S (2x)
C
Q / R (2x)
door frame
