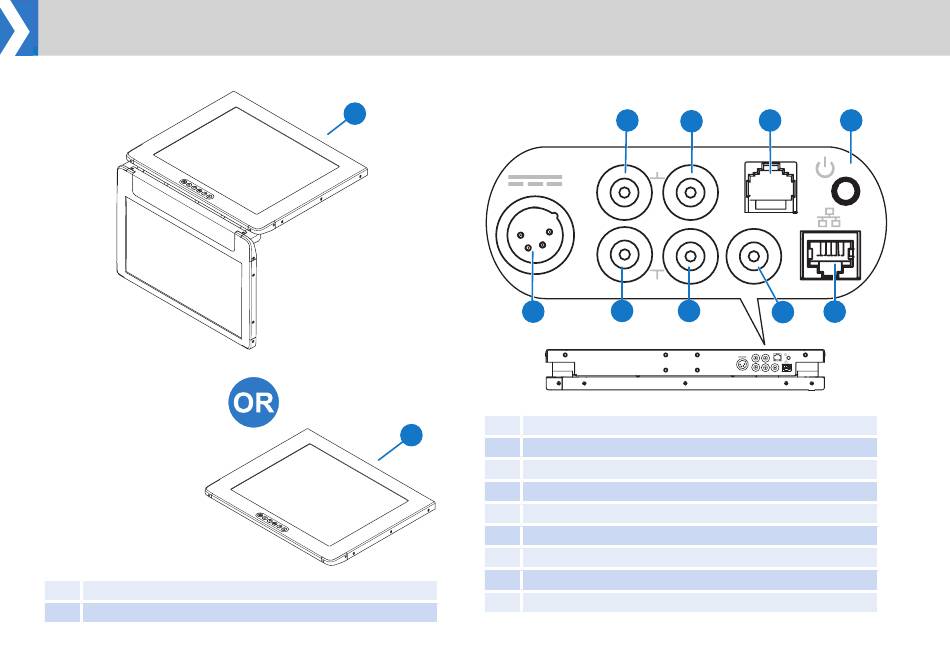

Components and Connections

EPIC 15", 17", 19" or 19XL
EVO 15", 17" or 19"
1
Prompt and Talent Monitor (EPIC-IP only)
2
Prompt Monitor (EVO-IP)
4

Prompt Monitor Connections

1
12-16.8V
1
1 Power 12 - 16.8Vdc
2
2 SDI In Prompt Monitor
3 SDI In Talent Monitor
4 Tally I/O Port
5 Power switch
6 Composite In Prompt Monitor
7 Composite In Talent Monitor
8 LTC Clock Input
9 Ethernet port
2 4
3
SDI
TALLY
P
T
CVBS LTC
6 7
SDI
12-16.8V
P T
CVBS
5
9
8
TALLY
