Autoscript EPIC-IP19XL User Manual page 13

3. Working on the underside of the prompt monitor, remove the cover plate to gain access to the ribbon cable socket.

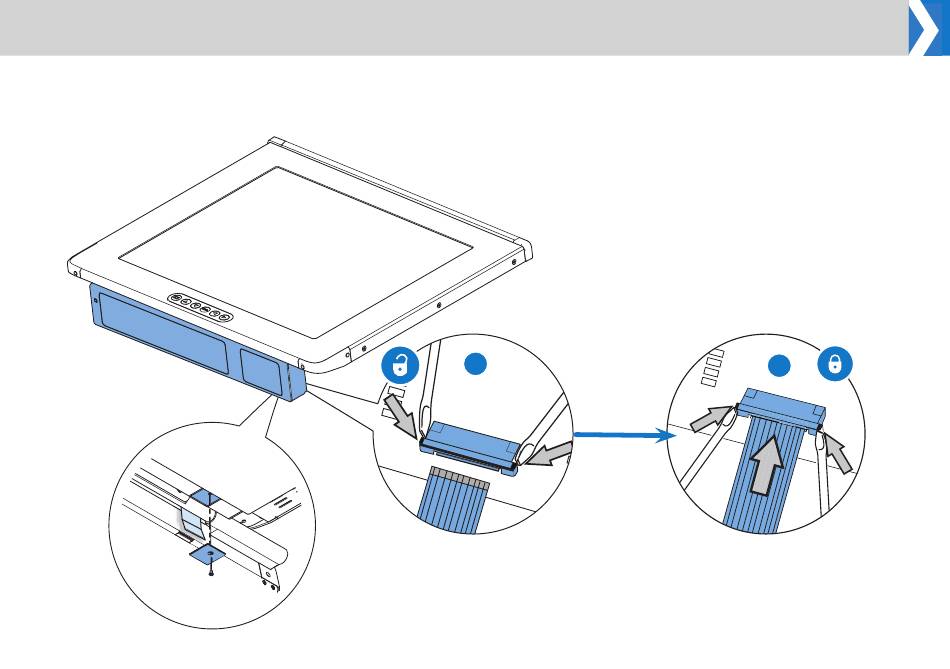

4. Using a small screw driver or similar device, open the socket latch (1) by carefully pushing the tags at either end outwards.
5. Align the ribbon cable with the socket. Gently insert the cable into the socket, push until it is securely in place.
6. With the ribbon cable fully inserted, lock the socket (2)
back into place by pushing the tags at either end fully
home. Double check that the latch is securely holding the
tape in place.
7. Replace the cover plate.
