Monitor Setup

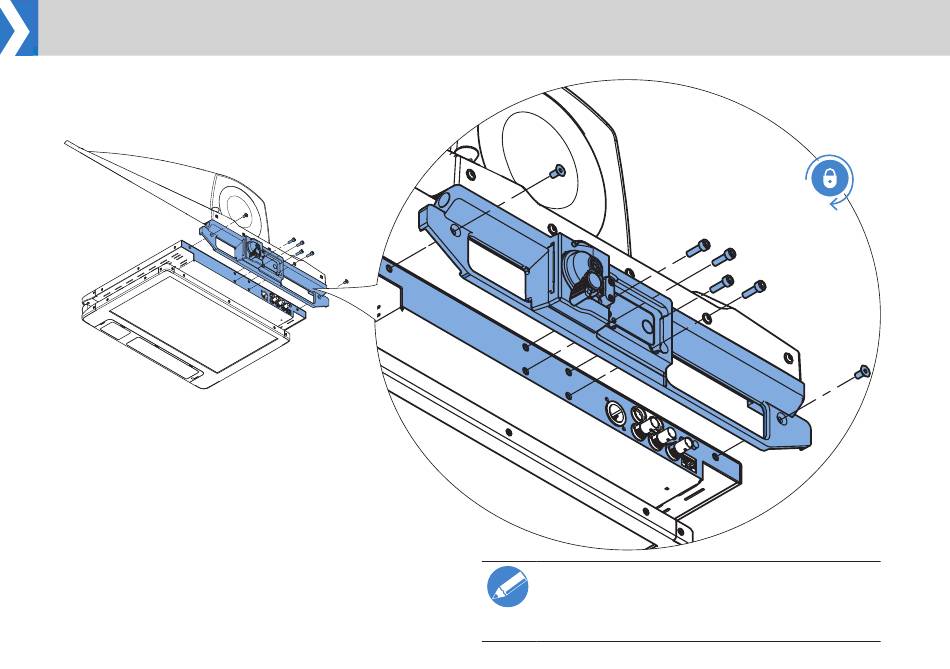

Attach the Hood to Prompt Monitor

1. Offer the hood mounting bracket to the rear panel of the prompt
monitor.
2. Locate the monitor into the mounting bracket recess.
3. Secure the bracket to the monitor; first using the 2 outer 10mm
M5 socket screws, then fix the 4 x centre 16mm M5 socket
screws.
12
Before use, remove the protective paper covering from the
glass, to do this the glass will need to be removed from the
hood.
To remove the glass see Removal and Fitting of Reflective
Glass on page 13
