Monitor Configuration

Prompt Monitor Control Panel

WARNING! Risk of electric shock. Always disconnect
and isolate the product from the power supply before
attempting any servicing or removing the covers. Only
authorised technicians are permitted to service the display.
WARNING! DO NOT use if panel has been exposed
!
to water ingress, the panel has been dropped or the
enclosure is damaged. Refers to authorised service
personnel.
CAUTION! Personal Injury. Equipment Damage: Do not
!
place any objects on the cables. Route all cables such that
they do not present a stumbling hazard.
Connection
1. Before connecting the SDI or CVBS cables ensure that the
power supply is disconnected.
Note! Incorrect connections may impair the proper function
of the flat panel display, cause poor image quality and / or
damage the LCD module.
2. Connect the power supply using the supplied 4-pin XLR,
12-16.8Vdc psu only.
(Use of any non authorised psu will invalidate the warranty).
14

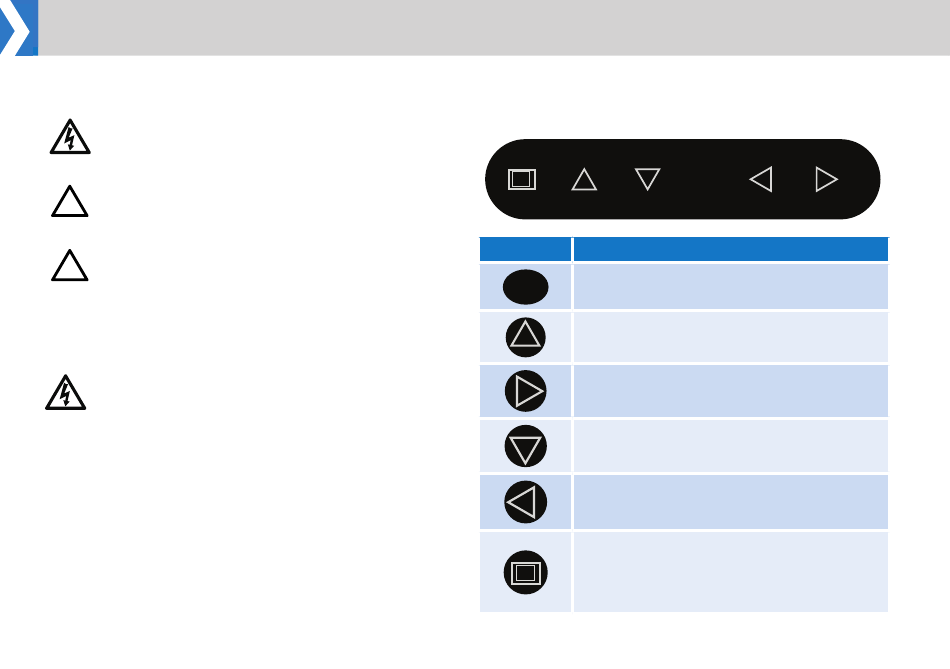

OSD Controls (On Screen Display menu)
The OSD controls are located at the front of the flat panel display.
Icon Function
ENTER Button:
ENTER
Turns on Screen Display (OSD) Menus ON or OFF
UP ARROW button:
Select Sub-menu / Flip Vertical / Increase Value
RIGHT ARROW button:
Function Select / Flip Horizontal
DOWN ARROW button:
Select sub-menu / Flip vertical / Decrease value
LEFT ARROW button:
Function Select / Flip Horizontal
TOGGLE button:
Toggles between Prompter / talent menu.
To range from the talent to prompt moniter, press the
toggle button twice, press again to return the OSD to
the talent monitor.
