OSD Menu
The following information describes how to navigate the main and
sub-menu, the function and result of the adjustments and how to
modify settings.
The individual function groups of the four main menu are selected
with the navigation button. The selected option is highlighted.
OSD Lock / Unlock
Lock OSD: Press the ENTER
ENTER
key twice within 3 seconds when OSD is not active.
Unlock OSD: Press any key once, when "OSD Locked" appears on
the monitor, press the UP key once followed by the right
twice, within 3 seconds.
key once and then press the UP
key
Monitor Configuration
Port Settings

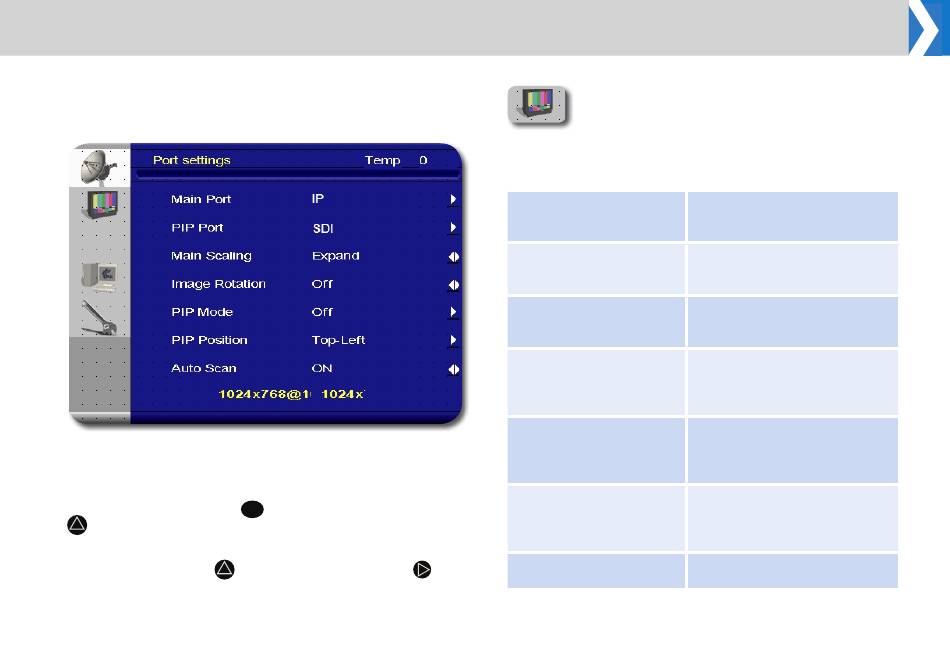

In the main menu input, select the input channel, input scan. PIP
mode, image rotation and scaling.
Main port
*PIP Port
Main scaling
Image rotation
PIP mode
PIP position
Auto scan
*Main and PIP cannot be set to SDI and CVBS, or CVBS and SDI
simultaneously.
IP
CVBS
SDI
Expand
CVBS
SDI
Expand
Aspect
1:1
Off
V Rotation
V Mirror
H Mirror
Small PIP
Large PIP
Off
Side by Side
Top Right
Top Left
Bottom Right
Bottom Left
On
Off
