Summary of Contents for Autoscript EPIC-IP19XL

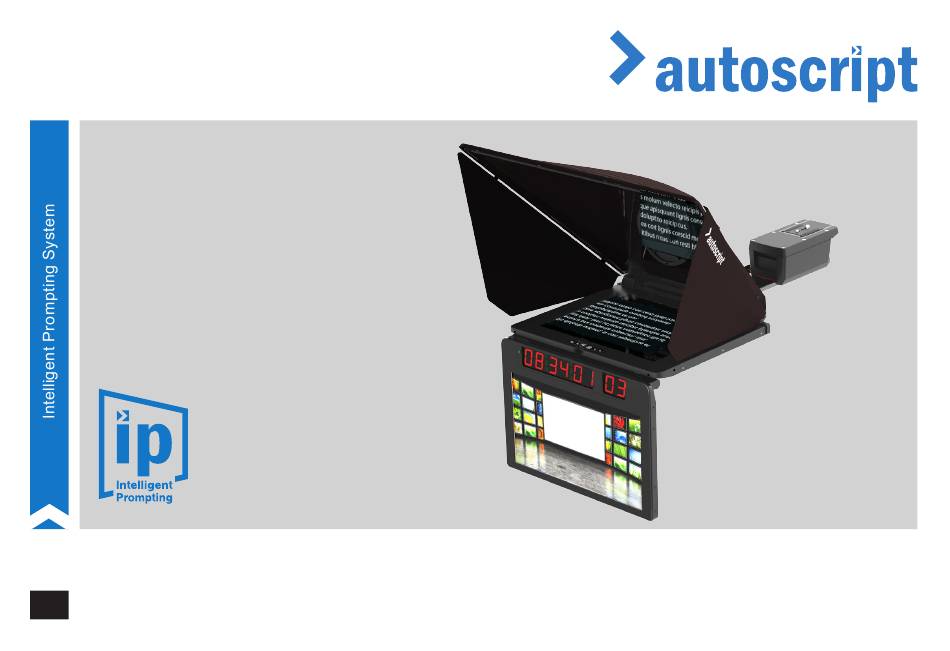

- Page 1 User Guide EPIC-IP19XL EPIC-IP19 EPIC-IP17 EPIC-IP15 EVO-IP19 EVO-IP17 EVO-IP15 Intelligent Prompting Monitors and Accessories www.autoscript.tv www.progl-gerlach.de...
- Page 2 Copyright © 2017 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group Plc.
-
Page 3: Table Of Contents
Fit a Talent Monitor to EVO-IP Prompt Monitor ... . . 9 www.autoscript.tv/software-download Fit CLOCKPLUS-IP to EPIC-IP Prompt Monitor ... 10 Attach the Hood to Prompt Monitor . -
Page 4: Safety
Safety Electrical Connection Important information on the safe installation and operation of this product. Read this information before operating the product. WARNING! Risk of electric shock. Always disconnect For your personal safety, read these instructions. Do not operate and isolate the product from the power supply before the product if you do not understand how to use it safely. -
Page 5: About This User Guide
Safety Mounting and Installation WARNING! The fitting of non-approved parts and accessories, or the carrying out of non-approved WARNING! Always ensure that all power and auxiliary alterations or servicing can be dangerous and could affect communications cables are routed so that they do not the safety of the product. -
Page 6: Components And Connections
Components and Connections Prompt Monitor Connections EPIC 15”, 17”, 19” or 19XL 12-16.8V TALLY CVBS 12-16.8V TALLY CVBS Power 12 - 16.8Vdc EVO 15”, 17” or 19” SDI In Prompt Monitor SDI In Talent Monitor Tally I/O Port Power switch Composite In Prompt Monitor Composite In Talent Monitor LTC Clock Input... - Page 7 Components and Connections Hood c/w Backplate and Reflective glass ETM-15, 17, 19 or 24 CLOCKPLUS-IP...
-
Page 8: Mounting Kit
Components and Connections Mounting Kit Rail Cable Tray c/w with Screws and Velcro Cable Ties x 4 PSU / Carriage Assembly Hex Key x2... -
Page 9: Robotic Upgrade Kit
Components and Connections Robotic Upgrade Kit This additional mounting kit is required for EVO-IP and EPIC-IP on-camera systems being mounted on robotic heads. This allows the on-camera system to mount further forward to suit robotic installations. 5.0kg Balance Weight Box Camera Carriage Rail 3/8 Bolt x 2 3/8 Screw Hex Head x 3 3/8 Washer Plain x 2... -
Page 10: Monitor Setup
Monitor Setup Fit CLOCKPLUS-IP to Talent Monitor Note! CLOCKPLUS-IP displays the time-code, tally and Remove the two screws that secure blanking plate and lift off the camera number information. plate. Pass the CLOCKPLUS-IP ribbon cable through the aperture in the talent monitor under the hinge. Slot the CLOCKPLUS-IP into the recess on the monitor, align the two To connect the ribbon cable: see Fit Talent Monitor to screw positions and then secure with the 2 x M3 countersunk screws... -
Page 11: Fit A Talent Monitor To Evo-Ip Prompt Monitor
Monitor Setup Fit a Talent Monitor to EVO-IP Prompt Monitor Align the ribbon cable with the socket. Gently insert the cable into the socket, push until it is securely in place. Align the talent monitor with the mounting points on the front of the prompt monitor. -
Page 12: Fit Clockplus-Ip To Epic-Ip Prompt Monitor
Monitor Setup Fit CLOCKPLUS-IP to EPIC-IP Prompt Monitor Align CLOCKPLUS-IP with the front underside edge of the prompt monitor. Secure in place using the 2 x supplied M3 button head screws. - Page 13 Monitor Setup Working on the underside of the prompt monitor, remove the cover plate to gain access to the ribbon cable socket. Using a small screw driver or similar device, open the socket latch (1) by carefully pushing the tags at either end outwards. Align the ribbon cable with the socket.
-
Page 14: Attach The Hood To Prompt Monitor
Monitor Setup Attach the Hood to Prompt Monitor Offer the hood mounting bracket to the rear panel of the prompt monitor. Locate the monitor into the mounting bracket recess. Before use, remove the protective paper covering from the Secure the bracket to the monitor; first using the 2 outer 10mm glass, to do this the glass will need to be removed from the M5 socket screws, then fix the 4 x centre 16mm M5 socket hood. -
Page 15: Removal And Fitting Of Glass For Replacement Or Cleaning
Monitor Setup Removal and Fitting of Reflective Glass Carefully position the glass panel on the bottom glazing recess inside the hood, ensure the blue sticker is facing outwards. Panel for Replacement or Cleaning WARNING! Risk of personal injury or injury to others. Care must be taken when handling and installing the reflective glass panels. -
Page 16: Monitor Configuration
Monitor Configuration Prompt Monitor Control Panel OSD Controls (On Screen Display menu) The OSD controls are located at the front of the flat panel display. WARNING! Risk of electric shock. Always disconnect and isolate the product from the power supply before attempting any servicing or removing the covers. - Page 17 Monitor Configuration OSD Menu Port Settings The following information describes how to navigate the main and sub-menu, the function and result of the adjustments and how to modify settings. In the main menu input, select the input channel, input scan. PIP mode, image rotation and scaling.
- Page 18 Monitor Configuration Image Settings Setup In the main menu use the “Image Settings” to adjust the screen. Brightness Sets the Screens Brightness Language OSD Language Contrast Sets the Screens Contrast Hor. Position Sets OSD Horizontal Position Sharpness Sets the Screens Saturation Vert.
-
Page 19: Connecting The Prompt Monitor
Monitor Configuration Connecting the Prompt Monitor Tally I/O Connection Tally I/O Video Connections Connect the video signal (for prompter display) using one of the following options. Connection using composite video or SDI to the prompter Ethernet Connection monitor should always be made with screened 75Ω coaxial cable. -
Page 20: Monitor Troubleshooting
Monitor Troubleshooting Monitor Troubleshooting Fault Check Comments The power LED is not The power supply is connected and switched on illuminated No picture The power supply is connected and switched on The signal cable is correctly connected to the graphics board or to the video source and display The device is turned on and set to the correct mode (VGS or Video) -
Page 21: Installation
Installation Assemble the Rail and Carriage Assembly S lide the carriage onto the rail. Loosen the clamp lever (1) on the carriage assembly. Attach the cable tray if required, to the underside of the rail using the 4 x 10mm M4 socket screws. Use the supplied Velcro cable Press the stop pin (2) so it is flush with the rail and slide the tie’s to secure cables to the tray. - Page 22 Installation Slide the carriage to the desired position and tighten the clamp Screw the rail to the camera plate, choose the mounting holes lever (3). best suited to balance the payload. Note! When sliding on the carriage without a payload attached, apply an even downward pressure for smooth movement.
- Page 23 Installation WARNING! Before attempting to install or adjust the prompter assembly, the tilt axis of the head support must be securely locked. Fix the camera plate with attached rail and carriage assembly to the head and lock it into position. (Refer to the user guide for the head and camera plate assembly and usage).
-
Page 24: Attach Hood & Monitor Assembly Onto The Rail
Installation Attach Hood & Monitor Assembly Onto the Rail. Position the hood assembly into the right hand edge of the rail mounting bracket (3), ensure the chamfered edge of the bracket Pull the red safety lock pin (1) outwards. is engaged with the hood. Rotate the hood towards the rail until the mounting bracket fully Turn the locking lever (2) anticlockwise until it clicks into the engages and the locking lever clicks into the locked position (4). - Page 25 Installation With the hood in position the lock pin will latch into place, push To set up the hood, pull the hood release pin and raise the hood down to confirm it is securely locked. to the stop position at 45° 45°...
-
Page 26: Mounting The Camera
Installation Mounting the Camera. Attached the camera plate to the camera such that the centre of the camera is over the centre of the carriage . WARNING! Before attempting to install or adjust the prompter assembly, the tilt axis of the head support must be securely locked. - Page 27 Installation Undo the carriage clamp and slide the camera lens through the hood aperture, the lens should be as close to the prompter glass as possible. Lock the carriage in position. To correctly balance the payload, refer to the instructions supplied with the head.
-
Page 28: Technical Specification
Technical Specification EPIC-IP EPIC-IP15 EPIC-IP17 EPIC-IP19 EPIC-IP19XL General Operating temp. / Storage temp. 0° - +35°C / -20° - +60°C 0° - +35°C / -20° - +60°C 0° - +35°C / -20° - +60°C 0° - +35°C / -20° - +60°C Weight 5.45kgs... - Page 29 Technical Specification EPIC-IP EPIC-IP15 EPIC-IP17 EPIC-IP19 EPIC-IP19XL Connectivity 75Ω BNC type, HD-SDI BNC type, Pin: Centre: HD-SDI In. Outer: Ground (cable screen) Prompt Monitor Video Inputs CVBS (PAL/NTSC) Pin: Centre: Composite Video In (PAL or NTSC). Outer: Ground (cable screen) 75Ω...
- Page 30 Technical Specification EVO-IP EVO-IP15 EVO-IP17 EVO-IP19 General Operating temp. / Storage temp. 0° - +35°C / -20° - +60°C 0° - +35°C / -20° - +60°C 0° - +35°C / -20° - +60°C Weight 3.0kgs 3.5kg 3.9kgs Prompt Monitor Dimensions 400mm x 317mm x 41mm 440mm x 360mm x 41mm 468mm x 399mm x 41mm...
- Page 31 Technical Specification EVO-IP EVO-IP15 EVO-IP17 EVO-IP19 BNC type, LTC (un-balanced) Timecode VITC (via CVBS Prompt and Feedback Monitor Inputs), Option D-VITC (via HD-SDI Prompt and Feedback Monitor Inputs), Option NTP (via LAN) RJ45, 10Base-T/100Base-TX Power Input 4-pin XLR, 12-16.8Vdc Output 12Vdc (via Tally I/O) Consumption Switch...
-
Page 32: Maintenance
Maintenance Routine Maintenance The prompter assembly requires minimal routine maintenance, apart from checking the connections and overall operation periodically. Routine checks During use, check the following: • Check cables for signs of wear or damage. Replace as necessary. • Check that all cables are connected properly. •... -
Page 33: General Notices
General Notices FCC Certification FCC Declaration of Conformity This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This product may not cause harmful interference. This product must accept any interference received, including interference that may cause undesired operations. - Page 34 General Notices Declaration of Conformity Environmental considerations Vitec Videocom Limited declares that this product has been manufactured in accordance with BS EN ISO 9001:2008. European Union Waste of Electrical and Electronic This product complies with the following EU Directives: Equipment (WEEE) Directive (2012/19/EU) •...
- Page 36 Publication No. A9010-4980/A For assistance you can contact Progl+Gerlach. +49 (0)89 43 509 712 or kontakt@progl-gerlach.de www.autoscript.tv www.progl-gerlach.de...
