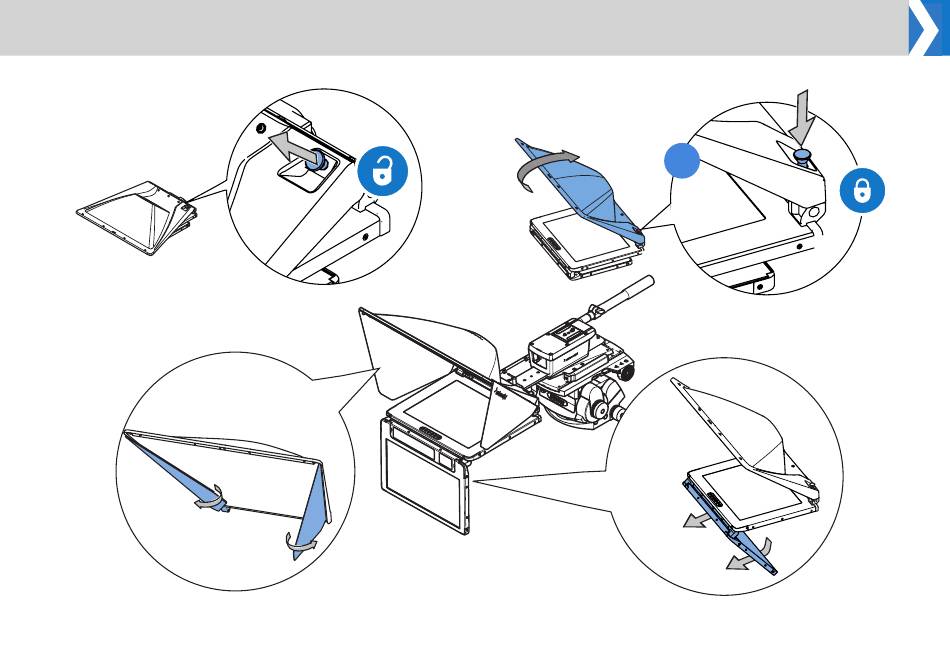

1. To set up the hood, pull the hood release pin and raise the hood
to the stop position at 45°
3. The barn doors have friction hinges, pull them open to the
required position to reduce external light from the glass screen.
Ensure they do not obstruct the field of view of the lens.
2. With the hood in position the lock pin will latch into place, push
down to confirm it is securely locked.
45°
4. EPIC only. The talent monitor has friction hinges. Simply pull into
the desired position.
