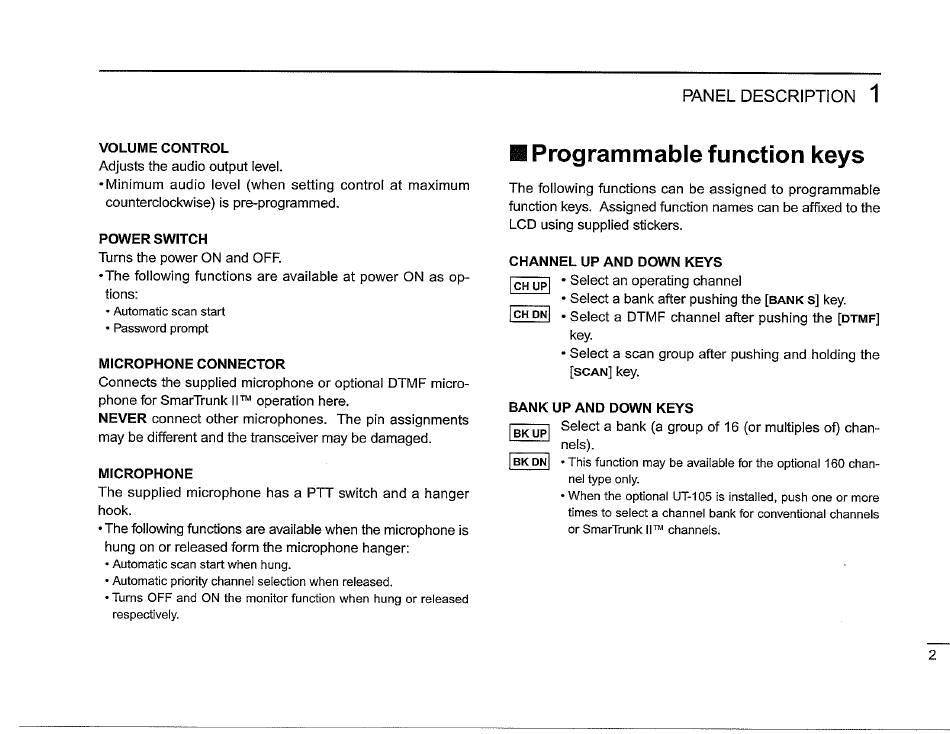

VOLUME CONTROL
Adjusts the audio output level.
·Minimum audio level (when setting control at maximum
counterclockwise) is pre-programmed.
POWER SWITCH
Turns the power ON and OFF.
• The following functions are available at power ON as op-
tions:
• Automatic scan start
• Password prompt
MICROPHONE CONNECTOR
Connects the supplied microphone or optional DTMF micro-
phone for SmarTrunk
"TM
operation here.
NEVER connect other microphones. The pin assignments
may be different and the transceiver may be damaged.
MICROPHONE
The supplied microphone has a PTT switch and a hanger
hook.
• The following functions are available when the microphone is
hung on or released form the microphone hanger:
• Automatic scan start when hung.
• Automatic priority channel selection when released.
• Turns OFF and ON the monitor function when hung or released
respectively.
PANEL DESCRIPTION
1
• Programmable function keys
The following functions can be assigned to programmable
function keys. Assigned function names can be affixed to the
LCD using supplied stickers.
CHANNEL UP AND DOWN KEYS
I
CH
upl •
Select an operating channel
• Select a bank after pushing the
[BANK
s] key.
ICH
oNI •
Select a DTMF channel after pushing the
[DTMF]
key.
• Select a scan group after pushing and holding the
[SCAN]
key.
BANK UP AND DOWN KEYS
I
BK
upl
Select a bank (a group of 16 (or multiples of) chan-
nels).
I
BK
ONI •
This function may be available for the optional 160 chan-
nel type only.
• When the optional UT-105 is installed. push one or more
times to select a channel bank for conventional channels
or SmarTrunk II
TM
channels.
2
