DO NOT
use or place the transceiver in areas with tem-
peratures below -30°C (-22°F) or above +60°C (+140°F) or,
in areas subject to direct sunlight, such as the dashboard.
AVOID
operate the transceiver without running the vehicle's
engine. The vehicle's battery will quickly run out if the trans-
ceiver is in transmission while the vehicle's engine OFF.
AVOID
placing the transceiver in excessively dusty envi-
ronments.
AVOID
placing the transceiver against walls. This will ob-
struct heat dissipation.
AVOID
the use of chemical agents such as benzine or al-
cohol when cleaning, as they damage the transceiver sur-
faces.
BE CAREFUL!
The transceiver will become hot when
operating continuously for long periods.
For U.S.A. only
CAUTION:
Changes or modifications to this transceiver,
not expressly approved by Icom Inc., could void your authority
to operate this transceiver under FCC regulations.

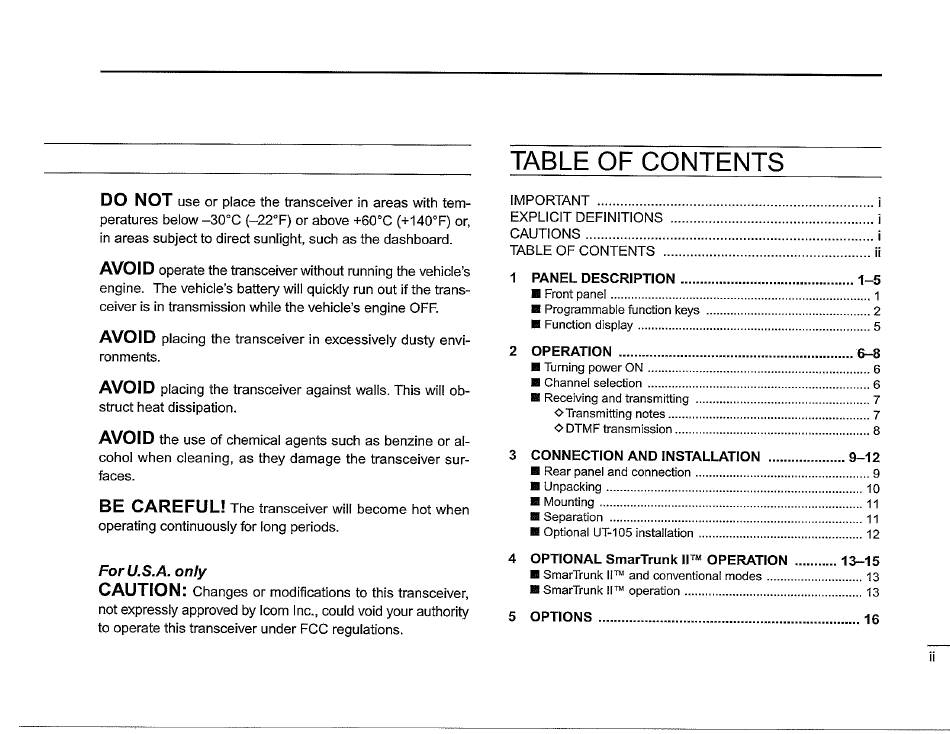

TABLE OF CONTENTS
IMPORTANT i
EXPLICIT DEFINITIONS i
CAUTIONS i
TABLE OF CONTENTS
n
1 PANEL DESCRIPTION 1-5
• Front panel 1
• Programmable function keys 2
• Function display 5
2 OPERATION 6-8
• Turning power ON 6
• Channel selection 6
• Receiving and transmitting 7
o
Transmitting notes 7
<>
DTMF transmission 8
3 CONNECTION AND INSTALLATION 9-12
• Rear panel and connection 9
• Unpacking 10
• Mounting 11
• Separation 11
• Optional UT-105 instaJlation 12
4 OPTIONAL SmarTrunk II™ OPERATION 13-15
• SmarTrunk JlTM and conventional modes 13
• SmarTrunk IITM operation 13
5 OPTIONS 16
Ii
