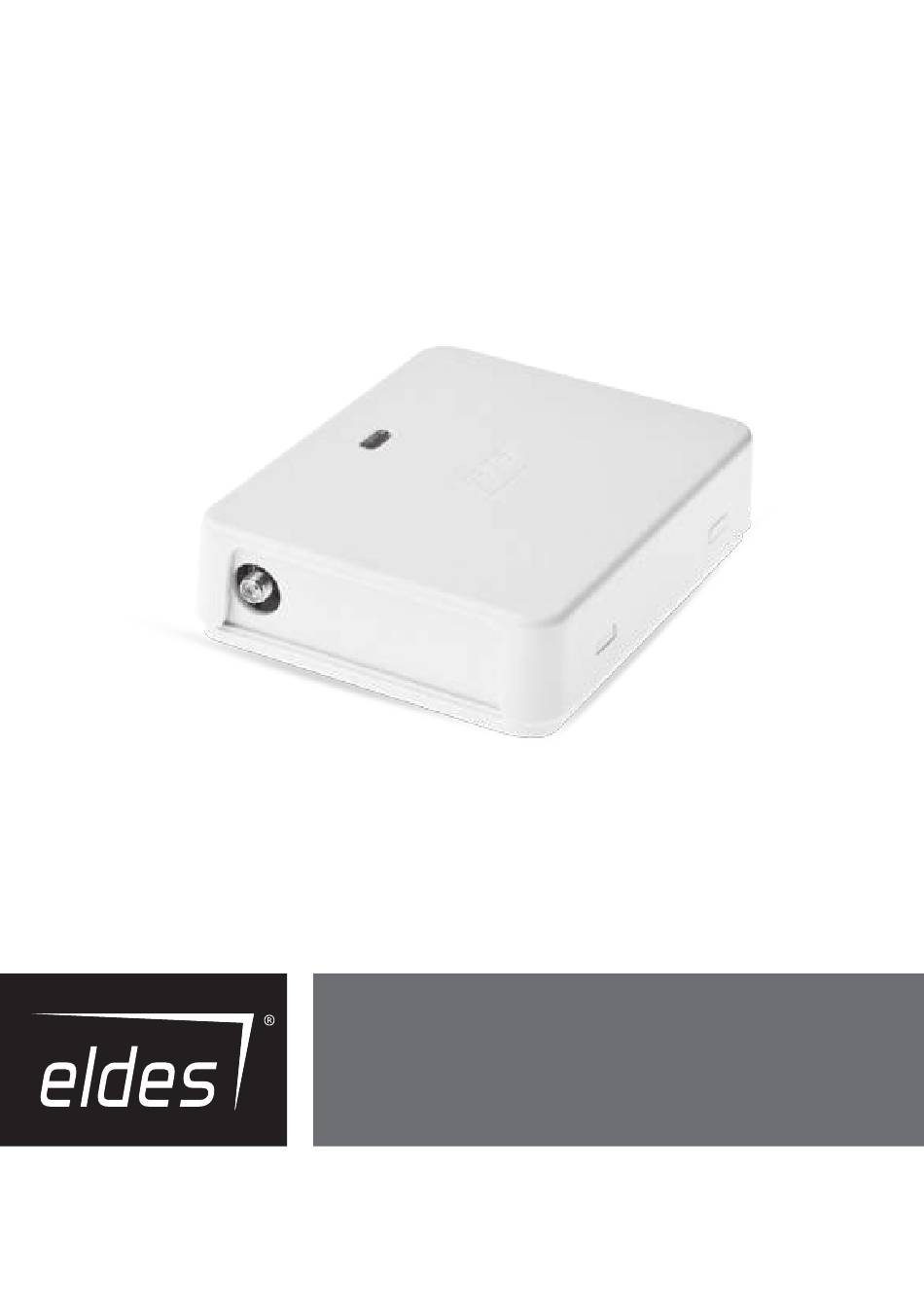

ELDES GATE
CONTROLLER
ESIM120/ESIM320/ESIM320US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eldes ESIM320

Summary of Contents for Eldes ESIM320

  • Page 1 ELDES GATE CONTROLLER ESIM120/ESIM320/ESIM320US...

  • Page 2: User Manual

    Please read and follow these safety guidelines to safeguard yourself and others: • Gate controller ESIM120/ESIM320 (later referred to as “the system” or “ the device”) contains a built-in radio transceiver operating in 850/900/1800/1900 MHz (ESIM120 2G); 850/900/1800/1900/2100 MHz (ESIM320 3G/2G EU); 850/1900 MHz (ESIM320US 3G USA) bands respectively.

  • Page 3: Table Of Contents

    19. REMOTE SYSTEM RESTART ..............................30 20. TECHNICAL SUPPORT ................................31 20.1. Troubleshooting ......................................31 20.2. Restoring Default Parameters ..................................31 20.3. Updating the Firmware via USB Cable .................................31 21. ELDES CLOUD SERVICES .................................32 22. RELATED PRODUCTS ................................33 ELDES GATE CONTROLLER ESIM120/320 User Manual v.1.1...
  • Page 4 In any case, the liability of “ELDES, UAB”, as much as it is allowed by the laws in force, shall not exceed the price of acquisition of the product.

  • Page 5: General Information

    1. GENERAL INFORMATION ELDES GATE CONTROLLER ESIM120/ESIM320 is a micro-controller based device intended to provide access control for gate automatics, road barriers or to remotely turn ON/OFF any electrical appliance via the GSM/3G network. Examples of using the system: •...

  • Page 6: Main Unit, Led Indicator And Connector Functionality

    Main Unit Functionality Antenna SMA type connector Mini USB port SIM CARD SIM card slot / holder MODEM ESIM120 -850/900/1800/1900 MHz modem; ESIM320 - 850/900/1800/1900/2100 MHz modem SIM STAT Red LED, indicating SIM card status NETW Green LED, indicating signal strength Pins for restoring default settings 0.5A fuse...

  • Page 7: Wiring Diagrams

    RELAY1 RELAY2 Z2 Z1 Power supply GATE AUTOMATION DEVICE Example of ESIM120/ESIM320 system wiring to gate automation device ESIM120/ESIM320 GATE AUTOMATION DEVICE AC/DC RELAY1 RELAY2 COM Z5 Z4 Z3 Z2 Z1 +24v Fault output; open collector type +24V Power supply output for powering aux.

  • Page 8: Installation

    3. Disable the PIN code request of the SIM card by inserting it into a mobile phone and following the proper menu steps. 4. Once the PIN code is disabled, insert the SIM card into the SIM card slot / holder of ESIM120/ESIM320 system.

  • Page 9: General Operational Description

    4. GENERAL OPERATIONAL DESCRIPTION When a phone call is made to the phone number of the SIM card inserted in ESIM120/ESIM320, the system will verify if the caller’s phone number exists in the device database. If the caller is one of the 5 administrators or the phone number belongs to one of the 2000 database users, the system will reject the phone call, thus making the phone call free of charge, and open the gate.

  • Page 10: System Language

    SMS password – 4-digit password used for system coniguration and control from administrator phone number by SMS text mes- sages and logging in to ELDES Coniguration Tool software . By default, SMS password is 0000, which MUST be changed (device...

  • Page 11: Administrator Phone Numbers

    Value: ssss – 4-digit SMS password; as – administrator phone number slot, range – [1... 5]; ttteeellnnuumm – up to 15 digits administrator phone number. Example: 1111_NR1:44170911XXXX1 Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: View administrator...

  • Page 12: Date And Time

    – [01... 31]; hr – hours, range – [00... 23]; mn – minutes, range – [00... 59]. Example: 1111_2013.03.16_14:33 Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool 9.1. Automatic Date and Time Synchronization This feature enables the system to set the date and time automatically without the user being involved in this process.

  • Page 13: User Phone Number Database

    Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number; name) user-name – up to 16 characters user name. Example: 1111_N:44170911XXXX1:John Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: View user phone ssss_GETALLNUMBERS numbers Value: ssss –...
  • Page 14 Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number; user-name – up to 16 characters user name. Example: 1111_D:John Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: ssss_D:ALL Delete all users Value: ssss –...

  • Page 15: User Validity And Access Restriction

    – scheduler number; range – [1... 8]; user-name – up to 16 characters user name. Example: 1111_NSCHED_John_5:ON Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: ssss_NSCHED_ttteeellnnuumm_c:OFF...
  • Page 16 Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits administrator phone individual user number; user-name – up to 16 characters user name. Example: 1111_RCOUNT_John_? Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: Remove ring counter ssss_RCOUNT_ttteeellnnuumm_0...

  • Page 17: Outputs

    • Automatically in accordance with the scheduled weekdays and time (see 11.6. Automatic Output Control). • ELDES Cloud Services via browser or by Android/iOS mobile application (see 21. ELDES CLOUD SERVICES). To set an output type, please refer to the following coniguration method.

  • Page 18: Output Control By Sms Text Message

    – pulse duration, range – [1... 10] seconds. Example: 1111_TIMER2:4 Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool NOTE: ELDES Coniguration Tool software allows to set the unlimited output pulse duration value.
  • Page 19 16 characters output name. Example: 1111_C2:OFF Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool NOTE: Output can be turned ON for a determined time period only when it is in OFF state.

  • Page 20: Output Control Conirmation By Call Back

    Value: ssss – 4-digit SMS password. back Example: 1111_CALLBACK:ON Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool Conig Set call back duration This operation may be carried out from the PC using the ELDES Coniguration Tool software.

  • Page 21: Automatic Output Control

    Value: ssss – 4-digit SMS password; o – output number, range [1 – output C1; 2 – output C2]; c – scheduler number; range – [1... 8]. Example: 1111_OSCHED2_1:ON Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: ssss_OSHEDo_c:OFF Remove scheduler Value: ssss –...

  • Page 22: Schedulers

    Value: ssss – 4-digit SMS password; c – scheduler number; range – [1... 8]. Example: 1111_SCHED4_AL:OFF Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: Enable day (-s) of the...
  • Page 23 Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: ssss_SCHEDc_AL:ON Select Every Day Value: ssss – 4-digit SMS password; c – scheduler number, range – [1... 8] Example: 1111_SCHED1_AL:ON Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software.

  • Page 24: Event Log

    Conig Export event log This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool By default, when the event log reaches the 1000 record limit, the system will send the notiication by SMS text message to the administra- tor phone number.

  • Page 25: Inputs

    – [100... 42000000] milliseconds. Example: 1111_T3:10500 Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool The system allows to view the current input state by the following coniguration method. SMS text message content:...

  • Page 26: Disabling And Enabling Inputs

    Value: ssss – 4-digit SMS password. administrator phone Example: 1111_SMSALL:ON numbers in case of input alarm Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool SMS text message content: Disable notiication ssss_SMSALL:OFF to all listed Value: ssss –...

  • Page 27: System Information. Info Sms

    Value: ssss – 4-digit SMS password. Example: 1111_INFO Conig This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool For more details on the algorithm of how the system sends the notiications, please refer to 16. SYSTEM NOTIFICATIONS.

  • Page 28: System Notifications

    Manage SMS text Conig message delivery This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool limits When the daily or monthly SMS text message delivery limit is exceeded, the system will notify the administrator by SMS text message. The limit counter will automatically reset once the date and time synchronization period takes efect (by default - every 30 days).

  • Page 29: Gprs Network Settings

    17. GPRS NETWORK SETTINGS The GPRS network settings are used for device communication with the remote coniguration server or ELDES Cloud Services server via GPRS connection. To set the GPRS network settings, please refer to the following coniguration methods. SMS text message content:...

  • Page 30: Incoming Phone Number Verification Settings

    7 digits of the listed phone number. Manage incoming Conig phone number This operation may be carried out from the PC using the ELDES Coniguration Tool software. Tool veriication settings 19. REMOTE SYSTEM RESTART In some critical situations, a system restart may be required.

  • Page 31: Technical Support

    9. Unplug the USB cable. 10. Remove the short-circuit from DEF pins. 11. Power up the device. 12. Firmware updated. NOTE: It is strongly recommended to restore default parameters after the irmware update. ELDES GATE CONTROLLER ESIM120/320 User Manual v.1.1...

  • Page 32: Eldes Cloud Services

    ELDES Cloud Services website. When adding the device to your account, you will be prompted for Cloud Services ID, which can be obtained using ELDES Coniguration Tool software or by sending the following SMS text message to the system’s phone number.

  • Page 33: Related Products

    22. RELATED PRODUCTS EBU1 – power backup unit Power supply IP66 - plastic enclosure ELDES GATE CONTROLLER ESIM120/320 User Manual v.1.1...
  • Page 34 Made in the European Union eldesalarms.com...

This manual is also suitable for:

Esim120Esim320usEsim320-2g
