Eldes ESIM420 User Manual

Gate controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

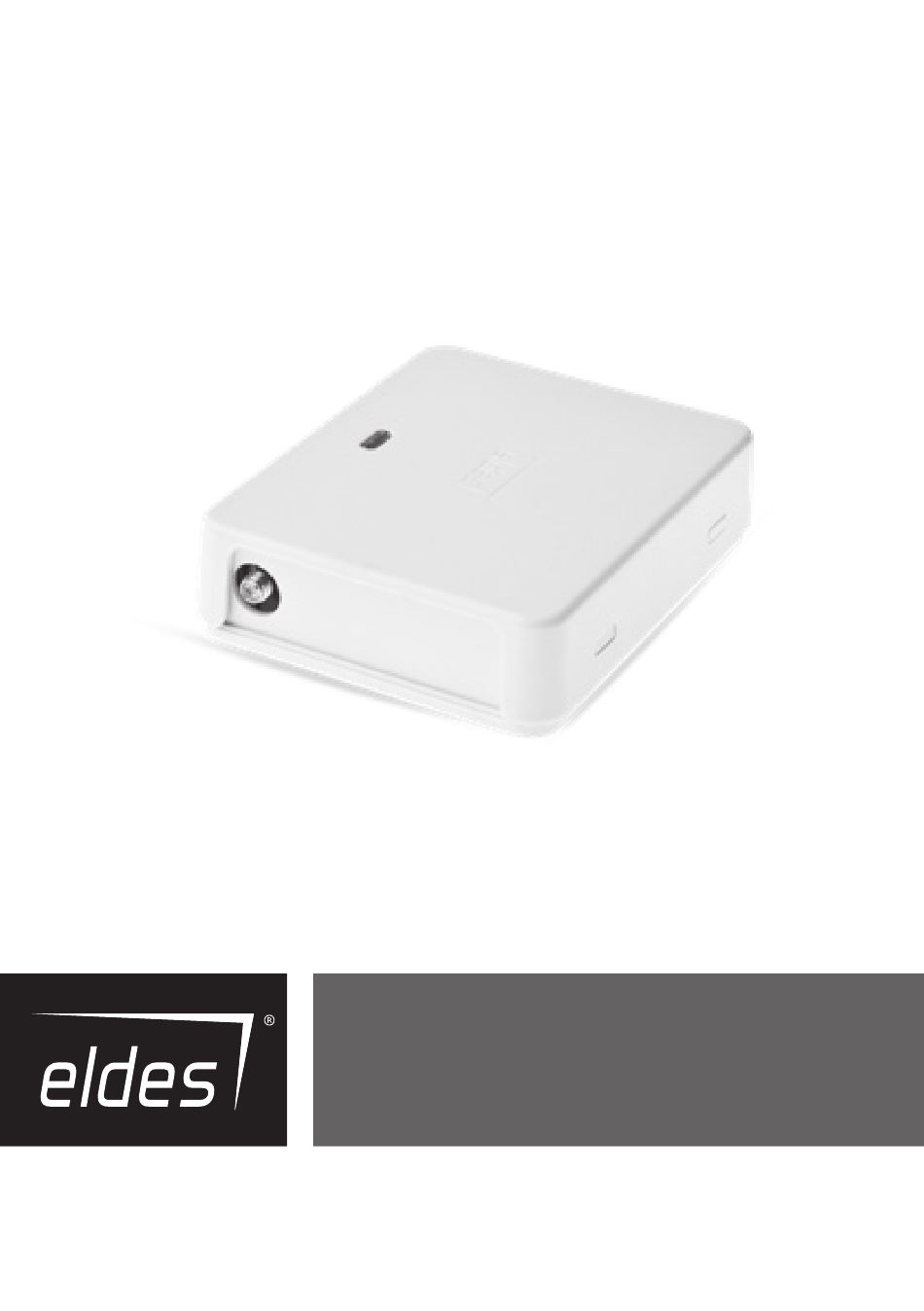

ELDES GATE
CONTROLLER
ESIM420

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM420 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ESIM420

Summary of Contents for Eldes ESIM420

  • Page 1 ELDES GATE CONTROLLER ESIM420...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Please read and follow these safety guidelines to safeguard yourself and others: • Gate controller ESIM420 (later referred to as “the system” or “ the device”) contains a built-in radio transceiver operating in 900/1800MHz 2G; 700/800/900/1800/2100/2600MHz 4G bands respectively.

  • Page 3: Table Of Contents

    20.1. Troubleshooting ......................................31 20.2. Restoring Default Parameters ..................................31 20.3. Firmware updates ......................................31 21. ELDES CLOUD SERVICES .................................32 22. HOW TO USE ELDES GATES WEB PLATFORM, WIDGET AND APP ..................33 23. RELATED PRODUCTS ................................35 ELDES GATE CONTROLLER ESIM420 User Manual v1.0...
  • Page 4 TECHNICAL SUPPORT In order to ensure continuous and proper operation of the ELDES Gate Controller device and uninterrupted service, it is the responsibility of the User to make sure that: (I) the product is properly installed, and (II) there is constant electrical supply. If you experience difficulty during the installation or subsequent use of the system, you may contact “E ALARMS, UAB”...

  • Page 5: General Information

    1. GENERAL INFORMATION ELDES GATE CONTROLLER ESIM420 is a micro-controller based device intended to provide access control for gate automatics, road barriers or to remotely turn ON/OFF any electrical appliance via the GSM 2G or 4G network. Examples of using the system: Access control.

  • Page 6: Main Unit, Led Indicator And Connector Functionality

    Pins for restoring default settings 0.5A fuse Connector Functionality AC/DC Power supply terminals RELAY1 Output C1 terminal RELAY2 Output C2 terminal Common terminal Low-level (negative) input terminal High-level (positive) input terminal Low-level (negative) input terminal ELDES GATE CONTROLLER ESIM420 User Manual v1.0...

  • Page 7: Wiring Diagrams

    AC/DC RELAY1 RELAY2 Z2 Z1 Power supply GATE AUTOMATION DEVICE Example of ESIM420 system wiring to gate automation device ESIM420 GATE AUTOMATION DEVICE AC/DC RELAY1 RELAY2 COM Z3 Z2 Z1 +24v Fault output; open collector type +24V Power supply output for powering aux.

  • Page 8: Installation

    SMS text message delivery service and phone call connection. NOTE: Even though the installation process of ESIM420 is not too complicated, we still recommend to perform it by a person with basic knowledge in electrical engineering and electronics to avoid any system damage.

  • Page 9: General Operational Description

    4. GENERAL OPERATIONAL DESCRIPTION When a phone call is made to the phone number of the SIM card inserted in ESIM420, the system will verify if the caller’s phone number ex- ists in the device database. If the caller is one of the 5 administrators or the phone number belongs to one of the 2000 database users, the system will reject the phone call, thus making the phone call free of charge, and open the gate.

  • Page 10: System Language

    • Italiano Utility Set system language This operation may be carried out from the PC using the ELDES Utility Tool software. Tool NOTE: To change the language once the system has already been configured, you need to reset the device to the default configuration. For more details on how to do this, please refer to 20.2.

  • Page 11: Administrator Phone Numbers

    Value: ssss – 4-digit SMS password; as – administrator phone number slot, range – [1... 5]; ttteeellnnuumm – up to 15 digits administrator phone number. Example: 1111 NR1:44170911XXXX1 Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content: View administrator...

  • Page 12: Date And Time

    – [01... 31]; hr – hours, range – [00... 23]; mn – minutes, range – [00... 59]. Example: 1111 2013.03.16 14:33 Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool 9.1. Automatic Date and Time Synchronization This feature enables the system to set the date and time automatically without the user being involved in this process.

  • Page 13: User Phone Number Database

    Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number; name) user-name – up to 16 characters user name. Example: 1111 N:44170911XXXX1:John Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content: View user phone ssss GETALLNUMBERS numbers Value: ssss –...
  • Page 14 Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number; user-name – up to 16 characters user name. Example: 1111 D:John Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content: ssss D:ALL Delete all users Value: ssss –...

  • Page 15: User Validity And Access Restriction

    – scheduler number; range – [1... 8]; user-name – up to 16 characters user name. Example: 1111 NSCHED John 5:ON Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content:...
  • Page 16 – up to 16 characters user name. Example: 1111 RCOUNT John ? Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content: Remove ring counter...

  • Page 17: Outputs

    • Automatically in accordance with the scheduled weekdays and time (see 11.6. Automatic Output Control). • ELDES Cloud Services via browser or by Android/iOS mobile application (see 21. ELDES CLOUD SERVICES). To set an output type, please refer to the following configuration method.

  • Page 18: Output Control By Sms Text Message

    – pulse duration, range – [1... 10] seconds. Example: 1111 TIMER2:4 Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool NOTE: ELDES Utility Tool software allows to set the unlimited output pulse duration value.
  • Page 19 16 characters output name. Example: 1111 C2:OFF Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool NOTE: Output can be turned ON for a determined time period only when it is in OFF state.

  • Page 20: Output Control Confirmation By Call Back

    Value: ssss – 4-digit SMS password. back Example: 1111 CALLBACK:ON Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool Utility Set call back duration This operation may be carried out from the PC using the ELDES Utility Tool software.

  • Page 21: Automatic Output Control

    Value: ssss – 4-digit SMS password; o – output number, range [1 – output C1; 2 – output C2]; c – scheduler number; range – [1... 8]. Example: 1111 OSCHED2 1:ON Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content: ssss OSHEDo c:OFF Remove scheduler Value: ssss –...

  • Page 22: Schedulers

    Value: ssss – 4-digit SMS password; c – scheduler number; range – [1... 8]. Example: 1111 SCHED4 AL:OFF Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content: Enable day (-s) of the...
  • Page 23 Value: ssss – 4-digit SMS password; c – scheduler number; hr – hours, range – [00... 23]; mn – minutes, range – [00... 59]. Example: 1111 SCHED8 EN:09:12 Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content: ssss SCHEDc AL:ON Select Every Day Value: ssss –...

  • Page 24: Event Log

    Utility Export event log This operation may be carried out from the PC using the ELDES Utility Tool software. Tool By default, when the event log reaches the 1000 record limit, the system will send the notification by SMS text message to the administra- tor phone number.

  • Page 25: Inputs

    – [100... 42000000] milliseconds. Example: 1111 T3:10500 Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool The system allows to view the current input state by the following configuration method.

  • Page 26: Disabling And Enabling Inputs

    Value: ssss – 4-digit SMS password. administrator phone Example: 1111 SMSALL:ON numbers in case of input alarm Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool SMS text message content: Disable notification ssss SMSALL:OFF to all listed Value: ssss –...

  • Page 27: System Information. Info Sms

    Value: ssss – 4-digit SMS password. Example: 1111 INFO Utility This operation may be carried out from the PC using the ELDES Utility Tool software. Tool For more details on the algorithm of how the system sends the notifications, please refer to 16. SYSTEM NOTIFICATIONS.

  • Page 28: System Notifications

    Manage SMS text Utility message delivery This operation may be carried out from the PC using the ELDES Utility Tool software. Tool limits When the daily or monthly SMS text message delivery limit is exceeded, the system will notify the administrator by SMS text message. The limit counter will automatically reset once the date and time synchronization period takes effect (by default - every 30 days).

  • Page 29: Gprs Network Settings

    17. GPRS NETWORK SETTINGS The GPRS network settings are used for device communication with the remote configuration server or ELDES Cloud Services server via GPRS connection. To set the GPRS network settings, please refer to the following configuration methods. SMS text message content:...

  • Page 30: Incoming Phone Number Verification Settings

    7 digits of the listed phone number. Manage incoming Utility phone number This operation may be carried out from the PC using the ELDES Utility Tool software. Tool verification settings 19. REMOTE SYSTEM RESTART In some critical situations, a system restart may be required.

  • Page 31: Restoring Default Parameters

    7. Copy the new firmware .bin file to the very same window. 8. Power down the device. 9. Unplug the USB cable. 10. Remove the short-circuit from DEF pins. 11. Power up the device. 12. Firmware updated. ELDES GATE CONTROLLER ESIM420 User Manual v1.0...

  • Page 32: Eldes Cloud Services

    Services account and add a device by following the step-by-step instructions provided in ELDES Cloud Services website. When adding the device to your account, you will be prompted for Cloud Services ID, which can be obtained using ELDES Utility Tool software or by sending the following SMS text message to the system’s phone number.

  • Page 33: How To Use Eldes Gates Web Platform, Widget And App

    • Go to gates.eldesalarms.com and choose “Register“. When requested, enter your email address, 8 sign length password and press “Register”. • Confirmation e-mail has been sent to the address given. Open that e-mail and press on confirmation link to start using Eldes Cloud Services account.
  • Page 34 IF YOU CHANGE YOUR SMARTPHONE In case you’ve changed your smartphone and can’t add ELDES GATES widget or ELDES GATES app anew, please do the following: • Use Clear ID function on your web interface https://gates.eldesalarms.com/en/user/login.html. Connect to your gate controller, select User Database, find user who can not log in, press Edit, check box to Clear ID function.

  • Page 35: Related Products

    23. RELATED PRODUCTS IP66 - plastic enclosure Power supply ELDES GATE CONTROLLER ESIM420 User Manual v1.0...
  • Page 36 Made in the European Union eldesalarms.com...
