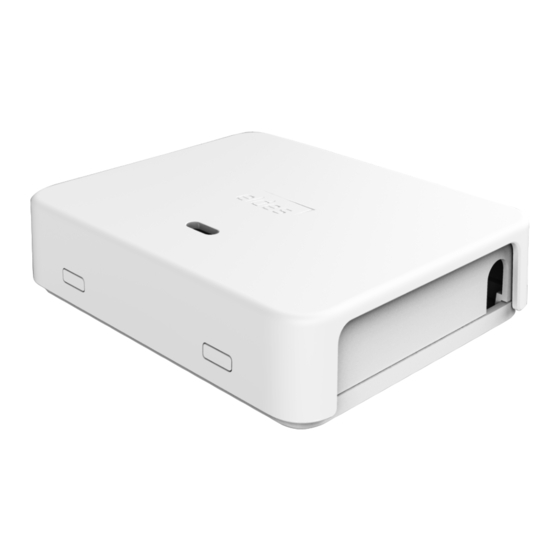

ELAN3-SNMP
SNMP ETHERNET CONTROLLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELAN3-SNMP and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ELAN3-SNMP

Summary of Contents for Eldes ELAN3-SNMP

  • Page 1 ELAN3-SNMP SNMP ETHERNET CONTROLLER...
  • Page 2 It is strictly forbidden to copy and distribute information in this document or pass to a third party without an advanced written authorization from “ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, “ELDES UAB” declares that the SNMP Ethernet Controller ELAN3-SNMP is in compli- ance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 3: Table Of Contents

    CONTENTS 1. GENERAL INFORMATION ................................5 2. TECHNICAL SPECIFICATIONS ..............................5 2.1. Electrical & Mechanical Characteristics ................................. 5 2.2. Main Unit, LED Indicator & Connector Functionality ...........................6 2.3. Wiring Diagrams ........................................ 7 3. INSTALLATION ...................................8 4. GENERAL OPERATIONAL DESCRIPTION............................9 5. CONFIGURATION, CONTROL AND MONITORING METHODS .....................9 5.1.
  • Page 4 The buyer agrees that the device will reduce the risk of fire, theft, burglary or other danger but that it does not guarantee against the occurrence of such events. “ELDES UAB” will not take any responsibility for the loss of personal effects, property or revenue whilst using the device. The liability of “ELDES UAB” is limited to the value of the device purchased.

  • Page 5: General Information

    1. GENERAL INFORMATION ELAN3-SNMP is a micro-controller based device used to inform users about the state changes on digital or analog inputs and control up to 2 electrical appliances connected to the open-collector outputs. These functions can be configured via web-browser or SNMP Manager software compatible with SNMP (Simple Network Management Protocol) v1.0.

  • Page 6: Main Unit, Led Indicator & Connector Functionality

    2.2. Main Unit, LED Indicator & Connector Functionality FRONT SIDE SIDE VIEW RJ45 (green) (yellow) RJ45 STATUS AC/DC C1 COM Z2 Z1 +5V DATA RJ45 10/100Base-T Ethernet port Mini USB port for firmware update Pins for firmware update and restoring default parameters STATUS Red light-emitting diode indicating micro-controller status miniSMDC 0,5A fuse...

  • Page 7: Wiring Diagrams

    2.3. Wiring Diagrams General wiring AC/DC C1 COM Z2 Z1 +5V DATA 0..+10V 0..+10V +12V Temperature sensor wiring AC/DC C1 COM Z2 Z1 +5V DATA DATA DATA FRONT Example of output wiring AC/DC C1 COM Z2 Z1 +5V DATA Electrical appliance +12V Alarm system or other appliance...

  • Page 8: Installation

    RJ45 ELAN3-SNMP 4. Power up ELAN3-SNMP and wait until indicator STATUS starts flashing indicating successful micro-controller operation (see Fig. No. Indicator LAN (green) will flash indicating Ethernet connection activity, while indicator LAN (yellow) will be steady ON indicating successful Ethernet connection (see Fig. No. 1).

  • Page 9: General Operational Description

    This section is intended for network configuration. In order to avoid the IP address collision in your local area network, once the ELAN3-SNMP device is powered up for the first time it is mandatory to change the default LAN IP Address if DHCP server is not supported by your network.
  • Page 10 5.1.2. Authentication In this section the user can set up the details required for logging in to ELAN Configuration Web Server. User name – User name required for authorization to log in to ELAN Configuration Web Server. Default user name is 1234. Password for user –...

  • Page 11: The Following Section Is Intended For Input Configuration

    – General description of the device. Default value is Inputs monitoring via SNMP. sysContact – The name of person or company whom user can contact if technical support is required. Default value is ELDES. sysName – Several name of device. Default value is ELAN.
  • Page 12 This section is intended for temperature sensor configuraiton. The ELAN3-SNMP device may be equipped with up to 8 temperature sensors intended for temperature measurement in the surrounding areas. This feature allows to monitor the temperature of up to 8 different areas in real-time in ELAN Configuration Web Server’s section Monitoring (see 5.1.8.
  • Page 13 This section is intended for output C1 and C2 control. The ELAN3-SNMP device comes equipped with 2 open collector outputs C1 and C2 designed for electricalal appliance connection. Nor- mally, outputs can be used to open/close garage doors, activate lights, heating, watering and much more. When output turns ON, the ELAN3-SNMP triggers any equipment or relay connected to it (see 2.3.

  • Page 14: Snmp Manager

    The configured via Simple Network Management Protocol (SNMP v1.0) is carried out by transmitting the SET/GET message from SNMP Manager software to ELAN3-SNMP device. The tables provided in the following sections describe supported parameters, OIDs, actions available for each parameter which can be configured via SNMP as well as value range and an example/comment. Please, note that the tables reflect the parameters described in the sub-sections of 5.1.
  • Page 15 1.3.6.1.4.1.34093.1.2 constant SysUpTime 1.3.6.1.2.1.1.3.0 counter e.g. 10778 seconds SysContact 1.3.6.1.2.1.1.4.0 get/set text (32 chars max.) e.g. ELDES, Tel. No. +370111111 SysName 1.3.6.1.2.1.1.5.0 get/set text (32 chars max.) e.g. ELAN3-SNMP device SysLocation 1.3.6.1.2.1.1.6.0 get/set text (32 chars max.) e.g. Vilnius, Lithuania Read/write community 1.3.6.1.4.1.34093.1.2.30.1.0...

  • Page 16: Temperature Sensors

    Temperature Sensors 5.2.5. Parameter name Access Value Example / comment Temp1 name 1.3.6.1.4.1.34093.1.2.410.1.0 get/set text (16 chars max.) e.g. Garage temp Temp2 name 1.3.6.1.4.1.34093.1.2.411.1.0 get/set text (16 chars max.) e.g. Kitchen temp Temp3 name 1.3.6.1.4.1.34093.1.2.412.1.0 get/set text (16 chars max.) e.g.

  • Page 17: Technical Support

    · Wrong SNMP Manager software configuration. SNMP Manager software · TCP/UDP port not forwarded on the router for ELAN3-SNMP device’s IP address and/or your ISP is permanently blocking a certain TCP/UDP port (-s). For product warranty repair service please , contact your local retail store where this product was purchased.
  • Page 18 Made in the European Union www.eldes.lt...
