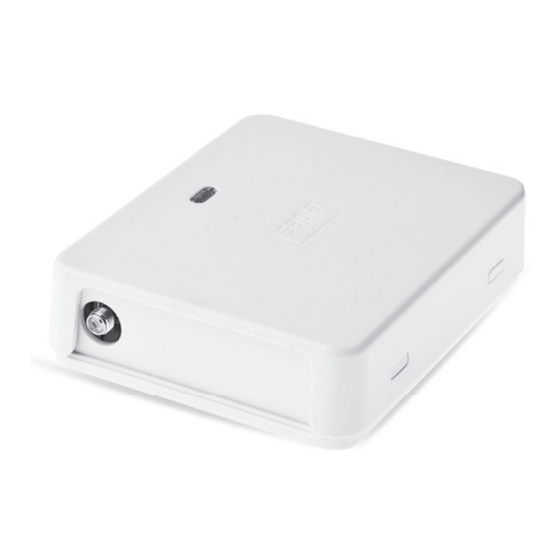

ESIM120
GSM SWITCH-GATE CONTROLLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM120 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ESIM120

Summary of Contents for Eldes ESIM120

  • Page 1 ESIM120 GSM SWITCH-GATE CONTROLLER...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Please read and follow these safety guidelines to safeguard yourself and others: GSM switch-gate controller ESIM120 (later referred to as “the system” or “ the device”) contains a built-in radio transceiver operating in • GSM 850/900/1800/1900 MHz bands.

  • Page 3: Table Of Contents

    4. GENERAL OPERATIONAL DESCRIPTION..........................10 5. CONFIGURATION METHODS ..............................10 5.1. SMS Text Messages ......................................10 5.2. ELDES Configuration Tool Software ................................10 5.2.1. Remote Connection ......................................10 5.2.2. Ending the Remote Connection Session ..............................10 6. SYSTEM LANGUAGE ................................. 11 7. SMS PASSWORD ..................................11 8.
  • Page 4 ESIM120 Manual v.3.6...
  • Page 5 The buyer agrees that the system will reduce the risk of fire, theft, burglary or other danger but that it does not guarantee against the oc- currence of such events. “ELDES UAB” will not take any responsibility for the loss of personal effects, property or revenue whilst using the system.

  • Page 6: General Information

    1. GENERAL INFORMATION ESIM120 is a micro-controller based device intended to provide access control for gate automatics, road barriers or to remotely turn ON/OFF any electrical appliance via the GSM network. Examples of using the system: Access control. • Parking lot control of residential houses or offices.

  • Page 7: Main Unit, Led Indicator And Connector Functionality

    Green light-emitting diode indicating GSM signal strength Pins for restoring default settings 0.5A fuse Connector Functionality AC/DC Power supply terminals RELAY1 Output C1 terminal RELAY2 Output C2 terminal Common terminal Low-level (negative) input terminal High-level (positive) input terminal Low-level (negative) input terminal ESIM120 Manual v.3.6...

  • Page 8: Wiring Diagrams

    RELAY1 RELAY2 Z2 Z1 Power supply GATE AUTOMATION DEVICE Example of ESIM120 system wiring to gate automation device ESIM120 GATE AUTOMATION DEVICE AC/DC RELAY1 RELAY2 COM Z5 Z4 Z3 Z2 Z1 +24v Fault output; open collector type +24V Power supply output for powering aux.

  • Page 9: Installation

    SMS text message delivery service and phone call connection. NOTE: Even though the installation process of ESIM120 is not too complicated, we still recommend to perform it by a person with basic knowledge in electrical engineering and electronics to avoid any system damage.

  • Page 10: General Operational Description

    4. GENERAL OPERATIONAL DESCRIPTION When a phone call is made to the phone number of the SIM card inserted in ESIM120, the system will verify if the caller’s phone number ex- ists in the memory. If the caller is one of the 5 administrators or the phone number belongs to one of the 2000 database users, the system will reject the phone call, thus making the phone call free of charge, and open the gate.

  • Page 11: System Language

    SMS password – 4-digit password used for system configuration and control from administrator phone number by SMS text mes- sages and logging in to ELDES Configuration Tool software . By default, SMS password is 0000, which MUST be changed! SMS text message content:...

  • Page 12: Administrator Phone Numbers

    Value: ssss – 4-digit SMS password; as – administrator phone number slot, range – [1... 5]; ttteeellnnuumm – up to 15 digits administrator phone number. Example: 1111_NR1:44170911XXXX1 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: View administrator...

  • Page 13: Date And Time

    – [01... 31]; hr – hours, range – [00... 23]; mn – minutes, range – [00... 59]. Example: 1111_2013.03.16_14:33 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool 9.1. Automatic Date and Time Synchronization This feature enables the system to set the date and time automatically without the user being involved in this process.

  • Page 14: User Phone Number Database

    Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number; name) user-name – up to 16 characters user name. Example: 1111_N:44170911XXXX1:John Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: View user phone ssss_GETALLNUMBERS numbers Value: ssss –...
  • Page 15 Value: ssss – 4-digit SMS password; ttteeellnnuumm – up to 15 digits user phone number; user-name – up to 16 characters user name. Example: 1111_D:John Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_D:ALL Delete all users Value: ssss –...

  • Page 16: User Validity And Access Restriction

    – scheduler number; range – [1... 8]; user-name – up to 16 characters user name. Example: 1111_NSCHED_John_5:ON Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: Remove scheduler...
  • Page 17 – up to 16 characters user name; numofcalls – number of phone calls, range – [1... 4294967296]. Example: 1111_RCOUNT_44170911XXXX1_152 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: View set up ring...

  • Page 18: Outputs

    To set an output type, please refer to the following configuration method. Set output as NO Config (normally-open) or NC This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool (normally-closed) The system allows to view the current output state by the following configuration method.

  • Page 19: Output Control By Sms Text Message

    – pulse duration, range – [1... 10] seconds. Example: 1111_TIMER2:4 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool NOTE: ELDES Configuration Tool software allows to set the unlimited output pulse duration value.
  • Page 20 16 characters output name. Example: 1111_C2:OFF Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool NOTE: Output can be turned ON for a determined time period only when it is in OFF state.

  • Page 21: Output Control Confirmation By Call Back

    Value: ssss – 4-digit SMS password. back Example: 1111_CALLBACK:ON Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool Config Set call back duration This operation may be carried out from the PC using the ELDES Configuration Tool software.

  • Page 22: Automatic Output Control

    Value: ssss – 4-digit SMS password; o – output number, range [1 – output C1; 2 – output C2]; c – scheduler number; range – [1... 8]. Example: 1111_OSCHED2_1:ON Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_OSHEDo_c:OFF Remove scheduler Value: ssss –...

  • Page 23: Schedulers

    Value: ssss – 4-digit SMS password; c – scheduler number; range – [1... 8]. Example: 1111_SCHED4_AL:OFF Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: Enable day (-s) of the...
  • Page 24 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: ssss_SCHEDc_AL:ON Select Every Day Value: ssss – 4-digit SMS password; c – scheduler number, range – [1... 8] Example: 1111_SCHED1_AL:ON Config This operation may be carried out from the PC using the ELDES Configuration Tool software.

  • Page 25: Event Log

    Config Export event log This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool By default, when the event log reaches the 1000 record limit, the system will send the notification by SMS text message to the administra- tor phone number.

  • Page 26: Inputs

    – [100... 42000000] milliseconds. Example: 1111_T3:10500 Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool The system allows to view the current input state by the following configuration method. SMS text message content:...

  • Page 27: Disabling And Enabling Inputs

    Value: ssss – 4-digit SMS password. administrator phone Example: 1111_SMSALL:ON numbers in case of input alarm Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool SMS text message content: Disable notification ssss_SMSALL:OFF to all listed Value: ssss –...

  • Page 28: System Information. Info Sms

    Value: ssss – 4-digit SMS password. Example: 1111_INFO Config This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool For more details on the algorithm of how the system sends the notifications, please refer to 16. SYSTEM NOTIFICATIONS.

  • Page 29: System Notifications

    Manage SMS text Config message delivery This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool limits When the daily or monthly SMS text message delivery limit is exceeded, the system will notify the administrator by SMS text message. The limit counter will automatically reset once the date and time synchronization period takes effect (by default - every 30 days).

  • Page 30: Gprs Network Settings

    17. GPRS NETWORK SETTINGS The GPRS network settings are used for device communication with the remote configuration server or ELDES Cloud Services server via GPRS connection. To set the GPRS network settings, please refer to the following configuration methods. SMS text message content:...

  • Page 31: Incoming Phone Number Verification Settings

    7 digits of the listed phone number. Manage incoming Config phone number This operation may be carried out from the PC using the ELDES Configuration Tool software. Tool verification settings 19. REMOTE SYSTEM RESTART In some critical situations, a system restart may be required.

  • Page 32: Technical Support

    For product warranty repair service, please contact your local retail store where this product was purchased. If your problem could not be fixed by the self-guide above, please contact your local distributor. More up to date information about your device and other products can be found at the manufacturer’s website www.eldes.lt 20.2. Restoring Default Parameters 1.

  • Page 33: Eldes Cloud Services

    ELDES Cloud Services website. When adding the device to your account, you will be prompted for Cloud Services ID, which can be obtained using ELDES Configuration Tool software or by sending the following SMS text message to the system’s phone number.

  • Page 34: Related Products

    22. RELATED PRODUCTS EBU1 – power backup unit Power supply IP66 - plastic enclosure ESIM120 Manual v.3.6...
  • Page 36 Made in the European Union www.eldes.lt...
