EN

Introduction

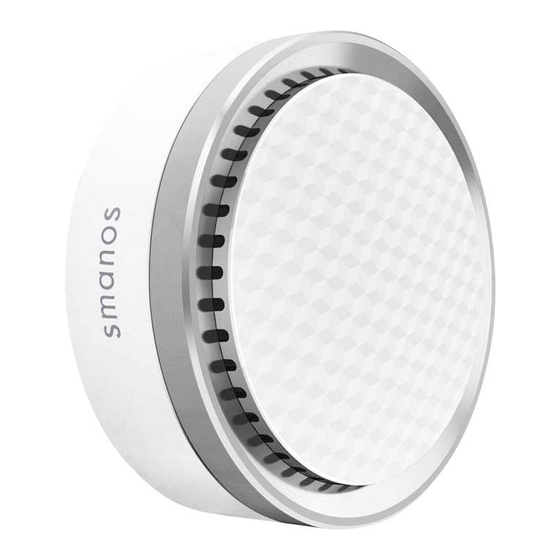

The SS-20 Indoor Siren will go off on-site, with a loud 104dB siren
sound, to deter any would-be intruders when a sensor of K1/K2
system has been triggered. It is smart to have 2-4 sirens strategically
placed around the your home as it easily deters any intruder if they
defeated one siren but still hear NOISE! Intruders DO NOT like
attention.

Pairing to the K1/K2 Hub

This Siren needs to be paired to the K1/K2 Hub first before use. To
pair the Siren, please refer to the K1/K2 Hub's user manual or in the
K1/K2 section of the smanos home app, press the "+" button and
follow the instructions on the Accessories page to easily add your
smanos SS-20 siren.

Product Overview

Back View with mounting plate & level
Tamper
LED Indicator
Switch
LED Indicator
Blinks rapidly:
K1/K2 system is alarming.
Blinks once per 3 seconds:
Low battery, please change the batteries.
Tamper Switch
Anti-tamper protection ensures that any attempts to move the Siren
off the Mounting Plate will result in an alarm, push notification and
possible email if selected.
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Smanos SS-20

Summary of Contents for Smanos SS-20

  • Page 1: Product Overview

    Introduction Product Overview The SS-20 Indoor Siren will go off on-site, with a loud 104dB siren Back View with mounting plate & level sound, to deter any would-be intruders when a sensor of K1/K2 system has been triggered. It is smart to have 2-4 sirens strategically...

  • Page 2: Specifications

    The Siren can be placed in any location as long as it is within the range with K1/K2 Hub Specifications Set the K1/K2 system to Test Model: SS-20 Mode, and then trigger the Siren Power: 3V CR123A Li-Mn battery x 4 pcs by pressing the Tampering Switch Sound: 104 Decibels on the back of the Siren.

  • Page 3: Industry Canada Notice

    FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: INFORMATION FOR THE USERS (1)This device may not cause harmful interference. At the end of its life, the device has to be separated from the other waste. Consign the (2)This device must accept any interference received, including interference that may device and all its components together to a center of electronical and electrotechnical cause undesired operation.
  • Page 4 INFORMATION FOR THE USERS At the end of its life, the device has to be separated from the other waste. Consign the device and all its components together to a center of electronical and electrotechnical waste recycling center, designated by your local authorities. INFORMATIONEN FUR DIE BENUTZER Das Gerat am Ende seiner Lebensdauer von den anderen Abfallen getrennt werden muss.
