Introduction
Wireless outdoor strobe siren is to deter the intruders through
hooting once it receives wireless signal from connected control
panel or sensors. More wireless strobe sirens could be connected
to the same control panel to strengthen the deterring effect. When
the siren is connected to control panel as an accessory, it will hoot
and its LED lights will flash once the system is triggered. When the
siren is connected to accessories like remote control, door/window
contact, and PIR motion detector, etc. as a standalone alarm
control panel, it will hoot and its LED lights flash once any sensor is
triggered.
Product Overview

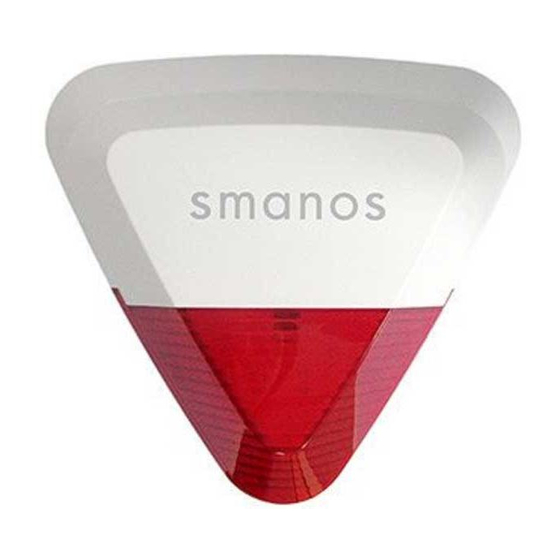

Front View
Alarm LED
Indicators
Status LED Indicator
Status LED Indication
Status
Arm/Home Mode
Flash once every 5 seconds
Disarm
No light indication
No disarm operation
Flash once every 2 seconds for 2 hours
after alarm
Rear View
EN
LED
Mounting Holes
Back Cover
Tamper Switch
Bracket
Advertisement
Table of Contents
Related Manuals for Smanos SS2800
Summary of Contents for Smanos SS2800
- Page 1 Status LED Indication Introduction Status Wireless outdoor strobe siren is to deter the intruders through Arm/Home Mode Flash once every 5 seconds hooting once it receives wireless signal from connected control panel or sensors. More wireless strobe sirens could be connected Disarm No light indication to the same control panel to strengthen the deterring effect.
-
Page 2: Pcb Layout
PCB Layout Alarming Volume Setup Siren Interface HIGH MUTE Learn Button Battery Slot Alarming Volume Setup Alarming Duration Setup Adapter Jack Default Setting DC 12V Terminals Note: When the siren is connected to control panel, it will hoot at the pre- set volume even if the control panel is set to mute alarm. - Page 3 Work as Wireless Siren Work as Standalone Alarm Panel When it works as a wireless siren, it should be connected with When it works as a standalone alarm panel, it should be connected wireless control panel in advance. When the control panel is with wireless sensors or wired sensors in advance, when the alarming, it hoots and the strobe light flashes to deter illegal intrusion is detected, it hoots and the strobe light flashes to deter...
-
Page 4: Installation Mode
24-ZONE (24-hour zone mode): After a wired sensor is connected Install two screws into the top screw holes. ② with "24-ZONE" terminal, means it will work as a 24-hour zone Mount the bracket into the bottom screw holes and tighten with ③... -
Page 5: Specifications
SS2800 Draadloze flitslicht/sirene Modelo: Sirena inalámbrica con luz estroboscópica para exterior SS2800 Modelo: Sirene externa com luz estroboscópica SS2800 Modello: Sirene estroboscópica wireless SS2800 is herewith confirmed to comply with the requirements set out in the EC Council Directive 2014/53/EU Radio Equipment. For the evaluation of the compliance with this... - Page 6 Qu’ e n fin de vie, l’appareil doit etre séparé des autres déchets. Consigner l’appareil Latest copy of the EU Declaration of Conformity is available at: http://www.smanos.com/english/compliance.asp et tous ses composants dans un centre appropriè de recydage des déchets électroniques et électrotechniques, désigné par vos autorités locales.
