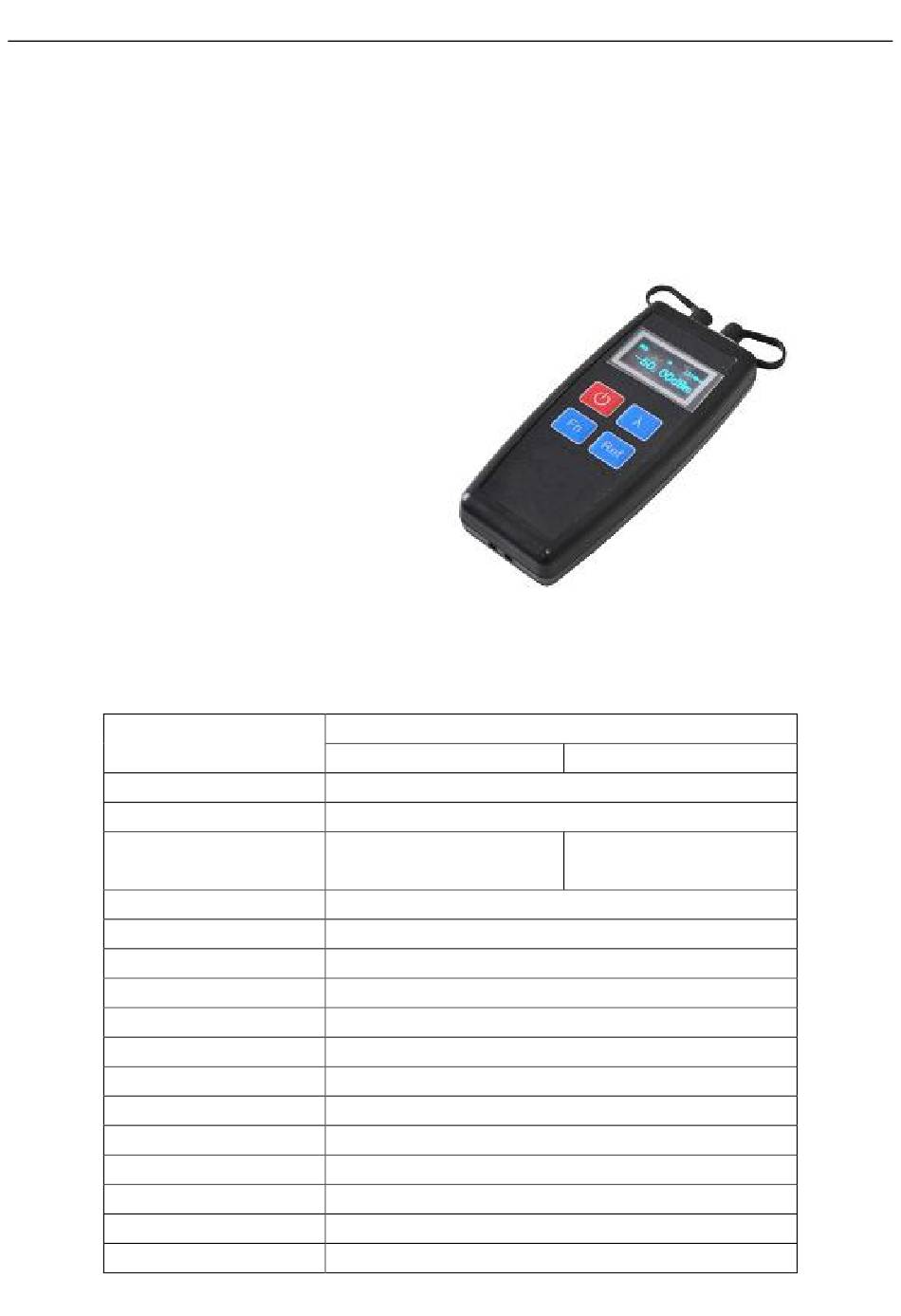

ShinewayTech OPM-10V-S User Manual

OPM-10V-S mini power meter (VFL) Users instructions

1. Overview

OPM-10V-S power meter is a fiber engineering meter integrated miniature optical power meter with high precision and visual fault
location function.

2. Features

① High accuracy，low error，large dynamic range
② Mini ergonomic design，one-hand operation，flexible and convenient
③ OLED high-definition screen
④ Universal interface，support FC/SC/ST
⑤ Wavelength memory function
⑥ Micro-USB Power Supply
⑦ Support automatic shutdown and
Energy conservation
⑧ Six calibration wavelengths
⑨ Support hang by rope and anti-lost
⑩ dBm, dB and mW switching

3. Application

① Fiber-optic CATV projects
② Fiber-optic communication projects
③ Fiber Optical Sensors research
④ Optical device manufacturing

4. Specifications

Wavelength range（nm）*1
Detector Type
Power Measurement Range
（dBm）*2
Power Uncertainty（dB）*3
Calibrated Wavelength（nm ） 850,1300,1310,1490,1550,1625
Display Resolution（dB）
red light Output Power（mW）
transmission distance（km）
Operating frequency( Hz )
Operating Temperature （℃） -10~+60
Storage Temperature （℃）
Power Saving time （min）
Battery Life（h）
Power Supply
Weight （g）
Dimensions
Explanation：
Model
850~1700
InGaAs
-70~+6
± 0.3
0.05
CW/2Hz
-25~+70
10/no power off
≥130 （OPM model）
3 battery of the 7 AAA 1.5 V /micro USB power supply
70 (no battery)
128x52x22mm
OPM-10V-S
A
-50~+26
1 or 10
5 or 10
OPM-10V-S User Manual
B
