Summary of Contents for ShinewayTech SLS-50

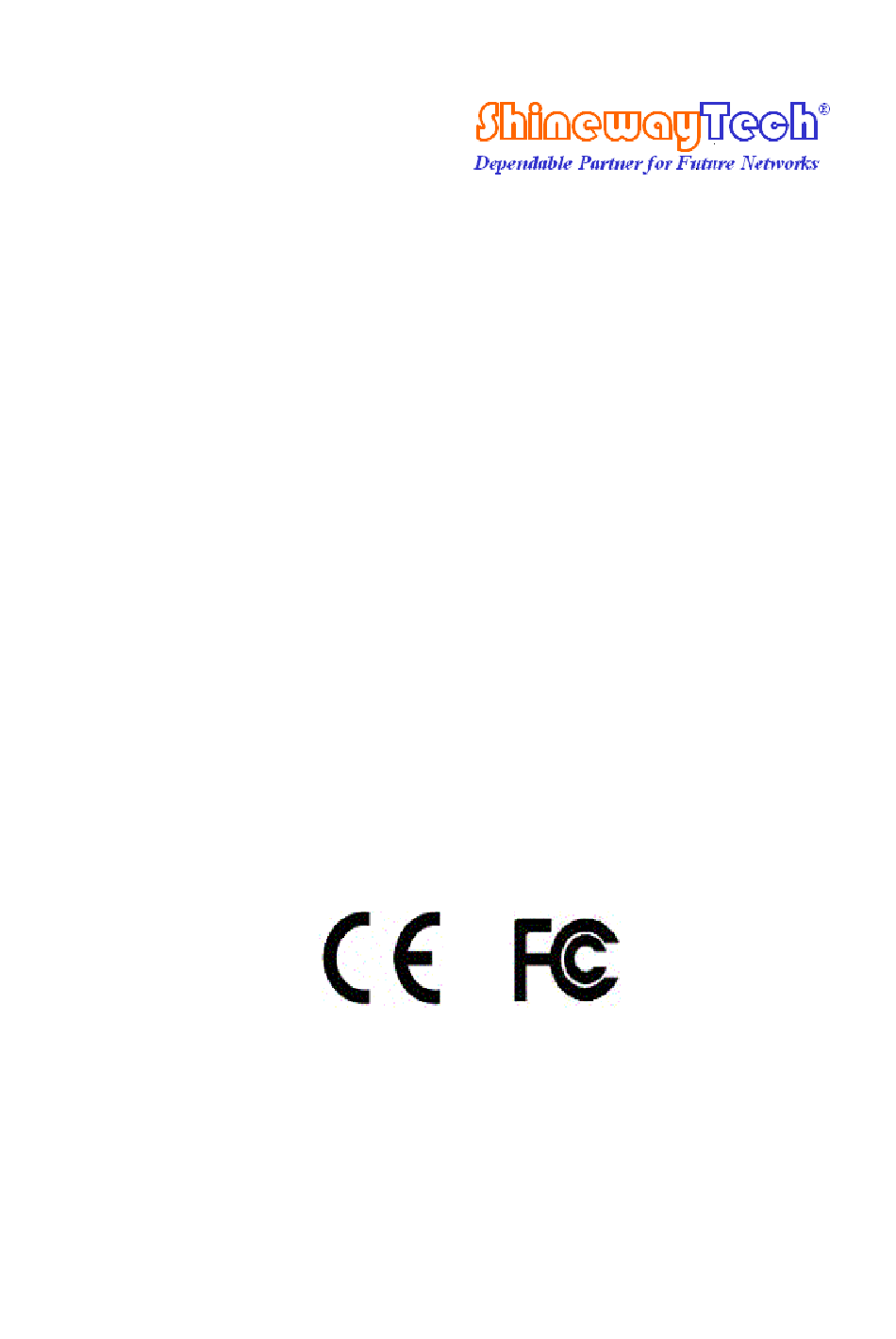

- Page 1 SLS-50 Stabilized Laser Source User’s Manual Shineway Technologies, Inc. All rights reserved.
-
Page 2: Safety Instructions
Battery: SLS-50 battery type is lithium battery. Do not take battery out without technical staff’s assistance. Do not expose battery to fire or intense heat. Do not open or mutilate battery. Avoid touching the electrolyte in the battery, which is corrosive and may cause injuries to eyes, skin or damage to clothes. - Page 3 SLS-50 User’s Manual Always avoid looking directly into the optical output port, when the instrument is working Always put protective dust cap on the detector port when the instrument is not in use. Always avoid looking directly at unconnected end of optic fiber in testing;...
-
Page 4: Table Of Contents
SLS-50 User’s Manual Contents SAFETY INSTRUCTIONS ....................1 1. GENERAL INFORMATION .................... 4 1.1 S ....................4 COPE OF THIS ANUAL 1.2 U ..................4 NPACKING AND NSPECTION 1.3 I ......................4 NTRODUCTION 2. BASIC OPERATION ......................6 2.1 F ........................ -
Page 5: General Information
Shineway Technologies, Inc. If necessary, you may contact Shineway Technologies, Inc via this email: support@shinewaytech.com. 1.3 Introduction ShinewayTech SLS-50 can generate highly stable optical signals at multiple wavelengths to Shineway Technologies, Inc. - 4 -... - Page 6 SLS-50 can generate highly stable signals at 1310nm, 1490nm, 1550nm and 1625nm wavelength, compliant with Passive Optical Network (PON) and FTTx standards. Direct LCD Display of Output Power The power value of SLS-50 output signal can be directly displayed on its screen for easy reference. Shineway Technologies, Inc. - 5 -...
-
Page 7: Basic Operation
2. Basic Operation 2.1 Foreword This part introduces the basic operation on SLS-50. Specific operations of each type instrument are elaborated in Chapter 3 of this manual. Please read this manual carefully for optimal operation. If you encounter any problems during operation, you are welcome to contact the technical staff of our company or representatives. -
Page 8: External Interfaces
2.2.1 External Interfaces Optical Output SLS-50 is available with FC connector (Interchangeable SC/ST). USB Power /Data Port SLS-50 can be charged by external power adapter (5V DC, 750mA). 2.2.2 Keypad Power on/off Toggle between output wavelengths Toggle between mW and dBm Adjust reference value in [Reference] interface;... -
Page 9: Indicator
When battery is low, low battery indicator will appear on LCD. You can still use SLS-50 as long as its display on LCD is identifiable. Please charge as soon as possible when battery is low to ensure accurate measurement. - Page 10 SLS-50 User’s Manual Linearity error; Extra optical power attenuation; Received optical power is beyond normal range. Shineway Technologies, Inc. - 9 -...
-
Page 11: Operation
SLS-50 User’s Manual 3. Operation 3.1 Power On Press [On/Off] button and loading screen appears, see Figure 3.1. ® ShinewayTech SLS-50 Figure 3.1 Then it enters functional interface (The last interface before last shutdown), see Figure 3.2. 1550 nm -6.50 Contrast Figure 3.2... -
Page 12: Contrast
SLS-50 User’s Manual 3.2 Contrast Press button to [Contrast] interface, see Figure 3.3. 1550 nm -6.50 Contrast Figure 3.3 Press button to enter the interface. Press button to adjust contrast and press button to confirm. 3.3 Attenuation Press button to [Attenuator] interface, see Figure 3.4. -
Page 13: Language Setting
SLS-50 User’s Manual 1550 nm -6.50 Attenuator Figure 3.5 Note: 1. Attenuation adjustment is effective only when laser is on ( mark appears in the right lower corner of the screen); 2. The attenuation range is 6dB. 3.4 Language Setting Press button to [语言/Lang.] interface, see Figure 3.6. - Page 14 In this interface you can set reference value and send it to the optical power meter on the other side of the tested fiber by enabling AutoID function (ShinewayTech optical power meter with AutoID function), which can enhance the testing efficiency and avoid potential operation fault.
-
Page 15: Laser On/Off
SLS-50 User’s Manual AutoID setup mode:Manual 1310nm 1650nm 850nm Setup Fig 3.10 point to “mode”, press button to switch mode of “Manual” and When “Automatic”. point to “1310nm”, “1650nm” or “850nm”, press When button to select or cancel this wavelength. - Page 16 SLS-50 User’s Manual 1550 nm 1550 nm -6.50 -6.50 Auto Off Auto Off Figure 3.10 Press button to enable or disable Auto Off function. Shineway Technologies, Inc. - 15 -...
-
Page 17: Calibration
SLS-50 User’s Manual 4. Calibration 4.1 Optical Interface Cleaning Optical interface must be always kept clean. Always put protective dust cap on when the unit is not in use, and keep the protective dust cap clean. 4.2 Calibration Requirements Calibration of the instrument is recommended every 3 years. Please contact our representatives or customer service centers for proper calibration. -
Page 18: Specifications
SLS-50 User’s Manual 5. Specifications SLS-50 Model 1310/1490/ 650/1310/ 1310/1550/ Wavelength (± 20nm) 1310/1550 850/1300 1550 1550 1625 ≤5nm Spectrum Width Application Range Multimode/Singlemode fibers Emitter Type FP-LD@650,850,1300,1310,1550nm; DFB-LD@1490,1625nm Output Power ≥3dBm@650nm; ≥-3dBm@850/1300/1310/1490/1550/1625nm ± 0.05dB/15min; Power Stability ± 0.10dB/8hr@1310/1490/1550/1625nm; ± 0.15 dB/8hr@850/1300nm Output Mode CW, 1Hz@650nm;... -
Page 19: Warranty Information
SLS-50 User’s Manual 6. Warranty Information 6.1 Warranty Period All ShinewayTech products are warranted against defective material and workmanship for a period of one (1) year from the date of shipment to the original customer. Any product found to be defective within the warranty period would be repaired or replaced by Shineway Technologies Inc free of charge. -
Page 20: Contact Customer Service
Be sure to ship to your representative or agent of Shineway Technologies, Inc in a reliable way. 6.5 Contact Customer Service Please check our web site (www.shinewaytech.com) for updates to this manual and additional application information. If you need technical or sales support, please contact local Shineway Technologies Customer Service.
