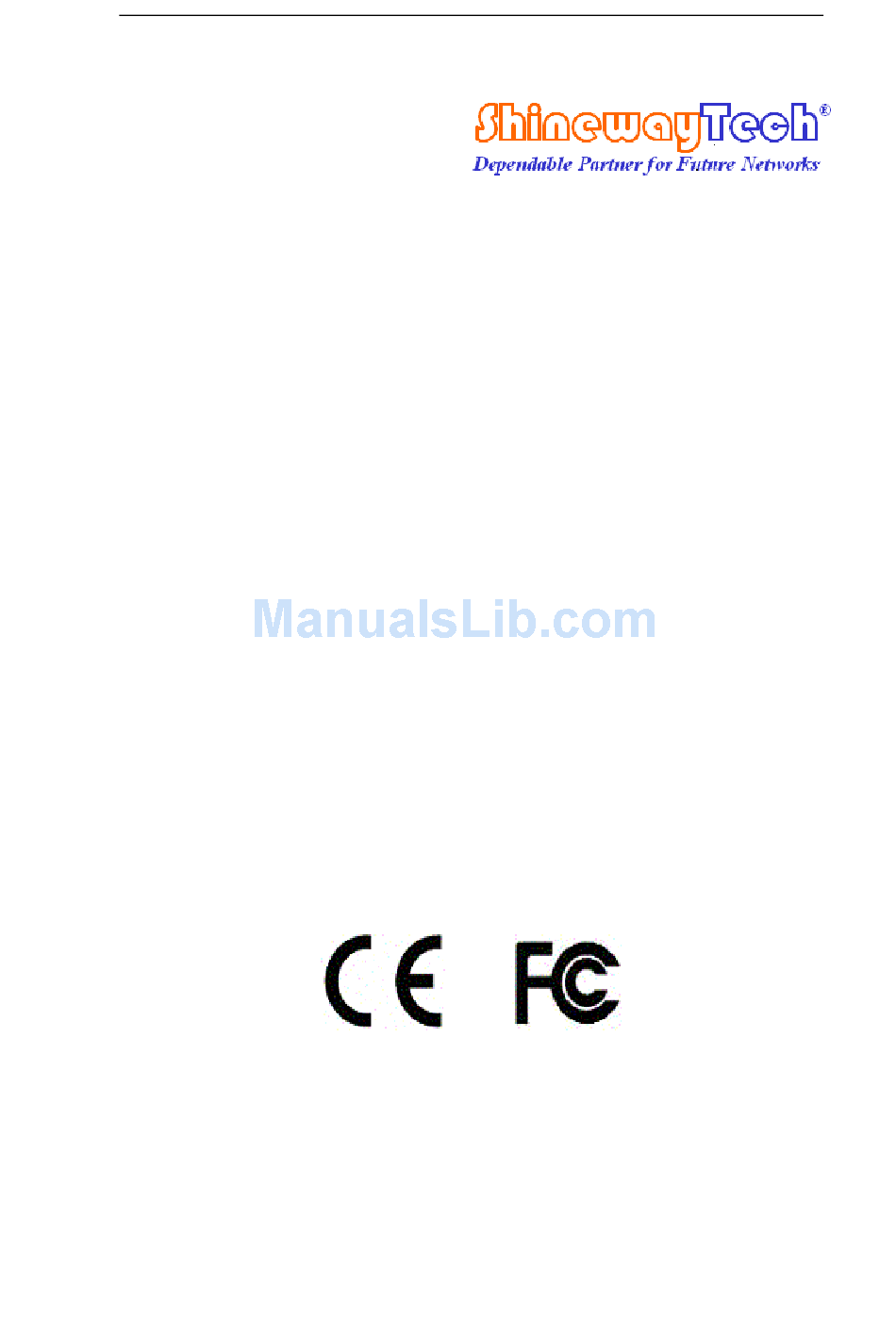

- Page 1 OPM-50 Optical Power Meter User’s Manual Shineway Technologies, Inc. All rights reserved.
-
Page 2: S Afety Instructions
Battery: OPM-50 battery type is lithium battery. Do not take battery out without technical staff’s assistance. Do not expose battery to fire or intense heat. Do not open or mutilate battery. Avoid touching the electrolyte in the battery, which is corrosive and may cause injuries to eyes, skin or damage to clothes. - Page 3 OPM-50 User’s Manual when the instrument is working ➢ Always replace protective dust cap on the detector port when the instrument is not in use. ➢ Always avoid looking directly at unconnected end of optic fiber in testing and make the unconnected end pointing at a non-reflective object.
-
Page 4: Table Of Contents
OPM-50 User’s Manual Contents S AFETY INSTRUCTIONS ....................1 1 . GENERAL INFORMATION ................... 4 1 .1 S ....................4 COPE OF THIS ANUAL 1 .2 U ..................4 NPACKING AND NSPECTION 1 .3 I ......................4 NTRODUCTION 2 . BASIC OPERATION ...................... -
Page 5: General Information
If necessary, you may contact Shineway Technologies, Inc via this email: support@shinewaytech.com. 1 .3 Introduction ShinewayTech OPM-50 paired with SLS-50 Intelligent Stabilized Laser Source can be used to identify fiber, measure attenuation and loss, verify continuity and evaluate fiber link transmission quality. Features: Shineway Technologies, Inc. -
Page 6: Basic Operation
SLS-50 as reference for precise link loss measurement even the two units are far apart. Internal Clock & Fiber S/N Editable Internal clock enables OPM-50 to save test data with time and editable fiber SN information. Compatible with FTTx Test OPM-50 can be applied to measure Triple-play signals (1310nm, 1490nm and 1550nm) on Passive Optical Network (PON). -
Page 7: Instrument Details
1 1 B 2 .2.1 External Interfaces 3 2 B Optical Input OPM-50 is available with FC connector (Interchangeable SC/ST). USB Power /Data Port OPM-50 can be charged by external power adapter (5V DC, 750mA). Shineway Technologies, Inc. - 6 -... -
Page 8: Keypad Operation
OPM-50 User’s Manual 2 .2.2 Keypad Operation 3 3 B Power on/off Toggle between calibrated wavelengths Toggle between mW(μW/nW/pW), dB and dBm; Adjust reference value in [Reference] interface; Adjust Cab & Fib value in [Store] interface; Look up test records in [Recall] interface;... -
Page 9: Indicator
When battery is low, low battery indicator will appear on LCD. You can still use OPM-50 as long as its display on LCD is identifiable. Please charge as soon as possible when battery is low to ensure accurate measurement. -
Page 10: Operation
OPM-50 User’s Manual 3 . Operation 3 .1 Power On 1 4 B Press [On/Off] button and loading screen appears, see Figure 3.1. Figure 3.1 Then it enters functional interface (The last interface before last shutdown), see Figure 3.2. 1550 nm -15.34... -
Page 11: Zero
OPM-50 User’s Manual Figure 3.3 Press button to enter the interface. Press button to adjust contrast and press button to confirm. 3 .3 Zero 1 6 B Press button to [Zero] interface, see Figure 3.4. Figure 3.4 Press button to start zeroing. If zeroing is successful, below screen will appear, please see Figure 3.5. -
Page 12: Reference
Reference Figure 3.7 In this interface, if the laser source (ShinewayTech laser source with AutoID function) on the other side of the tested fiber enables AutoID, then the optical power meter will automatically identify the incoming signal wavelength and set the reference value sent from the laser source as reference (“AutoID”... -
Page 13: Save Record
OPM-50 User’s Manual Figure 3.8 Press button to shift the digit position to be adjusted; press button to adjust the value and press button to confirm. 3 .5 Save Record 1 8 B Press button to [Store] interface, see Figure 3.9. -
Page 14: Review Record
OPM-50 User’s Manual 3 .6 Review Record 1 9 B Press button to [Recall] interface, see Figure 3.11. Figure 3.11 Press button to review saved record. 3 .7 Delete Record 2 0 B Press button to [Delete] interface, see Figure 3.12. -
Page 15: Set Time
OPM-50 User’s Manual 3 .8 Set Time 2 1 B Press button to [Set Time] interface, see Figure 3.14. Figure 3.14 Press button to enter [Set Time] interface, see Figure 3.15. Figure 3.15 Press button to shift the digit position to be adjusted; Press button to adjust the value and press button to confirm. -
Page 16: Language Setting
OPM-50 User’s Manual Press button to load default settings, see Figure 3.17. Figure 3.17 3 .10 Language Setting 2 3 B Press button to [语言/Lang.] interface, see Figure 3.18. Figure 3.18 Press button to toggle between English and Chinese interface. -
Page 17: Calibration
OPM-50 User’s Manual 4 . Calibration 4 .1 Optical Interface Cleaning 2 5 B Optical interface must be always kept clean. Always put protective dust cap on when the unit is not in use, and keep the protective dust cap clean. -
Page 18: Specifications
OPM-50 User’s Manual 5 . Specifications OPM-50 Model Calibrated Wavelength 850,1300,1310,1490,1550,1625nm Power Range (dBm) -70 ~ +10 -50 ~ +27 Application Range Singlemode/Multimode fibers Detector Type InGaAs Accuracy ± 0.25 dB (5%) @25º C & -10dBm (± 0.5 dB@850nm) Resolution (dB) 0.01... -
Page 19: Warranty Information
OPM-50 User’s Manual 6 . Warranty Information 6 .1 Warranty Period 2 7 B All ShinewayTech products are warranted against defective material and workmanship for a period of one (1) year from the date of shipment to the original customer. Any product found to be defective within the warranty period would be repaired or replaced by Shineway Technologies Inc free of charge. -
Page 20: Contact Customer Service
6 .5 Contact Customer Service 3 1 B Please check our web site (www.shinewaytech.com) for updates to this manual and additional application information. If you need technical or sales support, please contact local Shineway Technologies Customer Service. Shineway Technologies (China), Inc.: Address: Fl.7, Zhongtai Plaza, No.3 Shuangqing Rd, Haidian District, Beijing, China...
