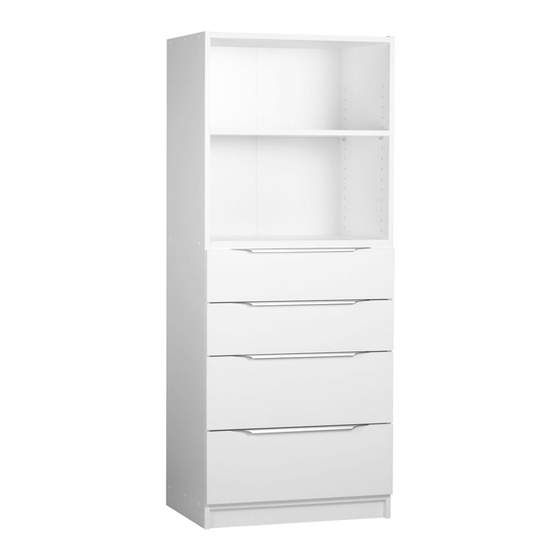

ASSEMBLY INSTRUCTION FOR MAXI ULTRA-315C
2 x GABLES
1 x BACKING BOARD
3 x FIXED SHELF
NO
MODEL
DESCRIPTION
1
CONFIRMAT SCREWS
2
WHITE CAPS
3
SUPPORT PINS
4
BACKING NAILS
PARTS IDENTIFICATION LIST
A
F
G
FOLD LINE
C ,D & E
QTY
14
14
4
40
TOP of UNIT
When attaching unit to wall put safety bracket in
middle of unit with 16 Pan head screw then 25mm
Pan head screw into wall.
For plasterboard without a stud it is recommended
to use a plug with screw (not provided).
1 x ADJUSTABLE
SHELF
1 x BOTTOM KICK
1 x SAFETY BRACKET
NO
MODEL
5
6
7
H
B
DESCRIPTION
16 PAN HEAD SCREWS
25mm PAN HEAD SCREWS
"L" SAFETY BRACKET
QTY
1
1
1
Advertisement
Related Manuals for Multistore MAXI ULTRA-315C
Summary of Contents for Multistore MAXI ULTRA-315C
- Page 1 ASSEMBLY INSTRUCTION FOR MAXI ULTRA-315C TOP of UNIT When attaching unit to wall put safety bracket in middle of unit with 16 Pan head screw then 25mm Pan head screw into wall. For plasterboard without a stud it is recommended to use a plug with screw (not provided).
- Page 2 UNIT ASSEMBLY Shelf Supports INFILL YOU WILL NEED TO RETRIEVE THE INFILL FROM PART 2, USING 3 X 30mm SCREWS PROVIDED, ATTACH THE INFILL TO THE UNDER-SIDE OF THE CAM SHELF BEFORE PUTTING YOUR SHELF INTO PLACE.
- Page 3 RUNNER POSITIONING MAXI ULTRA SERIES Models Hole Positions Maxi Ultra H1 Maxi Ultra HS2 1 - 6 Maxi Ultra H2 1 - 6 Maxi Ultra 450 1- 6 -11 -16 Maxi Ultra 315C 1-8 -13 -18...
- Page 4 10 Year Warranty • If the purchaser has a fault or defect with this product, the purchaser needs to contact Multistore Industries (Aust) directly on (07) 3208 6799 and state date of purchase, place of purchase and proof of purchase.
