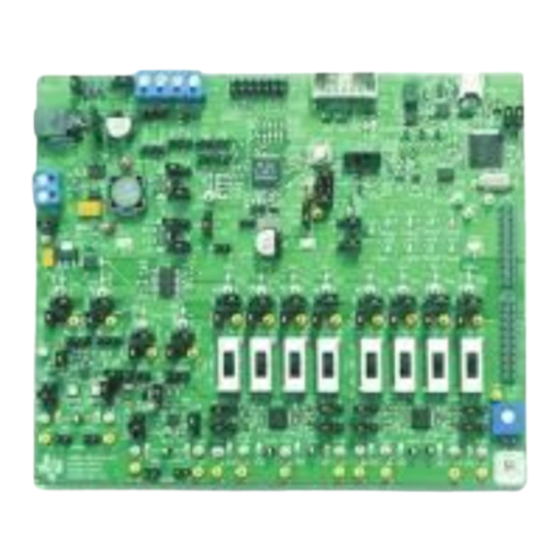

Evaluation Module for UCD90120 and UCD90124
This User's Guide describes the evaluation modules (EVM) for the UCD90120 (UCD90120EVM) and
UCD90124 (UCD90124EVM). The EVM contains evaluation and reference circuitry for the UCD90120 and
UCD90124. UCD90120 and UCD90124 are advanced power system controllers containing sequencing,
monitoring, fan control and many other power supply system support features.
...................................................................................................................
1
1.1
1.2
...................................................................................................................
2
2.1
2.2
2.3
3
3.1
3.2
4
4.1
4.2
4.3
4.4
.................................................................................................................
5
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
6
7
7.1
7.2
7.3
1
2
3
1
EVM Input/Output Connectors and Switches
SLVU347 - December 2009
.............................................................................................................
.........................................................................................................
..........................................................................................................
..................................................................................................
...............................................................................................
.............................................................................................
..............................................................................
...............................................................................
......................................................................................................
........................................................................................................
..................................................................................................
...............................................................................................
.......................................................................................
..............................................................................................................
..........................................................................................
..........................................................................................
............................................................................................
...............................................................................................
..................................................................................
.........................................................................................
................................................................................
......................................................................................................
.............................................................................................................
................................................................................................
...................................................................................................
..............................................................................................
..........................................................................................................
....................................................................................................
........................................................................................
Copyright © 2009, Texas Instruments Incorporated
..................................................................
......................................................
List of Figures
List of Tables
...........................................................................
Evaluation Module for UCD90120 and UCD90124
User's Guide
SLVU347 - December 2009
2
2
2
3
3
4
5
6
6
7
9
9
10
11
13
15
15
15
16
16
16
17
17
21
25
30
31
37
37
37
37
3
4
5
9
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments UCD90120
Summary of Contents for Texas Instruments UCD90120
-
Page 1: Table Of Contents
SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 This User’s Guide describes the evaluation modules (EVM) for the UCD90120 (UCD90120EVM) and UCD90124 (UCD90124EVM). The EVM contains evaluation and reference circuitry for the UCD90120 and UCD90124. UCD90120 and UCD90124 are advanced power system controllers containing sequencing, monitoring, fan control and many other power supply system support features. -
Page 2: Contents 1 Description
The UCD90120 and UCD90124 EVM provides many sophisticated power supply system controller application capabilities. The EVM allows direct PMBus (power management bus) communication with the UCD90120 and UCD90124 via an onboard USB interface. This interface allows direct control and feedback with the UCD90120 and UCD90124 when using the TI-Fusion-Digital-Power-Designer-Graphical-User-Interface. -
Page 3: Quick Start
Test Setup Figure 1 shows a typical test setup for UCD90120/4EVM. All that is required is a 12V (500mA for UCD90120EVM or 2000mA for UCD90124EVM running a fan) wall adapter/laptop power supply (see J1 BOM description for receptacle size) and a PC. The USB-EVM cable is provided with the EVM. -
Page 4: Evm Layout View
RAIL 3 ,4 CONFIG INT/EXT / T MON & INT/EXT / I MON & MARGIN CONFIG MARGIN CONFIG Figure 2. UCD90120/4 EVM View Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... -
Page 5: Evm Block Diagram
Quick Start www.ti.com EVM Block Diagram Figure 3. UCD90120/4 EVM Block Diagram SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... -
Page 6: Ucd90120/4 Evm Gui Setup
UCD90120/4 EVM GUI Setup UCD90120/4 EVM GUI Installation The UCD90120 and UCD90124 EVMs use the Texas Instruments Fusion Digital Power Designer graphical user interface (GUI) which may be downloaded from the following web site: http://focus.ti.com/docs/toolsw/folders/print/fusion_digital_power_designer.html Place the TI-Fusion-Digital-Power-Designer-zip file in a known location on the PC. Unzip the TI-Fusion-Digital-Power-Designer-zip file. -
Page 7: Ucd90120/4 Evm Gui Operation
PC prior to making changes. 3.2.1 Launch TI-Fusion-Digital-Power-Designer Navigate to the location where the Fusion GUI is installed and (Start, All Programs, Texas Instruments Fusion Digital Power Designer, Fusion Digital Power Designer) and start it. A window similar to the following will appear. - Page 8 Most of the GUI control features are available from the Configure window. Monitor and Status information is available from the respective buttons on the GUI lower left. A typical Monitor window is shown below. Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback Copyright ©...
-
Page 9: General Use Features
MON10 fault switch FAULT – MON11 MON11 fault switch FAULT – MON12 MON12 fault switch R186 TEMP MON Fan temperature simulator SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... -
Page 10: Evm Leds
VR4 ON VR5 ON VR6 ON VR7 ON VR8 ON VR9 ON VR10 VR10 ON VR11 VR11 ON VR12 VR12 ON Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... -
Page 11: Evm Test Points
TP55 TP24 GPIO1 TP25 GPIO2 TP26 GPIO3 TP27 GPIO4 TP32 GPIO13 TP66 GPIO14 (SCI-TX) TP65 GPIO15 (SCI-RX) TP44 GPIO16 TP48 GPIO17 SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... - Page 12 MON13 TP63 TP64 TEMP POT WIPER TP67 LA CLOCK TP68 SM-SLV TP69 SM-SLV TP70 SM-SLV TP71 SM-SLV TP72 SM-SLV TP73 SM-SLV Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
-
Page 13: Evm Test Jumpers
1L 1E MON1 source select E2 L2 T1 MON2 source select E3 L3 C1 MON3 source select 4L 4E MON4 source select SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... - Page 14 R6_EN VR6 enable R7_EN VR7 enable R8_EN VR8 enable R9_EN VR9 enable R10_EN VR10 enable R11_EN VR11 enable R12_EN VR12 enable Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
-
Page 15: Description
The L3P3V jumper (J4) is installed to provide a connection to the 3P3V node. 5.2.4 V33D The V33D node is connected to the UCD90120/4 digital and analog supply pins. V33D can be sourced by 3P3V or Local V33D using the J5 jumper. D9 will illuminate when V33D is present. 5.2.5 Local 3.3V... -
Page 16: Test/Debug And Status
GPI1-4 can be pulled up or down with a 10kΩ resistor using jumpers. Analog Monitor Inputs The UCD90120/4 monitor inputs MON1-13 can be used to monitor onboard or off board voltages. Jumpers are used to select the analog source. 5.5.1 MON1 and MON4–MON11... -
Page 17: Local Voltage Rails
A basic procedure to add temperature monitoring to rail #1, starting with the EVM default configuration will follow. Ensure that rail #1 is selected in the upper right corner. SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... - Page 18 Description www.ti.com • While in the Configure section of the GUI, select the Pin Assignment tab Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
- Page 19 Delete the current pin assignment for MON2, then add a temperature pin assignment to MON1 • Choose MON2 then the GUI will switch back to the Pin Assignment tab. SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
- Page 20 Press the Write to Hardware Button and OK the window below. Fusion will restart. • Once Fusion restarts, press the Store RAM to flash and accept the response. Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback...
-
Page 21: Input Current Monitoring
A basic procedure to add current monitoring to rail #1, starting with the previously modified (adding temperature) configuration will follow. Ensure that rail #1 is selected in the upper right corner. SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... - Page 22 Description www.ti.com • While in the Configure section of the GUI, select the Pin Assignment tab Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
- Page 23 Delete the current pin assignment for MON3 and add a current pin assignment to MON1. • Choose MON3 then the GUI will switch back to the Pin Assignment tab. SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
- Page 24 Press the Write to Hardware Button and OK the window below. Fusion will restart. • Once Fusion restarts, press the Store RAM to flash and accept the response. Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback...
-
Page 25: Closed Loop Voltage Margining
(SLVA375). Ensure that rail #1 is selected in the upper right corner. NOTE: Ensure that S10 (STAT LED) is in the EN position. SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... - Page 26 Description www.ti.com • While in the Configure section of the GUI, select the Pin Assignment tab Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
- Page 27 Delete the pin assignment for FPWM1 and select Margin on rail #1 • Choose FPWM1 then the GUI will switch back to the Pin Assignment tab. SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
- Page 28 Press the Write to Hardware button and OK the window below (note that the window below may not always be present depending on the version of the GUI used. Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback...
- Page 29 Navigate to the GUI Monitor tab with rail #1 selected and toggle the margin window none-low-high-none switches. Note that rail #1 voltage margins. SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated...
-
Page 30: 5.10 Fan Interface
TP54 (TEMP MON) through MON12. Install a shunt in the 12E position of J61 and install J71 (EVR12). The potentiometer voltage can be varied from 0 to approximately 4.2V. This voltage is scaled by 2 before being sampled at MON12. Evaluation Module for UCD90120 and UCD90124 SLVU347 – December 2009 Submit Documentation Feedback... -
Page 31: Bill Of Materials
Bill of Materials www.ti.com Bill of Materials Table 6. UCD90120/4EVM Bill of Materials Count RefDes Value Description Size Part Number UCD90124EVM UCD90120EVM C1, C16 330 µF Capacitor, Aluminum, 16V, ±20% 0.328 × 0.328 inch EEE-FK1C331P Panasonic C12, C13, C15 4.7 µF... - Page 32 Bill of Materials www.ti.com Table 6. UCD90120/4EVM Bill of Materials (continued) Count RefDes Value Description Size Part Number UCD90124EVM UCD90120EVM MBRA130 Diode, Schottky, 1A, 30V MBRA130 1SMB5922BT3G Diode, Zener, 7.5V, 3W 1SMB5922BT3G On Semi D8, D10, D12, D13, LN1471Y Diode, LED, Amber, 20-mA, 0.4-mcd 0.114 ×...
- Page 33 Bill of Materials www.ti.com Table 6. UCD90120/4EVM Bill of Materials (continued) Count RefDes Value Description Size Part Number UCD90124EVM UCD90120EVM R11, R110, R111, 15.0K Resistor, Chip, 1/16W, 1% 0603 R134, R135, R144, R145, R166, R167, R238 R116 Resistor, Chip, 1/10W, 1%...
- Page 34 Bill of Materials www.ti.com Table 6. UCD90120/4EVM Bill of Materials (continued) Count RefDes Value Description Size Part Number UCD90124EVM UCD90120EVM R26, R53 Resistor, Chip, 1/16W, 1% 0603 R27, R29 4.02K Resistor, Chip, 1/16W, 1% 0603 R3, R5, R6, R7, R9,...
- Page 35 Bill of Materials www.ti.com Table 6. UCD90120/4EVM Bill of Materials (continued) Count RefDes Value Description Size Part Number UCD90124EVM UCD90120EVM Resistor, Chip, 1W, 5% 2512 Resistor, Chip, 1/2W, 1% 2010 R77, R78 Resistor, Chip, 1/16W, 1% 0603 31.6K Resistor, Chip, 1/16W, 1% 0603 14.3K...
- Page 36 Bill of Materials www.ti.com Table 6. UCD90120/4EVM Bill of Materials (continued) Count RefDes Value Description Size Part Number UCD90124EVM UCD90120EVM SN74CBTLV3125DBQ IC, Low Voltage Quad FET Bus Switch TSSOP-16 SN74CBTLV3125DBQ TUSB3210PM IC, USB, General Purpose Device Controller PQFP-64 TUSB3210PM** TPS76333DBV...
-
Page 37: Layout Guidelines, Evm Schematic, And Assembly Drawings
The searchable PDF of the schematic is appended to this User's Guide. Assembly Drawings The assembly drawings are appended to this User's Guide. The topside and bottomside component layouts are searchable. SLVU347 – December 2009 Evaluation Module for UCD90120 and UCD90124 Submit Documentation Feedback Copyright © 2009, Texas Instruments Incorporated... - Page 38 Evaluation Board/Kit Important Notice Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards.
- Page 39 AVSS1 V33FB AVSS2 AVSS3 V33A TPAD V33D DVSS1 V33DIO1 DVSS2 V33DIO2 DVSS3 BPCAP...
- Page 43 R1 EN GPIO1 3.3V R2 EN GPIO2 3.3V TP12 TACH PU R3 EN FPWM5 GPIO3 2/3W R4 EN TACH GPIO4 FAULT R5 EN R6 EN R7 EN R120 R8 EN FAULT R5 EN R203 R202 R251 R245 R6 EN R254 R243 R250 R194...
- Page 44 Layer 2 Routing...
- Page 45 Layer 3 Routing...
- Page 46 Bottom Layer Placement/Routing R165 R169 R175 R236 R239 R161 R227 R163 R141 R147 R153 R159 R234 R223 R253 R244 R143 R127 R137 R221 R139 R219 R232 R258 R157 R246 R133 R105 R113 R125 R155 R230 R191 R190 R224 R115 R225 R233 R164 R168...
