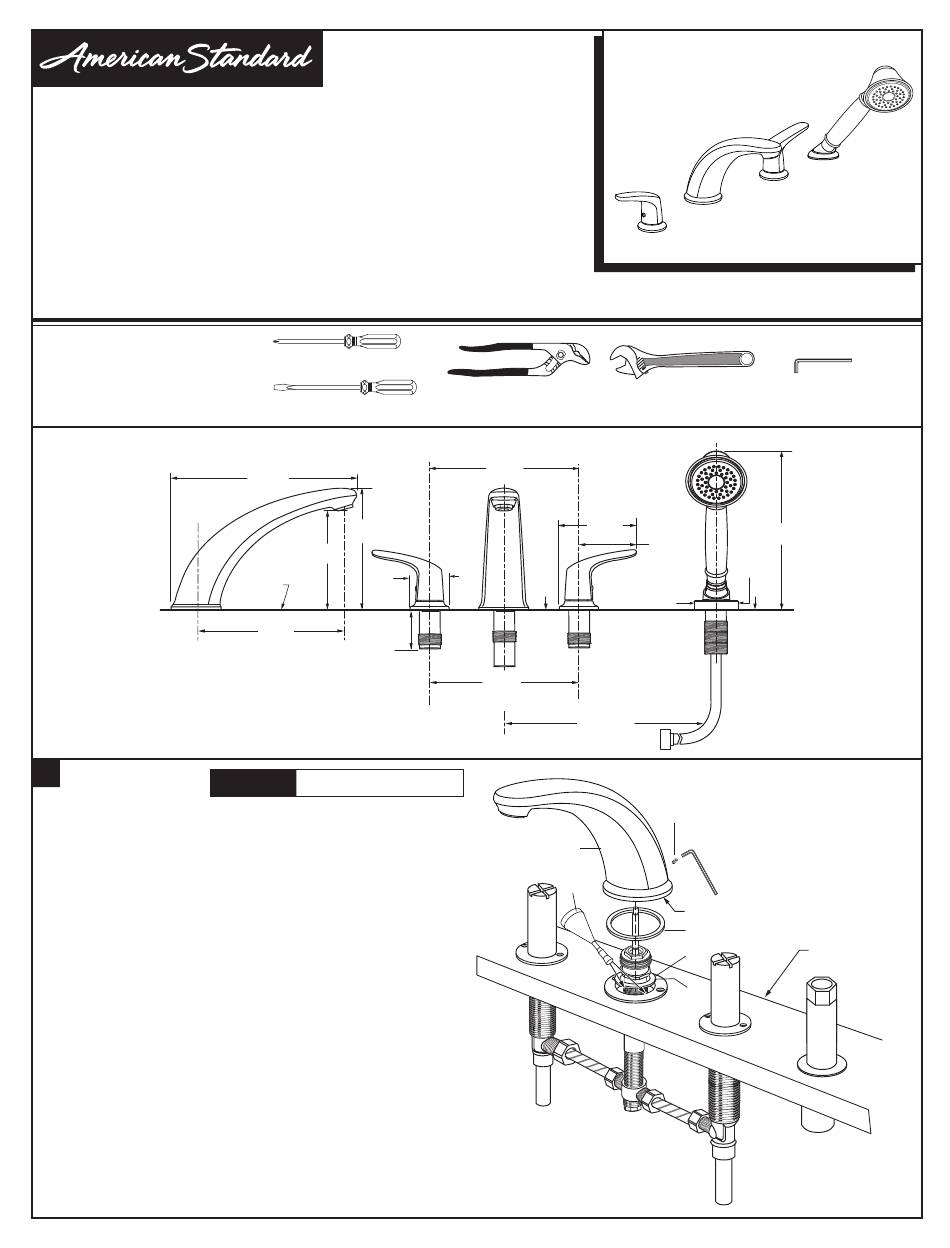

American Standard Colony Pro T075920 Installation Instructions

Colony Pro
®
Roman Tub Filler
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.

RECOMMENDED TOOLS

ROUGHING-IN
DIMENSIONS
1

INSTALL SPOUT

• Apply 4-5 drops of THREADLOCKER (1)
on DIVERTER INSERT (2) threads (supplied).
NOTE: If installing on finished deck, install DIVERTER
INSERT (2) through WASHER (7).
• Thread DIVERTER INSERT (2) carefully until it touches the
installation surface, be sure the RUBBER RING (5)
is properly seated in it's RECESS at the base of the
SPOUT (3).
• Thread SET SCREW (4) using 5 mm hex wrench supplied.
Make certain SET SCREW (4) is properly aligned and tight
so that SPOUT (3) is locked in place.
• Install PLUG BUTTON (6).
