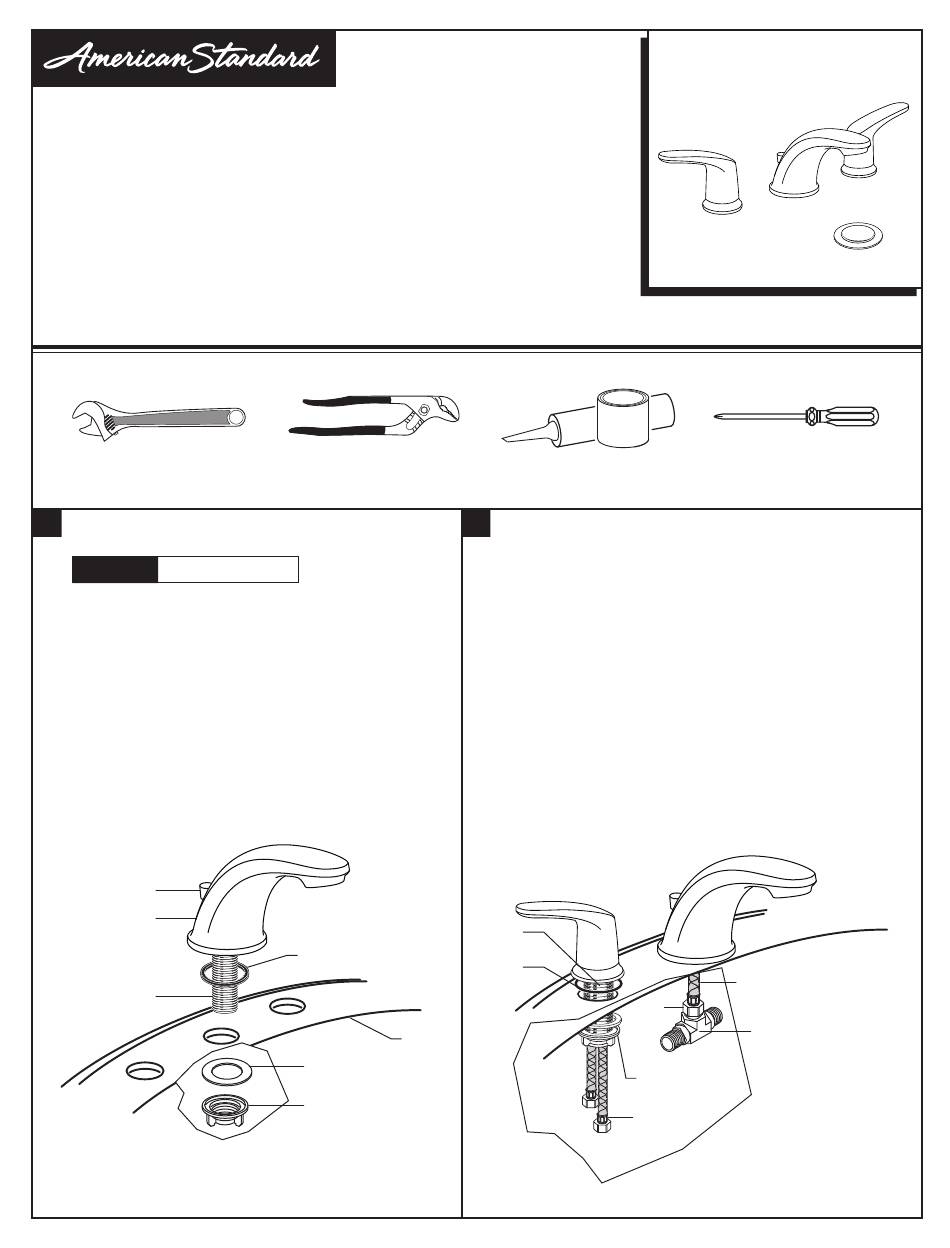

American Standard COLONY PRO 7075.800 Installation Instructions

COLONY PRO
®
WIDESPREAD LAVATORY FAUCET
Thank you for selecting American Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please
read these instructions carefully before you begin.
RECOMMENDED TOOLS
Adjustable Wrench
1
INSTALL SPOUT
Turn off hot and cold water
CAUTION
supplies before beginning.
• Insert SPOUT SHANK (1) through center hole of
SINK (2), making sure RUBBER RING (3) is properly
positioned.
• Assemble FRICTION WASHER (4) and LOCKNUT (5)
onto threads of SPOUT SHANK (1) from underside
of SINK (2).
• Insert LIFT ROD (6) through SPOUT (7). Align SPOUT
(7) and tighten LOCKNUT (5).
6
7
1
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2016
INSTALLATION
INSTRUCTIONS
Channel Locks
2
3
2
4
5
- 1 -
7075.800
7075.802
Plumbers' Putty
or Caulking
VALVE INSTALLATION
• Insert VALVE BODY (2), RUBBER RING (3), and two
hoses through the side hole of the sink.
• From under sink tighten LOCK NUT (1) to secure
VALVE BODY (2).
• Connect TEE ASSEMBLY (4) to HOSE (5).
Tighten COUPLING NUT (6).
• Tighten SPOUT BODY SUPPLY HOSES (7) to TEE
ASSEMBLY (4).
2
3
6
1
7
Certified to comply with ANSI A112.18.1M
Phillips Screwdriver
5
4
M965765 Rev. 1.0 (4/19)
